Hammond 1590GFBK 100x50x25mm Black Diecast Box, Welded Base Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded bottom flange, 124.46 mm [4.900 in] overall length
- 3.96 mm [.156 in] mounting holes on 113.18 mm [4.456 in] centres
- Textured black polyester powder paint; black screws included
- Nominal 100 x 50 x 25 mm (3.94 x 1.97 x 1 in) diecast aluminum
- IP54 lap joint construction; IP65 with 1590GGASKET kit
- Max. P.C. board 94.23 x 44.23 mm; 21.00 mm inside height
- RoHS and REACH compliant; 0.28 lbs (0.13 kg)

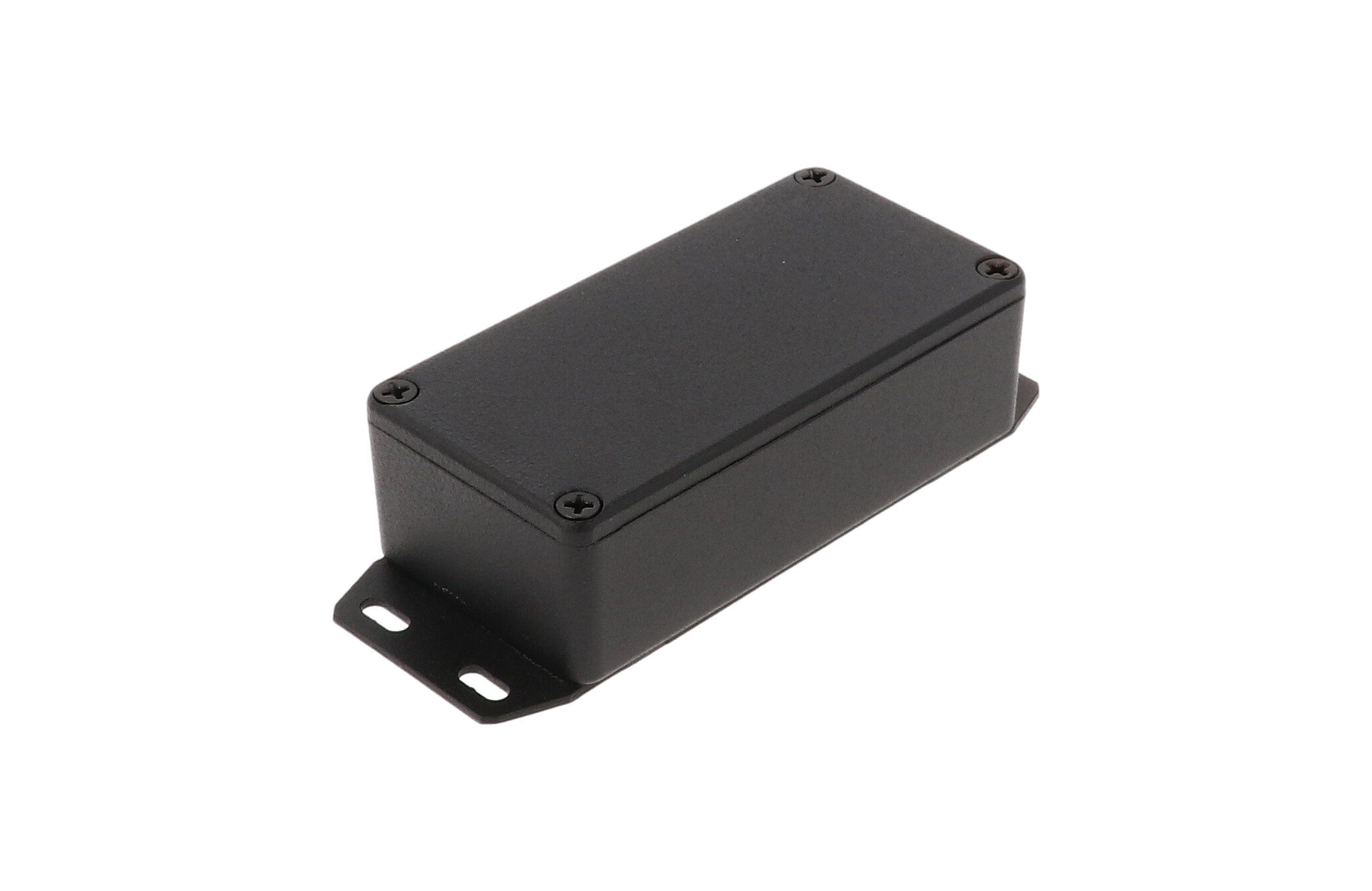

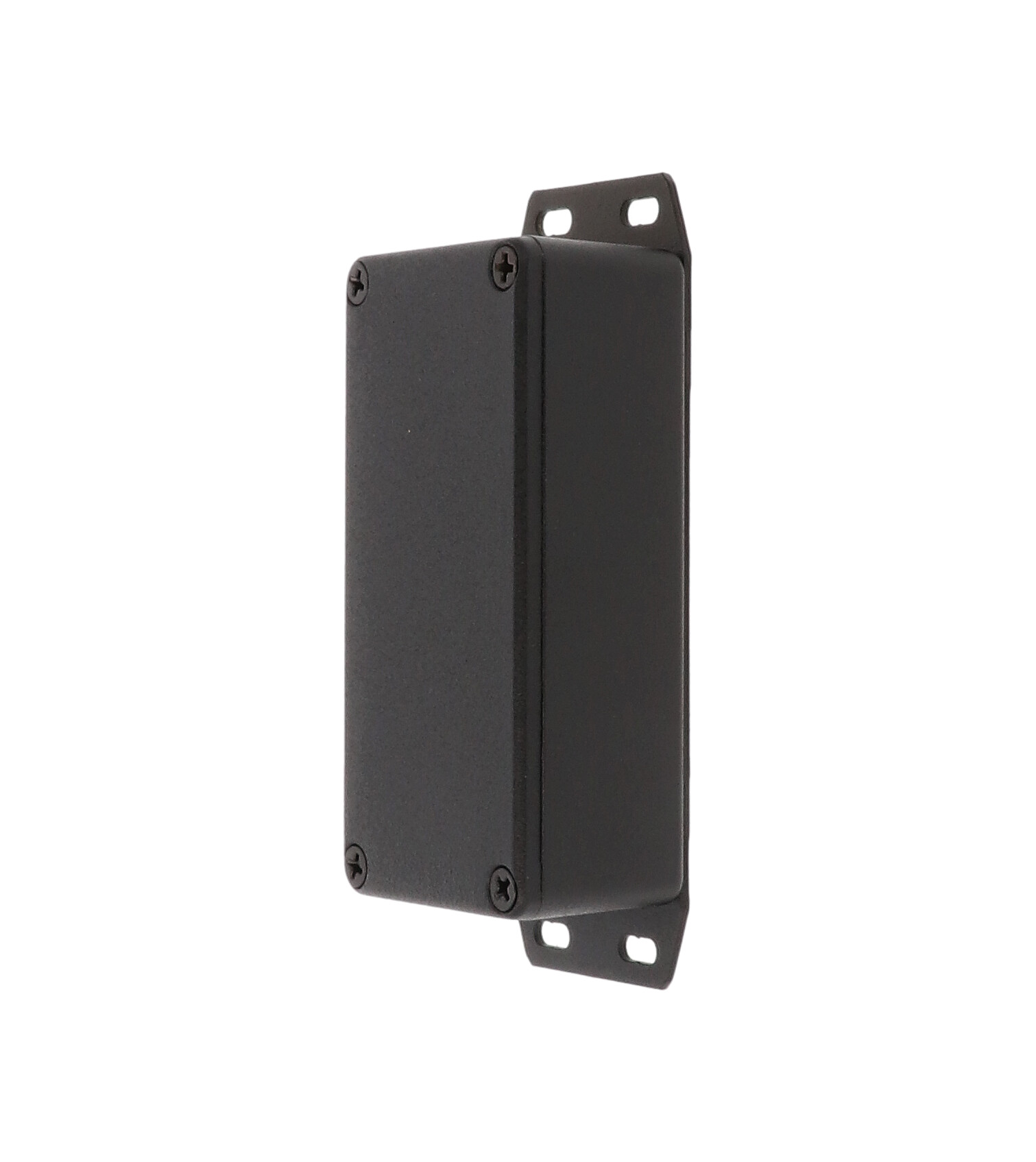

The 1590GFBK is the textured black, bottom-flanged version of the 1590G diecast aluminum enclosure. Nominally 3.94 in x 1.97 in x 1 in (100 mm x 50 mm x 25 mm), it gives equipment builders, installers and OEM engineers a small, finished metal housing that can be screwed down to a wall, panel or chassis.
According to the drawing, the welded bottom flange makes the part 124.46 mm [4.900 in] long overall and 27.00 mm [1.063 in] high. Two mounting holes of 3.96 mm [.156 in] diameter sit on 113.18 mm [4.456 in] centres. The interior is 95.23 mm [3.749 in] long, 45.23 mm [1.781 in] wide and 21.00 mm [.827 in] high, accepting P.C. boards up to 94.23 x 44.23 mm.
Construction is diecast aluminum alloy, coated with a tough textured black polyester powder paint that keeps a lasting finish even after machining. Black screws are included for a consistent appearance. The lap joint where lid meets box protects against dust and splashing water, and the enclosure is designed to meet IP54. Side walls have a draft angle of 2° or less.

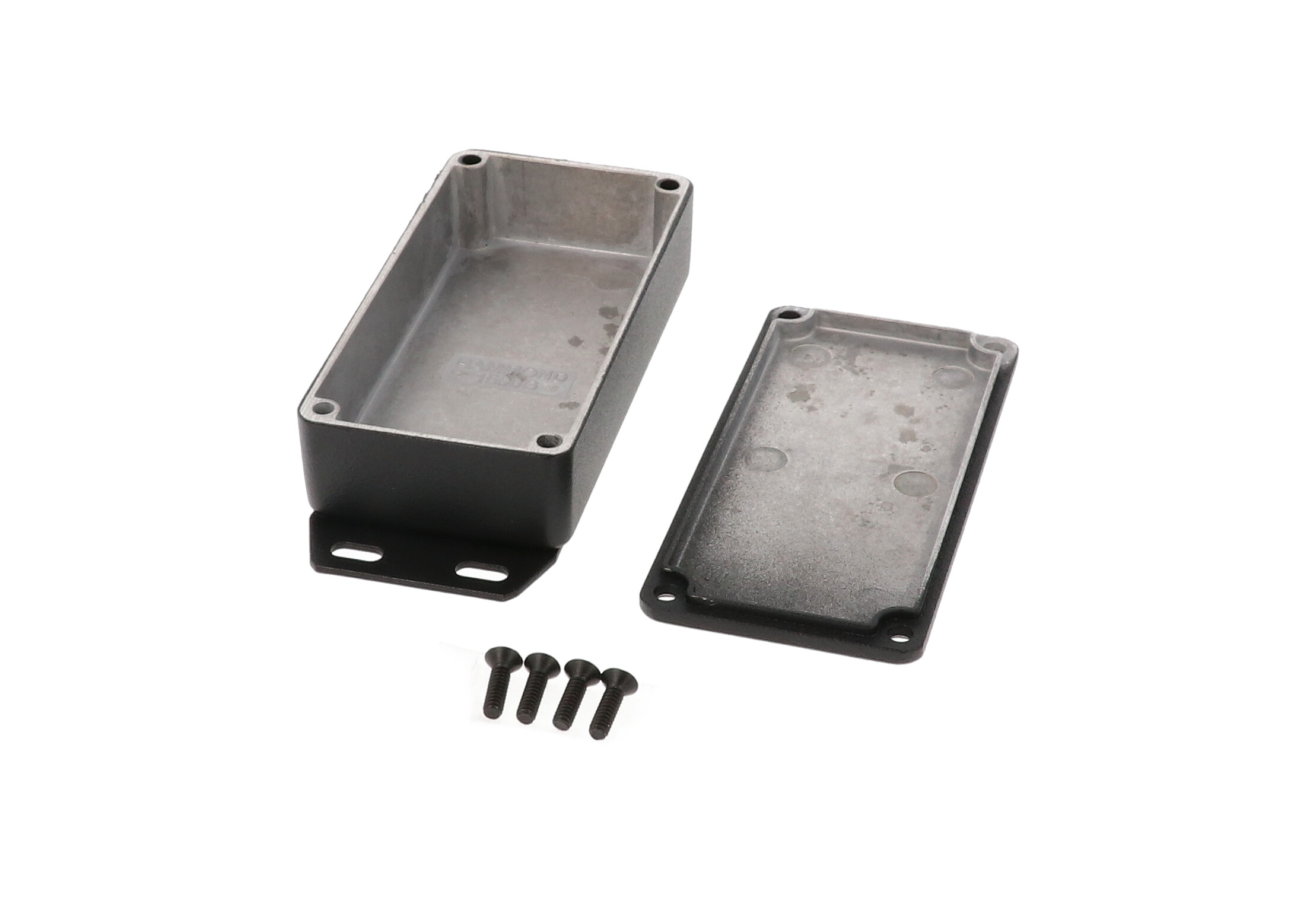

Each 1590GFBK ships shrink wrapped with box, lid and four 6-32 UNC cover screws, torqued at 50-55 cN.m [71-78 ozf.in]. The water-tight black equivalent is 1590WGFBK; the 1590GGASKET kit also converts this box to IP65. RoHS and REACH compliant.
Ideal For
- Wall- or chassis-mounted instrument housings
- Black-finish control and interface boxes
- Compact P.C. board enclosures
- Dust- and splash-resistant electronics
Other
| Solid Models | Available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Screw Color | Black screws included |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Replacement Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" with O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" with O-Ring] |
Mounting
| Flange Type | Welded bottom flange |
| Flange Mounting Hole Spacing (Drawing) | 113.18 mm [4.456 in] |
| Flange Mounting Hole Diameter (Drawing) | 3.96 mm [.156 in] |
Overview
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures (General Purpose, Wall-Mounting, Water-Tight, Colors) |
| Version | Standard |
| Description | 100 X 50 X 24MM FLGD BOX BLACK |
| Product Type | Die-cast box, flanged |
| Mounting Style | w/ Flanged Bottom Plate |
| Long Description | enclosure - diecast |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Max. P.C. Board Width | 94.23 mm |
| Inside Width (Drawing) | 45.23 mm [1.781 in] |
| Max. P.C. Board Length | 44.23 mm |
| Width (Ordering Table) | 1.97 in (50 mm) |
| Height (Ordering Table) | 1.02 in (26 mm) |
| Inside Height (Drawing) | 21.00 mm [.827 in] |
| Inside Length (Drawing) | 95.23 mm [3.749 in] |
| Length (Ordering Table) | 3.94 in (100 mm) |
| Nominal Size (L X W X H) | 3.94 in x 1.97 in x 1 in (100 mm x 50 mm x 25 mm) |
| Overall Height With Bottom Flange (Drawing) | 27.00 mm [1.063 in] |
| Overall Length Including Bottom Flange (Drawing) | 124.46 mm [4.900 in] |
Identifiers
| UPC | 623980759289 |
| UNSPSC | 39121301 |
| Part Number | 1590GFBK |
Related Versions
| Flanged Lid (Black) | 1590GFLBK |
| No Mounting Flanges (Black) | 1590GBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.28 lbs (0.13 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Version | 1590WGBK |
| Optional Replacement Gasket Kit | 1590GGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What makes the 1590GFBK different from the 1590GBK?▾
The 1590GFBK adds a welded bottom mounting flange, giving an overall length of 124.46 mm [4.900 in] with holes on 113.18 mm [4.456 in] centres.
What colour are the screws?▾
Black screws are included with the textured black version.
What is the inside height?▾
21.00 mm [.827 in], per the manufacturer drawing.
Is a water-tight black flanged version available?▾
Yes, 1590WGFBK is the water-tight version of this enclosure.
Which gasket kit fits?▾
1590GGASKET, a two-pack of pre-formed silicone gaskets with adhesive backing.
Related Products

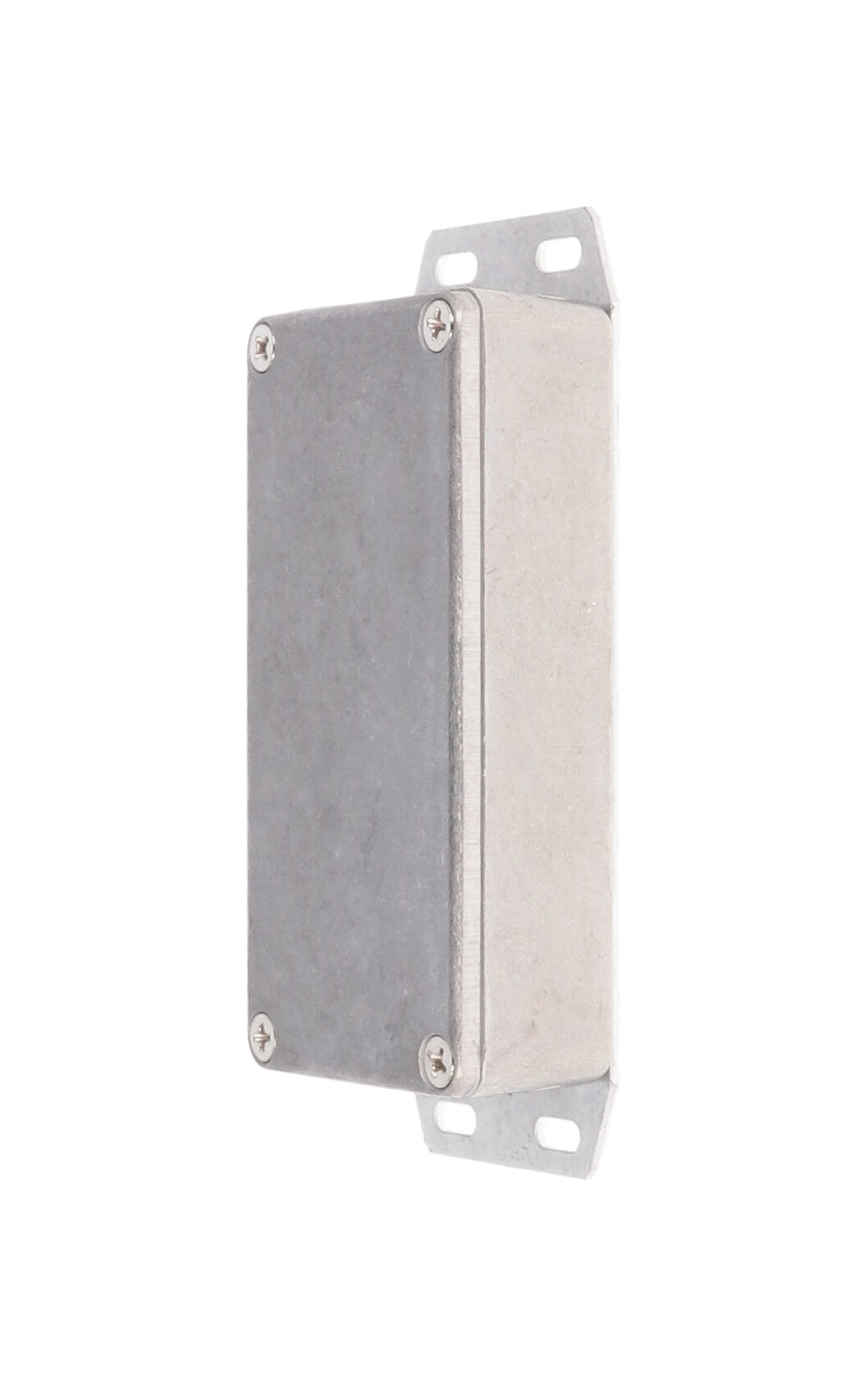

Save 52%1590GF — enclosure - diecast
Hammond Manufacturing · 1590GF
Save 52%1590GFL — enclosure - diecast
Hammond Manufacturing · 1590GFL

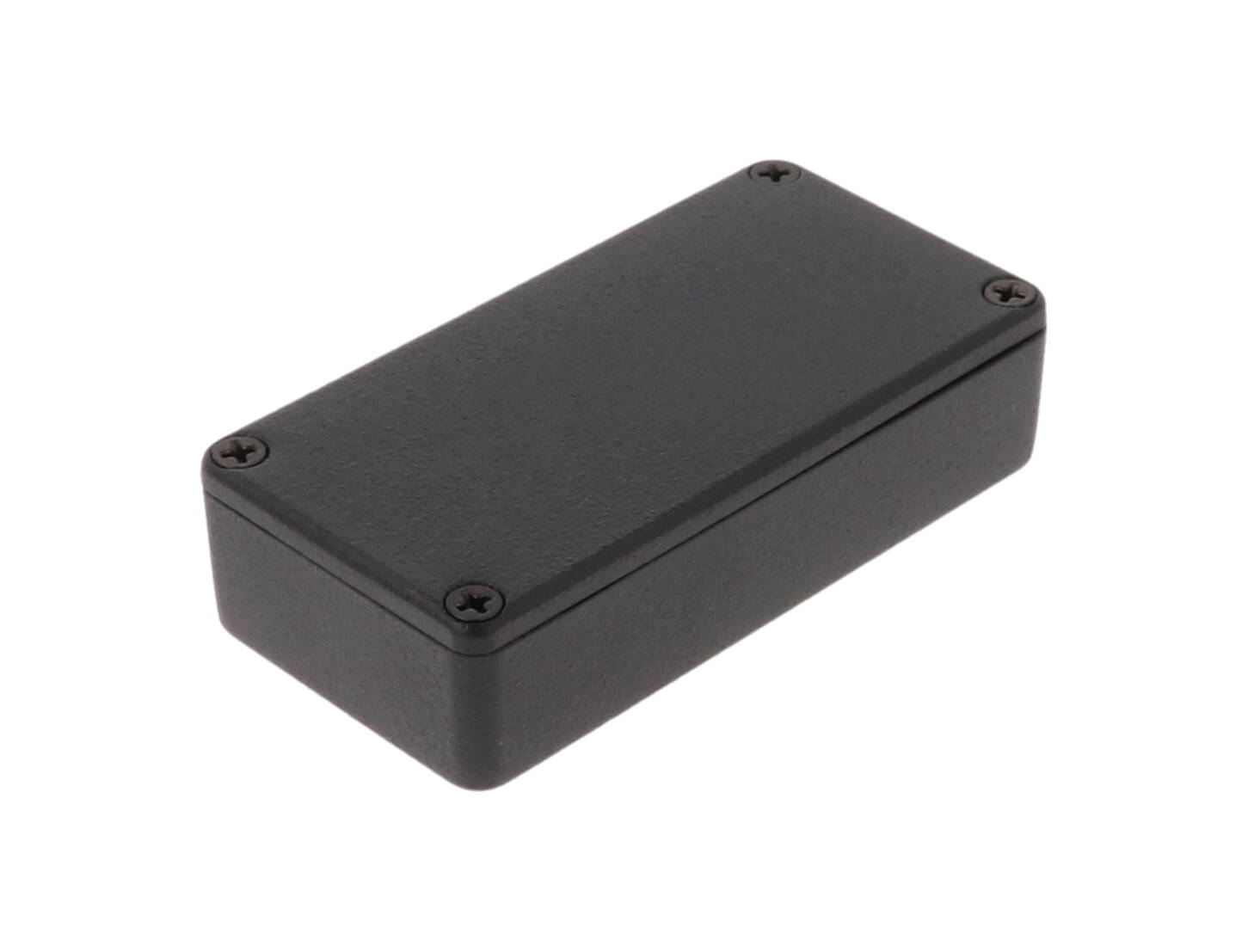

Save 52%1590GBK — enclosure - diecast
Hammond Manufacturing · 1590GBK
Save 52%1590GFLBK — enclosure - diecast
Hammond Manufacturing · 1590GFLBK

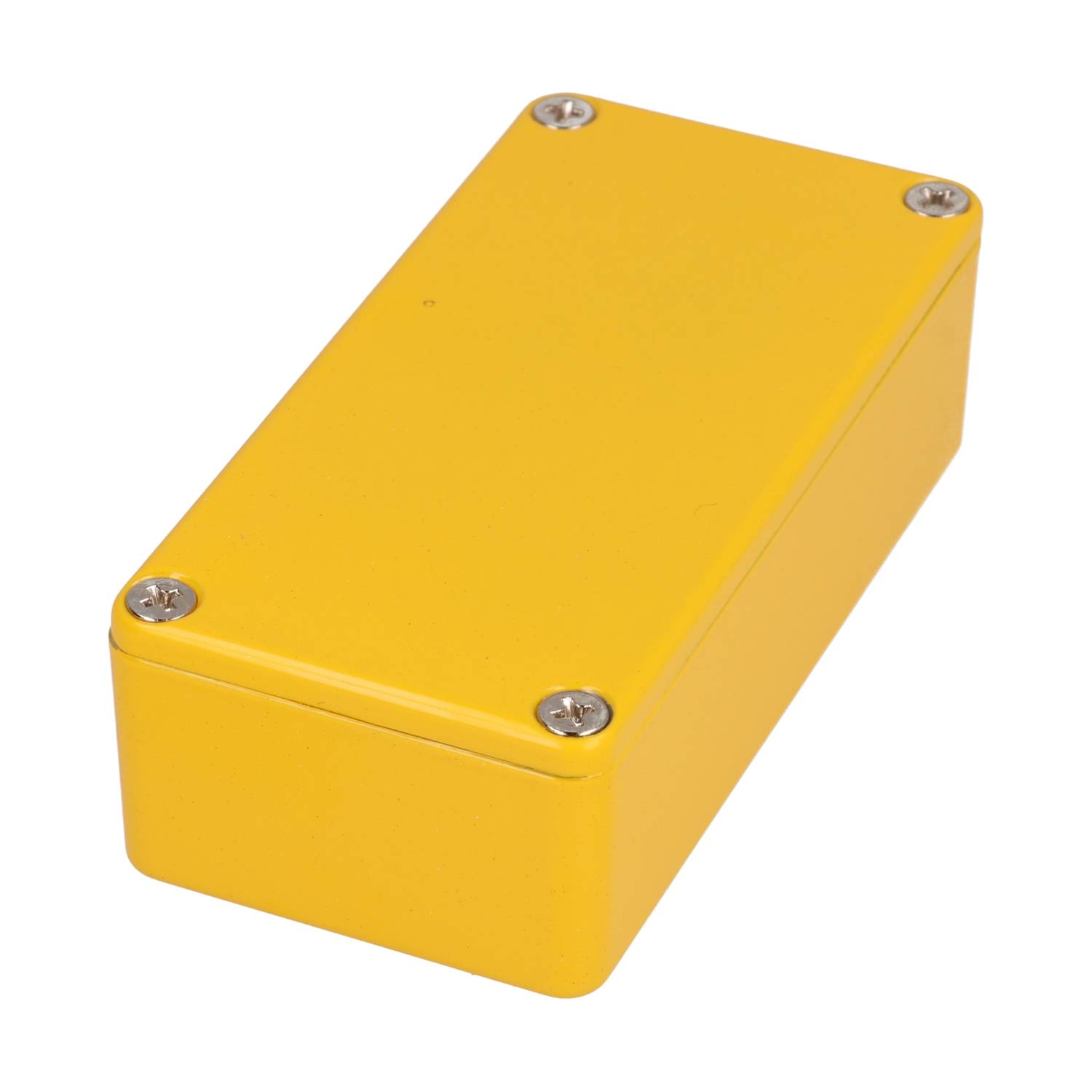

Save 52%1590G2YL — enclosure - diecast
