Hammond 1590G2FL 100x50x31mm Diecast Aluminum Box with Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid; 126.50 mm overall length
- Lid mounting holes on 113.00 mm [4.449 in] centres
- Nominal 100 x 50 x 31 mm (3.94 x 1.97 x 1.22 in) diecast aluminum
- Inside 94.82 x 44.82 x 26.70 mm; max. P.C. board 93.82 x 43.82 mm
- Natural unpainted vibra finish, no sharp edges
- IP54 lap joint; IP65 via 1590WG2FL or 1590GGASKET
- Four 6-32 UNC cover screws included

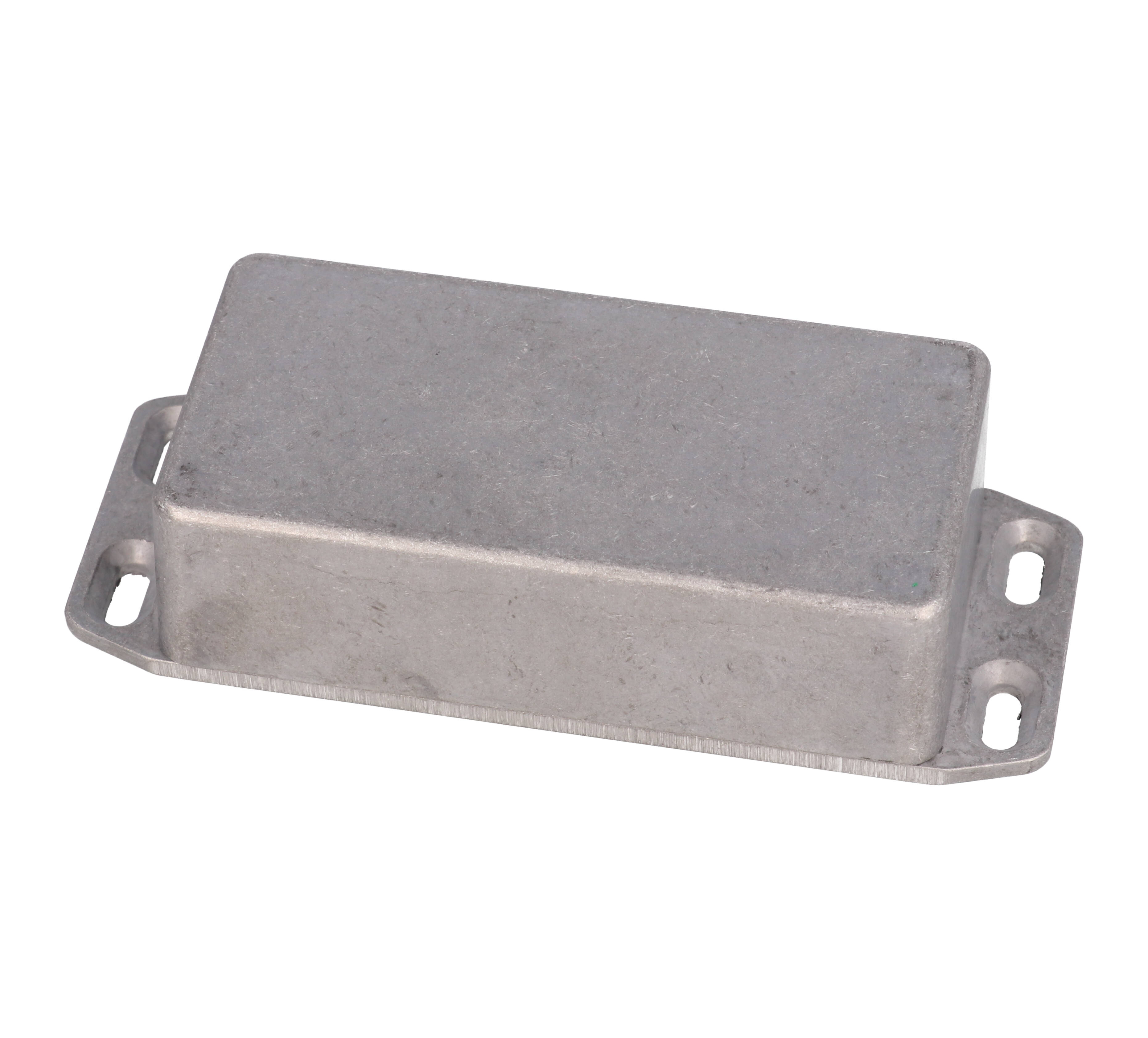

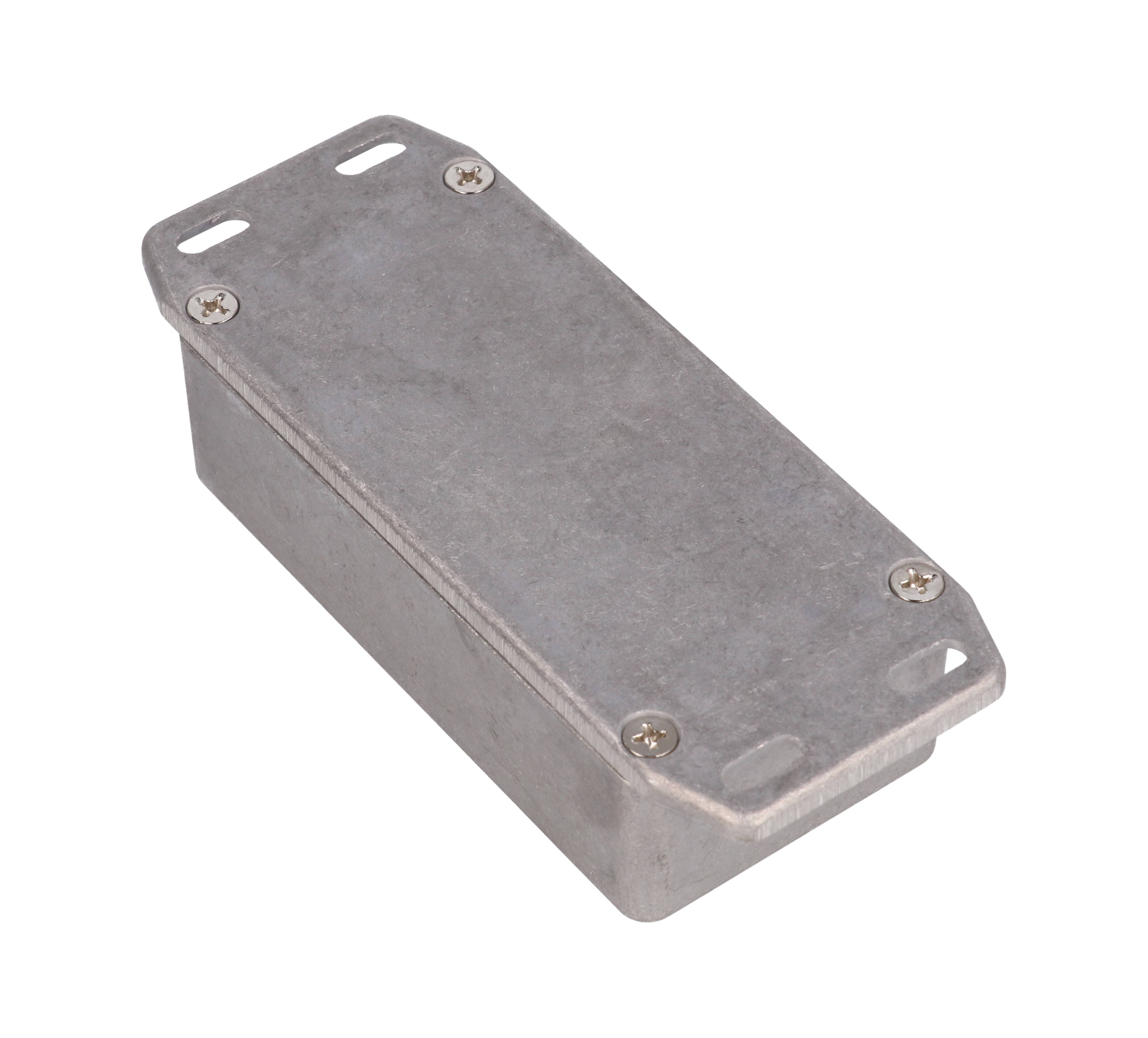

The 1590G2FL is the 1590G2 diecast aluminum enclosure, nominally 3.94 in x 1.97 in x 1.22 in (100 mm x 50 mm x 31 mm), with a wall-mounting flange integrated into the lid. It is a practical choice for installers and product builders who want to mount the enclosure by its lid against a wall or panel.
The drawing shows an overall length of 126.50 mm [4.980 in] across the lid flange, lid mounting holes on 113.00 mm [4.449 in] centres and an overall height of 31.00 mm [1.220 in]. Inside dimensions are 94.82 mm [3.733 in] long, 44.82 mm [1.764 in] wide and 26.70 mm [1.051 in] high; maximum P.C. board size is 93.82 x 43.82 mm.
Box and lid are diecast aluminum alloy, tough yet easy to machine. This natural version is unpainted and vibra finished with a smooth surface and no sharp edges. The lap joint where lid meets box protects against dust and splashing water, the enclosure is designed to meet IP54, and side walls have a draft angle of 2° or less.

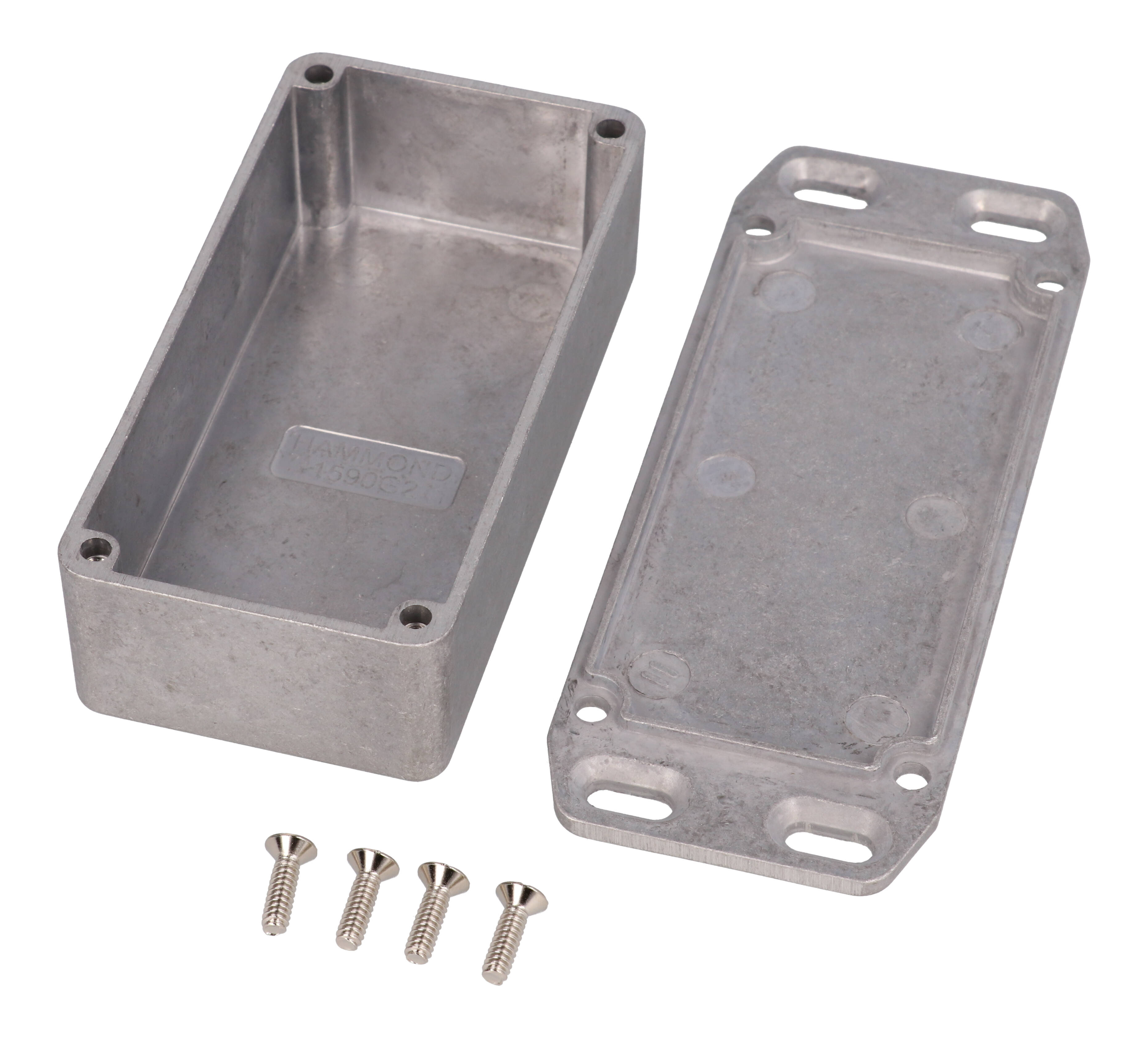

The 1590G2FL comes shrink wrapped with box, lid and four 6-32 UNC cover screws (recommended torque 50-55 cN.m [71-78 ozf.in]). The water-tight version is 1590WG2FL; the 1590GGASKET kit also upgrades it to IP65. RoHS and REACH compliant, 0.26 lbs (0.12 kg).
Ideal For
- Wall-mounted instrument housings
- Panel-mounted electronics
- P.C. board housings needing extra height
- Dust- and splash-resistant equipment
Other
| Solid Models | Available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Replacement Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" with O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" with O-Ring] |
Mounting
| Flange Type | Wall-mounting flange integrated into lid |
| Lid Flange Mounting Hole Spacing (Drawing) | 113.00 mm [4.449 in] |
Overview
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures (General Purpose, Wall-Mounting, Water-Tight, Colors) |
| Version | Standard |
| Description | 100 X 50 X 31MM ENCL FLANG LID |
| Product Type | Die-cast box, flanged |
| Mounting Style | w/ Flanged Lid |
| Long Description | enclosure - diecast |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Max. P.C. Board Width | 93.82 mm |
| Inside Width (Drawing) | 44.82 mm [1.764 in] |
| Max. P.C. Board Length | 43.82 mm |
| Width (Ordering Table) | 1.97 in (50 mm) |
| Height (Ordering Table) | 1.22 in (31 mm) |
| Inside Height (Drawing) | 26.70 mm [1.051 in] |
| Inside Length (Drawing) | 94.82 mm [3.733 in] |
| Length (Ordering Table) | 3.94 in (100 mm) |
| Nominal Size (L X W X H) | 3.94 in x 1.97 in x 1.22 in (100 mm x 50 mm x 31 mm) |
| Overall Height (Drawing) | 31.00 mm [1.220 in] |
| Overall Length Including Lid Flange (Drawing) | 126.50 mm [4.980 in] |
Identifiers
| UPC | 623980810768 |
| UNSPSC | 39121301 |
| Part Number | 1590G2FL |
Related Versions
| No Mounting Flanges (Natural) | 1590G2 |
| Flanged Bottom Plate (Natural) | 1590G2F |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.26 lbs (0.12 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Version | 1590WG2 |
| Optional Replacement Gasket Kit | 1590GGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590G2FL mounted?▾
Through the wall-mounting flange integrated into its lid; the lid mounting holes are on 113.00 mm [4.449 in] centres.
What is the inside height?▾
26.70 mm [1.051 in], per the 1590G2FL drawing.
How long is it including the flange?▾
126.50 mm [4.980 in] overall.
Is there a water-tight version?▾
Yes, 1590WG2FL. This standard version is designed to meet IP54 and can be upgraded to IP65 with the 1590GGASKET kit.
Is a black version available?▾
Yes, 1590G2FLBK.
