Hammond 1590DFBK 188x119x56mm Black Aluminum Box, Welded Base Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint with matching black screws
- Welded bottom flange; overall length 216.64 mm including flange
- Inside space 178.86 x 111.61 x 51.00 mm
- Designed to meet IP54; IP65 with 1590EGASKET and 25-30 cN.m lid torque
- Six 6-32 UNC cover screws in factory-tapped holes
- Fits PC boards up to 177.86 x 109.61 mm
- RoHS and REACH compliant, 1.34 lb shipping weight

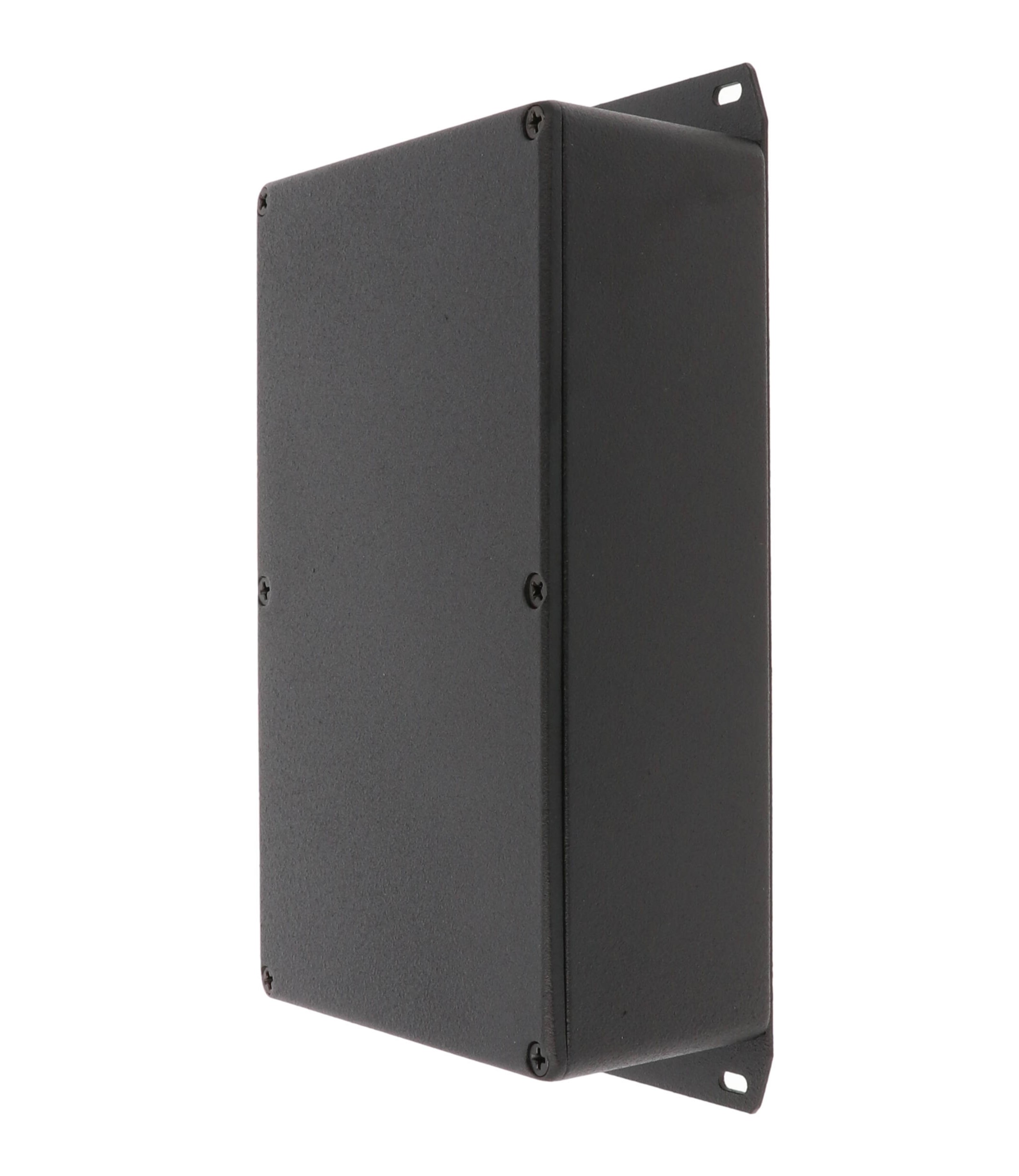

The 1590DFBK is the textured black, flanged-bottom version of the 1590D diecast aluminum enclosure (listed as "1590DBK with flange"). Its nominal size is 188 x 119 x 56 mm (7.39 x 4.7 x 2.2 in), and the welded flange plate lets electronics builders and installers bolt the box directly to a surface.
Both box and lid are diecast aluminum alloy coated in tough polyester powder paint, a finish that lasts even after machining. Black screws are included to suit the finish. A lap joint where the lid meets the box protects against dust and splashing water, and this standard version is designed to meet IP54.
- Overall length including bottom flange: 216.64 mm [8.529 in]
- Box body: 187.75 x 119.50 x 56.00 mm; height including flange 57.50 mm
- Inside: 178.86 x 111.61 x 51.00 mm [7.042 x 4.394 x 2.008 in]
- Maximum PC board: 177.86 x 109.61 mm
- Shipping weight: 1.34 lb (0.61 kg)
Six cover screws thread into factory-tapped 6-32 UNC holes; recommended torque is 50-55 cN.m, or 25-30 cN.m with a gasket. The 1590EGASKET kit upgrades the 1590DFBK to IP65, with black stainless steel O-ring screws available as 1590WMS100BK; the factory-gasketed version is 1590WDFBK.
RoHS and REACH compliant and shrink wrapped. The factory can mill, drill and print the enclosure, and STEP or IGES models are available.
Ideal For
- Surface-mounted electronics enclosures
- Black-finished instrument housings
- Equipment and chassis-mounted PC board boxes
- Dust- and splash-protected enclosures (IP54)
Overview
| Type | Die-cast box |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590DFBK |
| Mounting Style | Flanged bottom plate (bottom flange is welded) |
| Long Description | enclosure - diecast |
| Short Description | 1590DBK WITH FLANGE |
| Water-Tight Equivalent | 1590WDFBK (includes silicone gasket) |
Dimensions
| Box Width | 119.50 mm [4.705 in] |
| Box Height | 56.00 mm [2.205 in] |
| Box Length | 187.75 mm [7.392 in] |
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 111.61 mm [4.394 in] |
| Inside Height | 51.00 mm [2.008 in] |
| Inside Length | 178.86 mm [7.042 in] |
| Max. P.C. Board Width | 177.86 mm |
| Max. P.C. Board Length | 109.61 mm |
| Nominal Size (L X W X H) | 7.39 in x 4.7 in x 2.2 in (188 mm x 119 mm x 56 mm) |
| Height Incl. Bottom Flange | 57.50 mm [2.264 in] |
| Ordering Table Size (L X W X H) | 7.40 in (188 mm) x 4.72 in (120 mm) x 2.20 in (56 mm) |
| Overall Length Incl. Bottom Flange | 216.64 mm [8.529 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1590MS100 (plated, 6-32 x 1/2", pkg 100); 1590MS100BK (black, 6-32 x 1/2", pkg 100) |
| Replacement Gasket Kit | 1590EGASKET |
| Liquid Resistant Cover Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, 6-32 x 1/2" with O-ring, pkg 100) |
Identifiers
| UPC | 623980536965 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.34 lbs (0.61 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Bottom Flange | Welded |

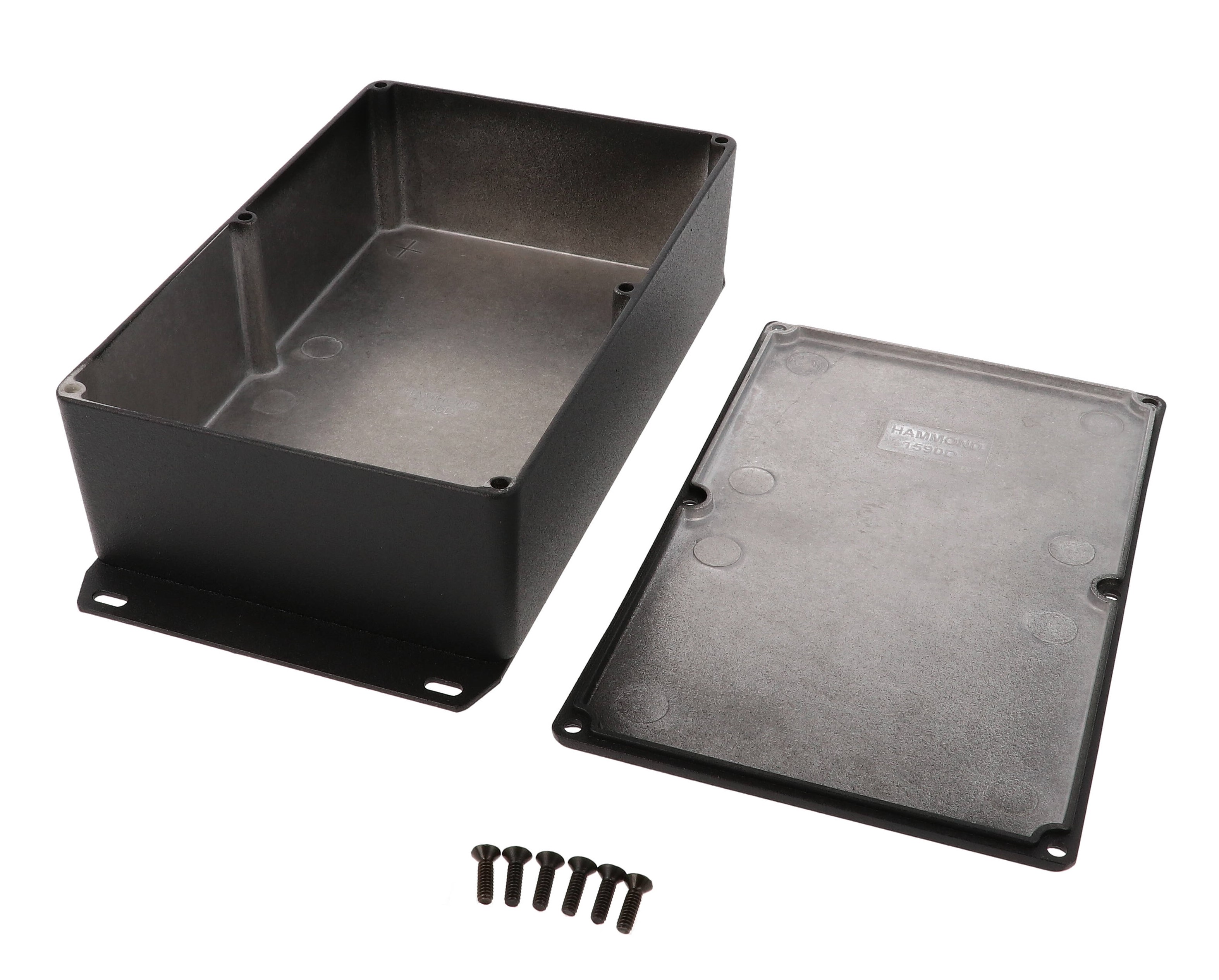

| Included Items | Box, lid and 6 cover screws (black screws) |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 6X 6-32 UNC, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590EGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between 1590DFBK and 1590DF?▾
They share the same size and welded bottom flange; 1590DFBK has a textured black polyester powder paint finish with black screws, while 1590DF is natural unpainted aluminum.
What is the overall footprint with the flange?▾
The drawing shows 216.64 mm [8.529 in] overall length including the bottom flange, with a box width of 119.50 mm.
Can the 1590DFBK be made IP65?▾
Yes. Install the 1590EGASKET silicone gasket kit and torque the lid screws to 25-30 cN.m. The factory-gasketed black version is 1590WDFBK.
What thread are the lid screw holes?▾
Six factory-tapped 6-32 UNC holes; the six screws are included.
