Hammond 1590DEGASKET DE/EE Silicone Lid Gasket Kit, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two pre-formed silicone gaskets per pack
- Fits 1590DE, 1590DEBK, 1590EE and 1590EEBK enclosures
- Designed to meet IP65 with lid screws torqued to 25-30 cN.m (36-43 ozf.in)
- Adhesive backing; applied to the lid
- Machine or paint the enclosure first, gasket it later
- Temperature rating -40°C to 150°C (-40°F to 302°F)
- RoHS and REACH compliant

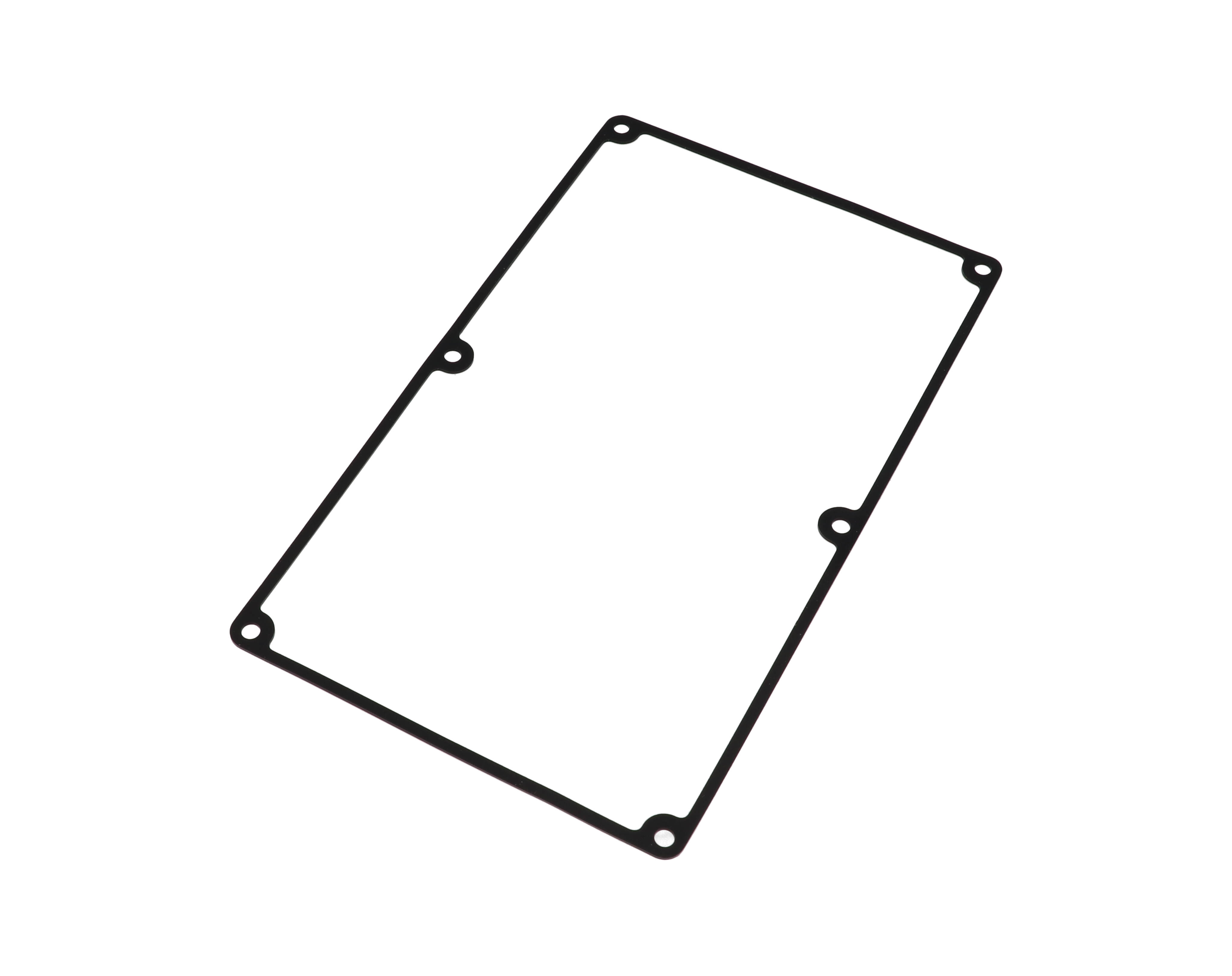

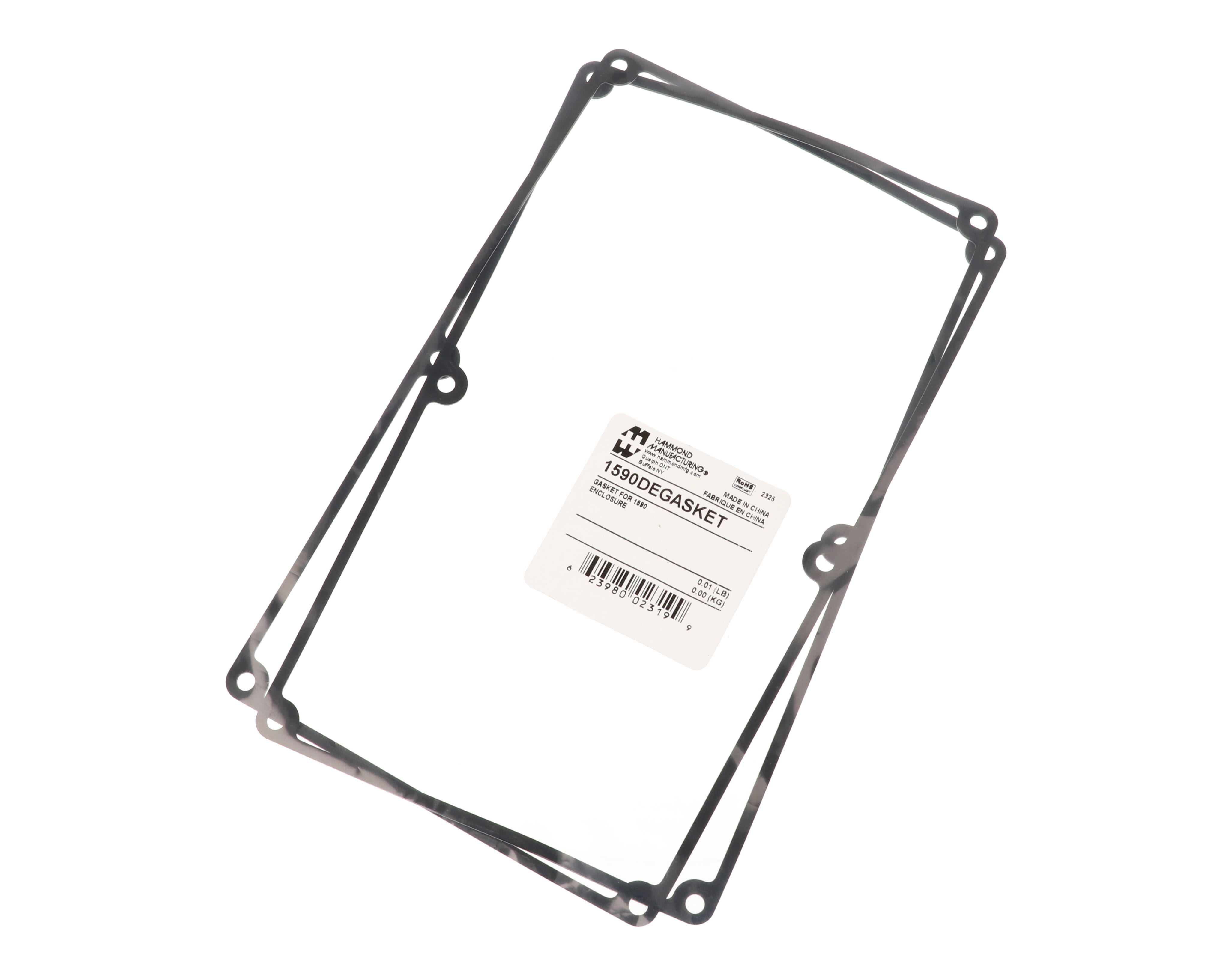

The 1590DEGASKET is a two-pack of pre-formed silicone gaskets for the 200 x 120 mm diecast aluminum enclosures in the 1590 Series. It lets builders and OEMs upgrade a standard IP54 enclosure to an IP65 design, or replace the gasket in a water-tight box.
According to the series ordering table, this is the optional replacement gasket kit for the 1590DE and 1590DEBK (200 x 120 x 64 mm) and the 1590EE and 1590EEBK (200 x 120 x 85 mm), as well as their water-tight counterparts 1590WDE, 1590WDEBK, 1590WEE and 1590WEEBK. The short description reads "DE/EE silicone gasket 2 pack".
Each gasket has adhesive backing for easy installation and is applied to the lid. Because the gasket goes on separately, the enclosure can be machined and/or painted first and gasketed later. The silicone is rated from -40°C to 150°C (-40°F to 302°F).
The kit is designed to meet IP65 when the gasket is properly installed and the lid screws are torqued to 25-30 cN.m (36-43 ozf.in). When converting a standard enclosure, Hammond also recommends ordering its watertight stainless steel screws with O-ring; for these sizes the drawings list 1550WMS100 and 1550WMS100BK (M3.5 x 12mm).
1590DEGASKET is RoHS and REACH compliant, packed in a bag, with a shipping weight of 0.01 lb.
Ideal For
- Upgrading IP54 1590DE/1590EE enclosures to IP65
- Replacing gaskets in water-tight 1590WDE/1590WEE boxes
- Gasketing enclosures after machining or painting
Overview
| Type | Gasket |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590DEGASKET |
| Pack Contents | Two pre-formed silicone gaskets |
| Long Description | silicone gasket for 1590DE enclosures, 2-pack |
| Short Description | DE/EE SILICONE GASKET 2 PACK |
Identifiers
| UPC | 623980023199 |
| UNSPSC | 39121301 |
Compatibility
| Compatible Enclosures | 1590DE, 1590DEBK, 1590EE, 1590EEBK (standard); 1590WDE, 1590WDEBK, 1590WEE, 1590WEEBK (water-tight) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Backing | Adhesive backing for easy installation |
| Material | Silicone |
| Application | Applied to the lid |
Environmental & Protection
| IP Rating | IP65 (with properly installed gasket and lid screws torqued to 25-30 cN.m / 36-43 ozf.in) |
| Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does 1590DEGASKET fit?▾
The series ordering table lists it as the replacement gasket kit for 1590DE, 1590DEBK, 1590EE and 1590EEBK, plus the water-tight 1590WDE, 1590WDEBK, 1590WEE and 1590WEEBK.
How many gaskets are in the kit?▾
Each kit includes two pre-formed silicone gaskets.
Will it make my enclosure IP65?▾
The gasket is designed to meet IP65 when properly installed and the lid screws are torqued to 25-30 cN.m (36-43 ozf.in). Standard enclosures without a gasket are designed to meet IP54.
Where is the gasket installed?▾
It is applied to the lid using its adhesive backing.
What temperature range is the gasket rated for?▾
-40°C to 150°C (-40°F to 302°F).
