Hammond 1590DDFL 188x120x37mm Diecast Enclosure with Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid; 217.00 mm overall length
- Nominal 188 x 120 x 37 mm; inside 179.26 x 112.26 x 32.00 mm
- Unpainted, vibra-finished diecast aluminum alloy
- Six 6-32 UNC cover screws in factory-tapped holes
- Lap joint construction designed to meet IP54
- IP65 upgrade with 1590EGASKET; water-tight version 1590WDDFL

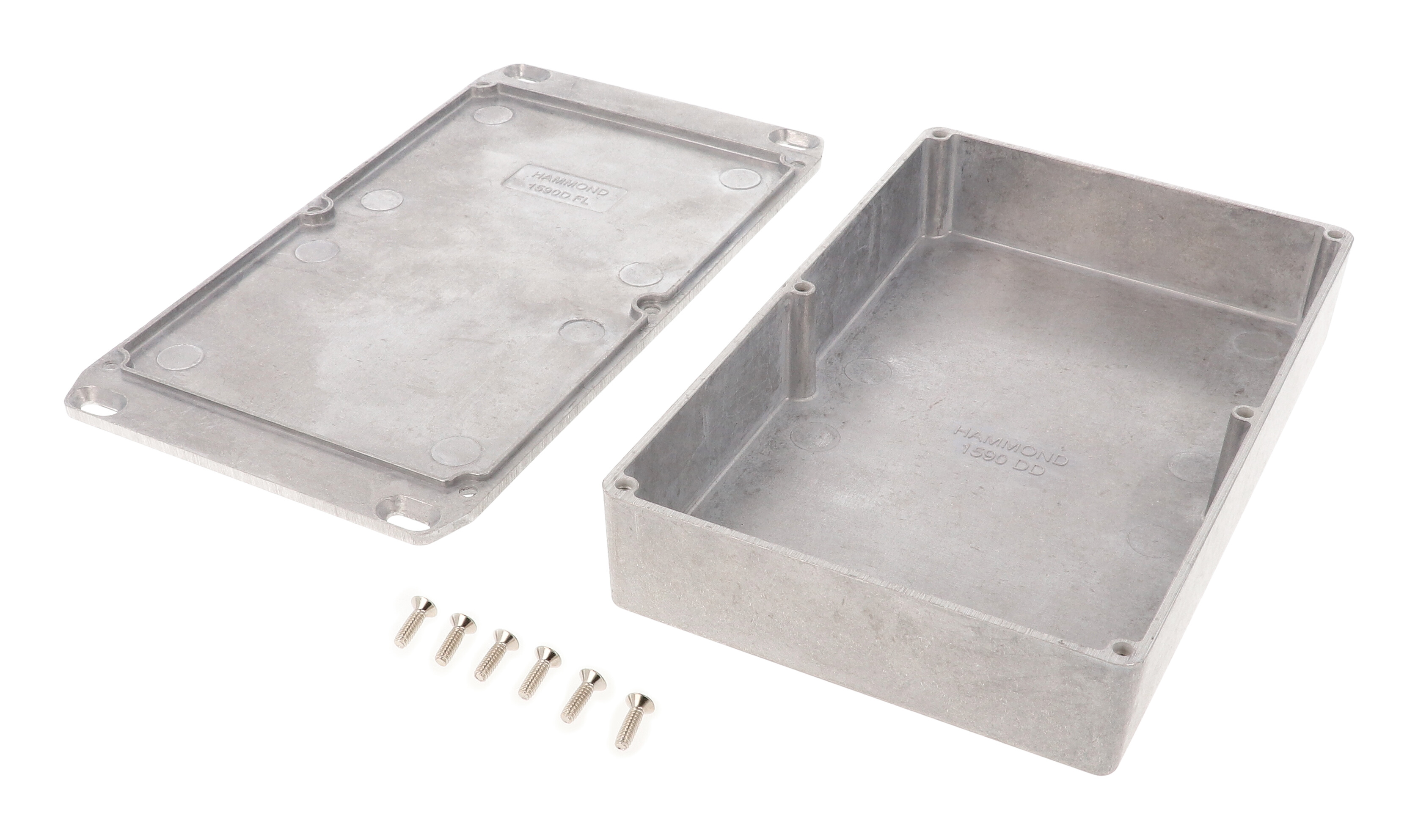

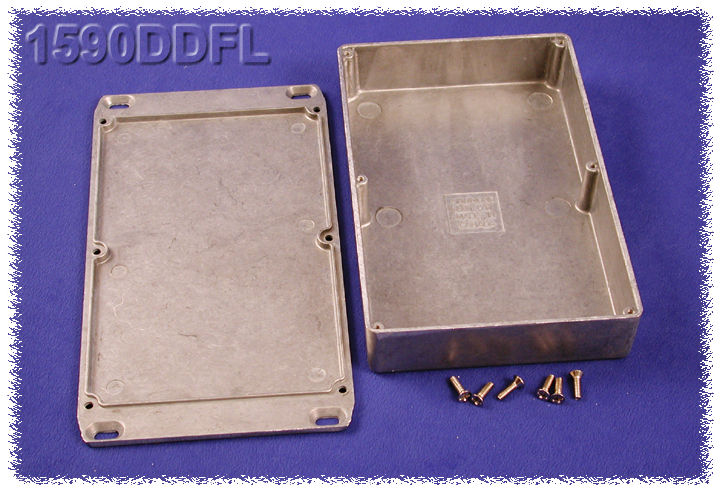

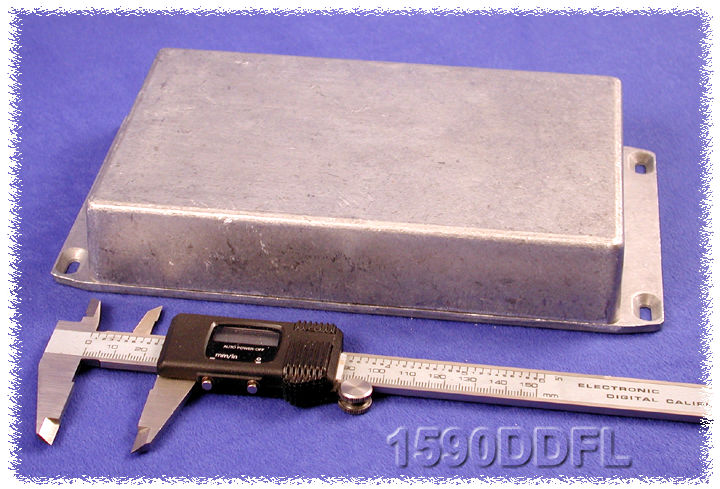

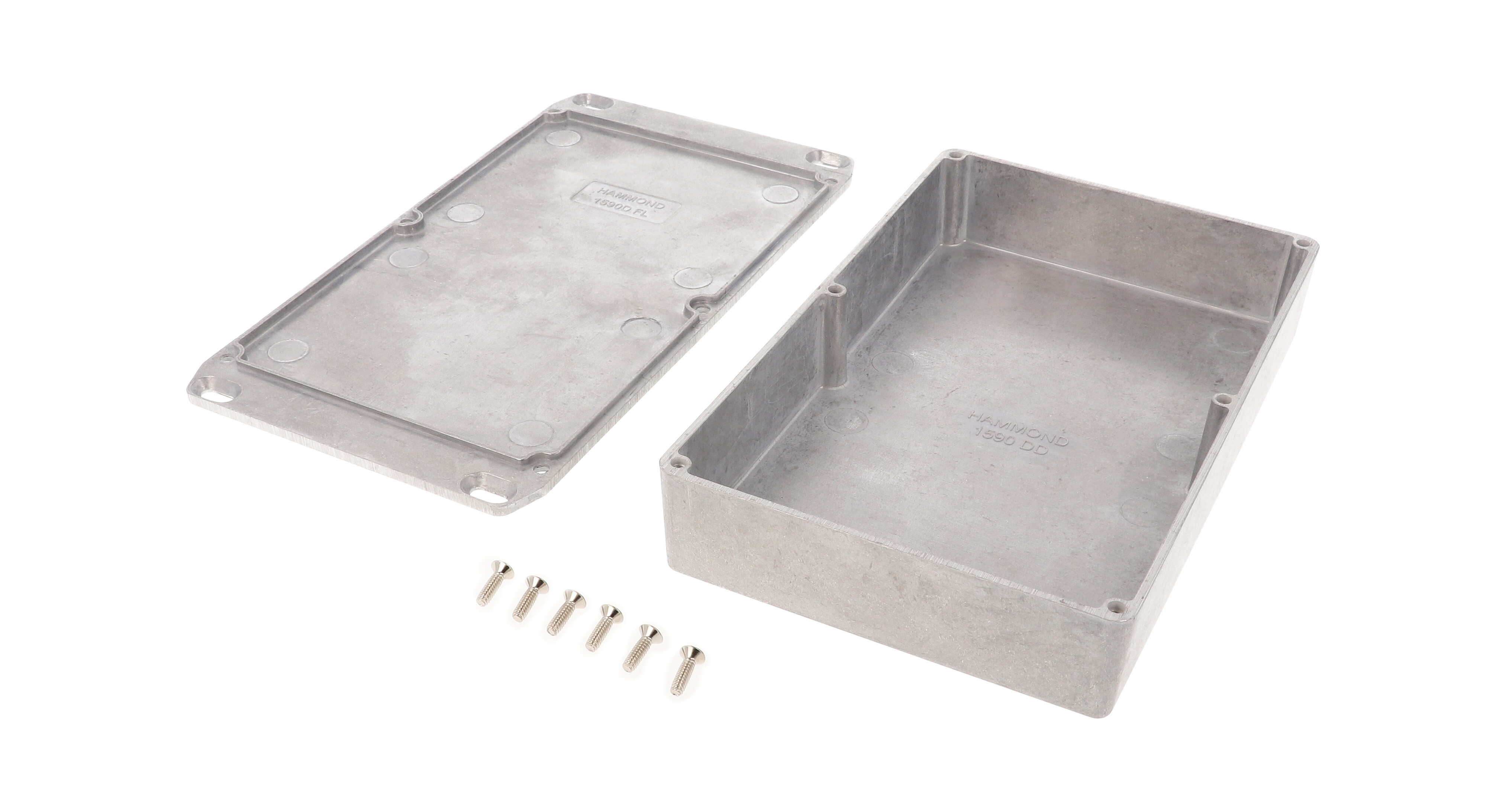

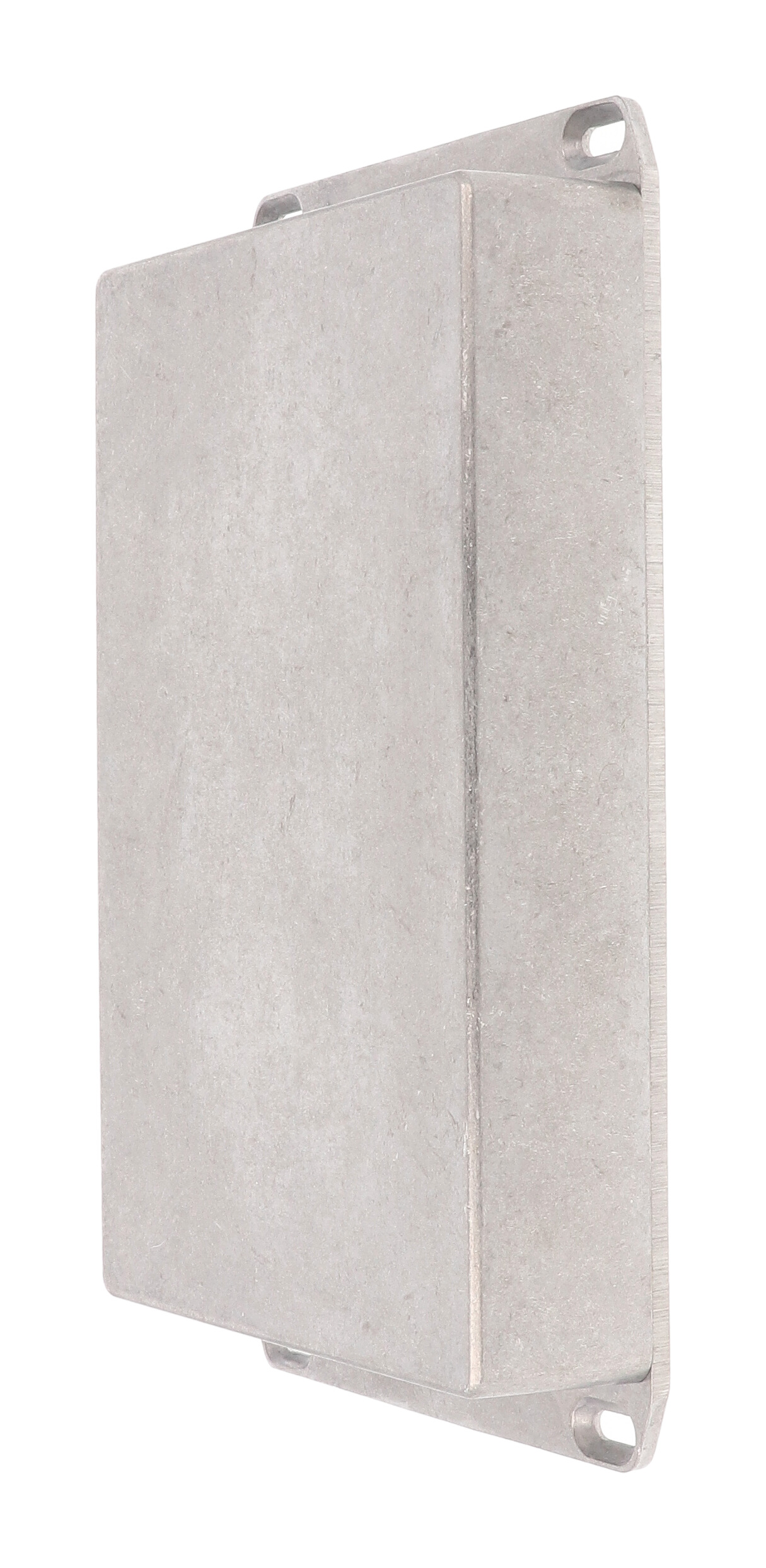

The 1590DDFL is the slim 188 x 120 x 37 mm (7.4 x 4.72 x 1.46 in) 1590DD diecast aluminum enclosure with a wall-mounting flange integrated into its lid. The drawing gives an overall length of 217.00 mm (8.543 in) across the flanged lid. Mount the lid to the wall or panel and close the box onto it, which works well for large, flat boards installed on vertical surfaces.
Box and lid are diecast aluminum alloy, tough yet easy to machine. The natural finish is unpainted and vibra finished for a smooth surface with no sharp edges. A lap joint where lid and box meet protects against dust and splashing water, and the enclosure is designed to meet IP54 as supplied.
- Box 188.00 x 120.00 mm, 37.00 mm high
- Inside length 179.26 mm, width 112.26 mm, height 32.00 mm
- Listed maximum PC board dimensions: 178.26 mm and 110.26 mm
- Six 6-32 UNC cover screws included
Tighten the cover screws to 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. The series table lists 1590EGASKET for IP65 and 1590WDDFL as the water-tight version. Shipping weight is 1.06 lbs (0.48 kg); RoHS and REACH compliant.
Ideal For
- Wall-mounted slim electronics housings
- Panel-mounted large PC board enclosures
- Machinable custom instrument cases
- Dust- and splash-protected installations
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Short Description | 1590DD WITH FLANGED LID |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 112.26 mm [4.420 in] |
| Inside Height | 32.00 mm [1.260 in] |
| Inside Length | 179.26 mm [7.058 in] |
| Series Table Width | 4.72 in (120 mm) |
| Box Width (Drawing) | 120.00 mm [4.724 in] |
| Series Table Height | 1.46 in (37 mm) |
| Series Table Length | 7.40 in (188 mm) |
| Nominal Size (L X W X H) | 7.4 in x 4.72 in x 1.46 in (188 mm x 120 mm x 37 mm) |
| Overall Height (Drawing) | 37.00 mm [1.457 in] |
| Max. P.C. Board Width (Listed) | 178.26 mm |
| Max. P.C. Board Length (Listed) | 110.26 mm |
| Overall Length Incl. Flanged Lid (Drawing) | 217.00 mm [8.543 in] |
Identifiers
| UPC | 623980676562 |
| UNSPSC | 39121301 |
| Part Number | 1590DDFL |
Related Parts
| No Flange, Standard | 1590DD |
| Flanged Lid, Standard | 1590DDFL |
| No Flange, Water-Tight | 1590WDD |
| Flanged Lid, Water-Tight | 1590WDDFL |
| Flanged Bottom Plate, Standard | 1590DDF |
| Flanged Bottom Plate, Water-Tight | 1590WDDF |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.06 lbs (0.48 kg) |
Construction & Finish
| Lid | Wall-mounting flange integrated into lid |
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Box, lid and 6 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590EGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WDDFL |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the flange on the 1590DDFL?▾
On the lid. The wall-mounting flange is integrated into the lid, giving 217.00 mm (8.543 in) overall length.
How does the 1590DDFL differ from the 1590DDF?▾
The 1590DDFL has the flange on its lid; the 1590DDF has a welded box-mounted bottom flange.
What is the inside height?▾
32.00 mm (1.260 in).
Which gasket kit fits?▾
The series table lists 1590EGASKET as the optional replacement gasket kit.
Related Products
Save 52%1590DDFBK — enclosure - diecast
Hammond Manufacturing · 1590DDFBK

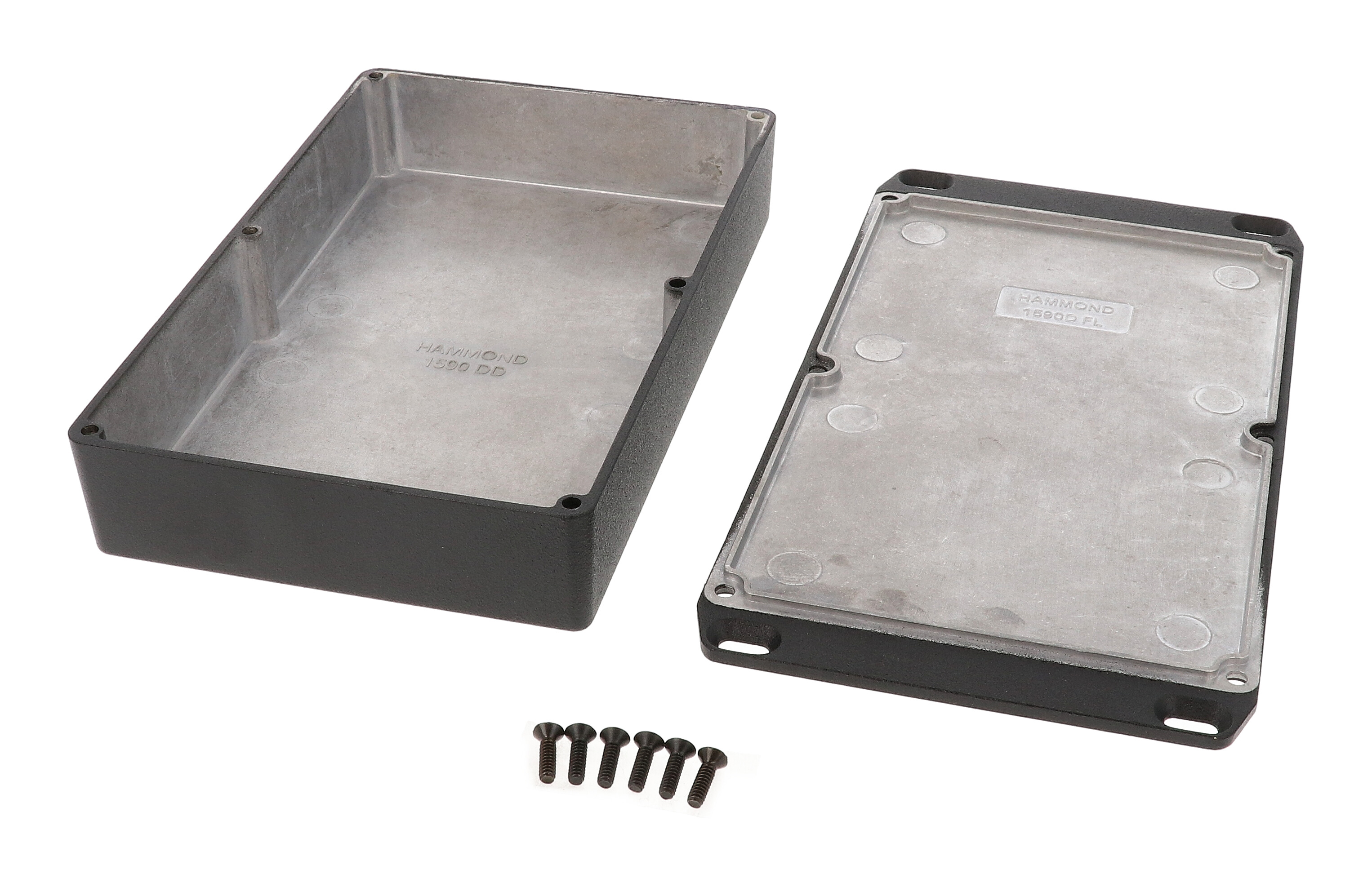

Save 52%1590DDFLBK — enclosure - diecast
