Hammond 1590BXF 254x70x50mm Diecast Aluminum Box, Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged bottom plate; 273.00 mm overall length
- Long 254 x 70 x 50 mm diecast aluminum body
- Inside 247.68 x 63.68 x 44.70 mm for long PC boards
- Six 6-32 UNC lid screws in factory-tapped holes
- Natural vibra finish, no sharp edges
- Designed to meet IP54; water-tight 1590WBXF available
- RoHS and REACH compliant

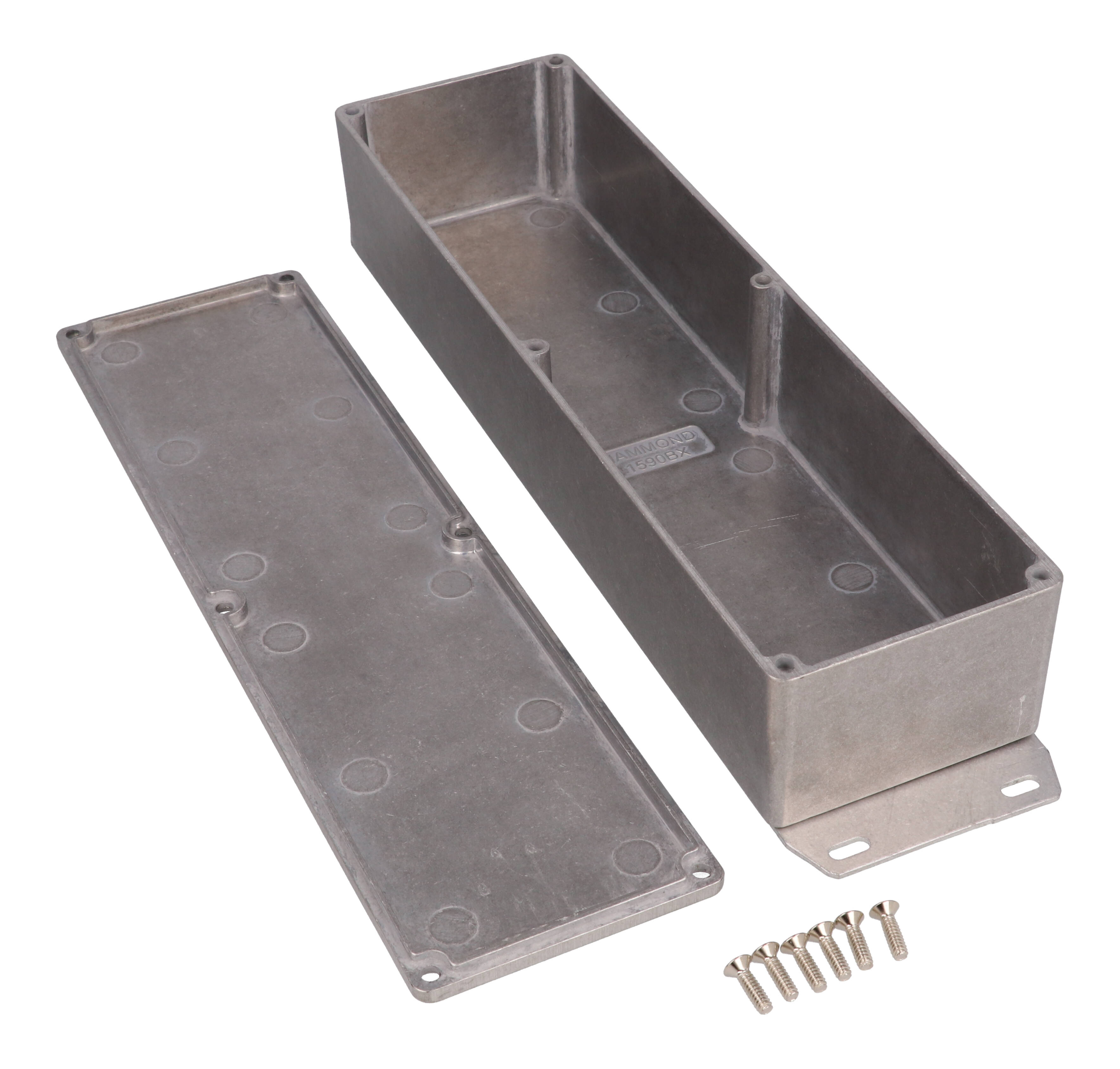

The 1590BXF is the flanged-base version of the long 1590BX diecast aluminum enclosure, in natural finish. The flanged bottom plate lets installers and OEM engineers fasten the box down to a panel, wall or chassis while the lid comes off for access. The part page lists 10 x 2.76 x 1.95 in (254 x 70 x 50 mm).
Box and lid are diecast aluminum alloy, tough yet easy to machine, and the unpainted version is vibra finished for a smooth surface with no sharp edges.
- Overall length including flange: 273.00 mm [10.748 in]
- Box length: 253.89 mm [9.996 in]; width: 70.00 mm [2.756 in]
- Overall height including flange: 51.00 mm [2.008 in]
- Inside: 247.68 x 63.68 x 44.70 mm [9.751 x 2.507 x 1.760 in]
- Maximum P.C. board figures: 61.68 mm and 245.68 mm
Side walls have a draft angle of 2 degrees or less for easy PC board mounting. Six 6-32 UNC cover screws thread into factory-tapped holes at 50-55 cN.m [71-78 ozf.in]. The lap joint between lid and box protects against dust and splashing water, and the 1590BXF is designed to meet IP54. The water-tight version is 1590WBXF and the replacement gasket kit is 1590BXGASKET.
Shipping weight is 0.9 lbs (0.41 kg), shrink wrapped. RoHS and REACH compliant, with STEP and IGES models available.
Ideal For
- Surface-mounted housings for long PC boards
- Panel, wall or chassis mounted instrument electronics
- Custom-machined long enclosures
- Dust and splash protected equipment (IP54)
Overview
| Series | 1590 Series Diecast Aluminum Enclosures |
| Category | Enclosures (enclosure - diecast) |
| Description | 1590BX FLANGED BASE ENCL |
| Part Number | 1590BXF |
| Product Type | Die-cast box, flanged |
| Mounting Style | Flanged bottom plate |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Box Width (Drawing) | 70.00 mm [2.756 in] |
| Box Length (Drawing) | 253.89 mm [9.996 in] |
| Max. P.C. Board Width | 245.68 mm |
| Side Wall Draft Angle | 2° or less |
| Inside Width (Drawing) | 63.68 mm [2.507 in] |
| Max. P.C. Board Length | 61.68 mm |
| Inside Height (Drawing) | 44.70 mm [1.760 in] |
| Inside Length (Drawing) | 247.68 mm [9.751 in] |
| Size L X W X H (Part Page) | 10 in x 2.76 in x 1.95 in (254 mm x 70 mm x 50 mm) |
| Nominal Width (Series Table) | 2.76 in (70 mm) |
| Nominal Height (Series Table) | 1.97 in (50 mm) |
| Nominal Length (Series Table) | 10.00 in (254 mm) |
| Overall Height Incl. Bottom Flange (Drawing) | 51.00 mm [2.008 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 273.00 mm [10.748 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980405346 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.9 lbs (0.41 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Contents | Box, lid and 6 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Cover Screws | 6 included, 6-32 UNC, threaded into factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WBXF |
| Optional Replacement Gasket Kit | 1590BXGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590BXF mounted?▾
It is the 'w/ Flanged Bottom Plate' version. The flange brings the overall length to 273.00 mm [10.748 in].
What are the inside dimensions?▾
247.68 mm [9.751 in] long, 63.68 mm [2.507 in] wide and 44.70 mm [1.760 in] high.
How tall is it including the flange?▾
The drawing shows 51.00 mm [2.008 in] overall height.
How many screws hold the lid?▾
Six 6-32 UNC cover screws, included.
What is the IP rating?▾
IP54 as standard. The water-tight 1590WBXF is designed to meet IP65, and the gasket kit for this size is 1590BXGASKET.
Related Products
Save 52%1590BXBK — enclosure - diecast
Hammond Manufacturing · 1590BXBK

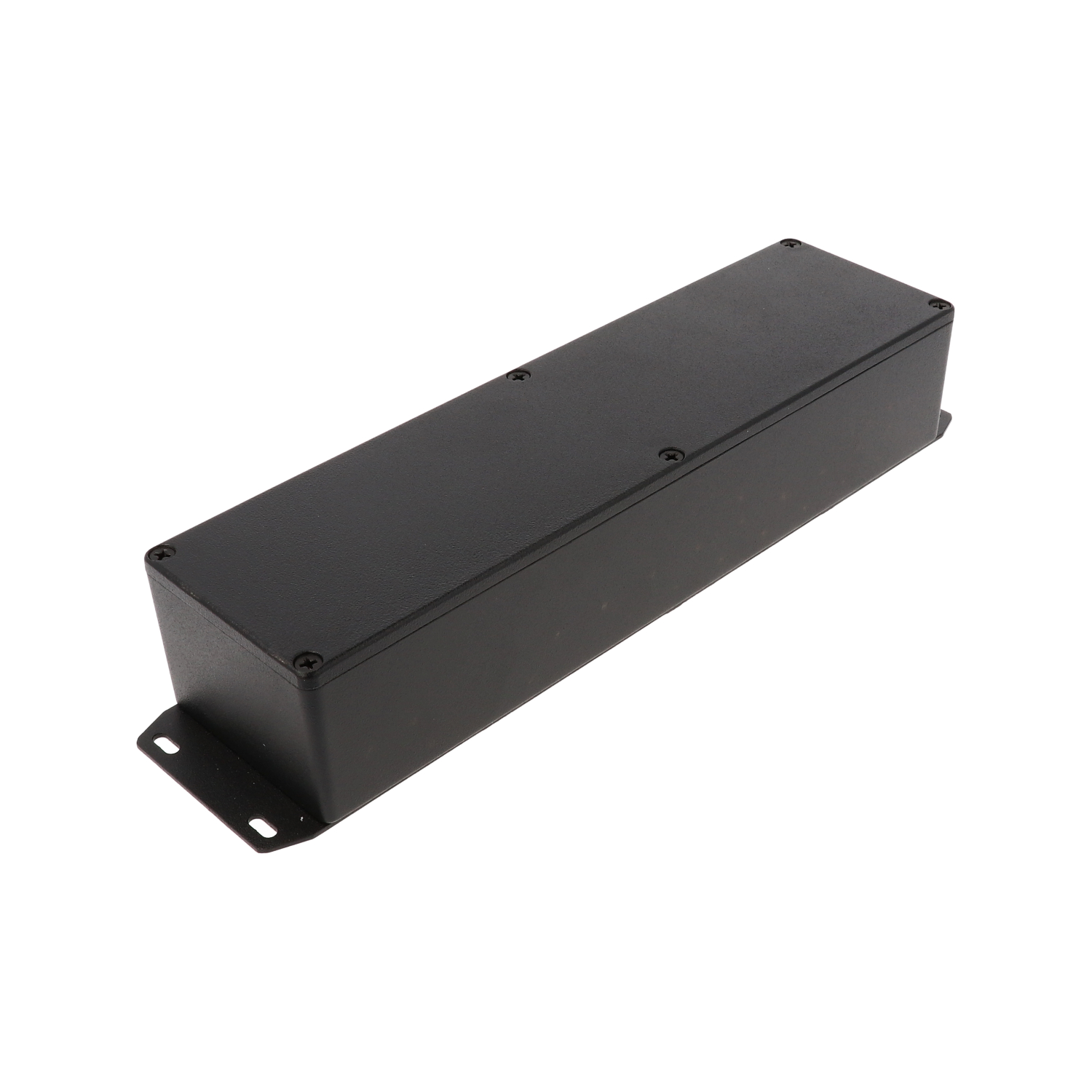

Save 52%1590BXFBK — enclosure - diecast
