Hammond 1590BX2FLBK 254x70x35mm Black Diecast Box, Wall-Mount Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Mounting flange integrated into the lid; 283.00 mm overall length
- Textured black polyester powder paint with black screws
- Slim 254 x 70 x 35 mm body; 248.33 x 64.33 x 29.70 mm inside
- Six 6-32 UNC screws into factory-tapped holes
- Designed to meet IP54; water-tight 1590WBX2FLBK available
- 2 degree or less wall draft for PCB mounting
- RoHS and REACH compliant

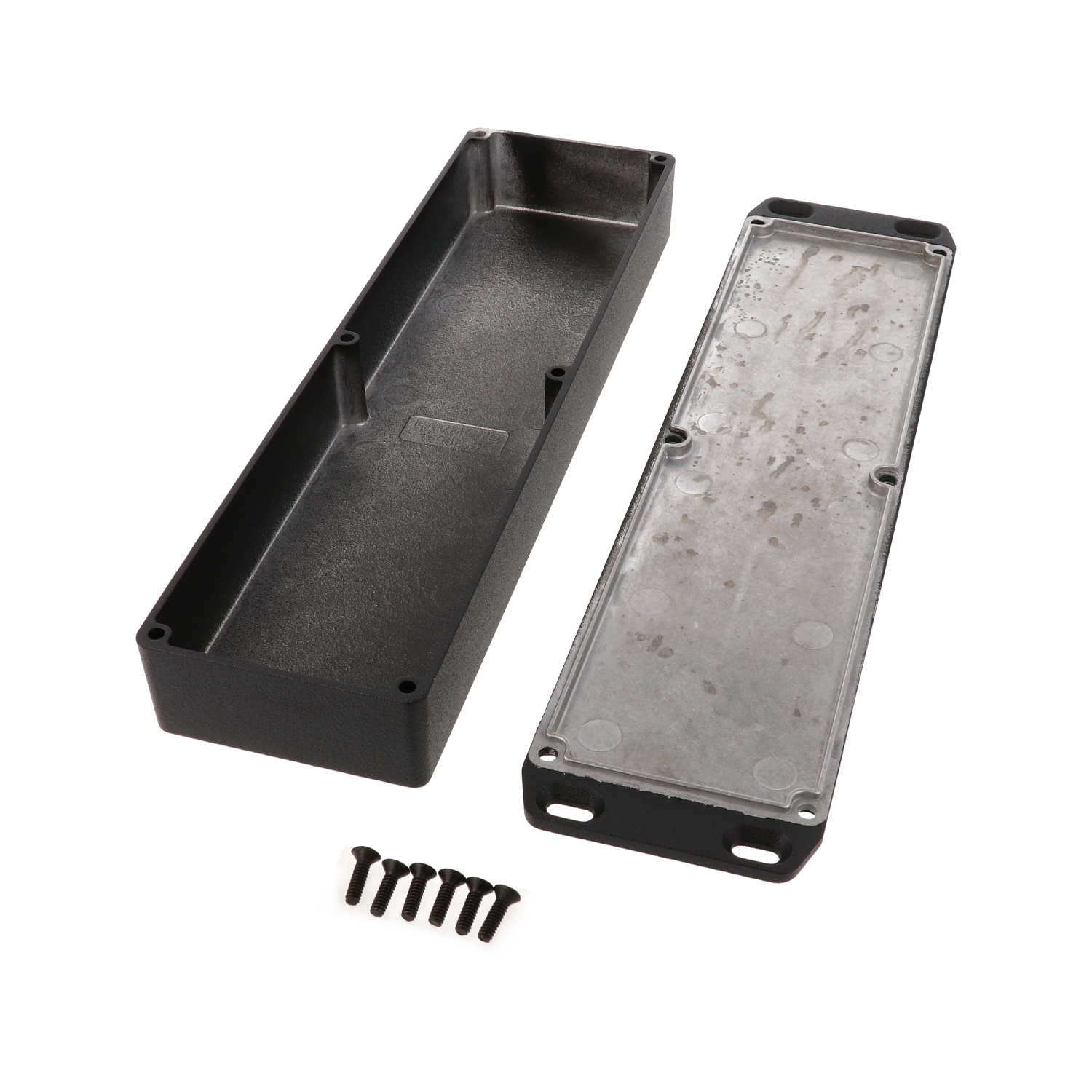

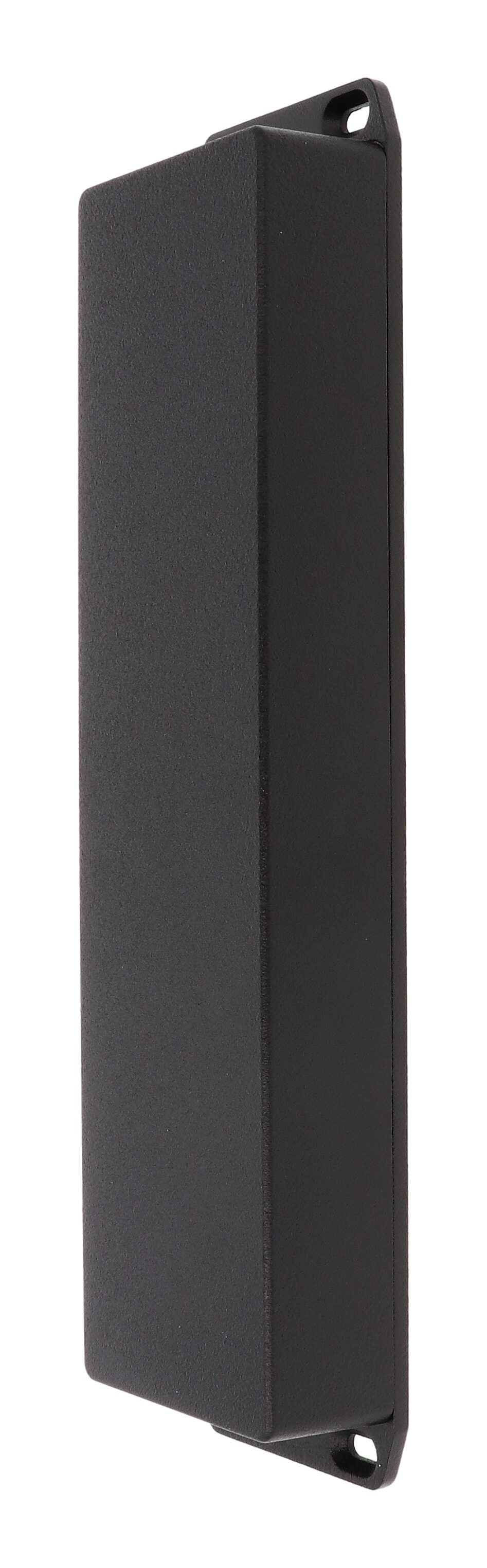

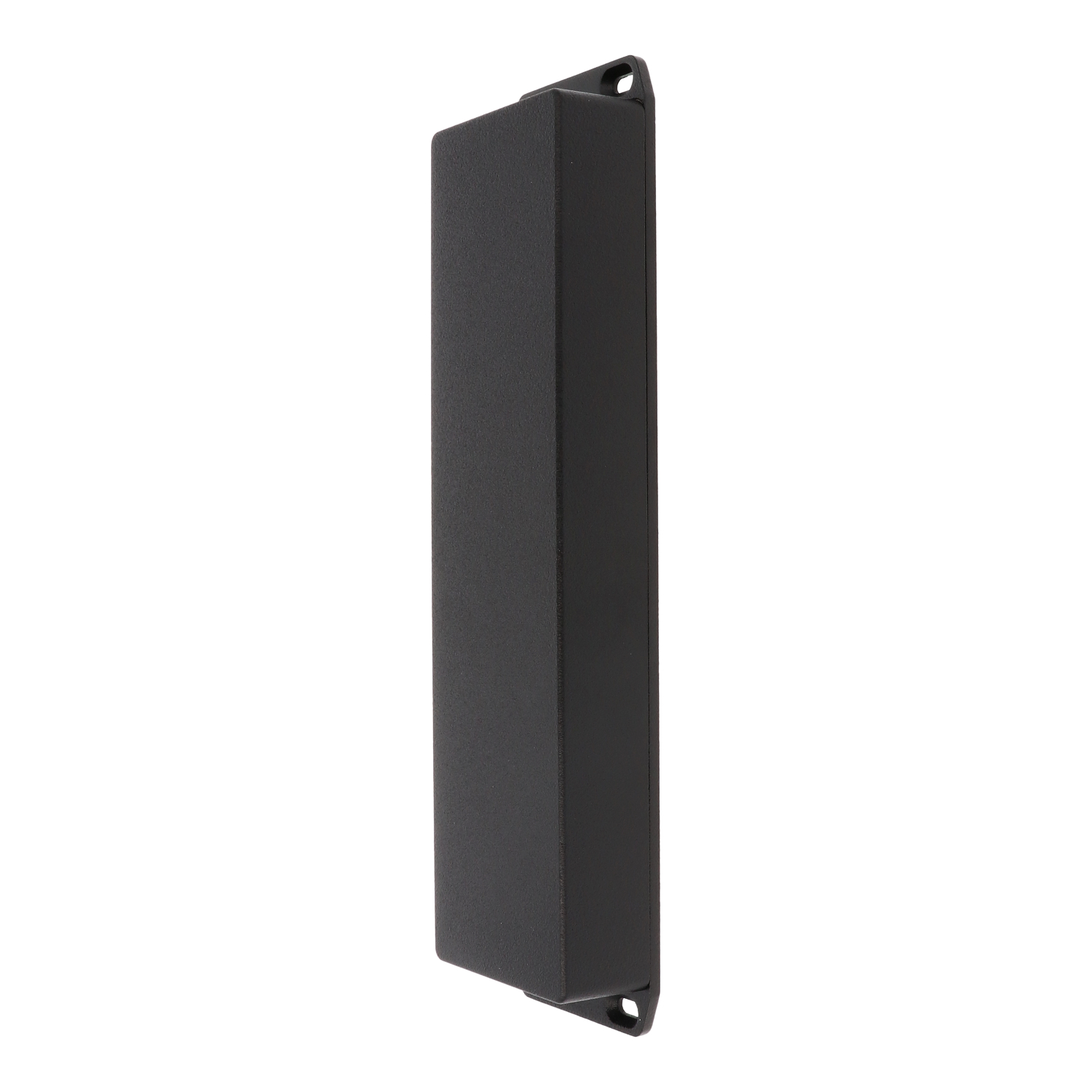

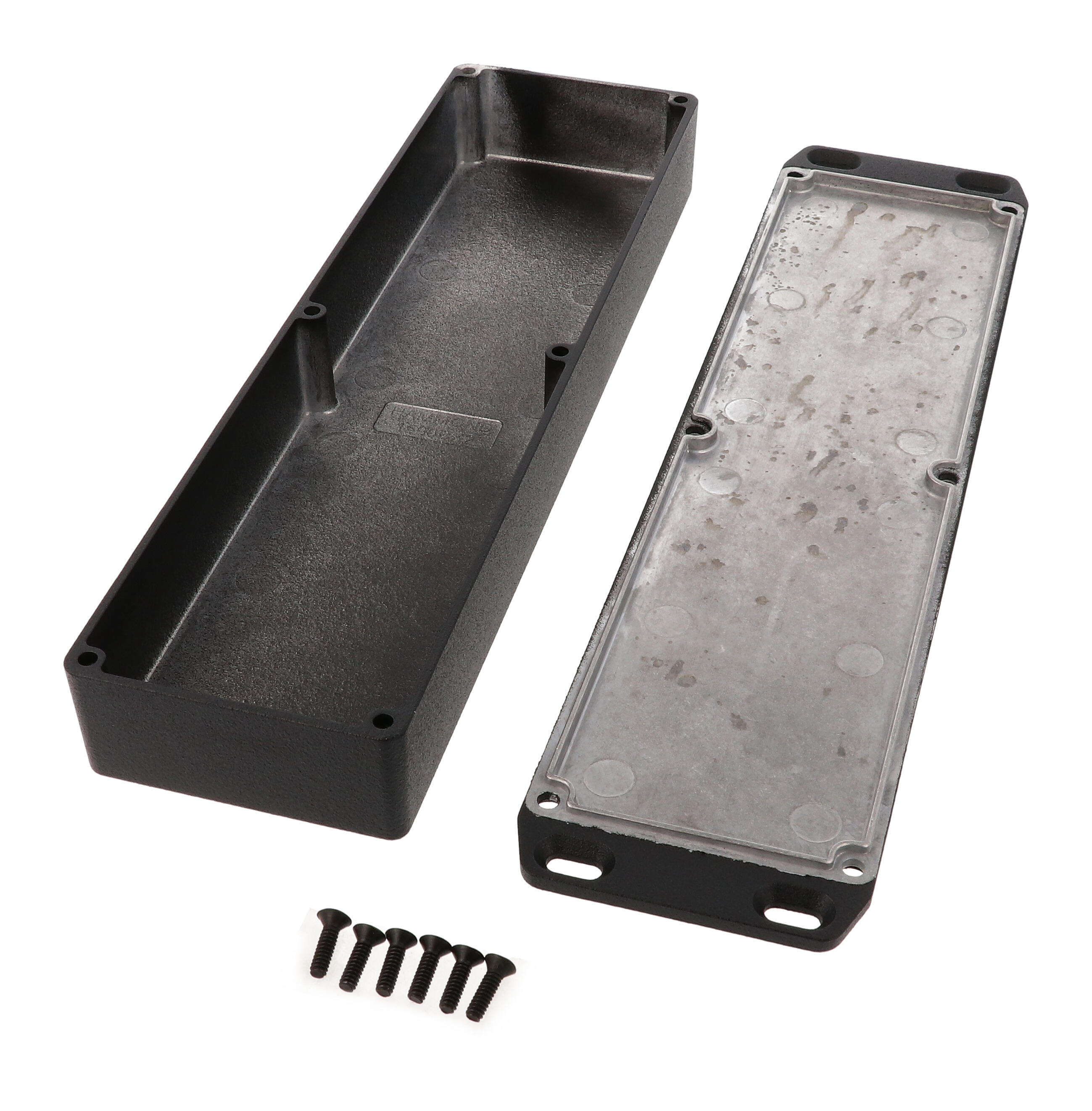

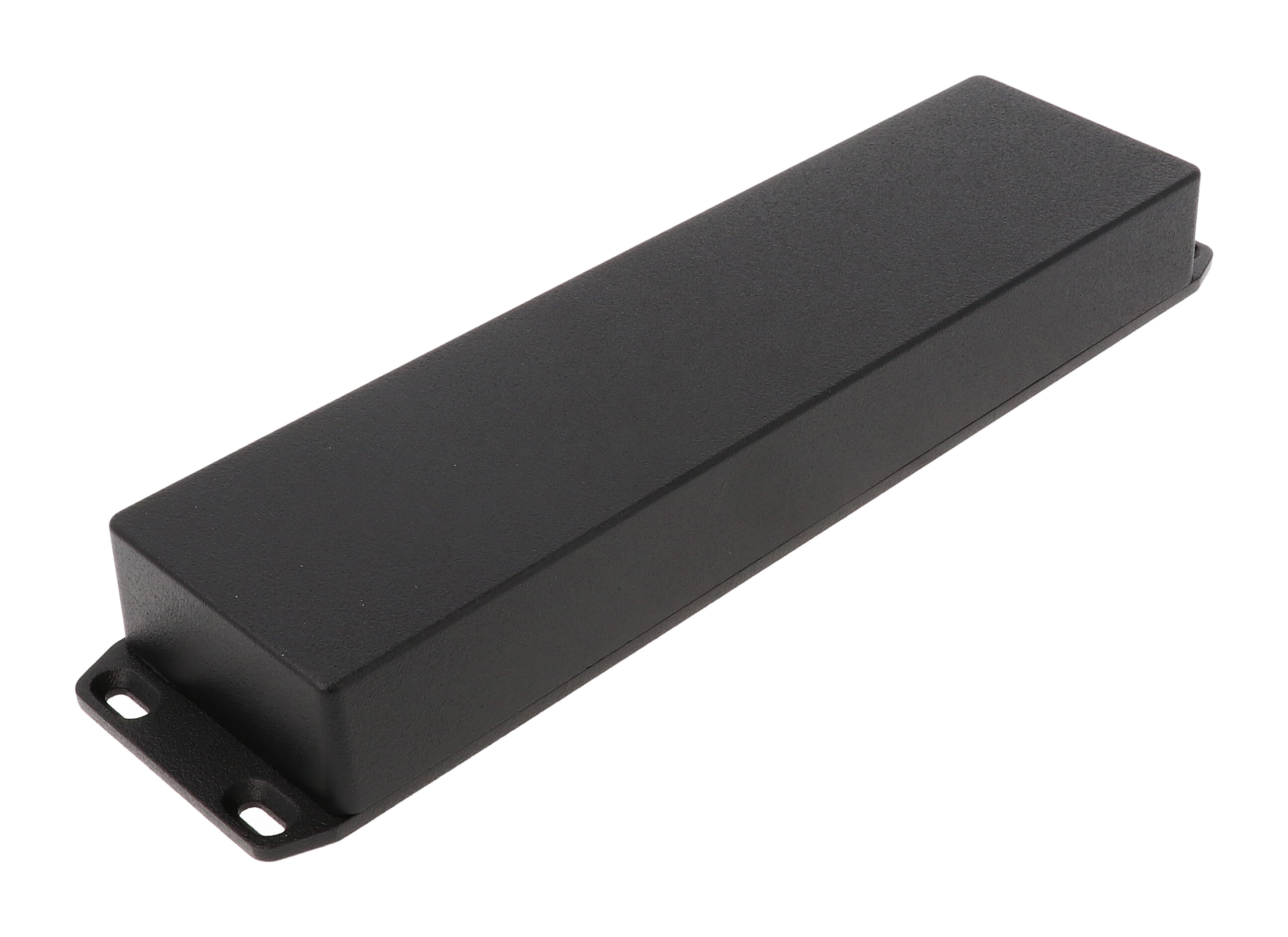

The 1590BX2FLBK is the black textured, flanged-lid version of the long and slim 1590BX2 diecast aluminum enclosure. With the mounting flange integrated into the lid, integrators and OEM engineers can fix the lid to a wall or panel and close the box onto it, while the painted finish suits visible installations. Part page size is 10 x 2.76 x 1.36 in (254 x 70 x 35 mm).
The diecast aluminum alloy box and lid are coated with a tough polyester powder paint that keeps a lasting finish even after machining, and black screws are included to enhance appearance.
The drawing shows 283.00 mm [11.142 in] overall length across the lid flange, 70.00 mm [2.756 in] width and 34.50 mm [1.358 in] overall height, with inside dimensions of 248.33 x 64.33 x 29.70 mm [9.777 x 2.533 x 1.169 in]. Side walls have a draft angle of 2 degrees or less for easy PC board mounting; maximum P.C. board figures are 62.33 mm and 246.33 mm.
Six 6-32 UNC cover screws thread into factory-tapped holes at 50-55 cN.m [71-78 ozf.in]. The lap joint protects against dust and splashing water, and the 1590BX2FLBK is designed to meet IP54. The water-tight equivalent is 1590WBX2FLBK, and the replacement gasket kit for this size is 1590BXGASKET.
Shipping weight is 0.8 lbs (0.36 kg), shrink wrapped; RoHS and REACH compliant.
Ideal For
- Wall-mounted painted housings for long PC boards
- Panel or frame mounted control electronics
- Custom-machined long enclosures
- Dust and splash protected electronics (IP54)
Overview
| Series | 1590 Series Diecast Aluminum Enclosures |
| Category | Enclosures (enclosure - diecast) |
| Description | 1590BX2 FLANGED LID BLACK |
| Part Number | 1590BX2FLBK |
| Product Type | Die-cast box, flanged |
| Mounting Style | Flanged lid |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Box Width (Drawing) | 70.00 mm [2.756 in] |
| Max. P.C. Board Width | 246.33 mm |
| Side Wall Draft Angle | 2° or less |
| Inside Width (Drawing) | 64.33 mm [2.533 in] |
| Max. P.C. Board Length | 62.33 mm |
| Inside Height (Drawing) | 29.70 mm [1.169 in] |
| Inside Length (Drawing) | 248.33 mm [9.777 in] |
| Overall Height (Drawing) | 34.50 mm [1.358 in] |
| Size L X W X H (Part Page) | 10 in x 2.76 in x 1.36 in (254 mm x 70 mm x 35 mm) |
| Nominal Width (Series Table) | 2.76 in (70 mm) |
| Nominal Height (Series Table) | 1.38 in (35 mm) |
| Nominal Length (Series Table) | 10.00 in (254 mm) |
| Overall Length Incl. Lid Flange (Drawing) | 283.00 mm [11.142 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980405513 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.8 lbs (0.36 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Contents | Box, lid and 6 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Cover Screws | 6 included, 6-32 UNC, threaded into factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WBX2FLBK |
| Optional Replacement Gasket Kit | 1590BXGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590BX2FLBK mounted?▾
Through the mounting flange integrated into its lid. The overall length across the flange is 283.00 mm [11.142 in].
What finish does it have?▾
Textured black polyester powder paint, with black screws included.
What are the inside dimensions?▾
Inside length 248.33 mm, inside width 64.33 mm, inside height 29.70 mm.
How many lid screws are there?▾
Six 6-32 UNC cover screws, included.
What is the natural finish version?▾
1590BX2FL. The water-tight black version is 1590WBX2FLBK.
Related Products
Save 52%1590BX2FL — enclosure - diecast
Hammond Manufacturing · 1590BX2FL
Save 52%1590BXBK — enclosure - diecast
Hammond Manufacturing · 1590BXBK
Save 52%1590BX2FBK — enclosure - diecast
Hammond Manufacturing · 1590BX2FBK

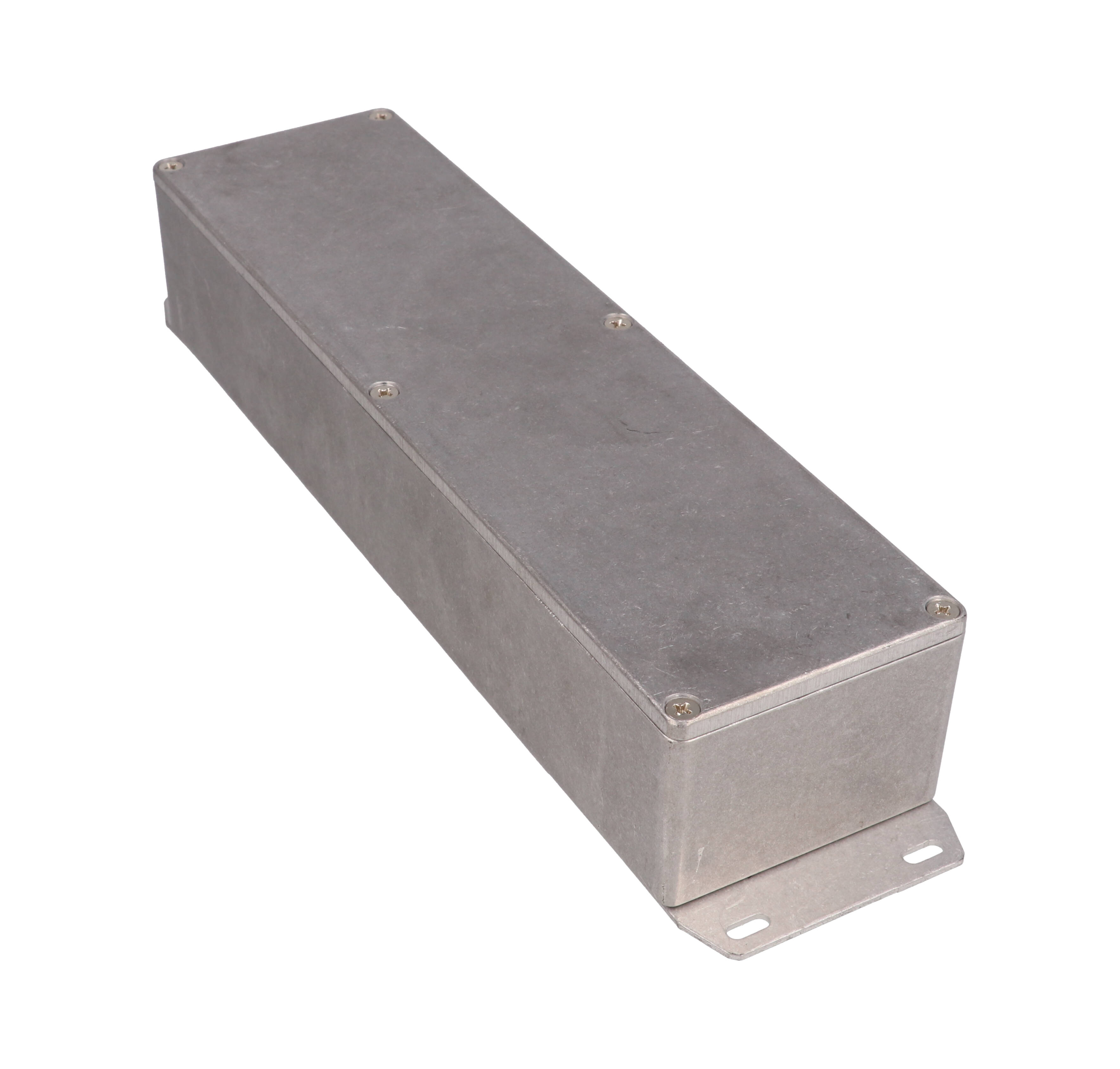

Save 52%1590BXF — enclosure - diecast
