Hammond 1590BX2FL 254x70x35mm Diecast Aluminum Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid; 283.00 mm overall length
- Slim 254 x 70 x 35 mm diecast aluminum body
- Inside 248.33 x 64.33 x 29.70 mm for long, flat boards
- Six 6-32 UNC lid screws in factory-tapped holes
- Natural vibra finish, no sharp edges
- Designed to meet IP54; water-tight 1590WBX2FL available
- RoHS and REACH compliant

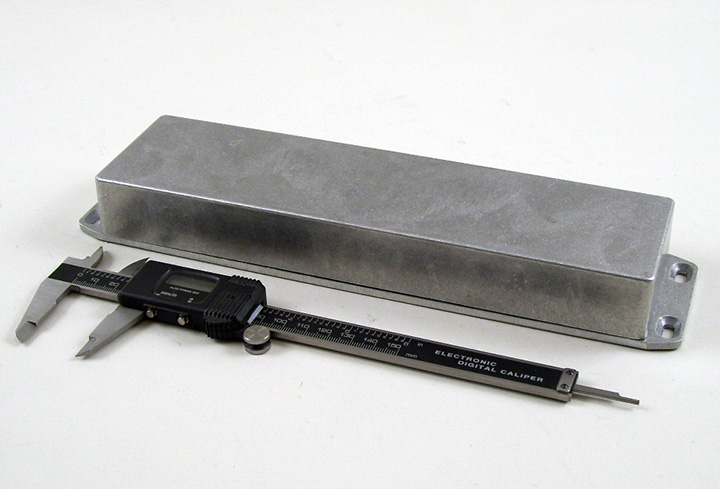

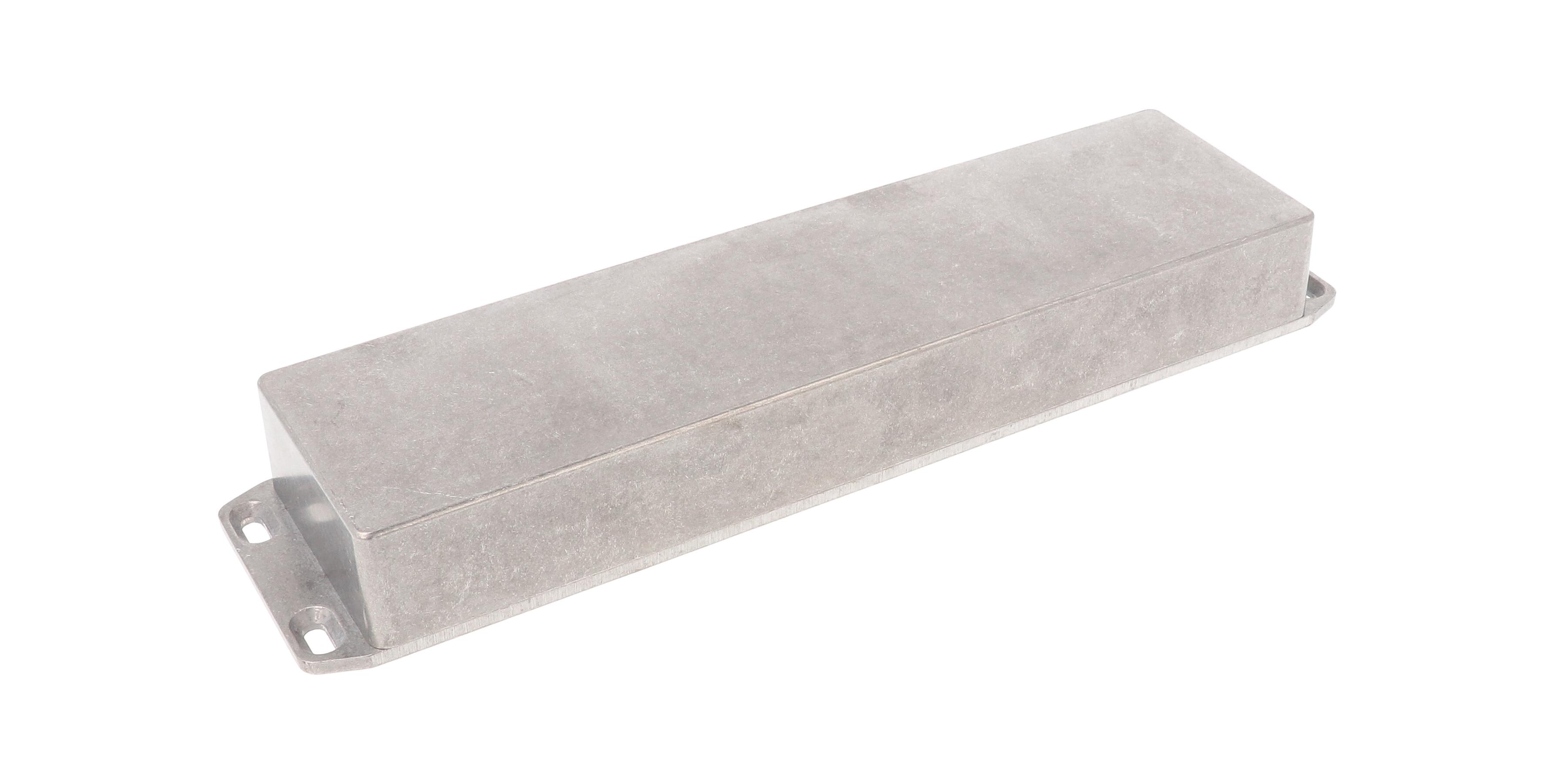

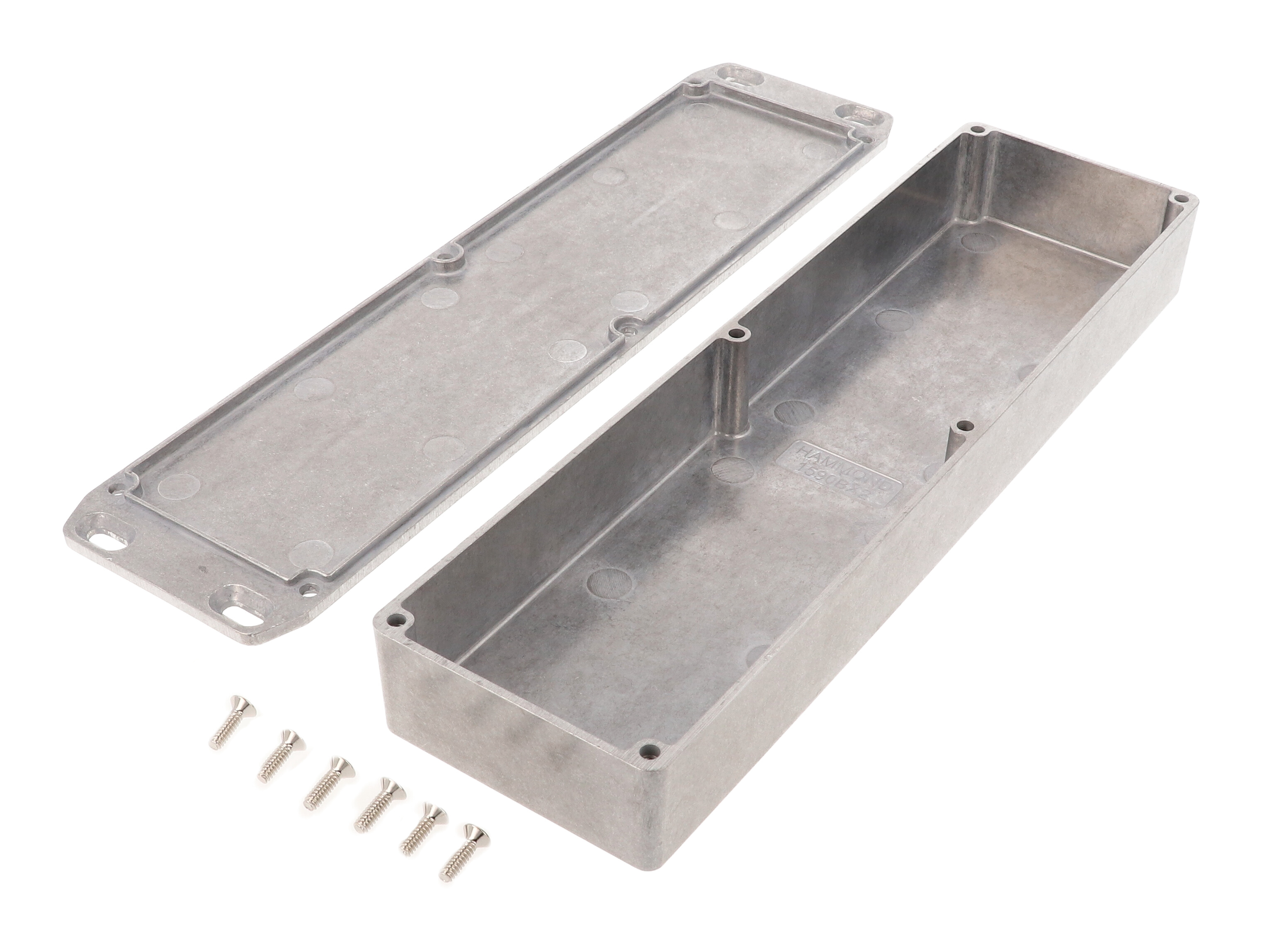

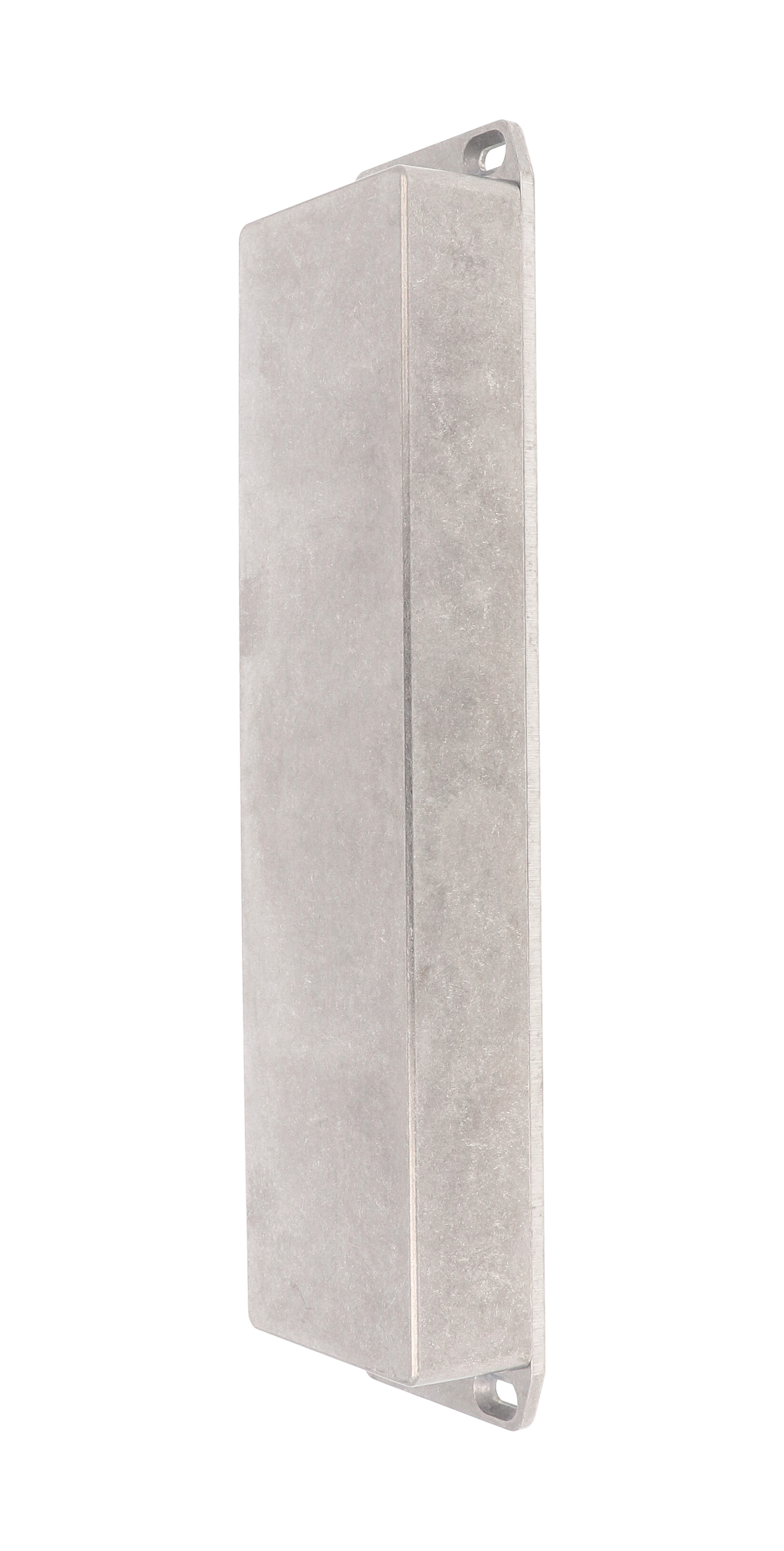

The 1590BX2FL is a long, slim diecast aluminum enclosure in natural finish with a mounting flange integrated into the lid. It is the 'w/ Flanged Lid' version of the 1590BX2, suited to installers and OEM engineers who want to fix the lid to a wall or panel and close the box onto it. The part page lists 10 x 2.76 x 1.36 in (254 x 70 x 35 mm).
Box and lid are diecast aluminum alloy, tough yet easy to machine. The unpainted version is vibra finished for a smooth surface with no sharp edges.

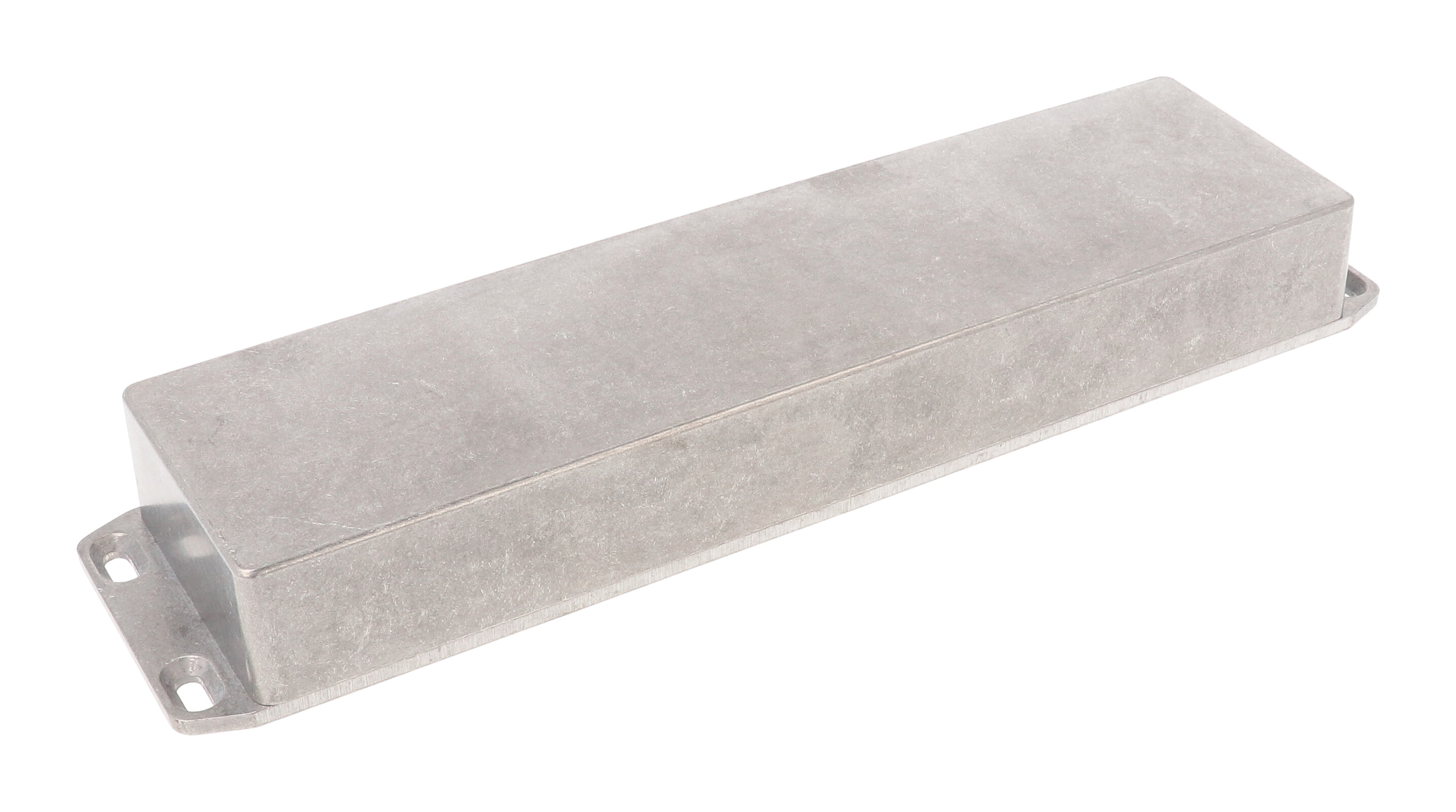

With the lid flange, the drawing shows an overall length of 283.00 mm [11.142 in], a width of 70.00 mm [2.756 in] and an overall height of 34.50 mm [1.358 in]. Inside dimensions are 248.33 x 64.33 x 29.70 mm [9.777 x 2.533 x 1.169 in]. The side walls have a draft angle of 2 degrees or less for easy PC board mounting, and the part data gives maximum P.C. board figures of 62.33 mm and 246.33 mm.

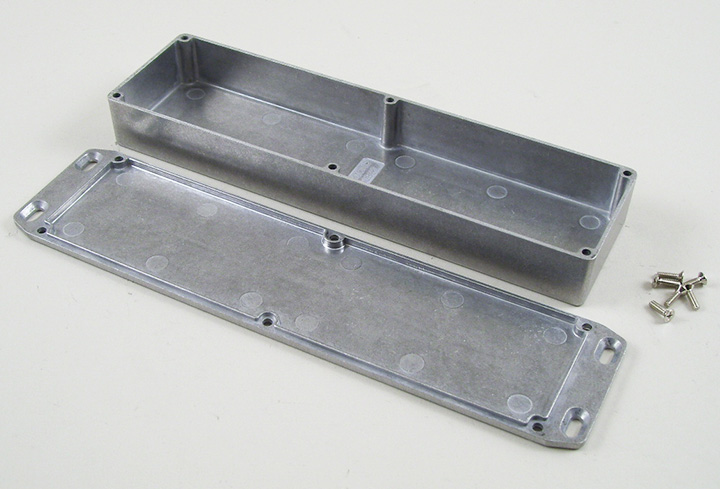

Six 6-32 UNC cover screws thread into factory-tapped holes at 50-55 cN.m [71-78 ozf.in]. The lap joint where lid and box meet protects against dust and splashing water, and the 1590BX2FL is designed to meet IP54. The water-tight equivalent is 1590WBX2FL; the replacement gasket kit listed for this size is 1590BXGASKET.
Shipping weight is 0.8 lbs (0.36 kg), shrink wrapped. RoHS and REACH compliant, with STEP and IGES models available.
Ideal For
- Wall-mounted housings for long, flat PC boards
- Panel or frame mounted instrument electronics
- Custom-machined long enclosures
- Dust and splash protected installations (IP54)
Overview
| Series | 1590 Series Diecast Aluminum Enclosures |
| Category | Enclosures (enclosure - diecast) |
| Description | 1590BX2 FLANGED LID ENCL |
| Part Number | 1590BX2FL |
| Product Type | Die-cast box, flanged |
| Mounting Style | Flanged lid |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Box Width (Drawing) | 70.00 mm [2.756 in] |
| Max. P.C. Board Width | 246.33 mm |
| Side Wall Draft Angle | 2° or less |
| Inside Width (Drawing) | 64.33 mm [2.533 in] |
| Max. P.C. Board Length | 62.33 mm |
| Inside Height (Drawing) | 29.70 mm [1.169 in] |
| Inside Length (Drawing) | 248.33 mm [9.777 in] |
| Overall Height (Drawing) | 34.50 mm [1.358 in] |
| Size L X W X H (Part Page) | 10 in x 2.76 in x 1.36 in (254 mm x 70 mm x 35 mm) |
| Nominal Width (Series Table) | 2.76 in (70 mm) |
| Nominal Height (Series Table) | 1.38 in (35 mm) |
| Nominal Length (Series Table) | 10.00 in (254 mm) |
| Overall Length Incl. Lid Flange (Drawing) | 283.00 mm [11.142 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980405506 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.8 lbs (0.36 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |

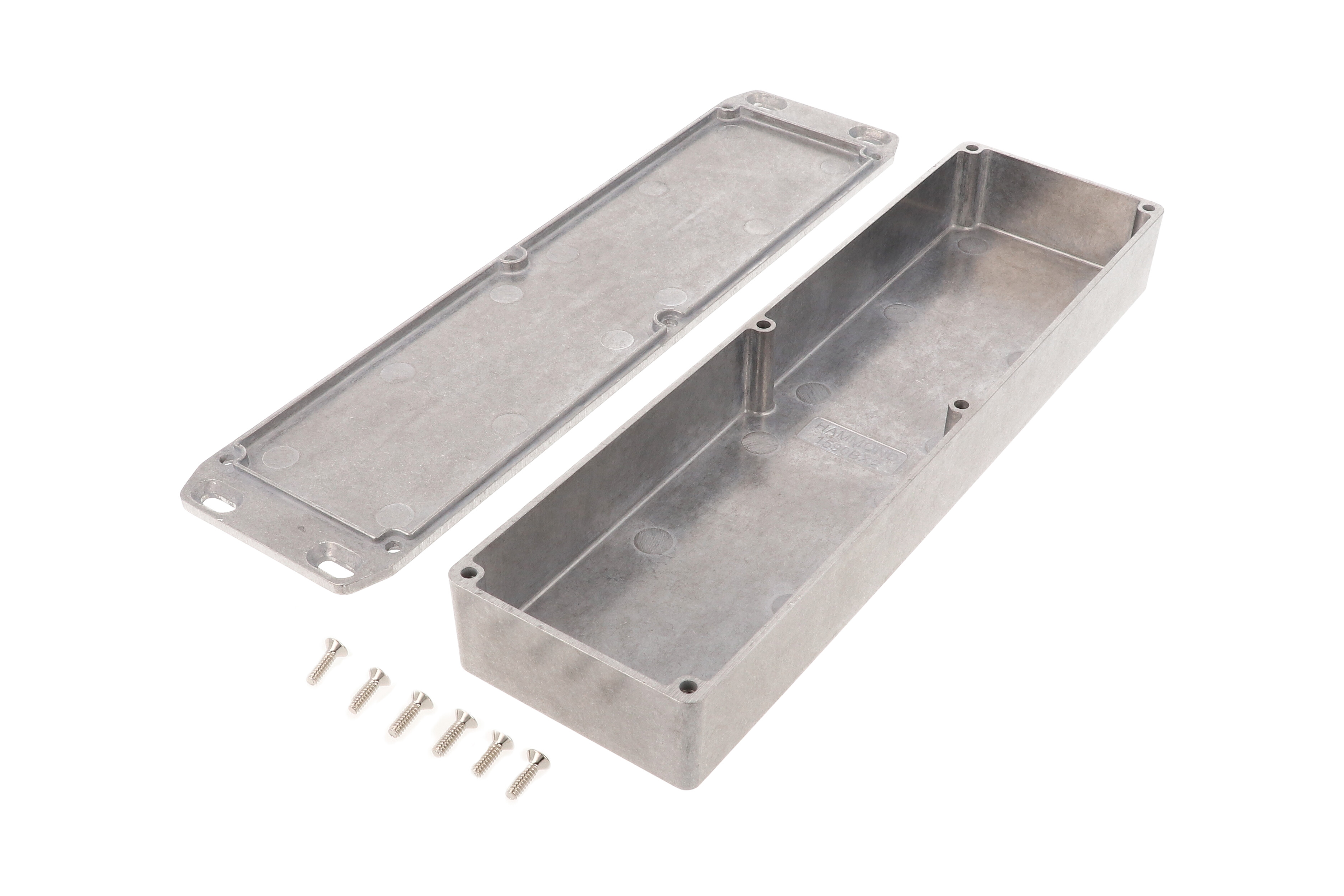

| Contents | Box, lid and 6 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Cover Screws | 6 included, 6-32 UNC, threaded into factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WBX2FL |
| Optional Replacement Gasket Kit | 1590BXGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the flange on the 1590BX2FL?▾

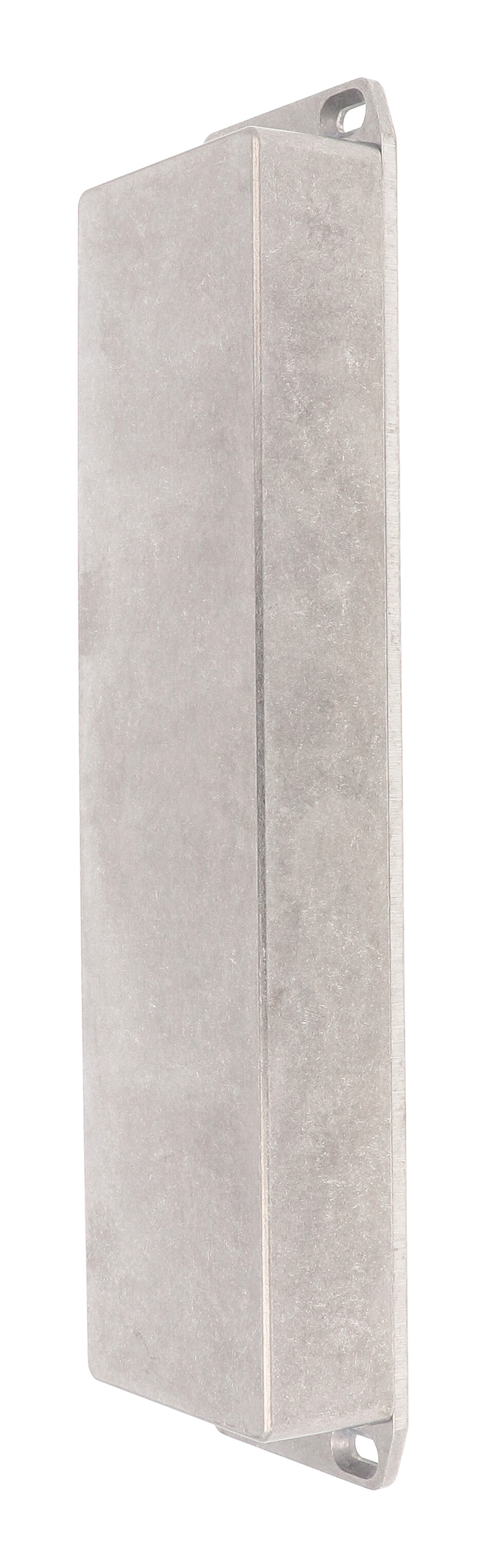

The mounting flange is integrated into the lid. The drawing shows an overall length of 283.00 mm [11.142 in] across it.
What are the inside dimensions?▾
248.33 mm [9.777 in] long, 64.33 mm [2.533 in] wide and 29.70 mm [1.169 in] high.
How many screws hold the lid?▾
Six 6-32 UNC cover screws, included.
What IP rating does it meet?▾
The standard 1590BX2FL is designed to meet IP54; the water-tight 1590WBX2FL is designed to meet IP65.
Is it available in black?▾

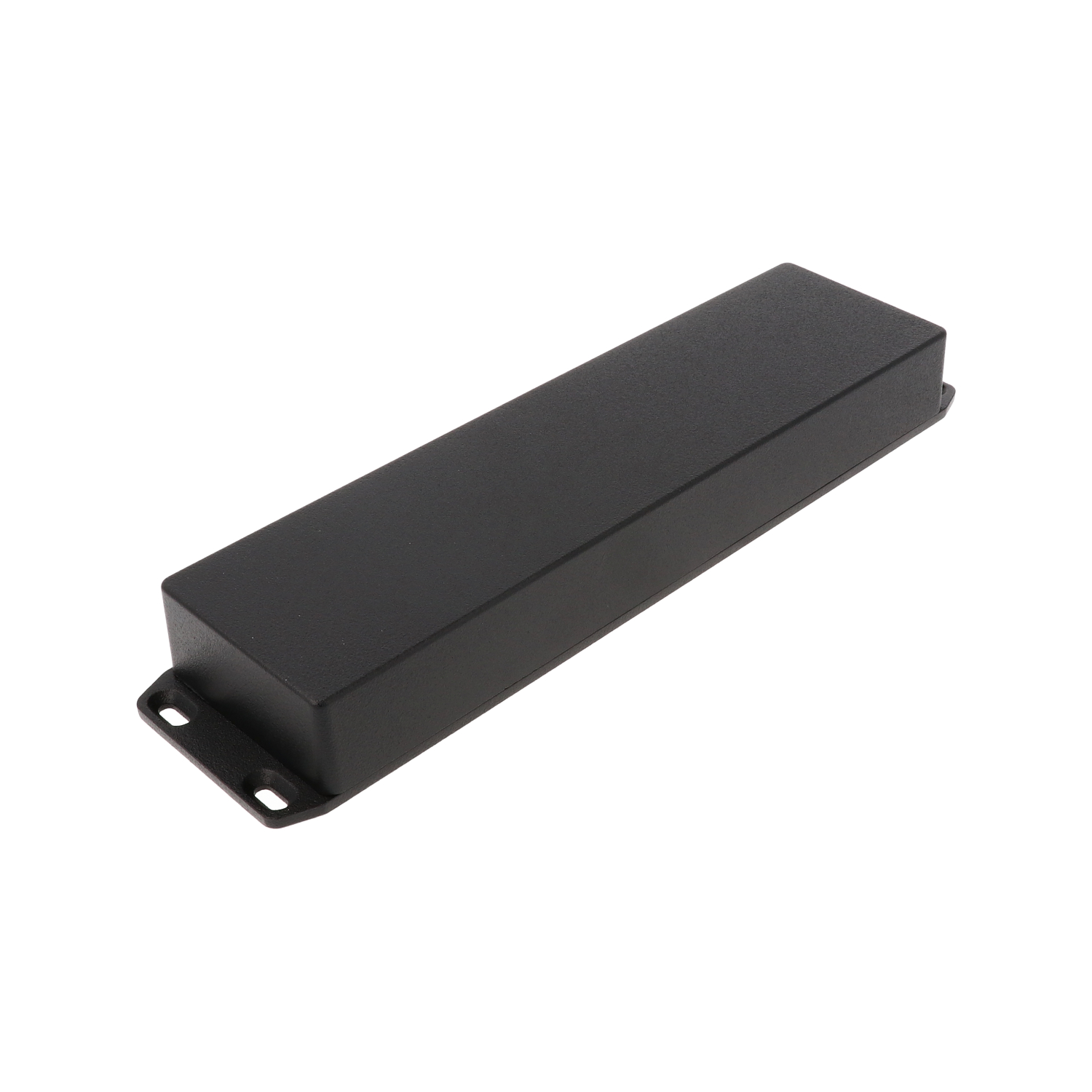

Yes, 1590BX2FLBK is the black textured version.
