Hammond 1590BX2BK 254x70x35mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Long, slim 254 x 70 x 35 mm body in textured black
- Polyester powder paint lasts after machining; black screws included
- Inside 248.33 x 64.33 x 29.70 mm
- Six 6-32 UNC screws into factory-tapped holes
- Designed to meet IP54; water-tight 1590WBX2BK available
- 2 degree or less wall draft for PCB mounting
- RoHS and REACH compliant

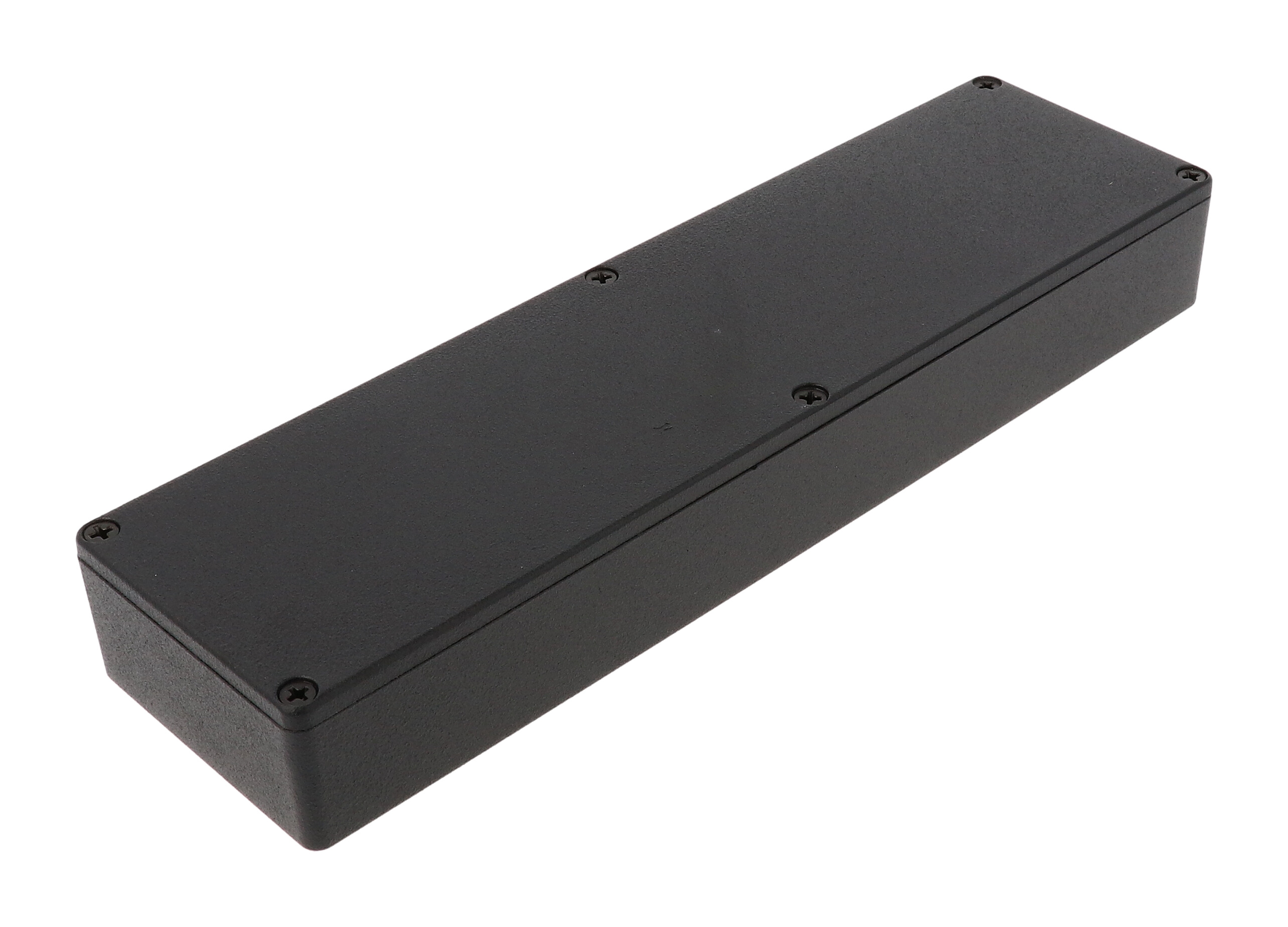

The 1590BX2BK is the black textured version of the 1590BX2: a long, slim diecast aluminum enclosure with no mounting flanges. The part page lists 10 x 2.76 x 1.36 in (254 x 70 x 35 mm), giving OEM engineers and integrators a painted metal housing for long, flat circuit boards.

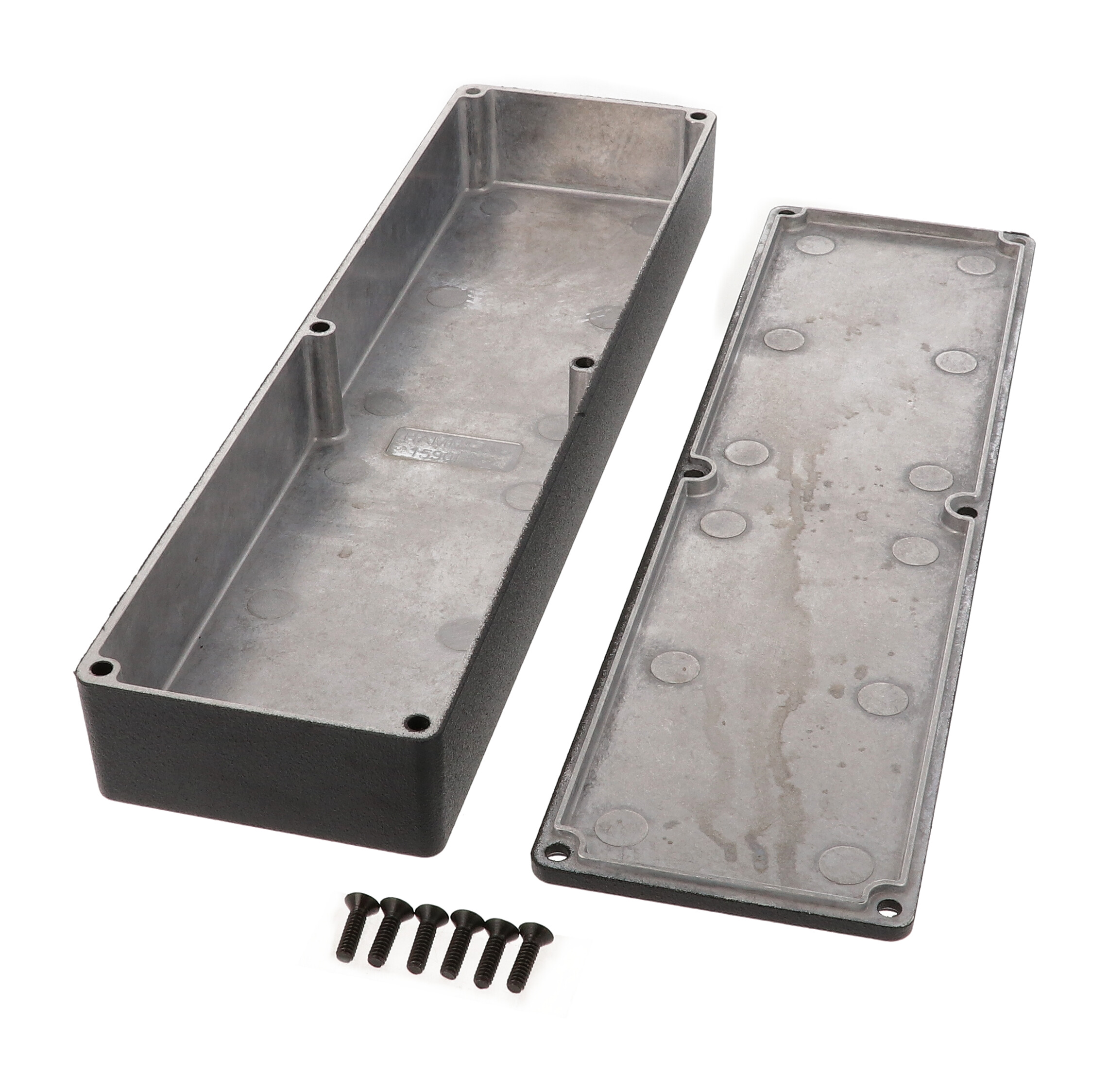

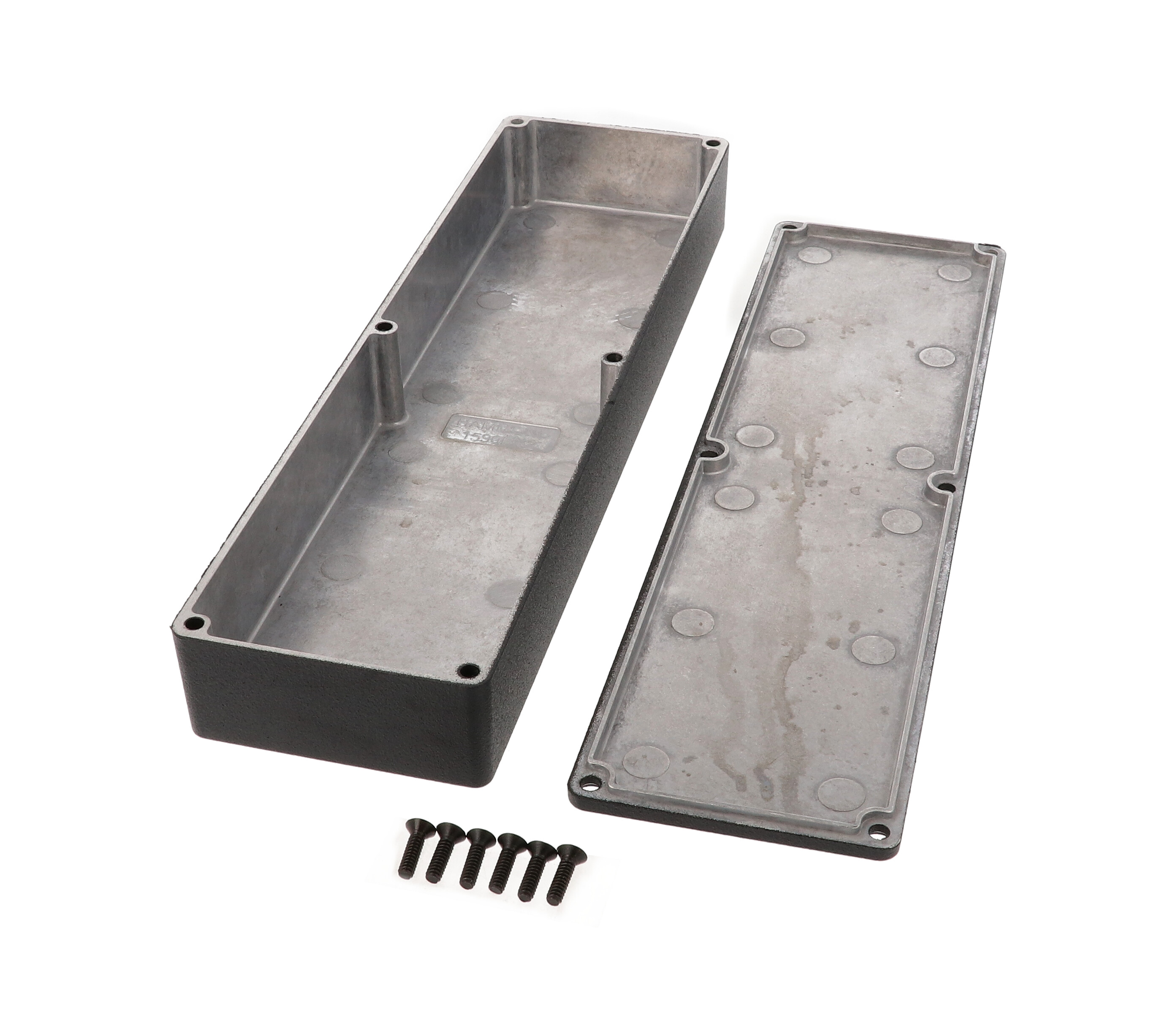

The diecast aluminum alloy box and lid are coated with a tough polyester powder paint for a lasting finish, even after machining, so holes and cut-outs can be added without an unfinished look. Black screws are included to enhance appearance.
The drawing gives 254.00 x 70.00 x 34.50 mm [10.000 x 2.756 x 1.358 in] outside and 248.33 x 64.33 x 29.70 mm [9.777 x 2.533 x 1.169 in] inside. Side walls have a draft angle of 2 degrees or less for easy PC board mounting, and the part data lists maximum P.C. board figures of 62.33 mm and 246.33 mm.
Six 6-32 UNC screws thread into factory-tapped holes at 50-55 cN.m [71-78 ozf.in]. A lap joint between lid and box protects against dust and splashing water, and the 1590BX2BK is designed to meet IP54. The water-tight version is 1590WBX2BK, and the replacement gasket kit for this size is 1590BXGASKET.
Shipping weight is 0.8 lbs (0.36 kg), shrink wrapped; RoHS and REACH compliant.
Ideal For
- Slim painted enclosures for long PC boards
- Instrument and control housings
- Custom-machined long enclosures
- Dust and splash protected electronics (IP54)
Overview
| Series | 1590 Series Diecast Aluminum Enclosures |
| Category | Enclosures (enclosure - diecast) |
| Description | 1590BX2 DIECAST ENCL BLACK |
| Part Number | 1590BX2BK |
| Product Type | Die-cast box |
| Mounting Style | No mounting flanges |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Box Width (Drawing) | 70.00 mm [2.756 in] |
| Box Length (Drawing) | 254.00 mm [10.000 in] |
| Max. P.C. Board Width | 246.33 mm |
| Side Wall Draft Angle | 2° or less |
| Inside Width (Drawing) | 64.33 mm [2.533 in] |
| Max. P.C. Board Length | 62.33 mm |
| Inside Height (Drawing) | 29.70 mm [1.169 in] |
| Inside Length (Drawing) | 248.33 mm [9.777 in] |
| Overall Height (Drawing) | 34.50 mm [1.358 in] |
| Size L X W X H (Part Page) | 10 in x 2.76 in x 1.36 in (254 mm x 70 mm x 35 mm) |
| Nominal Width (Series Table) | 2.76 in (70 mm) |
| Nominal Height (Series Table) | 1.38 in (35 mm) |
| Nominal Length (Series Table) | 10.00 in (254 mm) |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980405438 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.8 lbs (0.36 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Contents | Box, lid and 6 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Cover Screws | 6 included, 6-32 UNC, threaded into factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WBX2BK |
| Optional Replacement Gasket Kit | 1590BXGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1590BX2BK?▾
The part page lists 10 x 2.76 x 1.36 in (254 x 70 x 35 mm); the drawing shows 254.00 x 70.00 x 34.50 mm outside.
What is the inside height?▾
29.70 mm [1.169 in], with 248.33 mm inside length and 64.33 mm inside width.
What finish is it?▾
Textured black polyester powder paint, with black screws included.
How many lid screws are included?▾
Six 6-32 UNC cover screws.
What is the IP65 option?▾
The water-tight 1590WBX2BK is designed to meet IP65; the gasket kit listed for this size is 1590BXGASKET.
