Hammond 1590B2FLBK 112x61x38mm Black Diecast Box, Flanged Mounting Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint; black screws included
- Wall-mounting flange integrated into the lid
- 138.00 mm [5.433 in] overall length including lid flange
- Nominal 112 x 61 x 38 mm; inside 106.77 x 55.17 x 33.50 mm
- Designed to meet IP54; lap joint construction
- 4 cover screws in factory-tapped 6-32 UNC holes
- Water-tight 1590WB2FLBK; 1590BGASKET upgrade kit

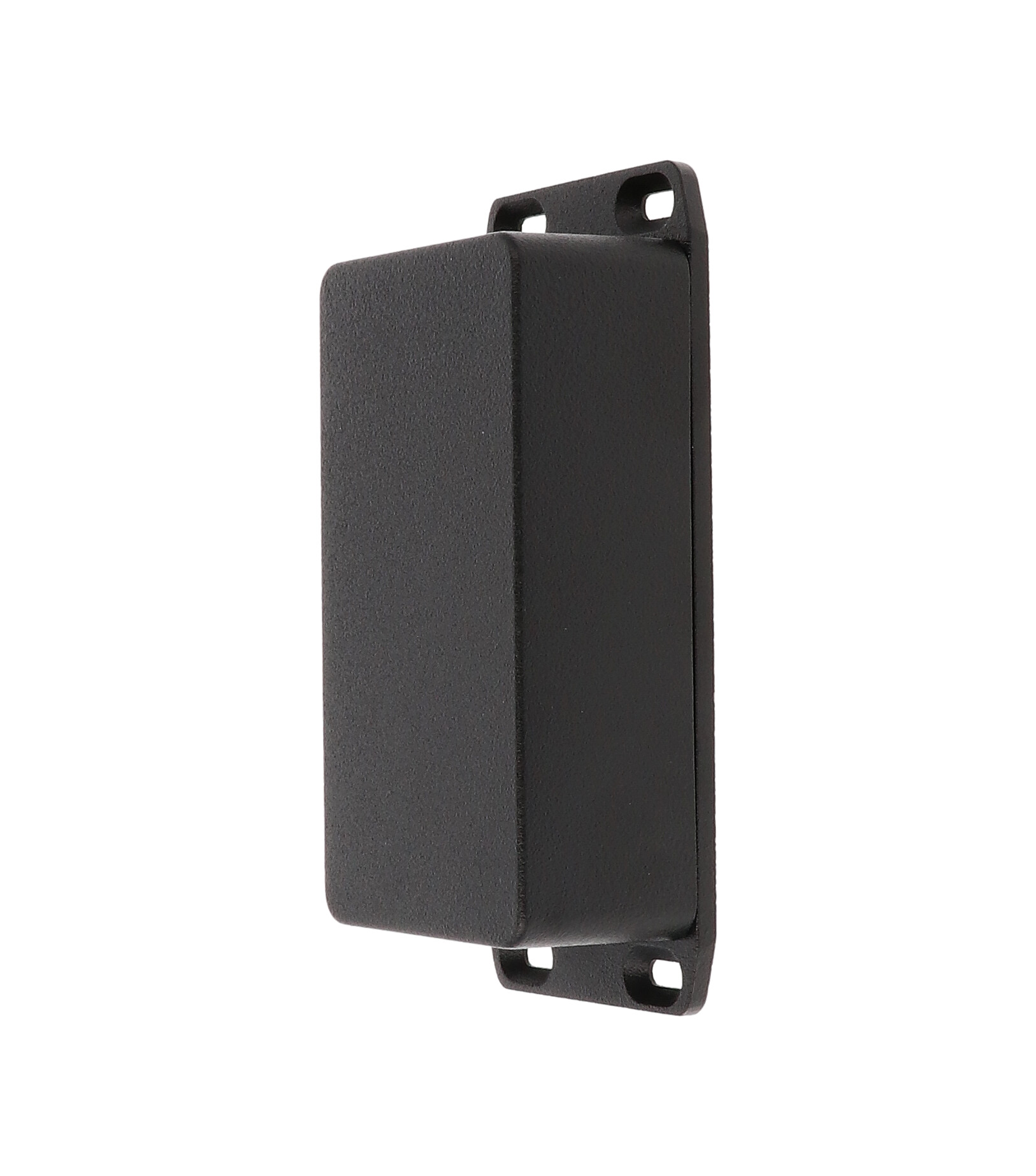

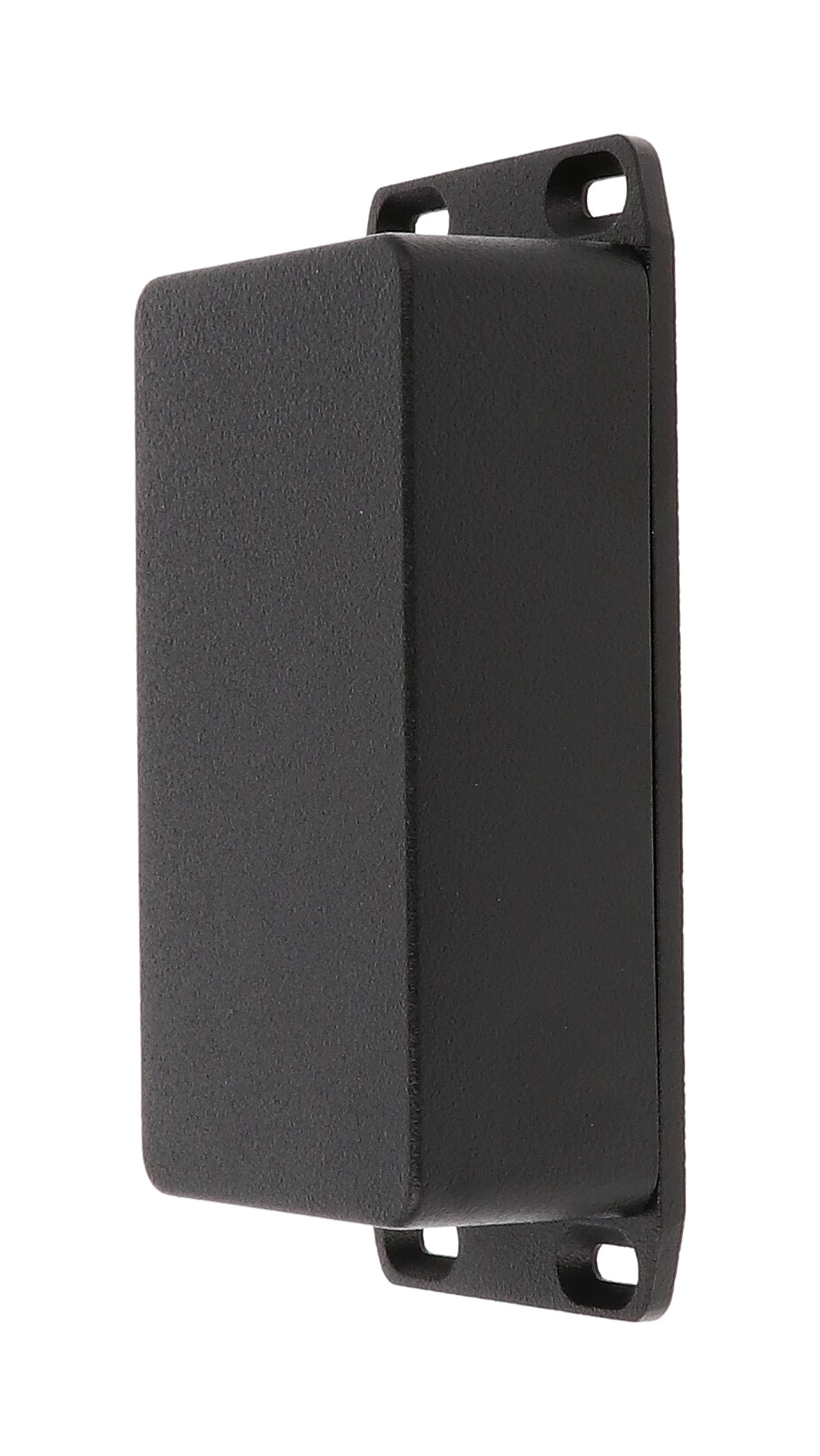

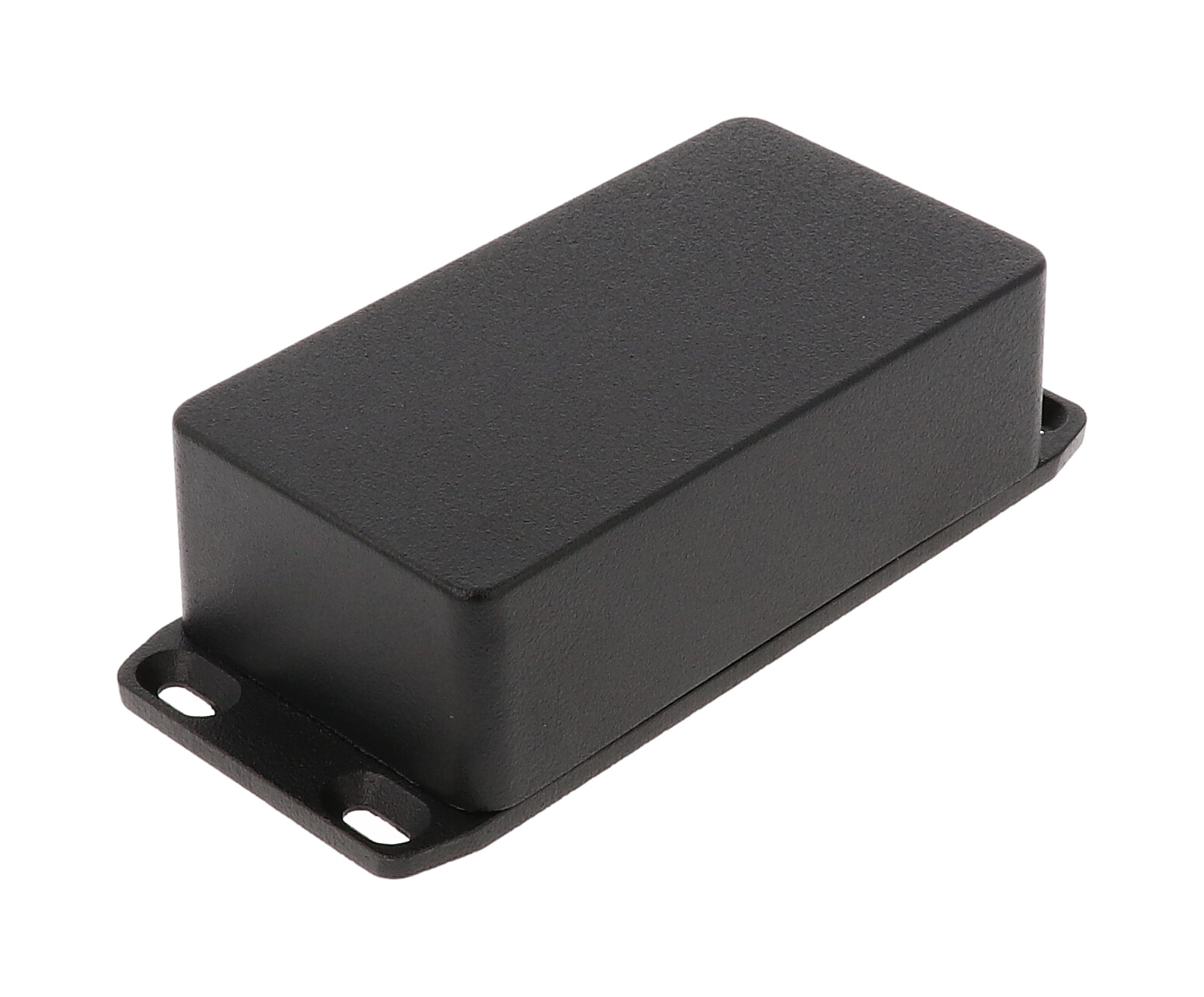

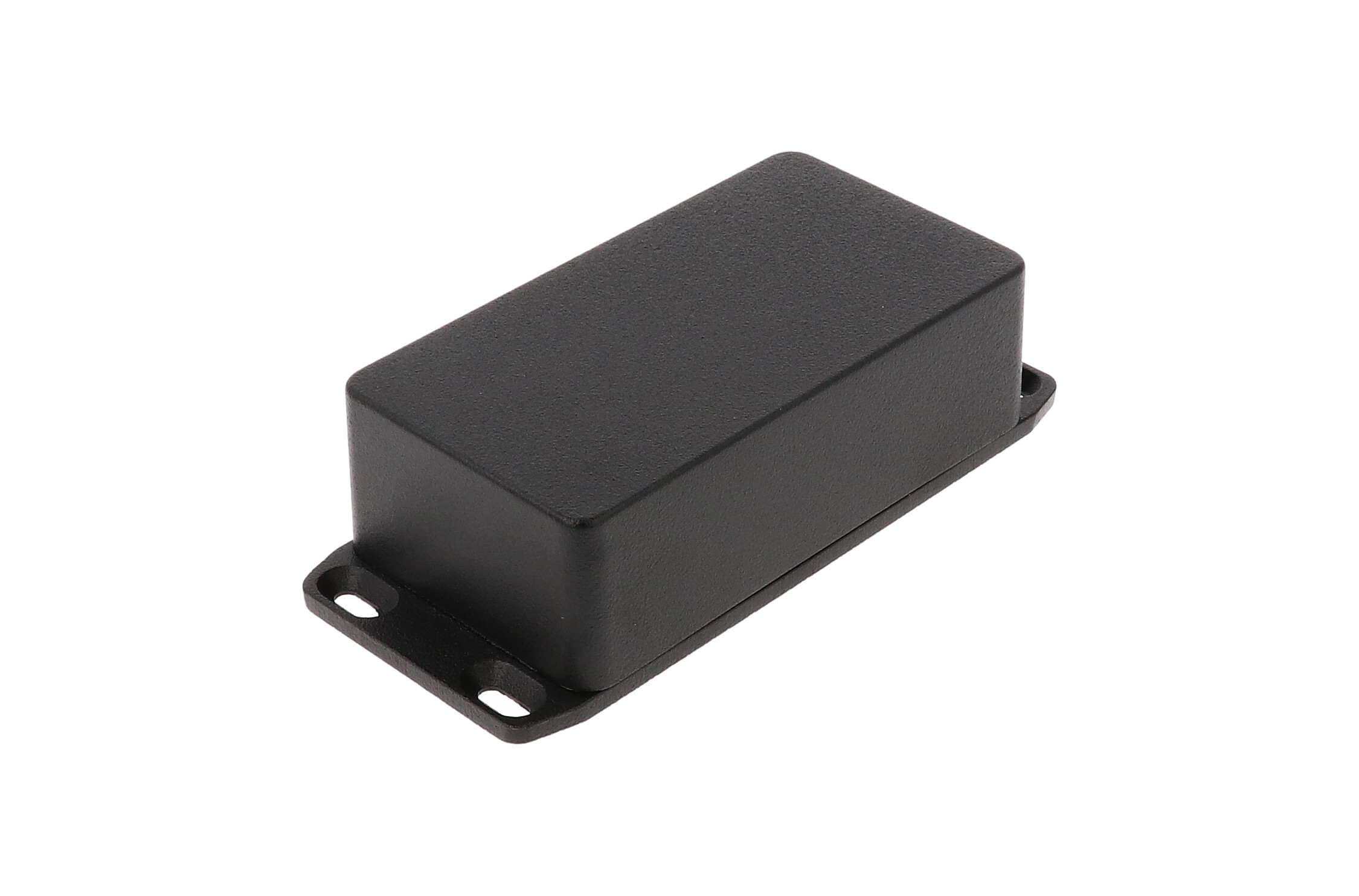

The 1590B2FLBK pairs the 112 x 61 x 38 mm 1590B2 body with a lid that carries an integrated wall-mounting flange, finished in textured black. It is suited to integrators and OEM builders who want a wall-mountable diecast enclosure with a painted look.
Box and lid are diecast aluminum alloy coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. Lap joint construction where lid and box meet protects against dust and splashing water; the standard version is designed to meet IP54.
The part page lists 4.43 in x 2.38 in x 1.48 in (113 mm x 60 mm x 38 mm). From the drawing, overall length including the lid flange is 138.00 mm [5.433 in], width 60.50 mm [2.382 in] and height 37.50 mm [1.476 in]. Interior space is 106.77 x 55.17 x 33.50 mm, and listed max PC board values are 53.17 mm and 104.77 mm.

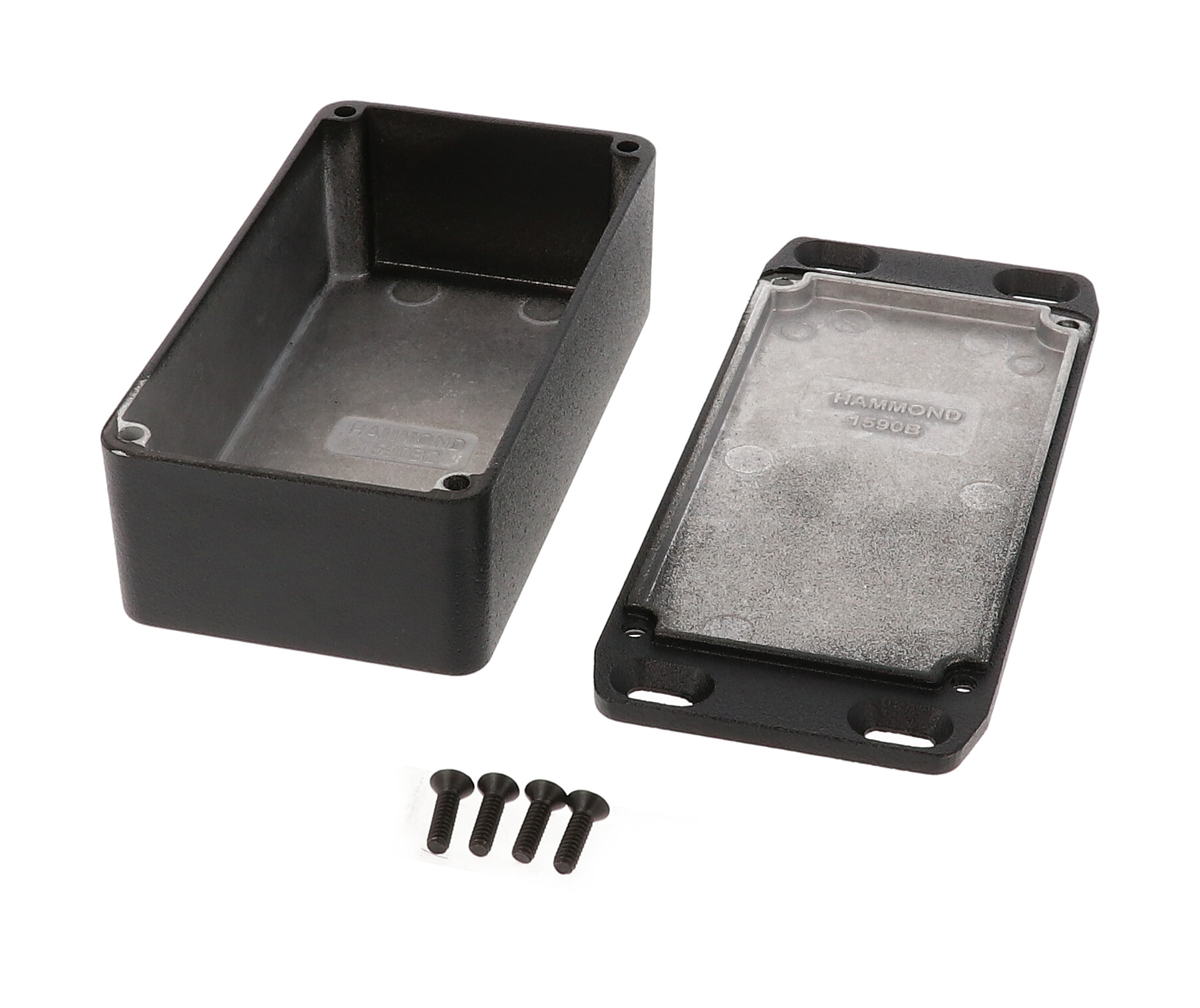

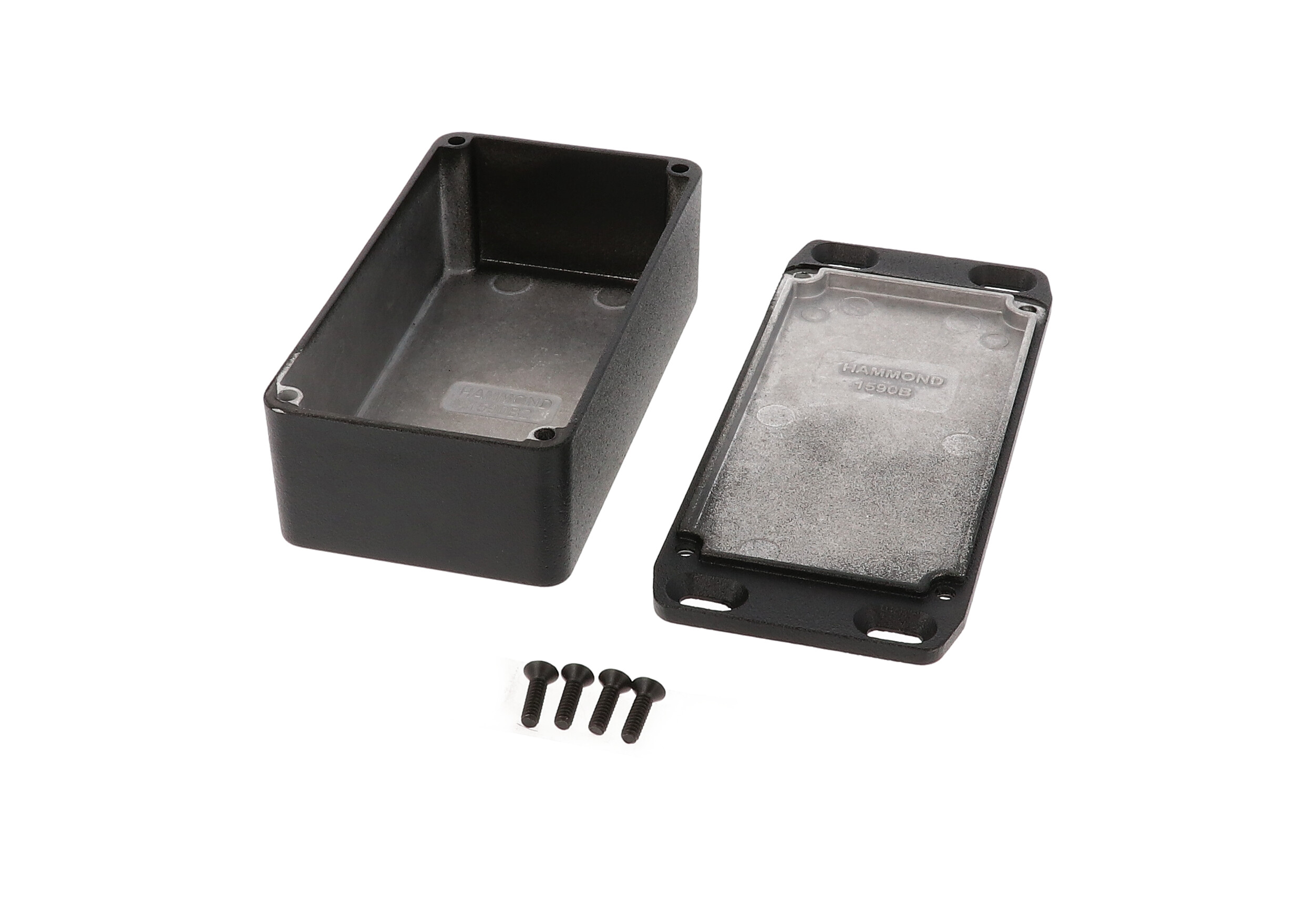

Supplied shrink wrapped with box, lid and 4 cover screws in factory-tapped 6-32 UNC holes (50-55 cN.m [71-78 ozf.in] recommended). The water-tight version is 1590WB2FLBK, and the 1590BGASKET kit fits. The 1590B2FLBK can be factory modified, and solid models are available in STEP or IGES.
Ideal For
- Wall-mounted black instrument enclosures
- Panel-mounted control housings
- PC board enclosures for visible installations
- Machined enclosures for connectors
Hardware
| Screw Color | Black screws included |
| Included Items | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Hardware Upgrade Option | Tamper-proof hardware (Torx w/ Pin) |
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Description | 1590B2 FLANGED LID BLACK |
| Part Number | 1590B2FLBK |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast |
| Series Table Color | Black |
Services
| Solid Models | STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 55.17 mm [2.172 in] |
| Inside Height | 33.50 mm [1.319 in] |
| Inside Length | 106.77 mm [4.203 in] |
| Nominal Width | 2.40 in (61 mm) |
| Nominal Height | 1.50 in (38 mm) |
| Nominal Length | 4.41 in (112 mm) |
| Size (L X W X H) | 4.43 in x 2.38 in x 1.48 in (113 mm x 60 mm x 38 mm) |
| Overall Width (Drawing) | 60.50 mm [2.382 in] |
| Overall Height (Drawing) | 37.50 mm [1.476 in] |
| Max. P.C. Board Width (Mm) | 104.77 |
| Max. P.C. Board Length (Mm) | 53.17 |
| Overall Length Incl. Lid Flange | 138.00 mm [5.433 in] |
Identifiers
| UPC | 623980810225 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.36 lbs (0.16 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Flange | Wall-mounting flange integrated into lid |
| Box And Lid | Diecast Aluminum Alloy |
| Lid-to-Box Joint | Lap joint construction |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Optional Replacement Gasket Kit | 1590BGASKET |
| Liquid Resistant (Water-Tight) Version | 1590WB2FLBK (silicone gasket supplied) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What makes the 1590B2FLBK different from the 1590B2BK?▾
The 1590B2FLBK has a wall-mounting flange integrated into the lid; the 1590B2BK has no mounting flanges.
What is the overall length with the flange?▾
138.00 mm [5.433 in] per the drawing.
How is the black finish applied?▾
It is a tough textured black polyester powder paint that gives a lasting finish, even after machining.
What does it weigh?▾
Shipping weight is 0.36 lbs (0.16 kg).
What torque should I use on the lid screws?▾
50-55 cN.m [71-78 ozf.in] without a gasket, or 25-30 cN.m [36-43 ozf.in] with a gasket.
