Hammond 1590B2FL 112x61x38mm Diecast Aluminum Box, Wall-Mount Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- 138.00 mm [5.433 in] overall length including lid flange
- Nominal 112 x 61 x 38 mm; inside 106.77 x 55.17 x 33.50 mm
- Natural vibra-finished diecast aluminum alloy
- Designed to meet IP54 with lap joint construction
- Box, lid and 4 cover screws; 6-32 UNC factory-tapped holes
- Water-tight 1590WB2FL available; 1590BGASKET kit fits
- RoHS and REACH compliant; 0.36 lbs (0.16 kg)

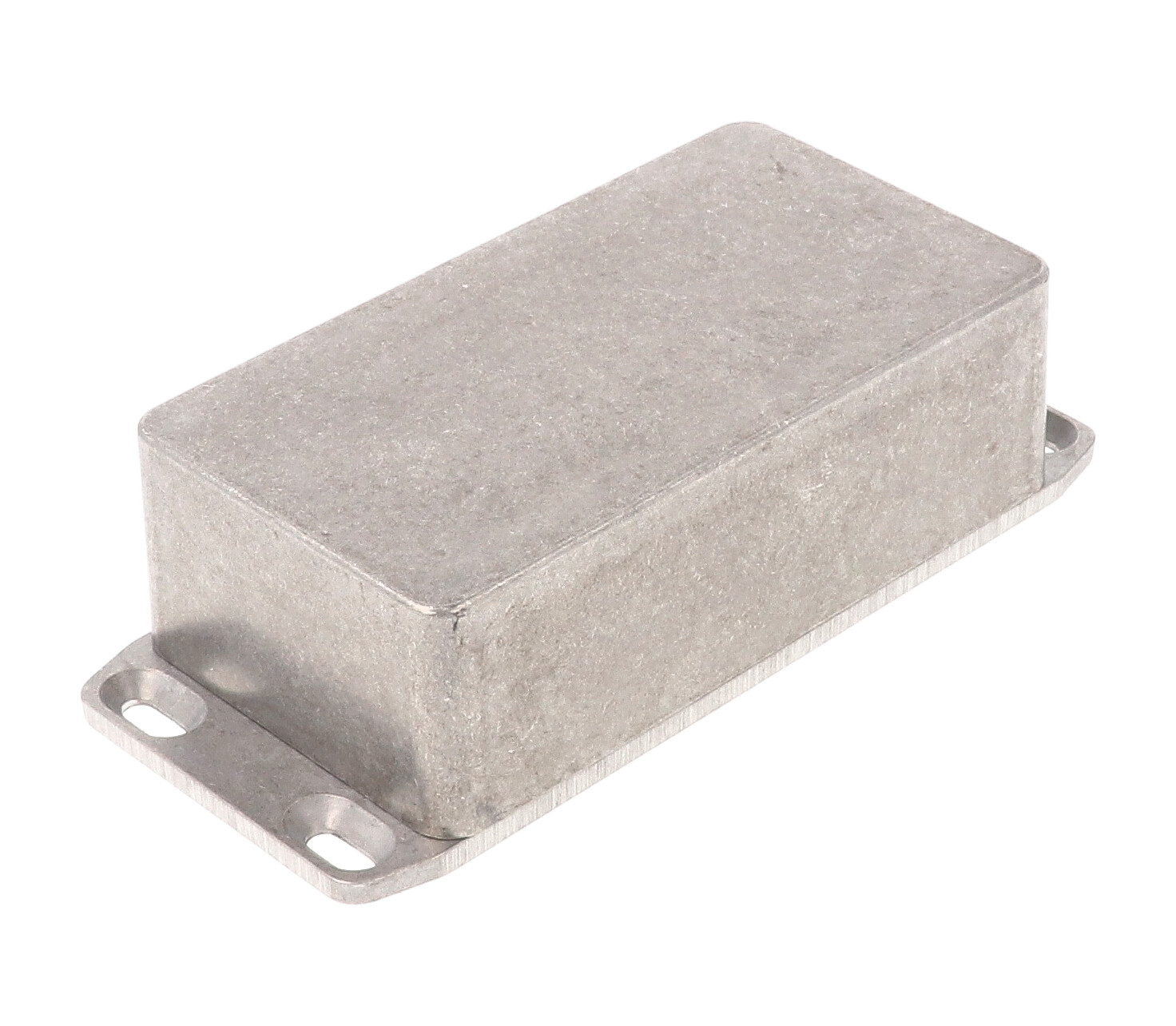

The 1590B2FL is the flanged-lid version of the 112 x 61 x 38 mm 1590B2 diecast aluminum enclosure. Its wall-mounting flange is integrated into the lid, so the enclosure mounts by its lid face. It is a natural finish instrument box for OEM engineers, electricians and system integrators.
Box and lid are diecast aluminum alloy, tough yet easy to machine, and the unpainted version is vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, and the standard enclosure is designed to meet IP54.
The part page lists 4.43 in x 2.38 in x 1.48 in (113 mm x 60 mm x 38 mm). The drawing shows an overall length of 138.00 mm [5.433 in] including the lid flange, 60.50 mm [2.382 in] width and 37.50 mm [1.476 in] height, with inside dimensions of 106.77 x 55.17 x 33.50 mm [4.203 x 2.172 x 1.319 in]. A side wall draft angle of 2° or less aids PC board mounting.

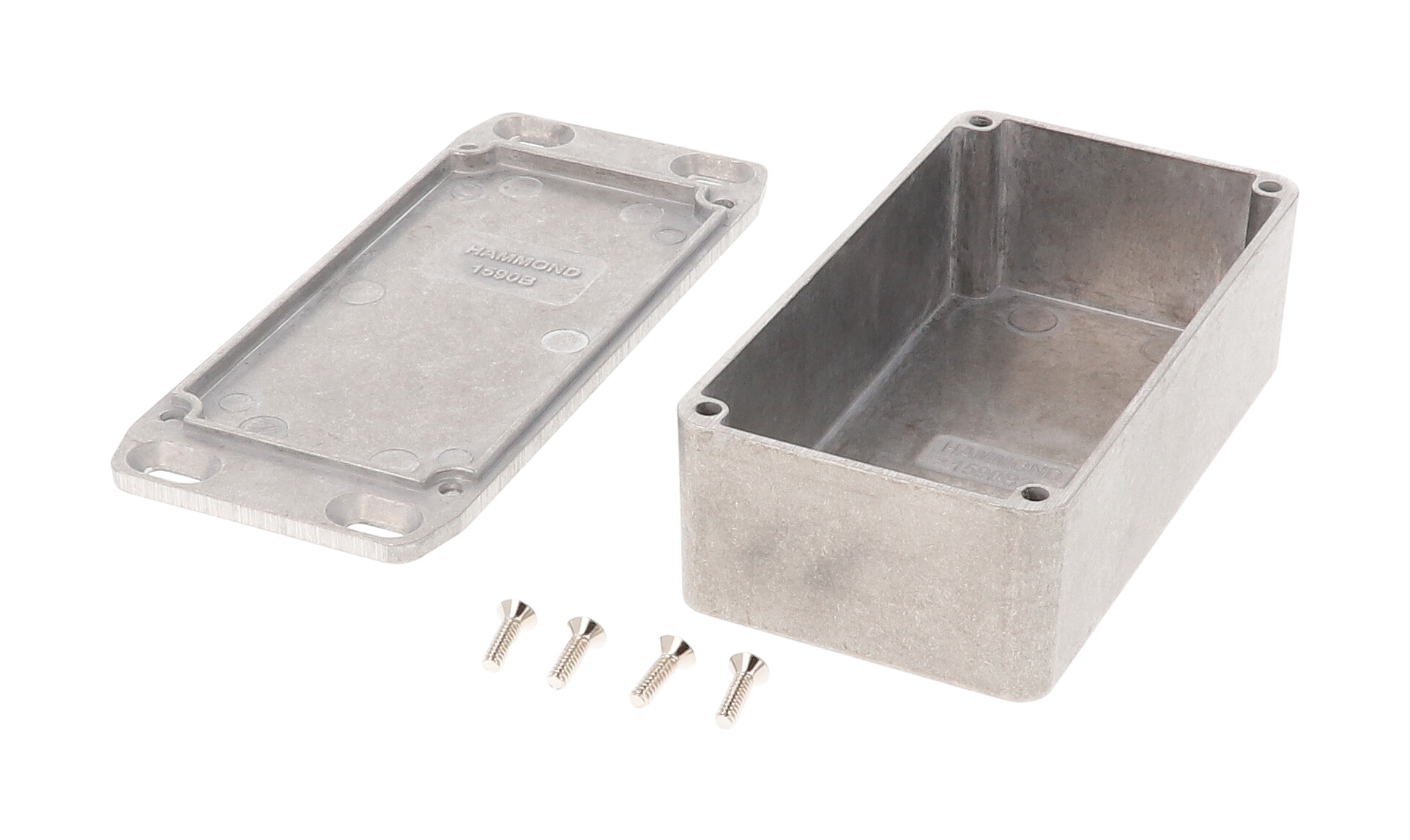

The 1590B2FL is supplied with box, lid and 4 cover screws in factory-tapped 6-32 UNC holes; recommended torque is 50-55 cN.m [71-78 ozf.in]. The water-tight version is 1590WB2FL, and the 1590BGASKET kit fits this size. Factory modification and STEP or IGES models are available.
Ideal For
- Wall-mounted electronic instruments
- Panel-mounted control and sensor housings
- General purpose PC board enclosures
- Custom machined enclosures
Hardware
| Included Items | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Hardware Upgrade Option | Tamper-proof hardware (Torx w/ Pin) |
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Description | 1590B2 WITH FLANGED LID |
| Part Number | 1590B2FL |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast |
| Series Table Color | Natural |
Services
| Solid Models | STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 55.17 mm [2.172 in] |
| Inside Height | 33.50 mm [1.319 in] |
| Inside Length | 106.77 mm [4.203 in] |
| Nominal Width | 2.40 in (61 mm) |
| Nominal Height | 1.50 in (38 mm) |
| Nominal Length | 4.41 in (112 mm) |
| Size (L X W X H) | 4.43 in x 2.38 in x 1.48 in (113 mm x 60 mm x 38 mm) |
| Overall Width (Drawing) | 60.50 mm [2.382 in] |
| Overall Height (Drawing) | 37.50 mm [1.476 in] |
| Max. P.C. Board Width (Mm) | 104.77 |
| Max. P.C. Board Length (Mm) | 53.17 |
| Overall Length Incl. Lid Flange | 138.00 mm [5.433 in] |
Identifiers
| UPC | 623980810218 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.36 lbs (0.16 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Flange | Wall-mounting flange integrated into lid |
| Box And Lid | Diecast Aluminum Alloy |
| Lid-to-Box Joint | Lap joint construction |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Optional Replacement Gasket Kit | 1590BGASKET |
| Liquid Resistant (Water-Tight) Version | 1590WB2FL (silicone gasket supplied) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590B2FL mount?▾
A wall-mounting flange is integrated into the lid. Overall length including the lid flange is 138.00 mm [5.433 in].
What is the difference between 1590B2FL and 1590B2F?▾
The 1590B2FL has the mounting flange on the lid, while the 1590B2F has a welded flanged bottom plate.
What are the inside dimensions?▾
Inside length 106.77 mm [4.203 in], inside width 55.17 mm [2.172 in], inside height 33.50 mm [1.319 in].
What IP rating applies?▾
The standard version is designed to meet IP54; the water-tight 1590WB2FL includes a silicone gasket.
Is it available in black?▾
Yes, 1590B2FLBK is the black flanged-lid version.
