Hammond 1583H12B1BKXRA 1U 12-Outlet Rack PDU, Rotated 5-15R Outlets

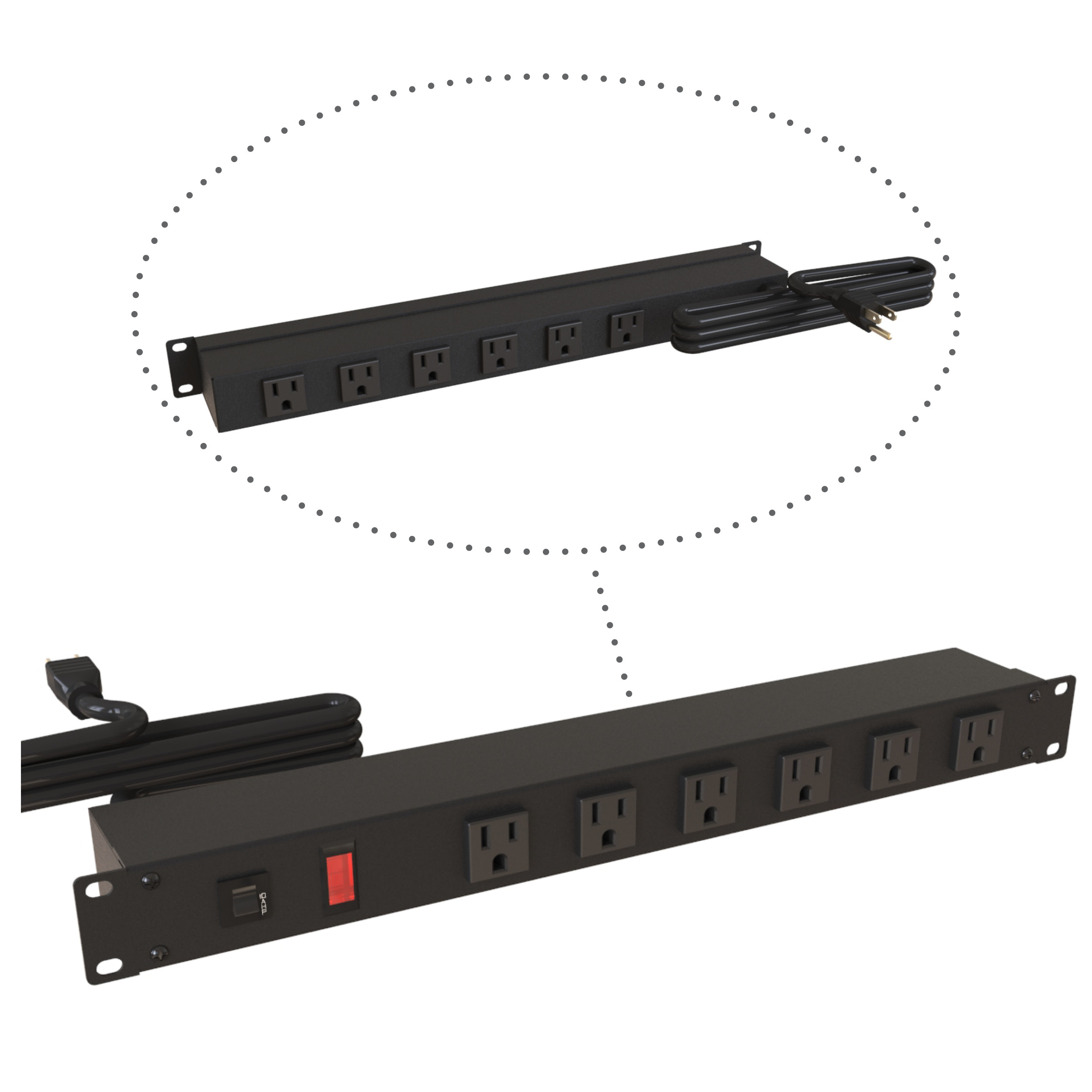

The 1583H12B1BKXRA is a basic rack mount power distribution unit that installs horizontally in a standard 19" rack and occupies 1U. It provides twelve NEMA 5-15R outlets split six on the front and six at the rear, making it suited to IT, AV and OEM installations where equipment needs to be fed from both sides of the rack. Rated current is 15 A on single-phase 125 V service.

All twelve receptacles are the rotated type, giving extra spacing so most plug-in transformers and bulky wall packs clear neighbouring outlets. An illuminated on/off rocker switch controls the strip, and a resettable 15 Amp, 125 VAC circuit breaker guards against accidental overload. The supply cord is heavy-duty 14 gauge, 14/3 SJT type for extreme temperature ranges, with an integral moulded NEMA 5-15P straight-blade plug.

The enclosure of this 1583H12B1BKXRA measures 19.00 in (483 mm) wide, 1.72 in (44 mm) high and 2.66 in (68 mm) deep, with a 17.500 in mounting-flange span shown on the drawing. It is finished in black powder coat and weighs 4 lbs (1.81 kg) shipping.

• UL/cUL recognized to UL1363 and CSA C22.2 No. 308-14 and CSA C22.2 No. 0.4-04, UL file E166039
• TAA-compliant for federal GSA schedule purchases within the USA
• RoHS, REACH and USMCA compliant; manufactured in North America

The powder coat finish complies with the Greenguard guidelines for indoor air quality. Note that the manufacturer's series ordering table and the part drawing specify a 15 ft power cord for this part number, while the part page attribute list states 6 ft; both figures are reproduced in the specifications below so you can confirm before ordering.
