Hammond 1554XAGY 300x200x120 mm ABS Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS box and lid, light gray RAL 7035
- 300 x 200 x 120 mm nominal; inside 289.09 x 189.31 x 111.75 mm
- Tested to and meets IP66; IK07 impact
- UL94-HB material, indoor use, -20°C to +60°C
- PC boards to 285 x 174 mm; DIN rail tabs and card guides
- Six self-captivating M4 stainless steel lid screws
- Shipping weight 2.48 lb (1.12 kg)

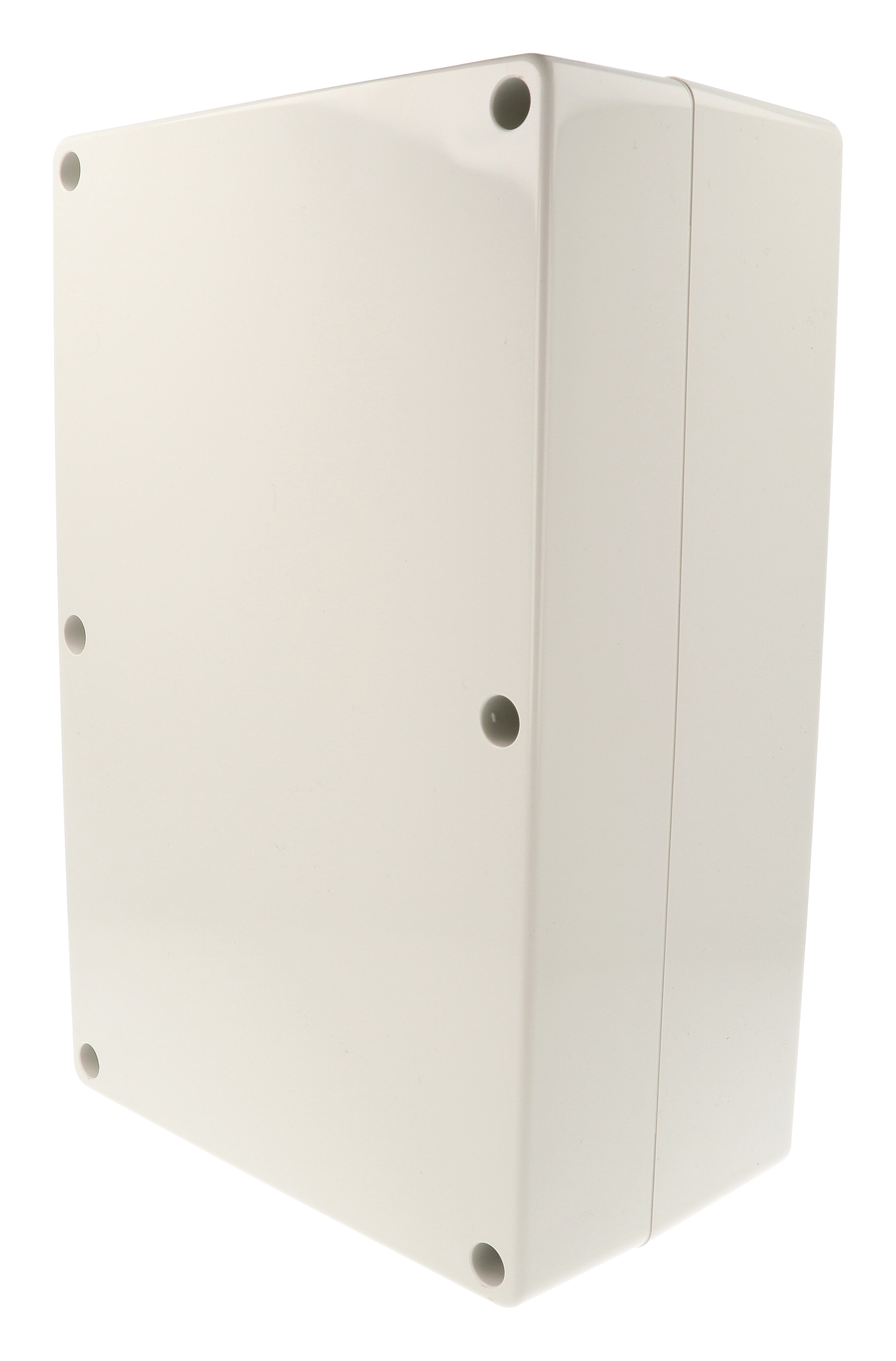

The 1554XAGY is the general purpose ABS version of the deep 300 x 200 x 120 mm size in the 1554 Series. Box and lid are both light gray (RAL 7035) ABS, giving indoor electronics and control projects a gasketed, screw-cover housing for printed circuit boards or DIN rail mounted components.
It measures 11.81 x 7.87 x 4.72 in (300 x 200 x 120 mm) nominal; the drawing shows 299.33 x 199.55 x 119.73 mm overall and an interior of 289.09 x 189.31 x 111.75 mm. PC boards up to 285 x 174 mm fit, and four M3 brass inserts, ten #8 self-tapping screw positions, molded DIN rail tabs and 1.5 mm card guides give mounting choices. The 1554XPL steel inner panel is ordered separately.
A two piece tongue and groove lid with a replaceable one-piece silicone gasket (supplied loose) resists oil, dust and water. Six included M4 stainless steel screws, self-captivating and threaded into corrosion resistant inserts, secure it; recommended torque is 8-9 lbf-in (90-100 cN-m).
ABS versions use UL94-HB general purpose material for indoor use. The 1554XAGY is not UL listed but has been tested to and meets IP66, carries an IK07 impact rating per IEC 62262:2021 and is recommended for -20°C to +60°C (-4°F to +140°F). Four 4.39 mm wall mounting holes sit outside the gasket channel, and foot kit 1554FT-XY fits this size. Shipping weight is 2.48 lb (1.12 kg).
Ideal For
- Indoor control and PCB enclosures
- DIN rail component housings with extra depth
- Indoor instrument and electronics projects
- Damp or dusty indoor areas
Mounting
| Foot Kit | 1554FT-XY (installs in the wall mounting holes) |
| Wall Mounting Holes | 4X Ø4.39 mm, located outside of the gasket channel |
Overview
| Type | Water-tight |
| Series | 1554 Series — Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Version | General Purpose ABS, gray lid |
| Lid Style | Screw cover, flat gasketed lid |
| Short Description | 300X200X120MM ABS NEMA ENCL |
| Enclosure Size Family | 1554XA |
Dimensions
| Width | 7.87 in (200 mm) |
| Length | 11.81 in (300 mm) |
| Inside Width | 189.31 mm [7.45 in] |
| Total Height | 4.72 in (120 mm) |
| Inside Height | 111.75 mm [4.40 in] |
| Inside Length | 289.09 mm [11.38 in] |
| Size L X W X H | 11.81 in x 7.87 in x 4.72 in (300 mm x 200 mm x 120 mm) |
| Max. P.C. Board Width | 174 mm |
| Max. P.C. Board Length | 285 mm |
| Overall Width (Drawing) | 199.55 mm [7.86 in] |
| Overall Height (Drawing) | 119.73 mm [4.71 in] |
| Overall Length (Drawing) | 299.33 mm [11.78 in] |
Accessories
| Steel Inner Panel | 1554XPL (order separately) |
| Replacement Gasket | 1554XGASKET |
| Replacement Screws (50-pk) | SC583-50 |

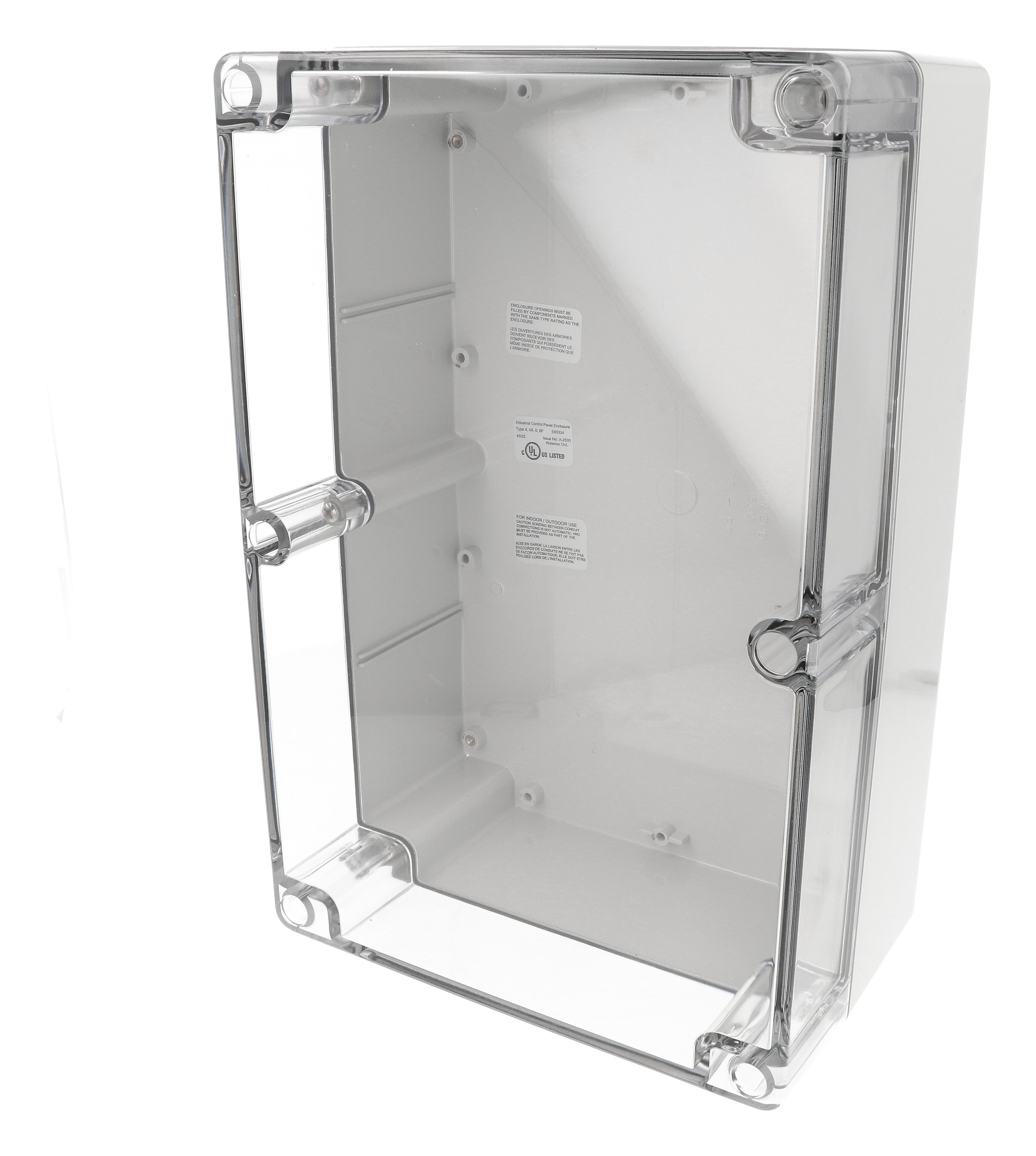

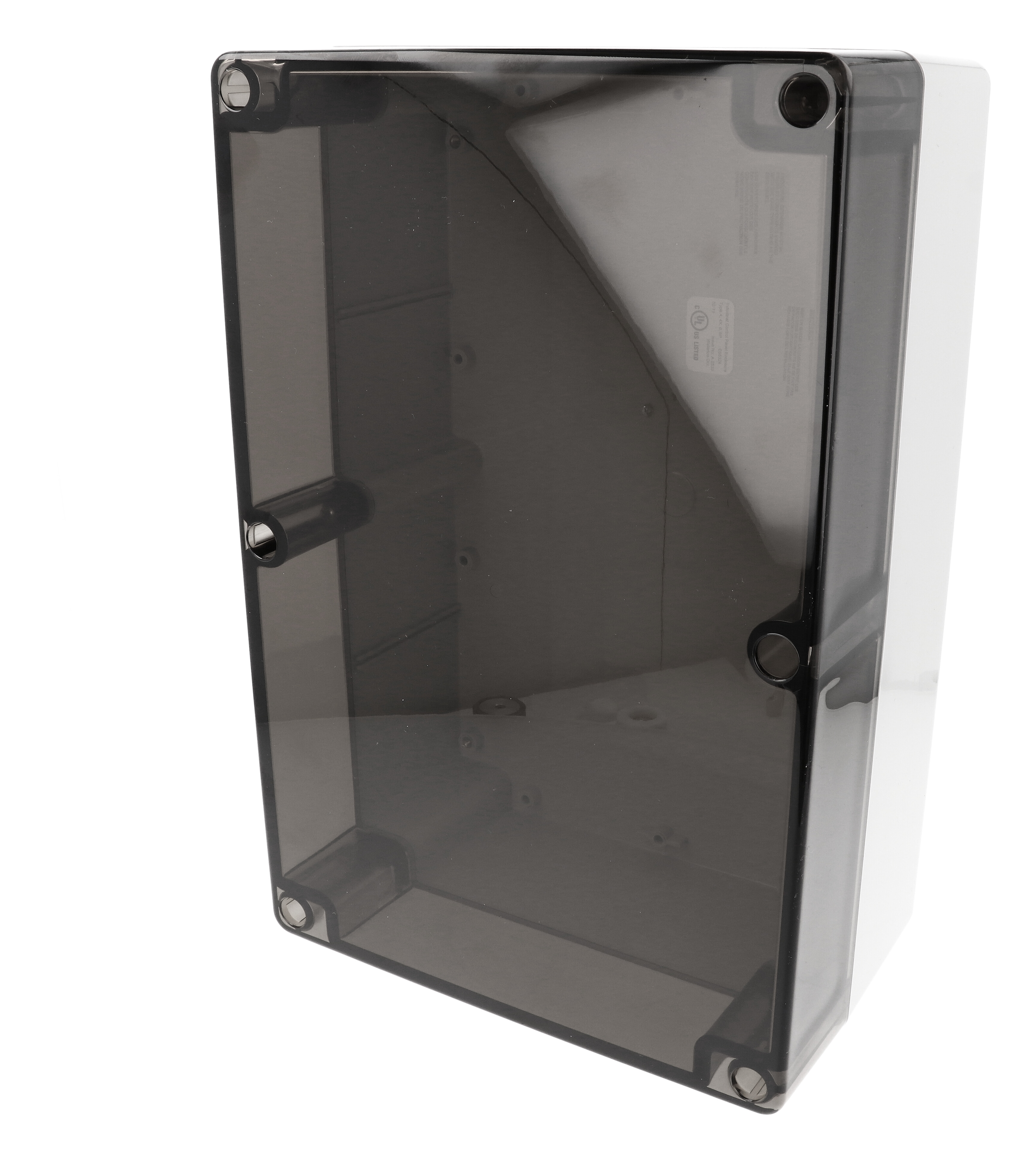

| Related Versions (Same Size) | ABS gray lid 1554XAGY; polycarbonate gray lid 1554XA2GY; clear lid 1554XA2GYCL; smoked lid 1554XA2GYSL |
| Stainless Steel Cover Screws | SC583-50 — M4-0.7 x 25 mm (Pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 — M3-0.5 x 8 mm, plated (Pkg 100) |
| Silicone Pre-formed Gasket, Black | 1554XGASKET (Pkg 2) |
| Steel Panel / P.C. Board Self Tapping Screw | SC554-100 — #8 x 5/16" (6.4 mm) |
Identifiers
| UPC | 623980406381 |
| UNSPSC | 39121301 |
| Part Number | 1554XAGY |
Internal Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | 4X M3 brass inserts; standoffs accept #8 self-tapping screws |
| Self-Tapping Positions (Drawing) | 10X #8 self-tapping screw positions |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 2.48 lbs (1.12 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Material | ABS Plastic |
| Lid Holes | Threaded with the first installation of lid screws |
| Lid Screws | 6 x M4 stainless steel machine screws included, self-captivating, threaded into corrosion resistant bushings |
| Lid Inserts | 6X M4 corrosion resistant inserts |
| Solid Models | Available in .stp or .x_t |
| Lid Construction | Gasketed lid with two piece tongue and groove construction; protection against access of oil, dust and water |
| Factory Modification | Milling, drilling, printing etc. available from factory on quote |

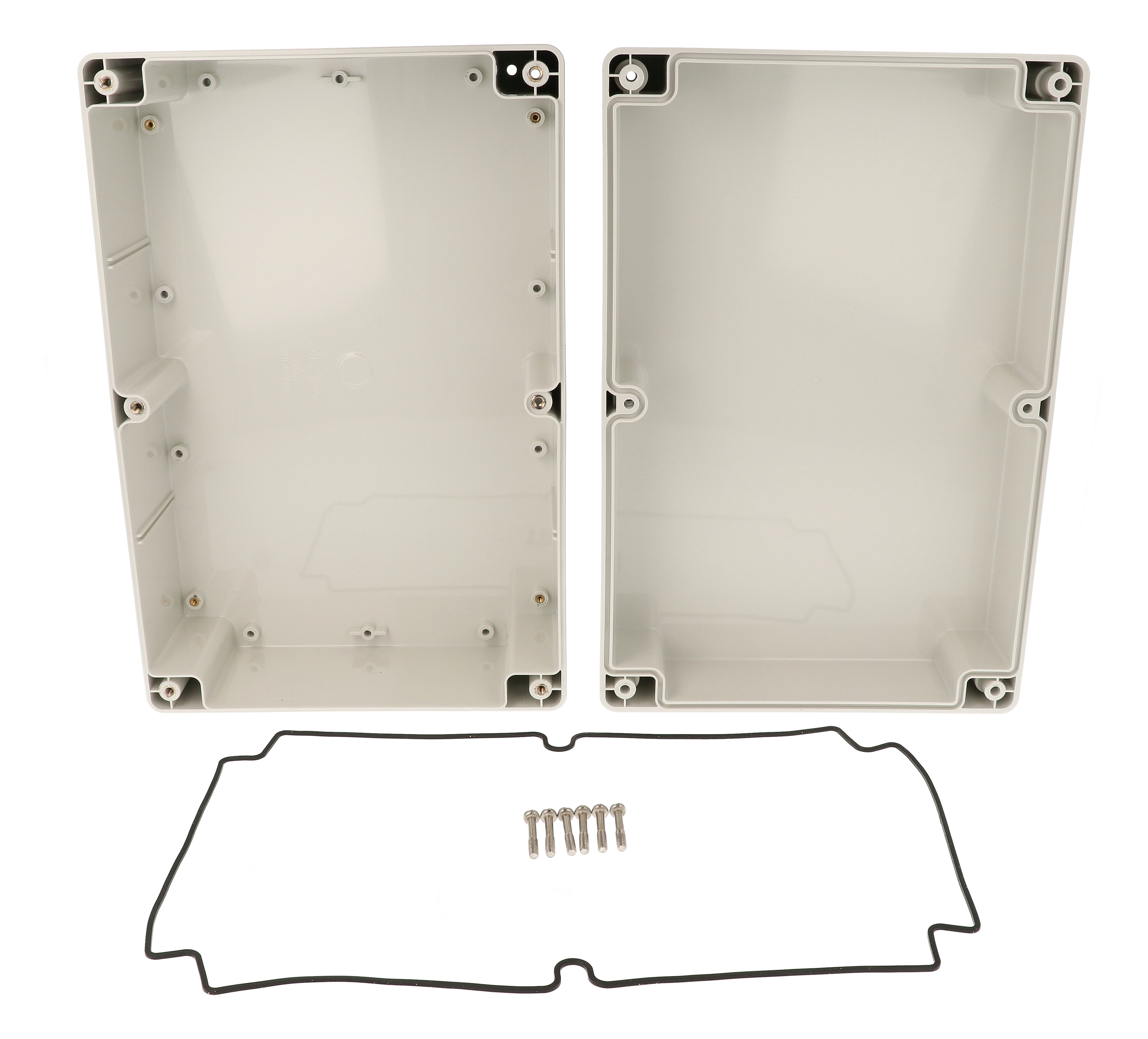

| Purchased Assembly Includes | Box, lid, 6 cover screws and preformed silicone gasket |
| Recommended Cover Screw Torque | 8-9 lbf-in (90-100 cN-m) |
Environmental & Protection
| Impact Rating | IK07 per IEC 62262:2021 |
| Indoor / Outdoor | For indoor use |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | Not UL listed (General Purpose ABS version is not UL approved) |
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (As Listed On Part Page) | E65324 — series listing applies to polycarbonate versions |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1554XAGY suitable for outdoor use?▾
ABS versions are specified for indoor use. The polycarbonate 1554XA2GY is UV stabilized for outdoor use.
Is it UL listed?▾
No. ABS versions are not UL listed but have been tested to and meet IP66.
What is the maximum PC board size?▾
285 mm long by 174 mm wide.
What torque should the cover screws have?▾
8-9 lbf-in (90-100 cN-m).
Which spare parts fit?▾
Gasket 1554XGASKET, screws SC583-50, inner panel 1554XPL and foot kit 1554FT-XY.
