Hammond 1554X2GY 300x200x90 mm Gray Polycarbonate NEMA Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

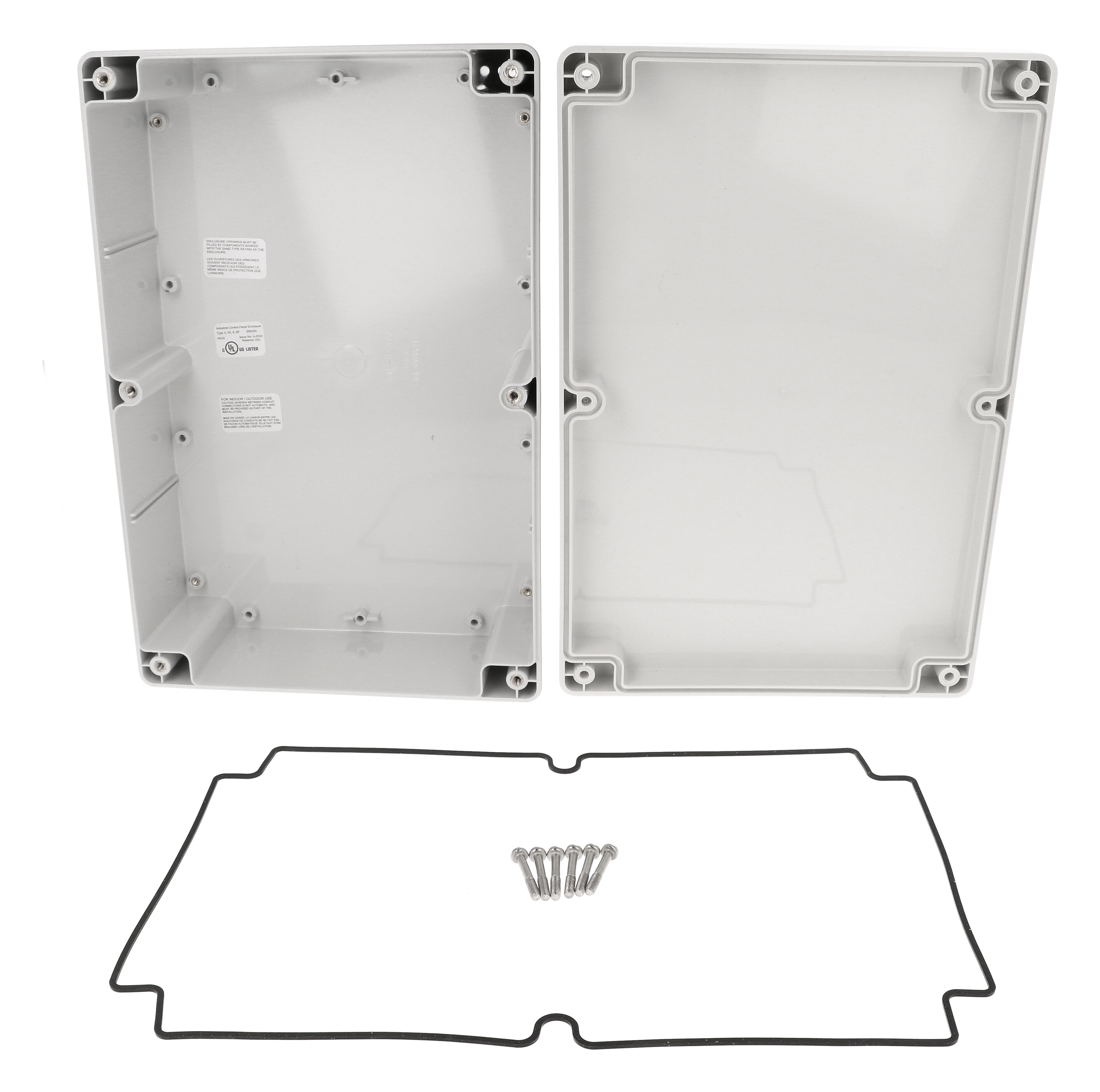

- 300 x 200 x 90 mm (11.81 x 7.87 x 3.54 in) polycarbonate box, gray lid
- IP68 plus NEMA 4, 4X, 6, 6P, 12 & 13
- cUL and UL 508A listed, file E65324; UL94-5VA
- Inside 289.09 x 189.31 x 81.82 mm; PC boards up to 285 x 174 mm
- Six self-captivating M4 stainless steel lid screws
- UV stabilized, IK08 impact, -40°C to +110°C
- 4X M3 brass inserts, #8 self-tapping positions, DIN rail tabs
The 1554X2GY is a 300 x 200 x 90 mm polycarbonate enclosure from the 1554 Series with a solid gray lid, built for outdoor and wash-down installations that need a UL listed watertight housing for printed circuit boards or DIN rail mounted components. Integrators, electricians and OEM teams use it when a rectangular footprint larger than the square sizes is needed.
Nominal size is 11.81 x 7.87 x 3.54 in (300 x 200 x 90 mm); the drawing gives 299.33 x 199.55 x 89.80 mm overall. The interior measures 289.09 mm long, 189.31 mm wide and 81.82 mm high, and PC boards up to 285 x 174 mm fit. Four M3 brass inserts, ten positions accepting #8 self-tapping screws, molded DIN rail tabs and 1.5 mm card guides provide internal mounting, with the 1554XPL steel inner panel ordered separately.
Six included M4 stainless steel lid screws (self-captivating) thread into six corrosion resistant inserts in the lid, compressing a replaceable one-piece silicone gasket in a two piece tongue and groove seal. The gasket is supplied loose. Recommended cover screw torque is 8-9 lbf-in (90-100 cN-m).
Solid gray polycarbonate is UV stabilized for outdoor use and carries a UL94-5VA flame rating. 1554X2GY is cUL and UL 508A listed under file E65324, tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, rated IK08 for impact and recommended for -40°C to +110°C. Four 4.39 mm wall mounting holes sit outside the gasket channel; the matching foot kit is 1554FT-XY.
Ideal For
- Outdoor control and PCB enclosures
- DIN rail component panels for wet locations
- UL 508A industrial control assemblies
- Wash-down and corrosive environments (NEMA 4X)
Mounting
| Foot Kit | 1554FT-XY (installs in the wall mounting holes) |
| Wall Mounting Holes | 4X Ø4.39 mm, located outside of the gasket channel |
Overview
| Type | Water-tight |
| Series | 1554 Series — Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Version | Polycarbonate box / gray polycarbonate lid |
| Lid Style | Screw cover, flat gasketed lid |
| Short Description | 300X200X90MM POLYCARB NEMA ENC |
| Enclosure Size Family | 1554X |
Dimensions
| Width | 7.87 in (200 mm) |
| Length | 11.81 in (300 mm) |
| Inside Width | 189.31 mm [7.45 in] |
| Total Height | 3.54 in (90 mm) |
| Inside Height | 81.82 mm [3.22 in] |
| Inside Length | 289.09 mm [11.38 in] |
| Size L X W X H | 11.81 in x 7.87 in x 3.54 in (300 mm x 200 mm x 90 mm) |
| Max. P.C. Board Width | 174 mm |
| Max. P.C. Board Length | 285 mm |
| Overall Width (Drawing) | 199.55 mm [7.86 in] |
| Overall Height (Drawing) | 89.80 mm [3.54 in] |
| Overall Length (Drawing) | 299.33 mm [11.78 in] |
Accessories
| Steel Inner Panel | 1554XPL (order separately) |
| Replacement Gasket | 1554XGASKET |
| Replacement Screws (50-pk) | SC583-50 |
| Related Versions (Same Size) | ABS gray lid 1554XGY; polycarbonate gray lid 1554X2GY; clear lid 1554X2GYCL; smoked lid 1554X2GYSL |
| Stainless Steel Cover Screws | SC583-50 — M4-0.7 x 25 mm (Pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 — M3-0.5 x 8 mm, plated (Pkg 100) |
| Silicone Pre-formed Gasket, Black | 1554XGASKET (Pkg 2) |
| Steel Panel / P.C. Board Self Tapping Screw | SC554-100 — #8 x 5/16" (6.4 mm) |
Identifiers
| UPC | 623980406350 |
| UNSPSC | 39121301 |
| Part Number | 1554X2GY |
Internal Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | 4X M3 brass inserts; standoffs accept #8 self-tapping screws |
| Self-Tapping Positions (Drawing) | 10X #8 self-tapping screw positions |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 2.39 lbs (1.08 kg) |
Construction & Finish
| Lid | Gray polycarbonate lid |
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Holes | Threaded with the first installation of lid screws |
| Lid Screws | 6 x M4 stainless steel machine screws included, self-captivating, threaded into corrosion resistant bushings |
| Lid Inserts | 6X M4 corrosion resistant inserts |
| Solid Models | Available in .stp or .x_t |
| Lid Construction | Gasketed lid with two piece tongue and groove construction; protection against access of oil, dust and water |
| Factory Modification | Milling, drilling, printing etc. available from factory on quote |
| Purchased Assembly Includes | Box, lid, 6 cover screws and preformed silicone gasket |
| Recommended Cover Screw Torque | 8-9 lbf-in (90-100 cN-m) |
Environmental & Protection
| IP Rating | IP68 (independently tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| UV / Outdoor | UV stabilized for outdoor use |
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed, cULus Listed Type 4, 4X, 6, 6P |
| Flame Rating | UL94 5VA |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Material Flame Rating (Drawing) | UL94-5VA @ 3 mm |
