Hammond 1554VA2GY 240x160x90mm IP68 Gray Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP68 with NEMA 4, 4X, 6, 6P, 12 & 13 rating per part page
- 240 x 160 x 90 mm; inside 231.29 x 147.29 x 83.30 mm
- Six M4-0.7 x 25 mm stainless cover screws, 71-85 oz f-in
- Solid gray polycarbonate, UL94 5VA; cUL and UL 508A listed
- UV stabilized for outdoor use; IK08 impact
- Includes box, lid, 6 cover screws and preformed silicone gasket
- Recommended -40°C to +110°C (-40°F to +230°F)
The 1554VA2GY is a 240 x 160 x 90 mm solid gray polycarbonate enclosure whose lid is secured by six cover screws. With IP68 and a NEMA rating of 4, 4X, 6, 6P, 12 & 13 on its part page, it suits outdoor and wet-location installations of PC boards and DIN rail components.
The body and lid are light gray RAL 7035 polycarbonate rated UL94 5VA. Polycarbonate versions are UV stabilized for outdoor use, cUL and UL 508A listed under file E65324, impact rated IK08 per IEC 62262:2021, and recommended for -40°C to +110°C. The drawing is marked cUL US Listed, Type 4, 4X, 6, 6P.
According to the drawing notes, the assembly includes the box, lid, six cover screws and a preformed silicone gasket. The M4-0.7 x 25 mm stainless steel screws have a recommended torque of 71-85 oz f-in (50-60 cN-m) and thread into corrosion resistant inserts. Inside, the enclosure is 231.29 mm long, 147.29 mm wide and 83.30 mm high, and the part page lists maximum P.C. board dimensions of 145.5 mm and 226.82 mm.
DIN rail tabs, vertical card guides for 1.5 mm boards and M3 brass inserts (accepting #6 self-tapping screws) are molded in. Accessories include the 1554VAPL steel inner panel, 1554VAGASKET, SC583-50, 1591MM100, 1598ATS100 and the 1554FT foot kit. The 1554VA2GY mounts through four Ø4.50 mm holes outside the gasket channel and ships shrink wrapped at 1.34 lbs (0.61 kg).
Ideal For
- Outdoor electronics housings
- IP68-rated sensor and controller enclosures
- DIN rail and inner-panel control assemblies
- UL 508A industrial control builds
Overview
| Type | Water-tight |
| Series | 1554 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Cover Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure |
| Lid Version | Gray lid |
| Part Number | 1554VA2GY |
| Short Description | 240X160X90MM POLYCARB NEMA ENC |
Dimensions
| Inside Width | 147.29 mm [5.80 in] |
| Inside Height | 83.30 mm [3.28 in] |
| Inside Length | 231.29 mm [9.11 in] |
| Max. P.C. Board Width | 226.82 mm |
| Max. P.C. Board Length | 145.5 mm |
| Width (Ordering Table) | 6.30 in (160 mm) |
| Length (Ordering Table) | 9.45 in (240 mm) |
| Nominal Size (L X W X H) | 9.4 in x 6.3 in x 3.5 in (239 mm x 160 mm x 89 mm) |
| Overall Height (Drawing) | 90.00 mm [3.54 in] |
| Total Height (Ordering Table) | 3.54 in (90 mm) |
| Overall Length X Width (Drawing) | 240.00 mm [9.45 in] x 160.00 mm [6.30 in] |
Accessories
| Foot Kit | 1554FT |
| Inner Panel | 1554VAPL |
| Replacement Gasket | 1554VAGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Screws (50-pk) | SC583-50 (stainless steel cover screws, M4-0.7 x 25 mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980401416 |
| UNSPSC | 39121301 |
| Drawing Reference | 1554VA (Rev 28.02.2020) |
| ABS Gray Lid Version | 1554VAGY |
| Polycarbonate Gray Lid Version | 1554VA2GY |
| Polycarbonate Clear Lid Version | 1554VA2GYCL |
| Polycarbonate Smoked Lid Version | 1554VA2GYSL |
Packaging & Shipping

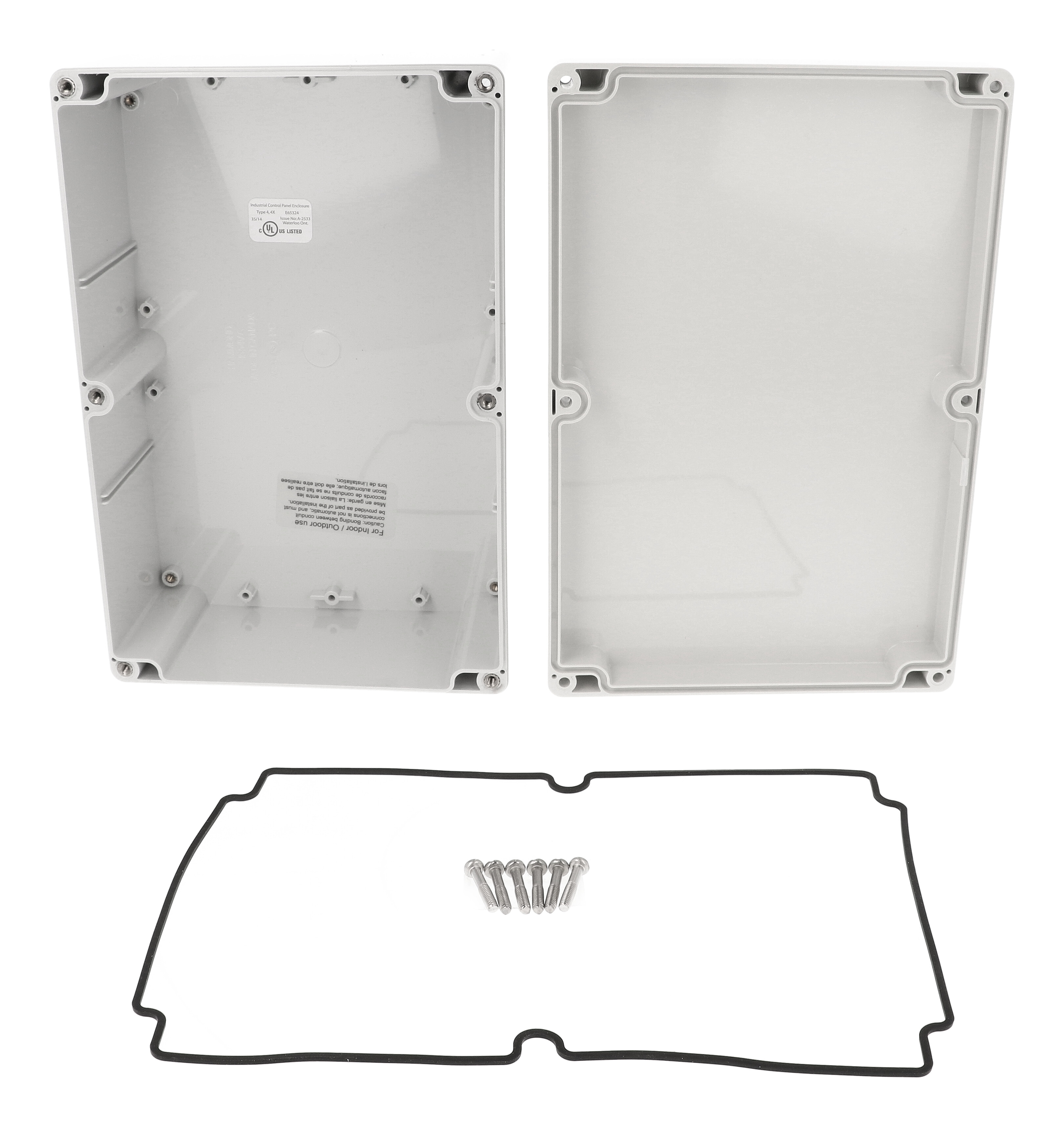

| Included | Box, lid, 6 cover screws, and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 1.34 lbs (0.61 kg) |
Construction & Finish
| Lid | Gray polycarbonate |
| Color | Light Gray |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws (included), self-captivating |
| Qty Lid Screws | 6 |
| Enclosure Color | Light gray (RAL 7035) |
| Cover Screw Size | M4-0.7 x 25 mm (stainless steel) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes threaded with the first installation of lid screws |
| Recommended Cover Screw Torque | 71-85 oz f-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP68 |
| Protection | Gasketed lid protects against access of oil, dust, and water |
| Flame Rating | UL94 5VA |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
| NEMA Rating (Part Page) | 4, 4X, 6, 6P, 12 & 13 |
| Series Flammability Note | Solid gray polycarb UL94-5VA; clear and smoked lids UL94V-0 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| Independently Tested Ratings (Spec Sheet) | IP66, IP67, IP68; NEMA Type 4, 4X, 6, 6P, 12 and 13 |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| Drawing Marking | cUL US Listed, File #E65324, Type 4, 4X, 6, 6P |
| REACH Compliant | Yes |
Mounting & Internal Features
| Foot Kit | 1554FT (uses the wall mounting holes) |
| Inner Panel | 1554VAPL steel panel (order separately) |
| Solid Models | Available in .stp or .x_t |
| PC Card Guides | Vertical PC card guides molded in (for 1.5 mm thick PC boards) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4X Ø4.50 mm [Ø.18 in], located outside of the gasket channel |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board / Inner Panel Mounting | M3 brass inserts inside box; accepts #6 self-tapping screw |
