Hammond 1554V2GYSL 240x160x90mm Type 4X Polycarbonate Box, Smoked Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid on a light gray RAL 7035 polycarbonate box
- 240 x 160 mm, 91 mm total height; inside 232.26 x 148.26 x 83.50 mm
- Type 4, 4X per spec sheet and drawing; IP66 per part page
- UL94 V-0; cUL and UL 508A listed (E65324)
- 4 M4-0.7 x 25 mm stainless cover screws and preformed gasket included
- UV stabilized, IK08, -40°C to +110°C
- Four Ø4.57 mm mounting holes outside the gasket channel

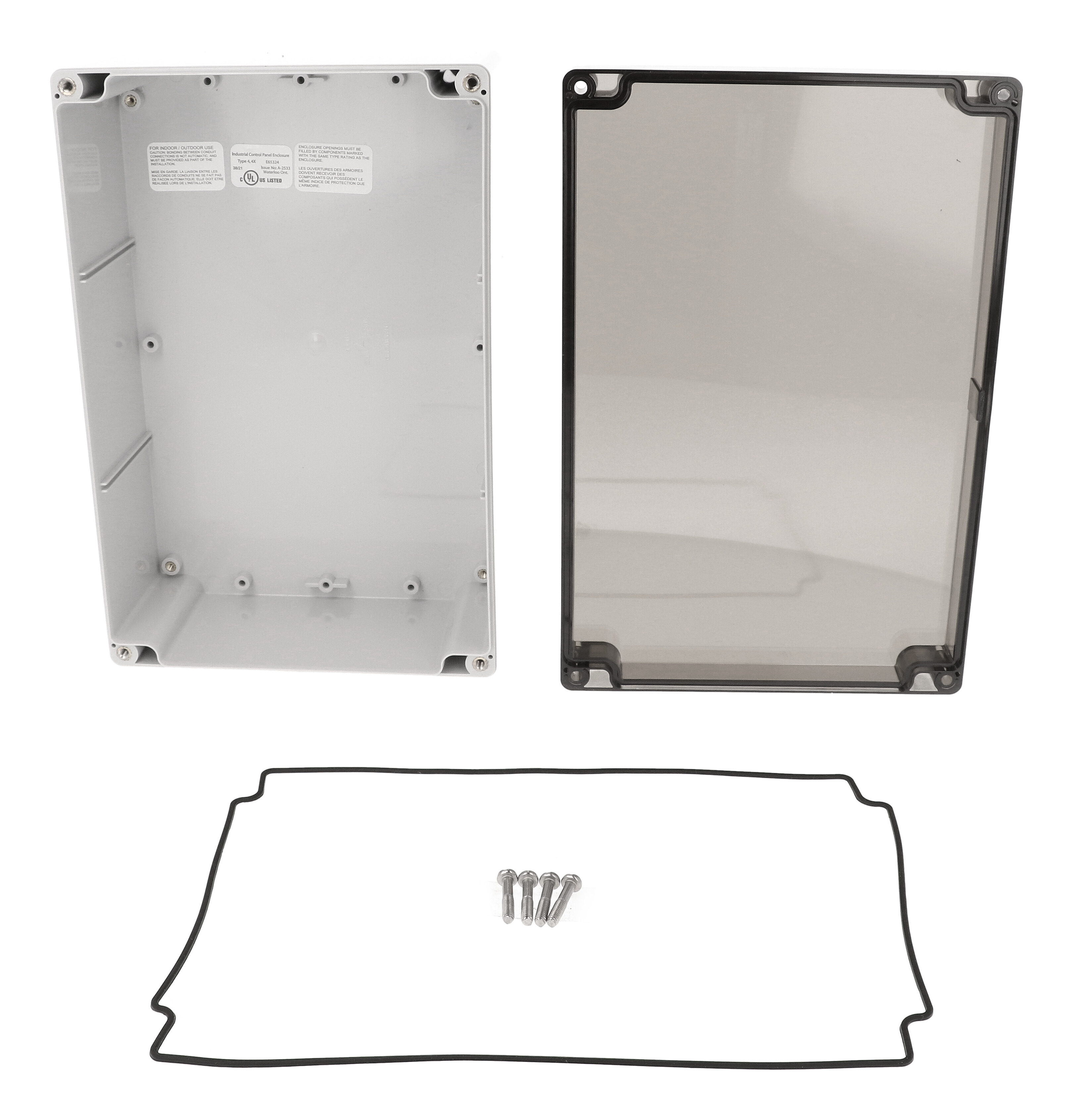

The 1554V2GYSL is a light gray RAL 7035 polycarbonate enclosure with a smoked polycarbonate lid, sized at 240 x 160 mm with a 91 mm total height. The tinted lid lets indicators show through while softening the view of internal wiring and boards, a good match for equipment installed where it will be seen.
Per the series specification sheet, 1554V2GYSL is Type 4, 4X only, and its drawing carries the cUL US Listed mark under file E65324 with Type 4, 4X. The part page lists IP66, a UL94 V-0 flame rating and a NEMA rating of 1, 4, 4X, 12 & 13. Polycarbonate versions are UV stabilized for outdoor use, UL 508A listed, IK08 impact rated and recommended for -40°C to +110°C (-40°F to +230°F).
The drawing shows 232.26 mm inside length, 148.26 mm inside width and 83.50 mm inside height, with 90.50 mm overall height. Maximum P.C. board dimensions are listed as 146.74 mm and 231.47 mm. Internal DIN rail tabs, vertical card guides for 1.5 mm boards and M3 brass inserts that also accept #6 self-tapping screws are molded in.
The purchased 1554V2GYSL includes the box, lid, four cover screws and a preformed silicone gasket. The M4-0.7 x 25 mm stainless steel screws have a recommended torque of 71-85 oz f-in (50-60 cN-m). Four Ø4.57 mm wall mounting holes sit outside the gasket channel, and matching accessories include 1554VPL, 1554FT, 1554VGASKET and SC583-50. It ships shrink wrapped at 1.33 lbs (0.60 kg).
Ideal For
- Visible outdoor controls with tinted covers
- Instrumentation with LED indicators
- DIN rail and inner-panel assemblies
- UL 508A panel components
Overview
| Type | Water-tight |
| Series | 1554 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Cover Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, smoked lid |
| Lid Version | Smoked polycarbonate lid |
| Part Number | 1554V2GYSL |
| Short Description | 240X160X90MM P/C NEMA SMK LID |
Dimensions
| Inside Width | 148.26 mm [5.84 in] |
| Inside Height | 83.50 mm [3.29 in] |
| Inside Length | 232.26 mm [9.14 in] |
| Max. P.C. Board Width | 231.47 mm |
| Max. P.C. Board Length | 146.74 mm |
| Width (Ordering Table) | 6.30 in (160 mm) |
| Length (Ordering Table) | 9.45 in (240 mm) |
| Nominal Size (L X W X H) | 9.4 in x 6.3 in x 3.5 in (239 mm x 160 mm x 89 mm) |
| Overall Height (Drawing) | 90.50 mm [3.56 in] |
| Total Height (Ordering Table) | 3.58 in (91 mm) |
| Overall Length X Width (Drawing) | 240.00 mm [9.45 in] x 160.00 mm [6.30 in] |
Accessories
| Foot Kit | 1554FT |
| Inner Panel | 1554VPL |
| Replacement Gasket | 1554VGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Screws (50-pk) | SC583-50 (stainless steel cover screws, M4-0.7 x 25 mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980132631 |
| UNSPSC | 39121301 |
| Drawing Reference | 1554V (Rev 28.02.2020) |
| ABS Gray Lid Version | 1554VGY |
| Polycarbonate Gray Lid Version | 1554V2GY |
| Polycarbonate Clear Lid Version | 1554V2GYCL |
| Polycarbonate Smoked Lid Version | 1554V2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws, and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 1.33 lbs (0.60 kg) |
Construction & Finish
| Lid | Smoked polycarbonate |
| Color | Light Gray |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws (included), self-captivating |
| Qty Lid Screws | 4 |
| Enclosure Color | Light gray (RAL 7035) |
| Cover Screw Size | M4-0.7 x 25 mm (stainless steel) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes threaded with the first installation of lid screws |
| Recommended Cover Screw Torque | 71-85 oz f-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Protection | Gasketed lid protects against access of oil, dust, and water |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
| NEMA Rating (Part Page) | 1, 4, 4X, 12 & 13 |
| Series Flammability Note | Solid gray polycarb UL94-5VA; clear and smoked lids UL94V-0 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| NEMA Type Rating (Spec Sheet & Drawing) | Type 4, 4X only |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| Drawing Marking | cUL US Listed, File #E65324, Type 4, 4X |
| REACH Compliant | Yes |
Mounting & Internal Features
| Foot Kit | 1554FT (uses the wall mounting holes) |
| Inner Panel | 1554VPL steel panel (order separately) |
| Solid Models | Available in .stp or .x_t |
| PC Card Guides | Vertical PC card guides molded in (for 1.5 mm thick PC boards) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4X Ø4.57 mm [Ø.18 in], located outside of the gasket channel |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board / Inner Panel Mounting | M3 brass inserts inside box; accepts #6 self-tapping screw |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What type ratings does the 1554V2GYSL have?▾
The series spec sheet lists it as Type 4, 4X only; the part page lists a NEMA rating of 1, 4, 4X, 12 & 13 and IP66.
Is the smoked lid version UV stabilized?▾
Yes, polycarbonate versions are UV stabilized for outdoor use.
What is included with the enclosure?▾
Box, lid, 4 cover screws and a preformed silicone gasket, per the drawing notes.
What size boards fit?▾
The part page lists maximum P.C. board dimensions of 146.74 mm and 231.47 mm.
Can I mount it on feet instead of a wall?▾
The 1554FT accessory foot kit installs in the same wall mounting holes.
