Hammond 1554V2GY 240x160x90mm Gray Polycarbonate Type 4X Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 240 x 160 mm solid gray polycarbonate, 91 mm total height
- Type 4, 4X per spec sheet and drawing; IP66 per part page
- cUL and UL 508A listed, file E65324; UL94 5VA
- Includes box, lid, 4 cover screws and preformed silicone gasket
- Inside 232.26 x 148.26 x 83.50 mm
- Cover screw torque 71-85 oz f-in (50-60 cN-m)
- UV stabilized, IK08 impact, -40°C to +110°C
The 1554V2GY is a 240 x 160 mm polycarbonate enclosure in solid light gray RAL 7035, with a total height of 3.58 in (91 mm) per the ordering table. It gives integrators and OEM designers a larger sealed housing for PC boards, DIN rail components or inner-panel assemblies in indoor or outdoor locations.
Note on ratings: the series specification sheet states that this part and its clear- and smoked-lid versions are Type 4, 4X only, and the drawing is marked cUL US Listed, file E65324, Type 4, 4X. The part page lists IP66, a NEMA rating of 1, 4, 4X, 12 & 13 and a UL94 5VA flame rating. Polycarbonate versions are UV stabilized for outdoor use, UL 508A listed, IK08 impact rated and recommended for -40°C to +110°C.

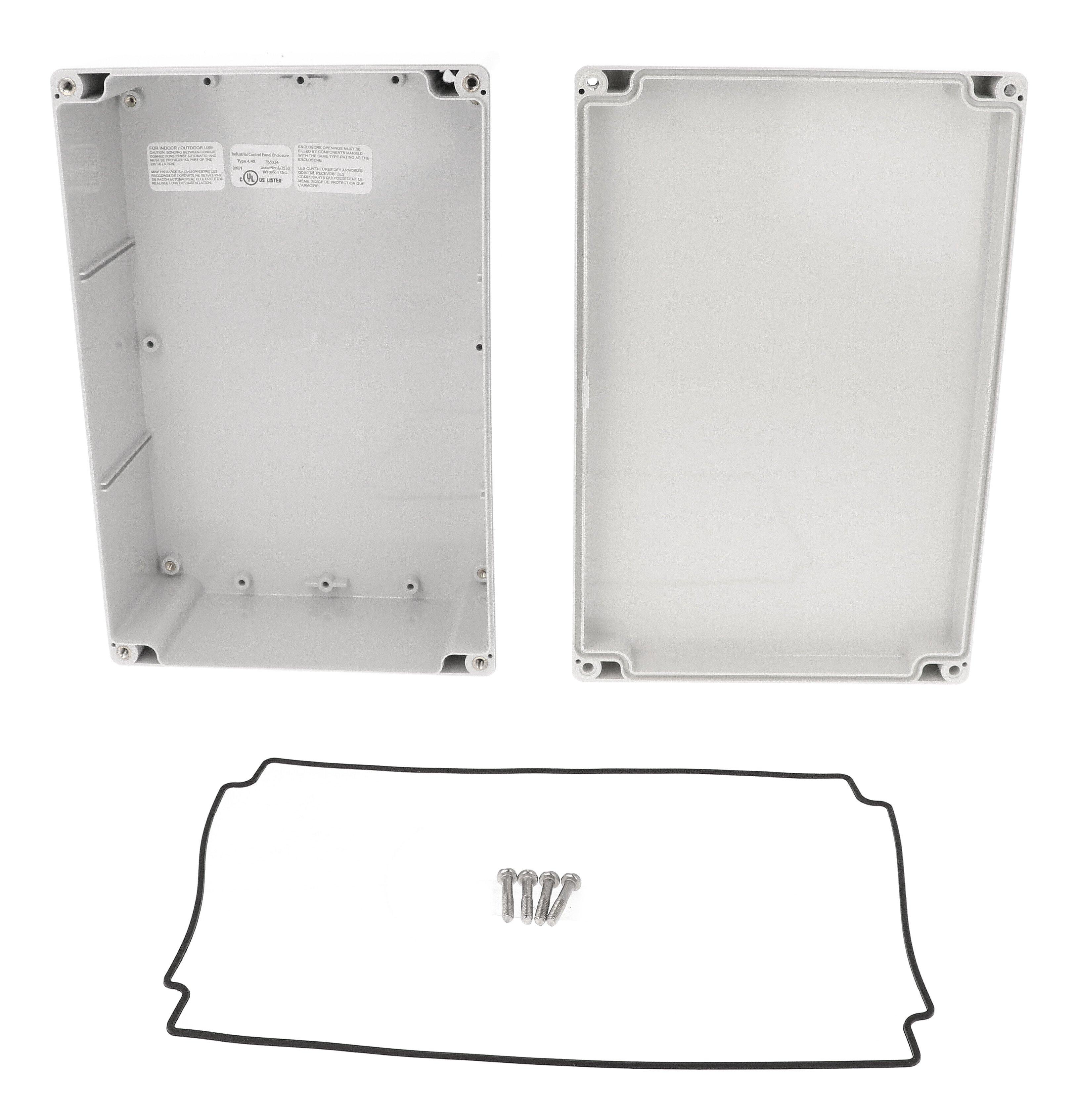

The drawing notes that the purchased assembly includes the box, lid, four cover screws and a preformed silicone gasket. The M4-0.7 x 25 mm stainless steel cover screws have a recommended torque of 71-85 oz f-in (50-60 cN-m). Inside, the enclosure measures 232.26 mm long, 148.26 mm wide and 83.50 mm high, and the part page lists maximum P.C. board dimensions of 146.74 mm and 231.47 mm.
Molded DIN rail tabs, vertical card guides for 1.5 mm boards and M3 brass inserts (also taking #6 self-tapping screws) are built in, with accessories including the 1554VPL steel inner panel, 1591MM100 and 1598ATS100 screws, 1554VGASKET and SC583-50. The 1554V2GY mounts through four Ø4.57 mm holes outside the gasket channel and ships shrink wrapped at 1.33 lbs (0.60 kg).
Ideal For
- Outdoor control and communications electronics
- Larger PC board and inner-panel assemblies
- DIN rail component enclosures
- UL 508A industrial control builds
Overview
| Type | Water-tight |
| Series | 1554 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Cover Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure |
| Lid Version | Gray lid |
| Part Number | 1554V2GY |
| Short Description | 240X160X90MM POLYCARB NEMA ENC |
Dimensions
| Inside Width | 148.26 mm [5.84 in] |
| Inside Height | 83.50 mm [3.29 in] |
| Inside Length | 232.26 mm [9.14 in] |
| Max. P.C. Board Width | 231.47 mm |
| Max. P.C. Board Length | 146.74 mm |
| Width (Ordering Table) | 6.30 in (160 mm) |
| Length (Ordering Table) | 9.45 in (240 mm) |
| Nominal Size (L X W X H) | 9.4 in x 6.3 in x 3.5 in (239 mm x 160 mm x 89 mm) |
| Overall Height (Drawing) | 90.50 mm [3.56 in] |
| Total Height (Ordering Table) | 3.58 in (91 mm) |
| Overall Length X Width (Drawing) | 240.00 mm [9.45 in] x 160.00 mm [6.30 in] |
Accessories
| Foot Kit | 1554FT |
| Inner Panel | 1554VPL |
| Replacement Gasket | 1554VGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Screws (50-pk) | SC583-50 (stainless steel cover screws, M4-0.7 x 25 mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980304151 |
| UNSPSC | 39121301 |
| Drawing Reference | 1554V (Rev 28.02.2020) |
| ABS Gray Lid Version | 1554VGY |
| Polycarbonate Gray Lid Version | 1554V2GY |
| Polycarbonate Clear Lid Version | 1554V2GYCL |
| Polycarbonate Smoked Lid Version | 1554V2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws, and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 1.33 lbs (0.60 kg) |
Construction & Finish
| Lid | Gray polycarbonate |
| Color | Light Gray |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws (included), self-captivating |
| Qty Lid Screws | 4 |
| Enclosure Color | Light gray (RAL 7035) |
| Cover Screw Size | M4-0.7 x 25 mm (stainless steel) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes threaded with the first installation of lid screws |
| Recommended Cover Screw Torque | 71-85 oz f-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Protection | Gasketed lid protects against access of oil, dust, and water |
| Flame Rating | UL94 5VA |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
| NEMA Rating (Part Page) | 1, 4, 4X, 12 & 13 |
| Series Flammability Note | Solid gray polycarb UL94-5VA; clear and smoked lids UL94V-0 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| NEMA Type Rating (Spec Sheet & Drawing) | Type 4, 4X only |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| Drawing Marking | cUL US Listed, File #E65324, Type 4, 4X |
| REACH Compliant | Yes |
Mounting & Internal Features
| Foot Kit | 1554FT (uses the wall mounting holes) |
| Inner Panel | 1554VPL steel panel (order separately) |
| Solid Models | Available in .stp or .x_t |
| PC Card Guides | Vertical PC card guides molded in (for 1.5 mm thick PC boards) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4X Ø4.57 mm [Ø.18 in], located outside of the gasket channel |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board / Inner Panel Mounting | M3 brass inserts inside box; accepts #6 self-tapping screw |
