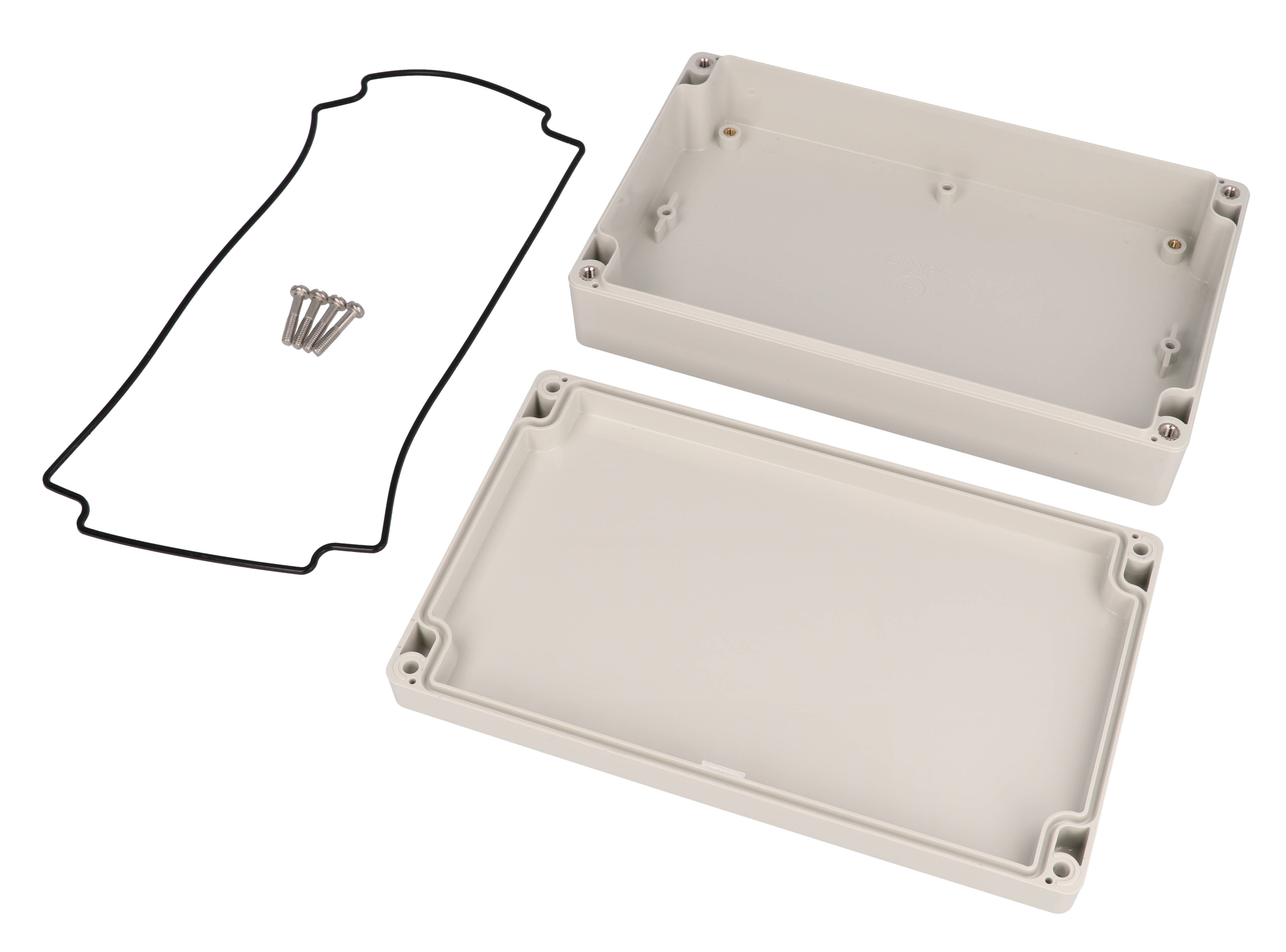

Hammond 1554ULGY 200x120x45mm Gray Abs IP66 Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Low-height ABS box: 200 x 120 x 45 mm, 39.15 mm inside
- Light gray RAL 7035 general purpose ABS, gray lid
- Tested to and meets IP66; IK07 impact rating
- UL94 HB; for indoor use at -20°C to +60°C
- Fits PC boards up to 190.5 x 106.6 mm
- DIN rail tabs, card guides and M3 brass inserts
- Four Ø4.30 mm wall mounting holes; 0.62 lbs (0.28 kg) shipping weight
The 1554ULGY is the general purpose ABS version of the shallow 200 x 120 x 45 mm enclosure, molded in light gray RAL 7035 with a gray lid. It is a practical indoor housing for a single PC board, a short DIN rail or small control electronics where a low profile and a sealed screw cover are wanted.
ABS versions use general purpose material with a UL94-HB flammability rating and are for indoor use. They are not UL listed but have been tested to and meet IP66, and are impact rated IK07 per IEC 62262:2021. Recommended operating temperature is -20°C to +60°C (-4°F to +140°F).
The drawing shows inside dimensions of 192.98 x 112.98 mm with 39.15 mm of height and an overall height of 45.95 mm. Boards up to 190.5 x 106.6 mm fit, and the interior provides molded DIN rail tabs, vertical card guides for 1.5 mm boards and M3 brass inserts that accept #6 self-tapping screws. A 1554UPL steel inner panel is available separately.
A two piece tongue and groove lid with a replaceable one-piece silicone gasket (supplied loose) keeps out oil, dust and water, and four included self-captivating M4 stainless steel screws secure it. The 1554ULGY mounts through four Ø4.30 mm holes located outside the gasket channel, which also accept the 1554FT foot kit. Shipping weight is 0.62 lbs (0.28 kg).
Ideal For
- Indoor low-profile PC board housings
- Small DIN rail control boxes
- Equipment junction and interface boxes indoors
- OEM product enclosures
Overview
| Type | Water-tight |
| Series | 1554 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Cover Style | Screw cover, flat lid |
| Description | RAL7035 grey ABS plastic watertight enclosure |
| Lid Version | Gray lid (ABS, gray only) |
| Part Number | 1554ULGY |
| Short Description | 200X120X45MM ABS NEMA ENCL |
Dimensions
| Inside Width | 112.98 mm [4.45 in] |
| Inside Height | 39.15 mm [1.54 in] |
| Inside Length | 192.98 mm [7.60 in] |
| Max. P.C. Board Width | 106.6 mm |
| Max. P.C. Board Length | 190.5 mm |
| Width (Ordering Table) | 4.72 in (120 mm) |
| Length (Ordering Table) | 7.87 in (200 mm) |
| Nominal Size (L X W X H) | 7.9 in x 4.7 in x 1.77 in (201 mm x 119 mm x 45 mm) |
| Overall Height (Drawing) | 45.95 mm [1.81 in] |
| Total Height (Ordering Table) | 1.77 in (45 mm) |
| Overall Length X Width (Drawing) | 200.00 mm [7.87 in] x 120.00 mm [4.72 in] |
Accessories
| Foot Kit | 1554FT |
| Inner Panel | 1554UPL |
| Replacement Gasket | 1554UGASKET |
| Replacement Screws (50-pk) | SC576-50 |
Identifiers
| UPC | 623980425764 |
| UNSPSC | 39121301 |
| Drawing Reference | 1554UL (Rev 16.01.2025) |
| ABS Gray Lid Version | 1554ULGY |
| Polycarbonate Gray Lid Version | 1554UL2GY |
| Polycarbonate Clear Lid Version | 1554UL2GYCL |
| Polycarbonate Smoked Lid Version | 1554UL2GYSL |
Packaging & Shipping
| Included | Enclosure with lid, M4 stainless steel lid screws, and silicone gasket (supplied loose) |
| Shipping Weight | 0.62 lbs (0.28 kg) |
Construction & Finish
| Color | Light Gray |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | ABS Plastic |
| Lid Screws | M4 stainless steel machine screws (included), self-captivating |
| Qty Lid Screws | 4 |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes threaded with the first installation of lid screws |
Environmental & Protection
| IP Rating | IP66 |
| Protection | Gasketed lid protects against access of oil, dust, and water |
| Environment | For indoor use |
| Flame Rating | UL94 HB |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Material Flammability | General purpose ABS, UL94-HB |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | ABS versions are not UL listed (tested to and meet IP66) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Mounting & Internal Features
| Foot Kit | 1554FT (uses the wall mounting holes) |
| Inner Panel | 1554UPL steel panel (order separately) |
| Solid Models | Available in .stp or .x_t |
| PC Card Guides | Vertical PC card guides molded in (for 1.5 mm thick PC boards) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4X Ø4.30 mm [Ø.17 in], located outside of the gasket channel |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board / Inner Panel Mounting | M3 brass inserts inside box; accepts #6 self-tapping screw |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1554ULGY suitable for outdoor use?▾
No. ABS versions are for indoor use; the polycarbonate 1554UL2GY is UV stabilized for outdoor use.
What IP rating does it have?▾
IP66. ABS versions have been tested to and meet IP66.
How much inside height is there?▾
39.15 mm [1.54 in] per the drawing.
Does the 1554ULGY come with lid screws?▾
Yes, M4 stainless steel machine screws are included; replacements are SC576-50 (50-pk).
Is it UL listed?▾
ABS versions are not UL listed. Choose a polycarbonate version for cUL/UL 508A listing.
