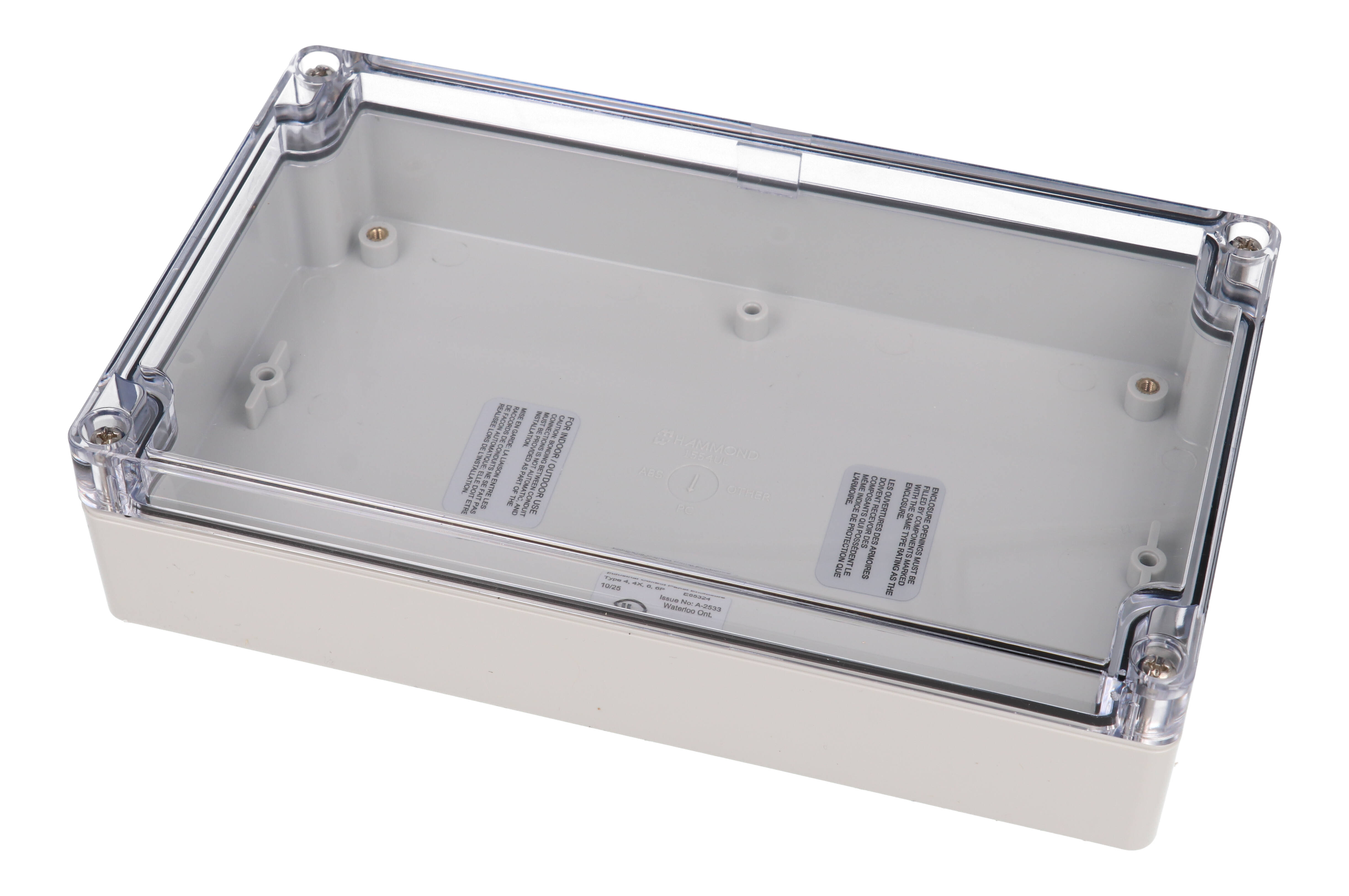

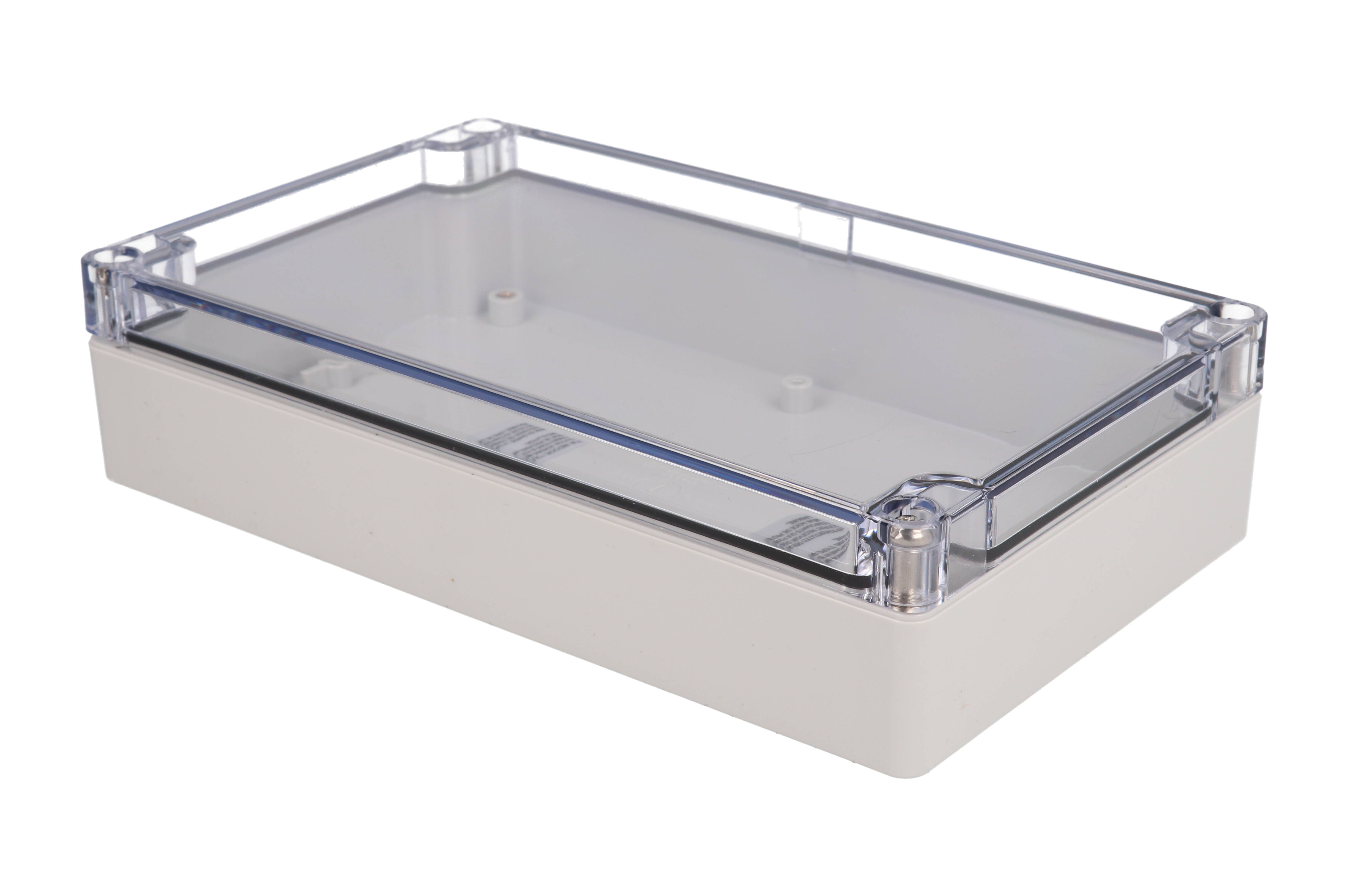

Hammond 1554UL2GYCL 200x120x45mm Polycarbonate Enclosure, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid on a shallow light gray polycarbonate base
- 200 x 120 x 45 mm; inside 192.98 x 112.98 x 39.15 mm
- IP68 and UL94 V-0 per part page
- cUL and UL 508A listed, file E65324; IK08 impact
- UV stabilized for outdoor use, -40°C to +110°C
- Accepts PC boards up to 190.5 x 106.6 mm
- Self-captivating M4 stainless lid screws, qty 4
The 1554UL2GYCL is a low 45 mm polycarbonate enclosure with a light gray RAL 7035 box and a clear polycarbonate lid. Because the lid is transparent and the body is shallow, it works well for a single board with indicators, a display or a meter that needs to be read through the cover, whether the unit is mounted indoors or outdoors.
The part page lists a UL94 V-0 flame rating and IP68 for this clear-lid model. Polycarbonate versions of the series are UV stabilized for outdoor use, cUL and UL 508A listed under file E65324, IK08 impact rated per IEC 62262:2021, and recommended for -40°C to +110°C (-40°F to +230°F).
- Overall: 200 x 120 mm, 45.95 mm high per drawing (1.77 in / 45 mm in the ordering table)
- Inside: 192.98 x 112.98 mm, 39.15 mm high
- Maximum P.C. board: 190.5 x 106.6 mm
- Four Ø4.30 mm wall mounting holes outside the gasket channel
The tongue and groove lid seals with a replaceable one-piece silicone gasket supplied loose in the box, and four included M4 stainless steel screws thread into corrosion resistant inserts and are self-captivating. DIN rail tabs, card guides for 1.5 mm boards and M3 brass inserts are molded in. Optional parts for the 1554UL2GYCL include the 1554UPL inner panel and 1554FT foot kit. Shipping weight is 0.69 lbs (0.31 kg).
Ideal For
- Low-profile housings for displays or indicator boards
- Outdoor meters and sensor electronics
- DIN rail component boxes with visible status
- UL 508A panel sub-assemblies
Overview
| Type | Water-tight |
| Series | 1554 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Cover Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Lid Version | Clear polycarbonate lid |
| Part Number | 1554UL2GYCL |
| Short Description | 200x120x45MM P/C NEMA CLR LID |
Dimensions
| Inside Width | 112.98 mm [4.45 in] |
| Inside Height | 39.15 mm [1.54 in] |
| Inside Length | 192.98 mm [7.60 in] |
| Max. P.C. Board Width | 106.6 mm |
| Max. P.C. Board Length | 190.5 mm |
| Width (Ordering Table) | 4.72 in (120 mm) |
| Length (Ordering Table) | 7.87 in (200 mm) |
| Nominal Size (L X W X H) | 7.9 in x 4.7 in x 1.77 in (201 mm x 119 mm x 45 mm) |
| Overall Height (Drawing) | 45.95 mm [1.81 in] |
| Total Height (Ordering Table) | 1.77 in (45 mm) |
| Overall Length X Width (Drawing) | 200.00 mm [7.87 in] x 120.00 mm [4.72 in] |
Accessories
| Foot Kit | 1554FT |
| Inner Panel | 1554UPL |
| Replacement Gasket | 1554UGASKET |
| Replacement Screws (50-pk) | SC576-50 |
Identifiers
| UPC | 623980425788 |
| UNSPSC | 39121301 |
| Drawing Reference | 1554UL (Rev 16.01.2025) |
| ABS Gray Lid Version | 1554ULGY |
| Polycarbonate Gray Lid Version | 1554UL2GY |
| Polycarbonate Clear Lid Version | 1554UL2GYCL |
| Polycarbonate Smoked Lid Version | 1554UL2GYSL |
Packaging & Shipping
| Included | Enclosure with lid, M4 stainless steel lid screws, and silicone gasket (supplied loose) |
| Shipping Weight | 0.69 lbs (0.31 kg) |
Construction & Finish
| Lid | Clear polycarbonate |
| Color | Light Gray |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate Plastic |
| Lid Screws | M4 stainless steel machine screws (included), self-captivating |
| Qty Lid Screws | 4 |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes threaded with the first installation of lid screws |
Environmental & Protection
| IP Rating | IP68 |
| Protection | Gasketed lid protects against access of oil, dust, and water |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
| NEMA Rating (Part Page) | 4, 4X, 6, 6P, 12 & 24 |
| Series Flammability Note | Solid gray polycarb UL94-5VA; clear and smoked lids UL94V-0 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| Independently Tested Ratings (Spec Sheet) | IP66, IP67, IP68; NEMA Type 4, 4X, 6, 6P, 12 and 13 |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| Drawing Marking | cUL US Listed, File #E65324, Type 4, 4X, 6, 6P |
| REACH Compliant | Yes |
Mounting & Internal Features
| Foot Kit | 1554FT (uses the wall mounting holes) |
| Inner Panel | 1554UPL steel panel (order separately) |
| Solid Models | Available in .stp or .x_t |
| PC Card Guides | Vertical PC card guides molded in (for 1.5 mm thick PC boards) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4X Ø4.30 mm [Ø.17 in], located outside of the gasket channel |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board / Inner Panel Mounting | M3 brass inserts inside box; accepts #6 self-tapping screw |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the clear lid UL rated?▾
The part page gives this version a UL94 V-0 flame rating; the series notes clear and smoked lids carry UL94V-0.
What board size fits the 1554UL2GYCL?▾
Up to 190.5 mm x 106.6 mm per the part page.
How is the lid sealed?▾
A two piece tongue and groove joint with a replaceable one-piece high temperature silicone gasket, supplied loose.
What replacement screws fit?▾
SC576-50, a 50-pack of lid screws, is listed in the ordering table for this size.
Does it need its own mounting feet?▾
It has four Ø4.30 mm wall mounting holes; the 1554FT foot kit is an optional accessory that uses those holes.
Related Products
Save 52%1554UL2GY — RAL7035 grey polycarb plastic watertight enclosure
Hammond Manufacturing · 1554UL2GY

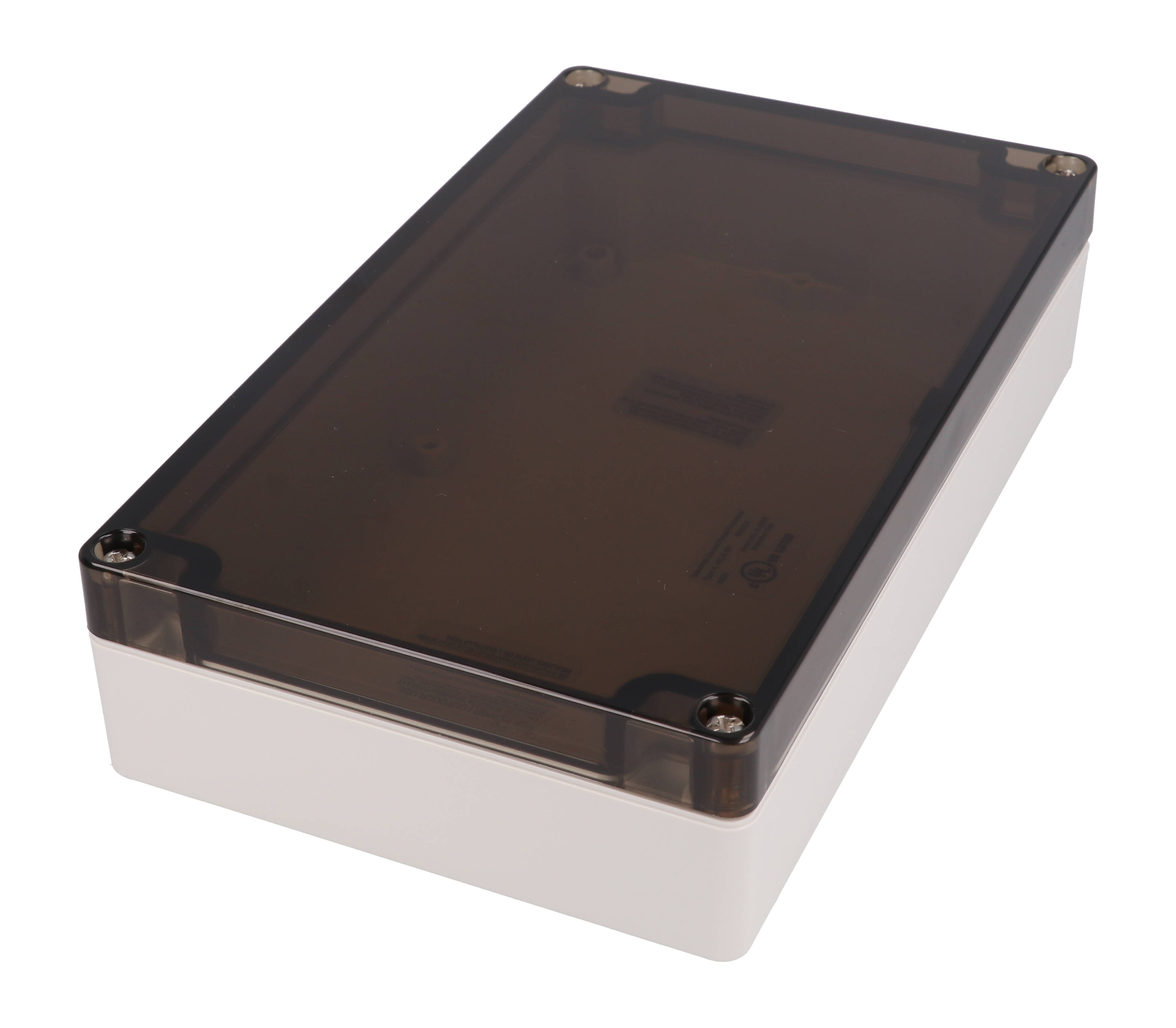

Save 52%1554UL2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoke lid
Hammond Manufacturing · 1554UL2GYSL
Save 52%1554UGY — RAL7035 grey ABS plastic watertight enclosure
Hammond Manufacturing · 1554UGY

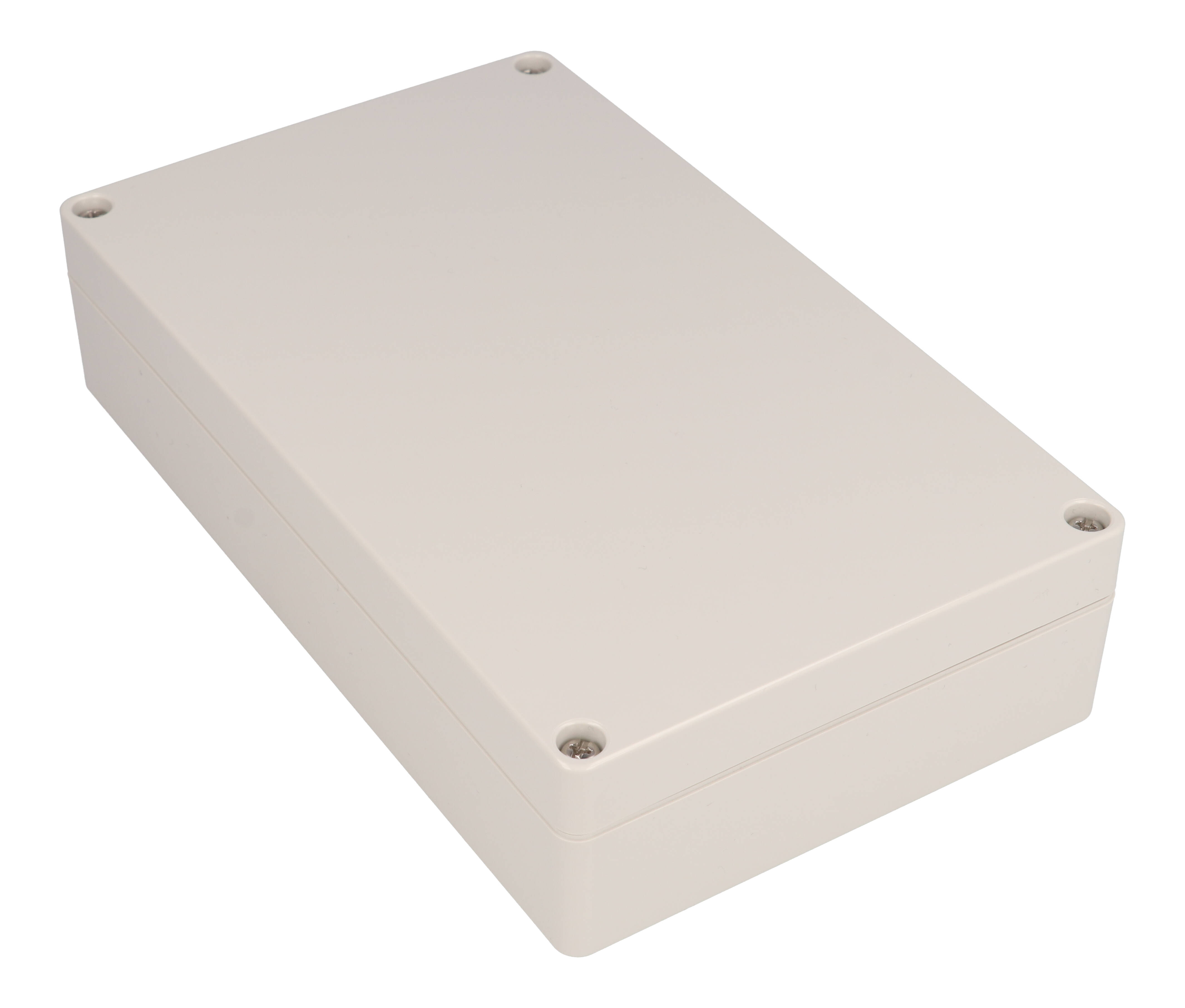

Save 52%1554ULGY — RAL7035 grey ABS plastic watertight enclosure
