Hammond 1554S2GYSL 160x160x90mm Smoked Lid Polycarbonate NEMA Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid, light gray RAL 7035 polycarbonate box
- Deep 160 x 160 x 90 mm nominal body, 91 mm total height
- IP68; NEMA 4, 4X, 6, 6P, 12 & 13 per part page
- UL94 V-0; cUL and UL 508A listed, file E65324
- UV stabilized, IK08 impact, -40°C to +110°C
- 84.00 mm inside height; PC boards up to 147.4 x 150.95 mm

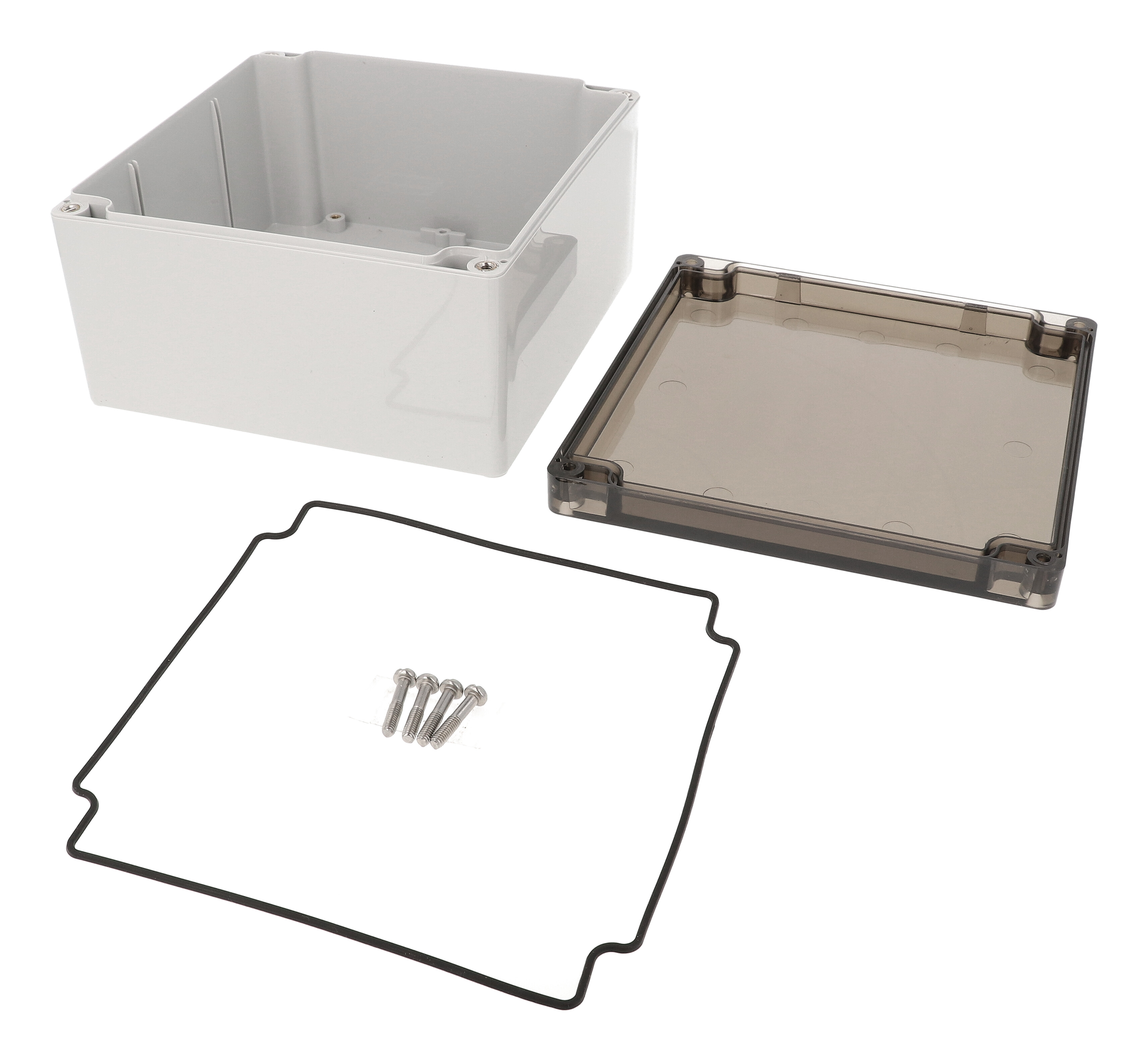

- Box, lid, 4 cover screws and preformed gasket included
The 1554S2GYSL combines a light gray RAL 7035 polycarbonate box with a smoked polycarbonate lid in the deep 160 x 160 x 90 mm nominal size (6.3 x 6.3 x 3.5 in, 91 mm total height). The tinted lid lets panel builders and OEM teams show indicator lights or displays while giving the contents a darker, less exposed look.
Rated IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 on its part page, the 1554S2GYSL is molded from UV stabilized polycarbonate for outdoor use and is cUL and UL 508A listed under file E65324. It carries UL94 V-0 (the series rating for smoked lids), an IK08 impact rating per IEC 62262:2021 and a recommended -40°C to +110°C operating range.
- Inside height: 84.00 mm (3.31 in); inside length: 152.13 mm (5.99 in)
- Maximum PC board: 147.4 x 150.95 mm
- Molded DIN rail tabs, M3 brass inserts, card guides for 1.5 mm boards
- Optional steel inner panel 1554RPL, ordered separately
The purchased assembly includes the box, lid, four cover screws and a preformed silicone gasket. Four self-captivating M4 stainless steel screws close the tongue and groove lid into corrosion resistant inserts, at a recommended 43-57 oz f-in (30-40 cN-m). Wall-mounting holes are outside the gasket channel and double as the fixing points for the 1554FT foot kit. Shipping weight is 0.98 lbs (0.44 kg).
Ideal For
- Outdoor controls with indicator LEDs
- Display housings needing a tinted cover
- DIN rail device enclosures
- Wet-location instrumentation
Overview
| Lid | Smoked polycarbonate lid |
| Type | Water-tight |
| Series | 1554 Series, Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, smoked lid |
| Short Description | 160X160X90MM P/S NEMA SMK LID |
Dimensions
| Inside Height | 84.00 mm [3.31 in] |
| Inside Length | 152.13 mm [5.99 in] |
| Mounting Holes | 4X [.16 in] |
| Size L X W X H | 6.3 in x 6.3 in x 3.5 in (160 mm x 160 mm x 89 mm) |
| Max. P.C. Board Width | 150.95 mm |
| Max. P.C. Board Length | 147.4 mm |
| Overall Height (Drawing) | 90.50 mm [3.56 in] |
| Total Height (Ordering Table) | 3.58 in (91 mm) |
| Nominal Width (Ordering Table) | 6.30 in (160 mm) |
| Nominal Length (Ordering Table) | 6.30 in (160 mm) |
| Steel Inner Panel Size (Drawing) | 147.40 x 108.03 mm [5.80 x 4.25 in] |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554RGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Lid Screws (50-pk) | SC576-50 (stainless steel, M4-0.7 x 20 mm) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Steel Inner Panel (Order Separately) | 1554RPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980132624 |
| UNSPSC | 39121301 |
| Part Number | 1554S2GYSL |
| Drawing Revision | 28.02.2020 |
| Same-Size Versions | ABS gray lid 1554SGY; polycarbonate gray lid 1554S2GY; clear lid 1554S2GYCL; smoked lid 1554S2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.98 lbs (0.44 kg) |
Construction & Finish
| Color | Light Gray |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | Qty 4, M4 stainless steel machine screws (included), self-captivating |
| Wall Mounting | Wall-mounting holes located outside the gasket channel |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Mounting | Molded DIN rail mounting tabs; M3 brass inserts and/or standoffs accepting #6 self-tapping screws; vertical PC card guides for 1.5 mm thick PC boards |
| Lid Screw Inserts | M4 corrosion resistant inserts/bushings |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Flame Rating (Series) | Solid gray polycarbonate carries UL94-5VA; clear and smoked lids carry UL94 V-0 |
| NEMA Rating (Part Page) | 4, 4X, 6, 6P, 12 & 13 |
| IP Ratings (Series Testing) | IP66, IP67, IP68 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| NEMA Type Ratings (Series Testing) | Type 4, 4X, 6, 6P, 12 and 13 |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Marking (Drawing) | C-UL-US Listed, File #E65324, Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between 1554S2GYSL and 1554S2GYCL?▾
Both share the same 160 x 160 x 90 mm polycarbonate box; 1554S2GYSL has a smoked lid while 1554S2GYCL has a clear lid. Both list UL94 V-0 and IP68.
Does it come with lid screws and gasket?▾
Yes. The purchased assembly includes the box, lid, four cover screws and a preformed silicone gasket (supplied loose).
What is the inside height?▾
84.00 mm (3.31 in) per the drawing.
Which inner panel fits?▾
The 1554RPL steel inner panel, ordered separately. It mounts with 1591MM100 M3 screws or 1598ATS100 #6 self-tapping screws.
What chemicals should be avoided?▾
The chemical resistance statement advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, and strong solvents or cleaners, among others.
