Hammond 1554RL2GYCL 160mm Square, 45mm Low-Profile Box, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid on a low-profile light gray polycarbonate box
- 160 x 160 x 45 mm (6.3 x 6.3 x 1.77 in); 38.75 mm inside height
- IP68 rated; cUL and UL 508A listed (E65324)
- Clear lid rated UL94 V-0; IK08 impact rating
- UV stabilized for outdoor use; -40°C to +110°C recommended
- PC boards up to 150.9 x 147.4 mm; DIN rail tabs and M3 brass inserts
- Mounting holes outside the gasket channel; 1554FT foot kit compatible

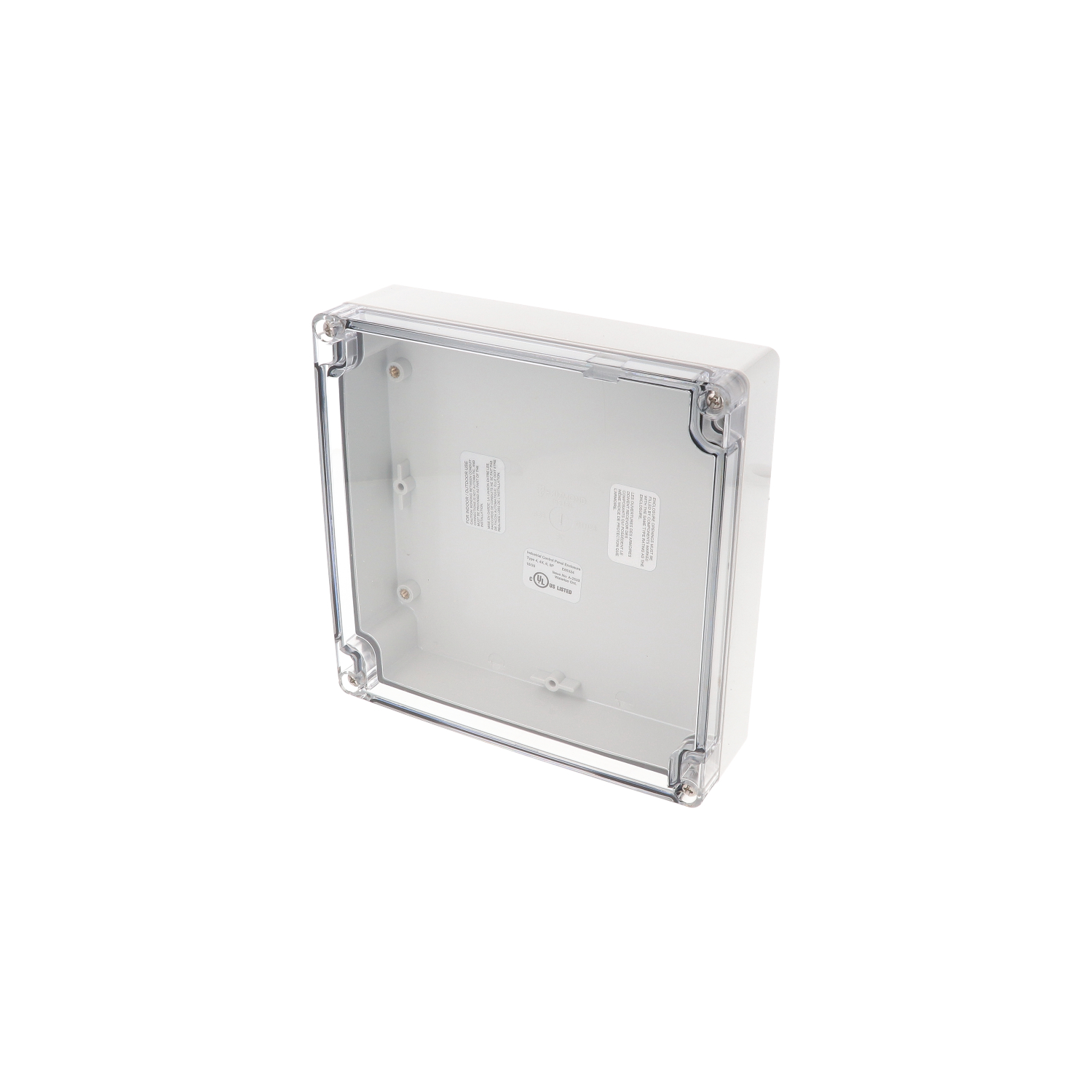

The 1554RL2GYCL is a 160 x 160 x 45 mm (6.3 x 6.3 x 1.77 in) low-profile enclosure with a light gray RAL 7035 polycarbonate box and a clear polycarbonate lid. The shallow form and transparent cover make it a natural fit for flat display boards, indicator panels and slim electronics that need to stay visible and sealed.
The clear lid is rated UL94 V-0. The polycarbonate construction is UV stabilized for outdoor use, cUL and UL 508A listed under file E65324, and rated IP68, with polycarbonate versions independently tested to IP66, IP67 and NEMA Type 4, 4X, 6, 6P, 12 and 13. Impact rating is IK08 per IEC 62262:2021 and the recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
- Inside height per drawing: 38.75 mm; inside plan: 152.98 x 150.63 mm
- Maximum PC board: 150.9 x 147.4 mm
- Molded DIN rail tabs, M3 brass inserts and 1.5 mm card guides
- Optional 1554RPL steel inner panel
A tongue and groove lid with a one-piece high temperature silicone gasket (supplied loose) protects against oil, dust and water, and included M4 stainless steel screws thread into corrosion resistant inserts. Four Ø4.30 mm holes outside the gasket channel handle wall mounting or the 1554FT foot kit. The 1554RL2GYCL ships at 0.72 lbs (0.33 kg).
Ideal For
- Flat display and indicator housings
- Low-profile outdoor electronics
- Slim DIN rail devices with visible status
- OEM control panels
Overview
| Lid | Clear polycarbonate lid |
| Color | Light Gray |
| Series | 1554 |
| Material | Polycarbonate Plastic |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Part Number | 1554RL2GYCL |
| Enclosure Type | Water-tight, screw cover, flat lid |
| Enclosure Color | Light gray (RAL 7035) |
| Short Description | 160x160x45MM P/C NEMA CLR LID |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 6.30 in (160 mm) |
| Total Height | 1.77 in (45 mm) |
| Size (L X W X H) | 6.3 in x 6.3 in x 1.77 in (160 mm x 160 mm x 45 mm) |
| Max. P.C. Board Width | 147.4 mm |
| Max. P.C. Board Length | 150.9 mm |
| Inside Height (Drawing) | 38.75 mm [1.53 in] |
| Inside Plan Dimensions (Drawing) | 152.98 mm [6.02 in] x 150.63 mm [5.93 in] |
| Assembled Height (Drawing, Side View) | 45.55 mm [1.79 in] |
Accessories
| Inner Panel | 1554RPL (steel, order separately) |
| Replacement Gasket | 1554RGASKET |
| Other Series Accessories | Breather kit, small rainproof ventilator, pressure compensation plug, hole plugs, pole mount kit, liquid-tight cordgrips (nylon or nickel plated brass) |
Identifiers
| UPC | 623980425726 |
| UNSPSC | 39121301 |
| Drawing Revision | 16.01.2025 |
Related Versions
| ABS, Gray Lid | 1554RLGY |
| Polycarbonate, Gray Lid | 1554RL2GY |
| Polycarbonate, Clear Lid | 1554RL2GYCL |
| Polycarbonate, Smoked Lid | 1554RL2GYSL |
Packaging & Shipping

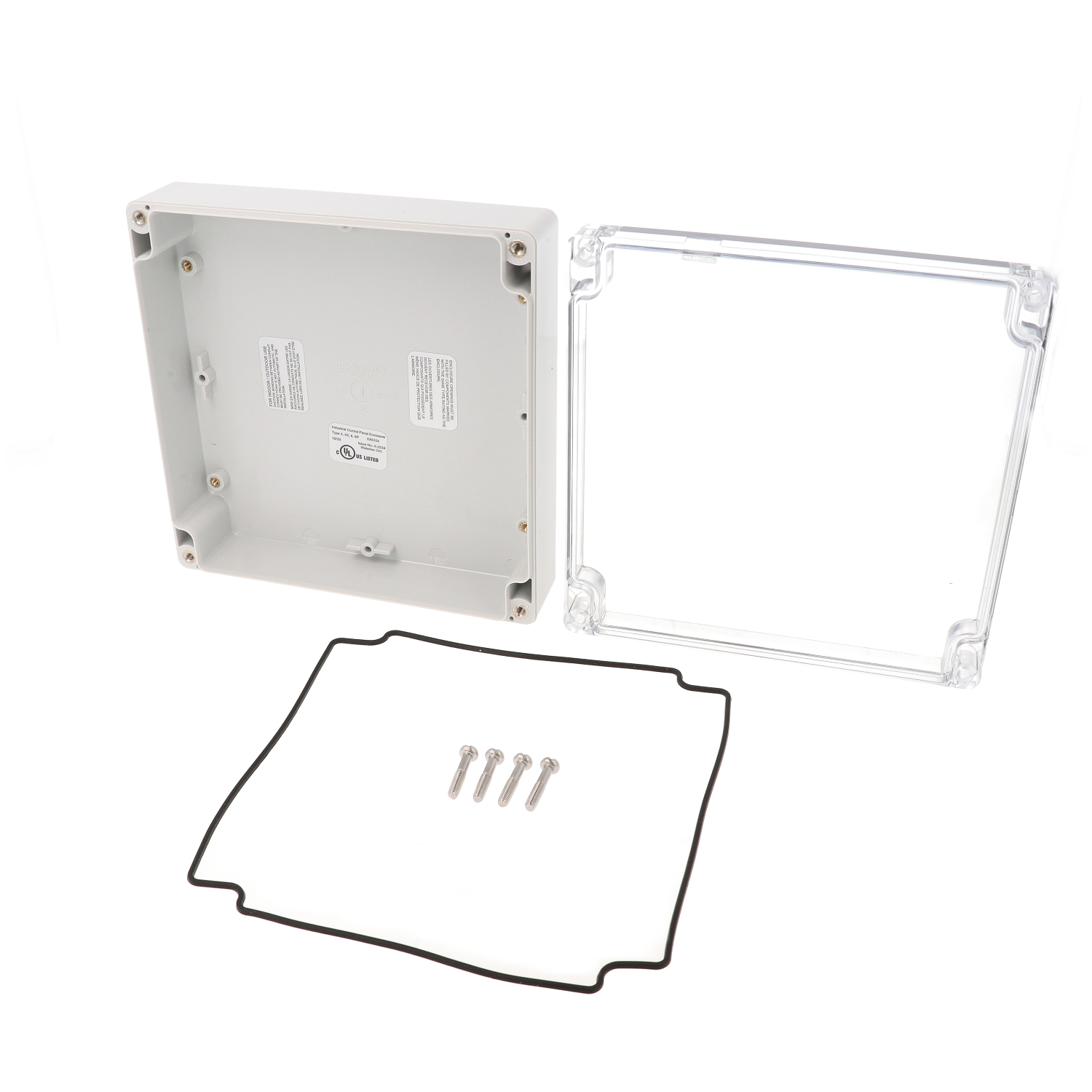

| Included | Box, lid, 4 M4 stainless steel lid screws and silicone gasket (supplied loose) |
| Shipping Weight | 0.72 lbs (0.33 kg) |
Construction & Finish
| Gasket | Replaceable one-piece gasket of high temperature UL listed silicone, supplied loose inside the enclosure (not pre-installed) |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws (included), threaded into corrosion resistant bushings/inserts |
| Lid Construction | Gasketed lid with two-piece tongue and groove construction; protects against access of oil, dust and water |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners not listed as plastic safe, and some greases and oils |
| Lid Screw Retention | Self-captivating; lid holes are threaded with the first installation of the lid screws |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.); quotes from the factory |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV / Outdoor Use | UV stabilized for outdoor use |
| Flame Rating Note | Clear and smoked lids carry UL94 V-0; solid gray polycarbonate carries UL94-5VA |
| NEMA Type Ratings | 4, 4X, 6, 6P, 12 and 13 (independently tested) |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Mounting & Internal Features
| DIN Rail | Internal DIN rail mounting tabs molded in |
| Foot Kit | 1554FT (installs using the wall-mounting holes) |
| Mounting Holes | 4X Ø4.30 mm [Ø.17 in], located outside the gasket channel |
| PC Card Guides | Vertical card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs accepting #6 self-tapping screws |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What makes the 1554RL2GYCL different from the 1554R2GYCL?▾
Both have clear lids and a 160 x 160 mm footprint, but the 1554RL2GYCL is 45 mm tall while the 1554R2GYCL is 61 mm tall.
Is it rated for outdoor use?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use and the part is rated IP68.
What is the flame rating of the clear lid?▾
UL94 V-0.
What board size fits inside?▾
A PC board up to 150.9 x 147.4 mm; inside height per the drawing is 38.75 mm.
Is there a solid gray version?▾
Yes, 1554RL2GY is the gray-lid polycarbonate version in the same size.
Related Products
Save 52%1554RL2GY — RAL7035 grey polycarb plastic watertight enclosure
Hammond Manufacturing · 1554RL2GY
Save 52%1554RL2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoke lid
Hammond Manufacturing · 1554RL2GYSL

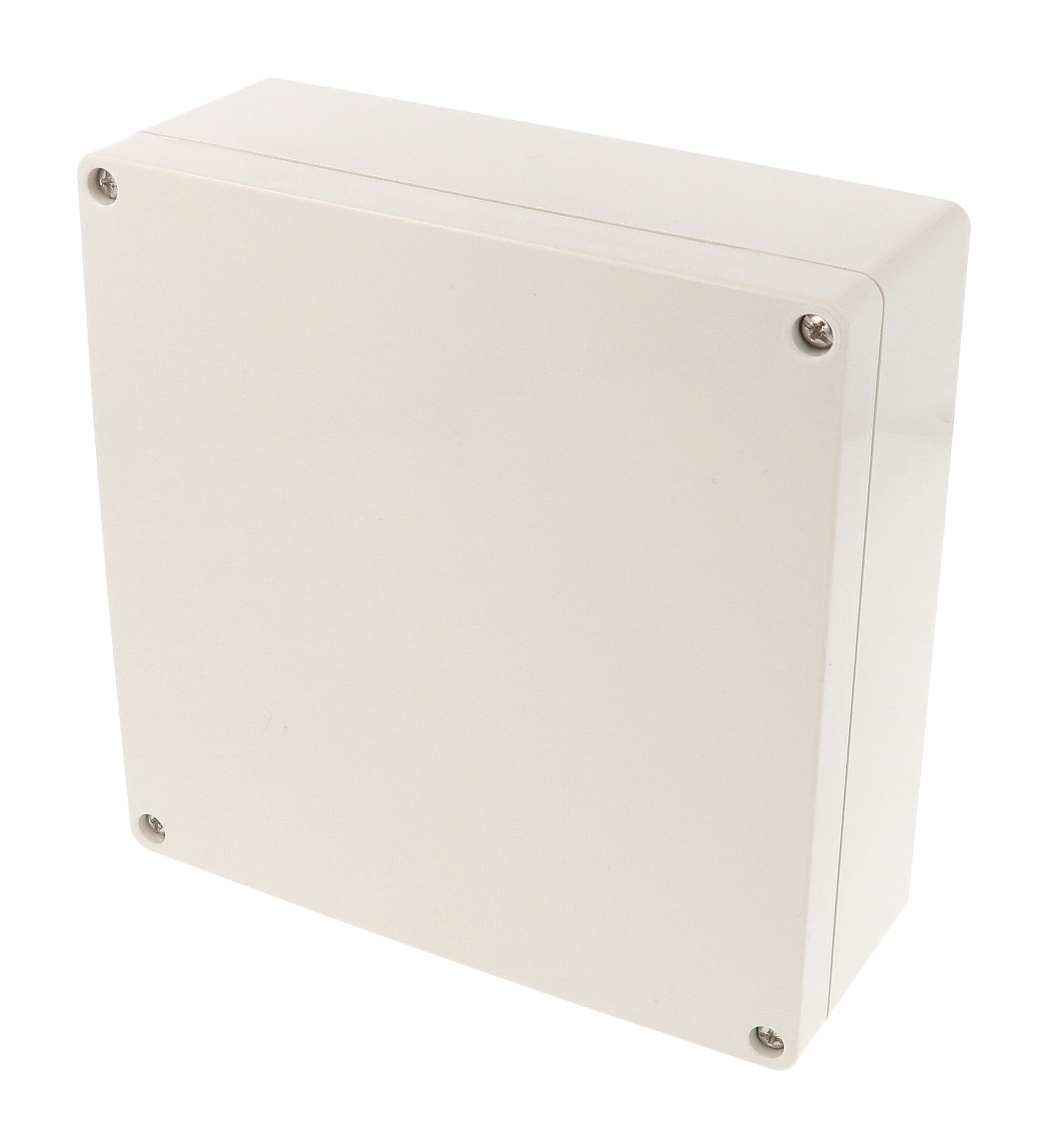

Save 52%1554RGY — RAL7035 grey ABS plastic watertight enclosure
Hammond Manufacturing · 1554RGY

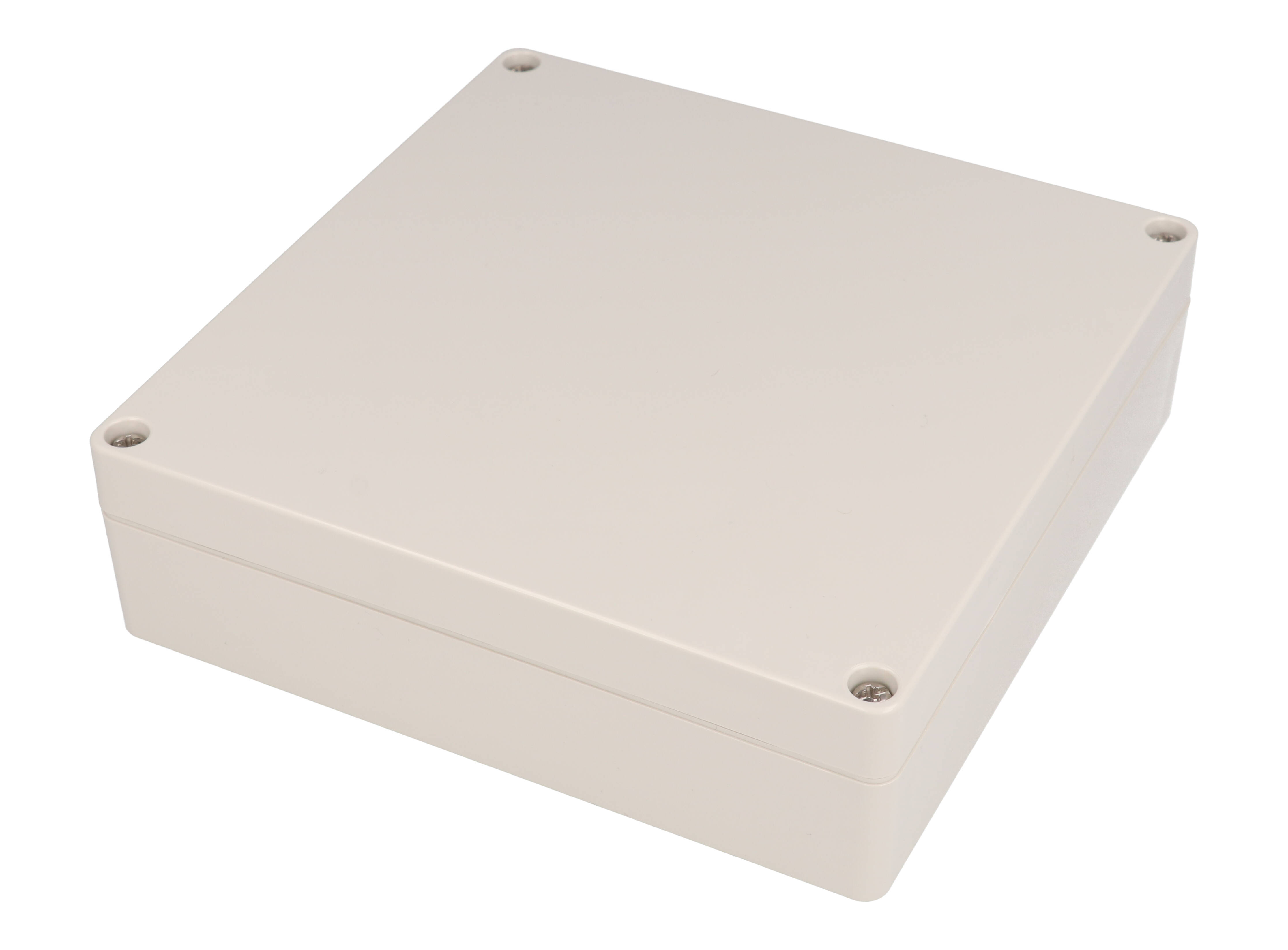

Save 52%1554RLGY — RAL7035 grey ABS plastic watertight enclosure
