Hammond 1554RGY 160mm Square, 61mm High Gray ABS Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 160 x 160 x 61 mm (6.3 x 6.3 x 2.4 in) light gray RAL 7035 ABS enclosure
- Tested to IP66; IK07 impact rating
- Fits PC boards up to 147.4 x 150.95 mm; 54.00 mm inside height
- DIN rail tabs, M3 brass inserts and 1.5 mm card guides molded in
- Gasketed tongue and groove lid, 4 M4 stainless steel screws included
- 4 x 4.00 mm mounting holes outside the gasket; 1554FT foot kit compatible
- UL94 HB ABS for indoor use, -20°C to +60°C

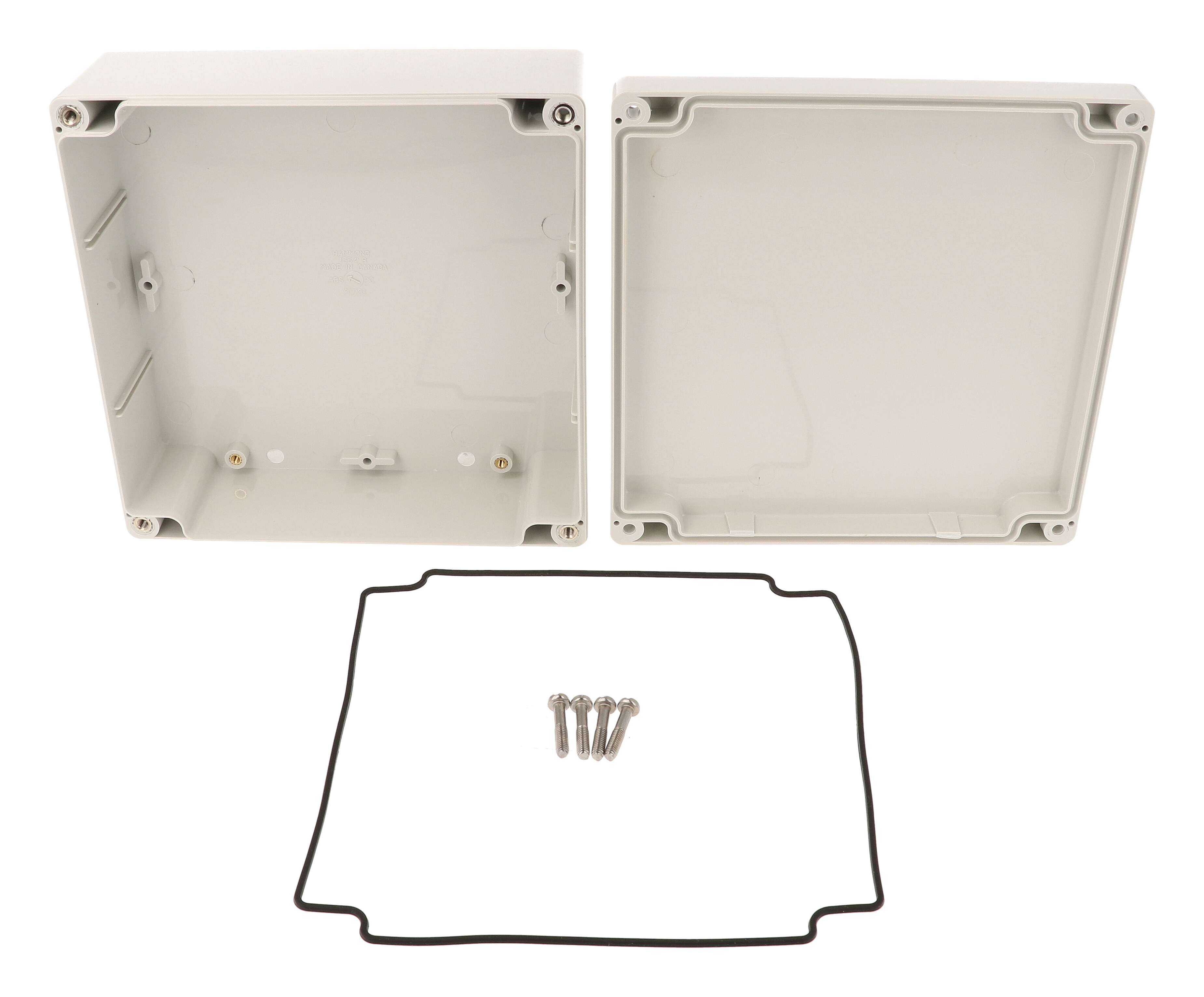

The 1554RGY is a general purpose ABS enclosure in the 160 mm square 1554 size, measuring 6.3 x 6.3 x 2.4 in (160 x 160 x 61 mm). The box and lid are light gray RAL 7035, making it a cost-conscious choice for indoor PC board and DIN rail assemblies that still need a gasketed, watertight lid.
Inside, the drawing gives 152.91 x 148.91 mm of length and width and 54.00 mm of height, with space for a PC board up to 147.4 x 150.95 mm. DIN rail mounting tabs, threaded M3 brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards are molded in. The 1554RPL steel inner panel is available separately.
The lid uses two-piece tongue and groove construction with a one-piece, high temperature UL listed silicone gasket supplied loose inside the enclosure. Four included M4 stainless steel machine screws thread into corrosion resistant bushings and become self-captivating after the first installation; recommended torque is 43-57 oz f-in (30-40 cN-m).
The ABS material is rated UL94 HB and IK07, has been tested to IP66, and is recommended for indoor use from -20°C to +60°C. This version is not UL listed. Four 4.00 mm mounting holes outside the gasket channel also accept the 1554FT foot kit. The 1554RGY ships at 0.73 lbs (0.33 kg).
Ideal For
- Indoor PC board enclosures
- DIN rail terminal boxes
- Indoor instrumentation housings
- OEM electronic assemblies
Overview
| Lid | Gray ABS lid |
| Color | Light Gray |
| Series | 1554 |
| Material | ABS Plastic |
| Description | RAL7035 grey ABS plastic watertight enclosure |
| Part Number | 1554RGY |
| Enclosure Type | Water-tight, screw cover, flat lid |
| Enclosure Color | Light gray (RAL 7035) |
| Short Description | 160X160X60MM ABS NEMA ENCL |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 6.30 in (160 mm) |
| Total Height | 2.40 in (61 mm) |
| Size (L X W X H) | 6.3 in x 6.3 in x 2.4 in (160 mm x 160 mm x 61 mm) |
| Max. P.C. Board Width | 150.95 mm |
| Inside Width (Drawing) | 148.91 mm [5.86 in] |
| Max. P.C. Board Length | 147.4 mm |
| Inside Height (Drawing) | 54.00 mm [2.13 in] |
| Inside Length (Drawing) | 152.91 mm [6.02 in] |
| Assembled Height (Drawing, Side View) | 60.50 mm [2.38 in] |
Accessories
| Inner Panel | 1554RPL (steel, order separately) |
| Replacement Gasket | 1554RGASKET (silicone pre-formed gasket, black, pkg of 2) |
| Panel / PC Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg of 100) |
| Replacement Lid Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg of 50) |
| Other Series Accessories | Breather kit, small rainproof ventilator, pressure compensation plug, hole plugs, pole mount kit, liquid-tight cordgrips (nylon or nickel plated brass) |
| Panel / PC Board Self-Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg of 100) |
Identifiers
| UPC | 623980303970 |
| UNSPSC | 39121301 |
| Drawing Revision | 28.02.2020 |
Related Versions
| ABS, Gray Lid | 1554RGY |
| Polycarbonate, Gray Lid | 1554R2GY |
| Polycarbonate, Clear Lid | 1554R2GYCL |
| Polycarbonate, Smoked Lid | 1554R2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.73 lbs (0.33 kg) |
Construction & Finish
| Gasket | Replaceable one-piece gasket of high temperature UL listed silicone, supplied loose inside the enclosure (not pre-installed) |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws (included), threaded into corrosion resistant bushings/inserts |
| Lid Construction | Gasketed lid with two-piece tongue and groove construction; protects against access of oil, dust and water |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners not listed as plastic safe, and some greases and oils |
| Lid Screw Retention | Self-captivating; lid holes are threaded with the first installation of the lid screws |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.); quotes from the factory |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Flame Rating | UL94 HB |
| Impact Rating | IK07 per IEC 62262:2021 |
| Indoor / Outdoor | For indoor use |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) recommended |
Compliance & Certifications
| UL Listing | Not UL listed (general purpose ABS version); tested to and meets IP66 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Listed On Part Page) | E65324 (the series UL listing covers the polycarbonate versions) |
Mounting & Internal Features
| DIN Rail | Internal DIN rail mounting tabs molded in |
| Foot Kit | 1554FT (installs using the wall-mounting holes) |
| Mounting Holes | 4X 4.00 mm [.16 in], located outside the gasket channel |
| PC Card Guides | Vertical card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs accepting #6 self-tapping screws |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Documentation
Frequently Asked Questions
Is the 1554RGY for indoor or outdoor use?▾
The ABS versions are for indoor use. For outdoor installations use a polycarbonate version such as 1554R2GY.
What is the maximum PC board size?▾
147.4 mm long by 150.95 mm wide.
Is the 1554RGY UL listed?▾
No. The general purpose ABS version is not UL listed; it has been tested to and meets IP66.
What comes in the box?▾
The box, lid, 4 M4 stainless steel cover screws and a preformed silicone gasket supplied loose.
Which inner panel fits?▾
The 1554RPL steel inner panel, ordered separately.
Related Products
Save 52%1554RGASKET — replacement gaskets for 1554 series, 2-pack
Hammond Manufacturing · 1554RGASKET
Save 52%1554RL2GY — RAL7035 grey polycarb plastic watertight enclosure
Hammond Manufacturing · 1554RL2GY
Save 52%1554RCL — CLEAR PC LID ONLY
Hammond Manufacturing · 1554RCL
Save 52%1554RL2GYCL — RAL7035 grey polycarb plastic watertight enclosure, clear lid
Hammond Manufacturing · 1554RL2GYCL

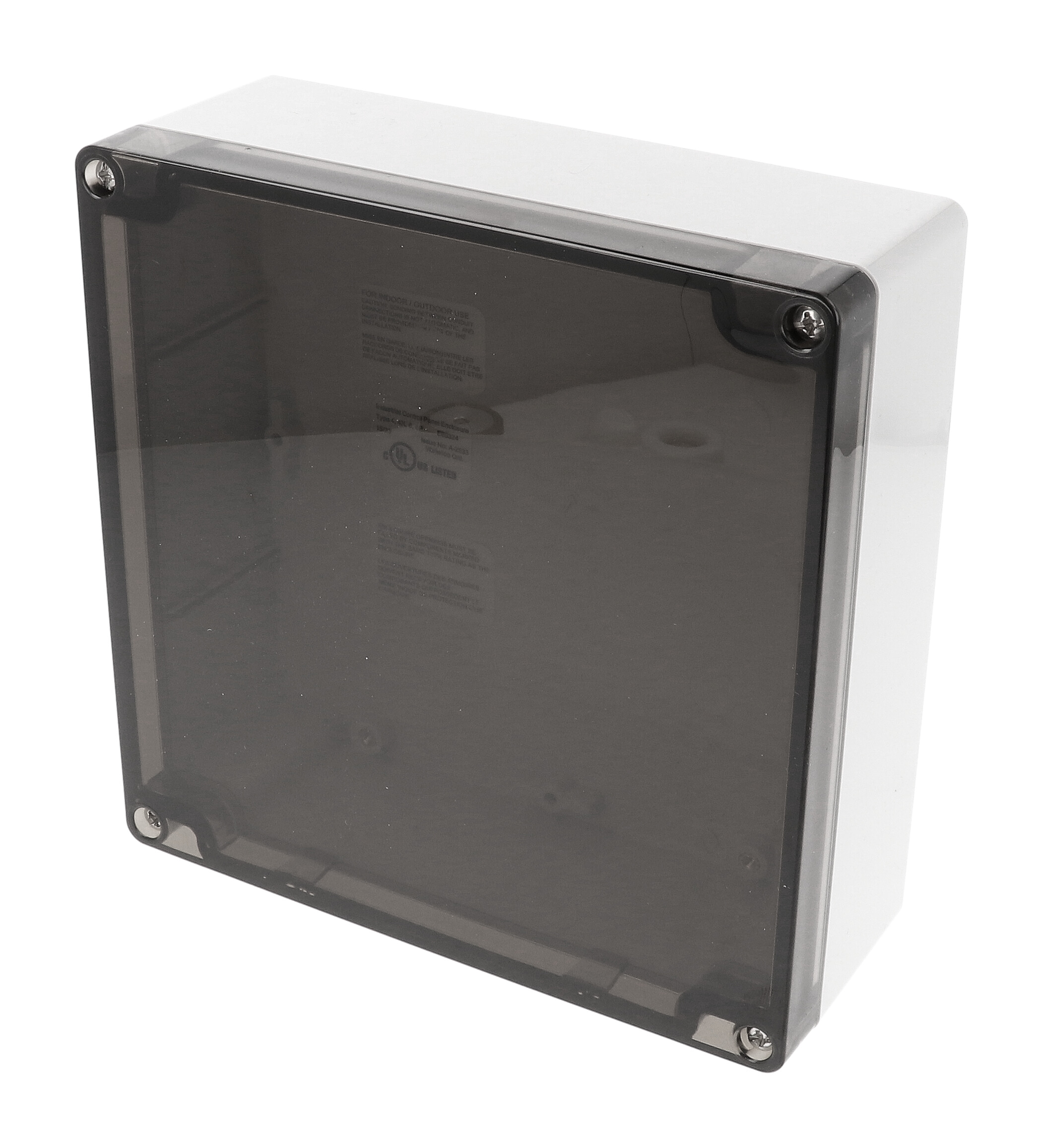

Save 52%1554R2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoked lid
