Hammond 1554QA2GYSL 140mm Square, 90mm Deep Enclosure, Smoked Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid; light gray RAL 7035 polycarbonate box
- 140 x 140 x 90 mm (5.51 x 5.51 x 3.54 in); 83.70 mm inside height
- IP68; NEMA Type 4, 4X, 6, 6P, 12 and 13 tested
- cUL and UL 508A listed, file E65324; lid rated UL94 V-0
- UV stabilized for outdoor use, IK08 impact rating
- Max PC board 127 x 119 mm; DIN rail tabs and card guides
- Mounting holes (4 x 4.30 mm) outside the gasket; 1554FT foot kit compatible

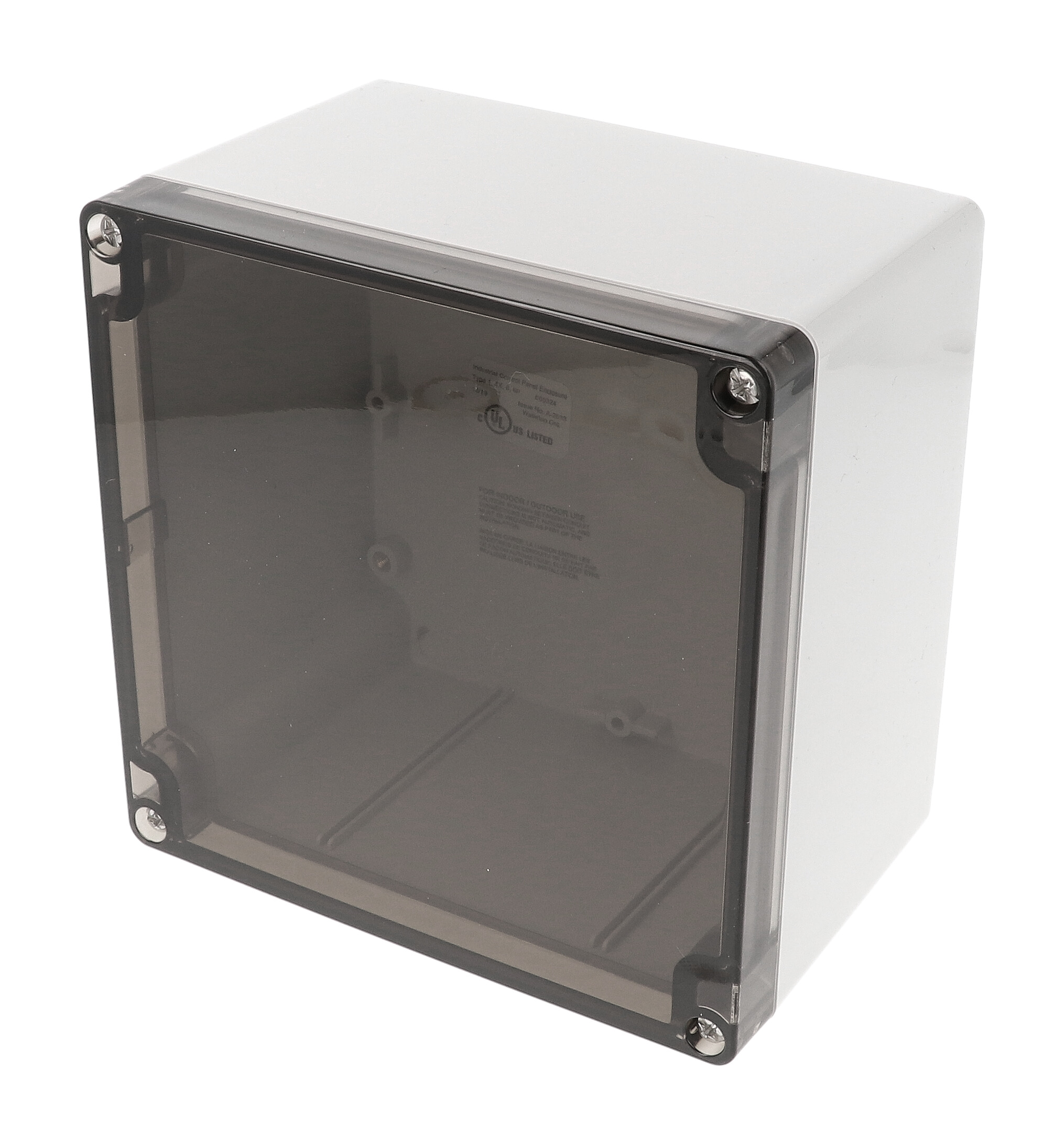

The 1554QA2GYSL combines a light gray RAL 7035 polycarbonate box with a smoked polycarbonate lid in the deeper 140 x 140 x 90 mm (5.51 x 5.51 x 3.54 in) size. The tinted lid allows lights and displays to show through, and the depth suits DIN rail devices and taller PC board assemblies in outdoor or wet locations.
Polycarbonate 1554 enclosures are UV stabilized, cUL and UL 508A listed under file E65324, and independently tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. The smoked lid has a UL94 V-0 flame rating, the impact rating is IK08 per IEC 62262:2021, and the recommended operating range is -40°C to +110°C.

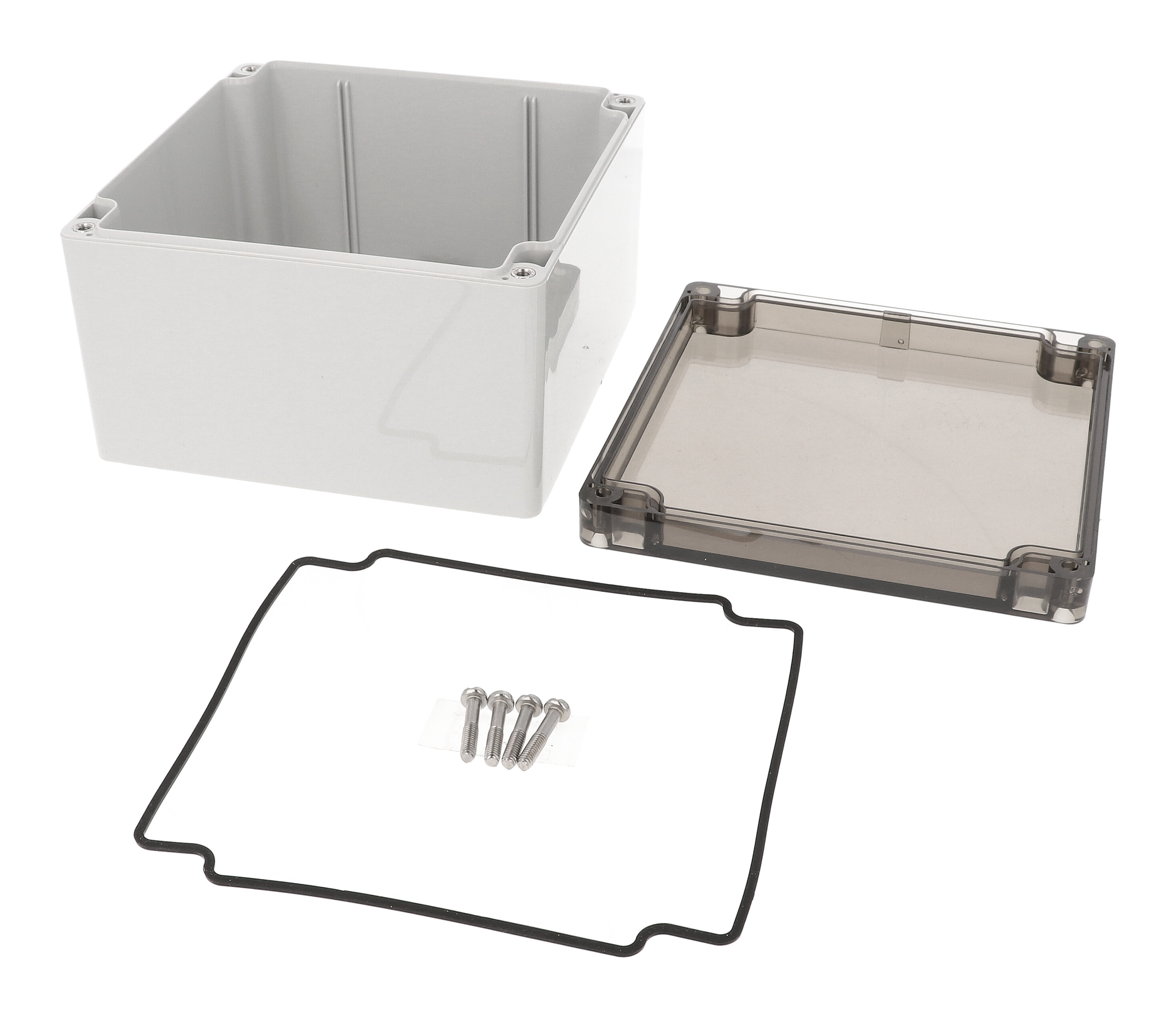

Sealing comes from a two-piece tongue and groove lid and a replaceable silicone gasket shipped loose inside the box. Four M4 stainless steel machine screws are included and seat in corrosion resistant bushings; torque them to 43-57 oz f-in (30-40 cN-m).
Inside, the drawing shows 131.32 x 128.38 mm and 83.70 mm of height. DIN rail tabs, M3 brass inserts, #6 self-tapping standoffs and 1.5 mm card guides are molded in, and boards up to 127 x 119 mm fit. Accessories include the 1554QPL steel inner panel, 1554FT foot kit, 1554QGASKET gasket and SC576-50 screws. Shipping weight is 0.82 lbs (0.37 kg).
Ideal For
- Outdoor controller enclosures with status LEDs
- DIN rail equipment in wet locations
- OEM product housings
- Deep PC board assemblies
Overview
| Lid | Smoked polycarbonate lid |
| Color | Light Gray |
| Series | 1554 |
| Material | Polycarbonate |
| Description | RAL7035 grey polycarb plastic watertight enclosure, smoked lid |
| Part Number | 1554QA2GYSL |
| Enclosure Type | Water-tight, screw cover, flat lid |
| Enclosure Color | Light gray (RAL 7035) |
| Short Description | 140X140X90MM P/C NEMA SMK LID |
Dimensions
| Width | 5.51 in (140 mm) |
| Length | 5.51 in (140 mm) |
| Total Height | 3.54 in (90 mm) |
| Size (L X W X H) | 5.51 in x 5.51 in x 3.54 in (140 mm x 140 mm x 90 mm) |
| Max. P.C. Board Width | 119 mm |
| Inside Width (Drawing) | 128.38 mm [5.05 in] |
| Max. P.C. Board Length | 127 mm |
| Inside Height (Drawing) | 83.70 mm [3.30 in] |
| Inside Length (Drawing) | 131.32 mm [5.17 in] |
| Assembled Height (Drawing, Side View) | 90.10 mm [3.55 in] |
Accessories
| Inner Panel | 1554QPL (steel, order separately) |
| Replacement Gasket | 1554QGASKET (silicone pre-formed gasket, black, pkg of 2) |
| Panel / PC Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg of 100) |
| Replacement Lid Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg of 50) |
| Other Series Accessories | Breather kit, small rainproof ventilator, pressure compensation plug, hole plugs, pole mount kit, liquid-tight cordgrips (nylon or nickel plated brass) |
| Panel / PC Board Self-Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg of 100) |
Identifiers
| UPC | 623980781716 |
| UNSPSC | 39121301 |
| Drawing Revision | 28.02.2020 |
Related Versions
| ABS, Gray Lid | 1554QAGY |
| Polycarbonate, Gray Lid | 1554QA2GY |
| Polycarbonate, Clear Lid | 1554QA2GYCL |
| Polycarbonate, Smoked Lid | 1554QA2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.82 lbs (0.37 kg) |
Construction & Finish
| Gasket | Replaceable one-piece gasket of high temperature UL listed silicone, supplied loose inside the enclosure (not pre-installed) |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws (included), threaded into corrosion resistant bushings/inserts |
| Lid Construction | Gasketed lid with two-piece tongue and groove construction; protects against access of oil, dust and water |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners not listed as plastic safe, and some greases and oils |
| Lid Screw Retention | Self-captivating; lid holes are threaded with the first installation of the lid screws |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.); quotes from the factory |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV / Outdoor Use | UV stabilized for outdoor use |
| Flame Rating Note | Clear and smoked lids carry UL94 V-0; solid gray polycarbonate carries UL94-5VA |
| NEMA Type Ratings | 4, 4X, 6, 6P, 12 and 13 (independently tested) |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Mounting & Internal Features
| DIN Rail | Internal DIN rail mounting tabs molded in |
| Foot Kit | 1554FT (installs using the wall-mounting holes) |
| Mounting Holes | 4X 4.30 mm [.17 in], located outside the gasket channel |
| PC Card Guides | Vertical card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs accepting #6 self-tapping screws |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What lid does the 1554QA2GYSL have?▾
A smoked polycarbonate lid on a light gray polycarbonate box. Gray-lid (1554QA2GY) and clear-lid (1554QA2GYCL) versions share the same 140 x 140 x 90 mm size.
Is it waterproof?▾
It is rated IP68, and polycarbonate versions are tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13.
What PC board size fits?▾
Up to 127 mm long by 119 mm wide.
What are the lid screws?▾
Four included M4 stainless steel machine screws; replacements are SC576-50 (M4-0.7 x 20 mm, pack of 50).
Can the enclosure be modified?▾
Enclosures can be factory modified (milling, drilling, printing etc.) on a quote basis, and solid models are available in .stp or .x_t.
