Hammond 1554N2GYSL 120x120x61mm Smoked Lid Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid (UL94 V-0) over a light gray RAL 7035 polycarbonate box
- IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13 tested
- cUL and UL 508A listed, file E65324
- 120 x 120 x 61 mm; max. PC board 106.68 x 107.7 mm
- M4 stainless self-captivating lid screws; 30-40 cN-m recommended torque
- Four 4.00 mm wall-mounting holes outside the gasket channel

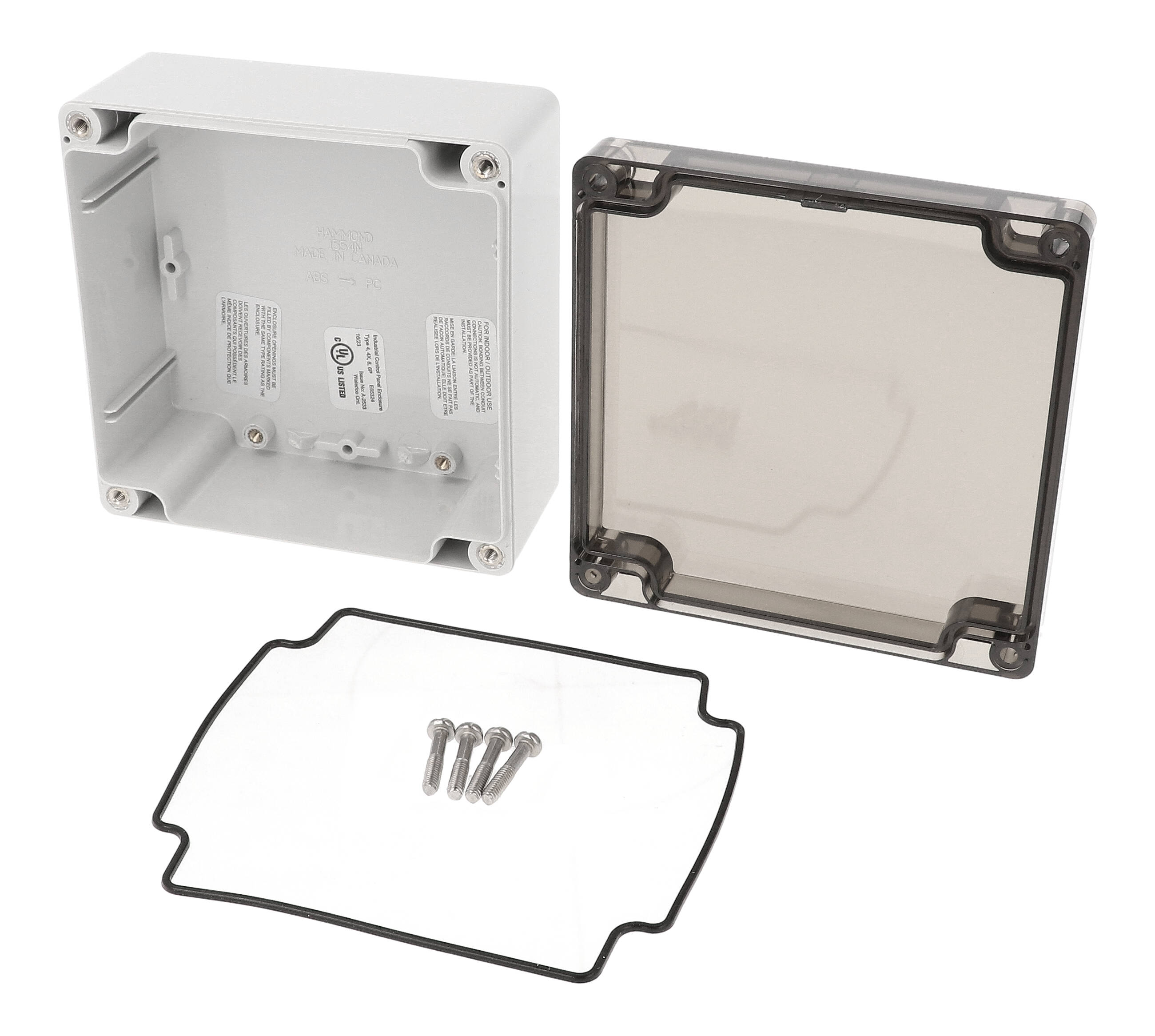

The 1554N2GYSL is the smoked-lid version of the 120 x 120 x 61 mm (4.72 x 4.72 x 2.40 in) 1554N polycarbonate enclosure. A light gray RAL 7035 polycarbonate box is closed by a tinted polycarbonate lid, giving a view of indicators inside while toning down what is visible. It is a fit for integrators and OEMs housing PC boards or DIN rail components.
The smoked lid is rated UL94 V-0. A two-piece tongue and groove joint and a one-piece high-temperature UL listed silicone gasket (supplied loose) seal the lid, which is held by four self-captivating M4 stainless steel screws in corrosion resistant inserts. Recommended cover screw torque is 43-57 ozf-in (30-40 cN-m).
The drawing lists an inside length of 112.91 mm and inside height of 54.50 mm, and a P.C. board can measure up to 106.68 x 107.7 mm. Internal DIN rail tabs, M3 brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards are molded in; the 1554NPL steel inner panel is sold separately.
Like the other polycarbonate 1554 versions, the 1554N2GYSL is cUL and UL 508A listed (E65324), UV stabilized for outdoor use, tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, and IK08 impact rated, with a recommended operating range of -40°C to +110°C.
Ideal For
- Enclosures with status indicators behind a tinted cover
- Outdoor electronics and sensor housings
- DIN rail mounted components
- Industrial control panels to UL 508A
Overview
| Type | Water-tight |
| Version | Polycarbonate box / smoked polycarbonate lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, smoked lid |
| Part Number | 1554N2GYSL |
| Short Description | 120X120X60MM P/S NEMA SMK LID |
| Enclosure Size Code | N |
Dimensions
| Inside Height | 54.50 mm [2.15 in] |
| Inside Length | 112.91 mm [4.45 in] |
| Max. P.C. Board Width | 107.7 mm |
| Max. P.C. Board Length | 106.68 mm |
| Nominal Size (L X W X H) | 4.72 in x 4.72 in x 2.40 in (120 mm x 120 mm x 61 mm) |
| Overall Height (Drawing) | 60.50 mm [2.38 in] |
| Size L X W X H (Part Page) | 4.7 in x 4.7 in x 2.4 in (119 mm x 119 mm x 61 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554NGASKET (silicone, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (M4-0.7 x 20 mm stainless, pkg 50) |
| Inner Panel (Order Separately) | 1554NPL steel inner panel |
| Panel / P.C. Board Self-Tapping Screw | 1598ATS100 (#6 x 1/4 in (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980132563 |
| UNSPSC | 39121301 |
| Drawing Revision | 01.04.2026 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.51 lbs (0.23 kg) |
Construction & Finish
| Lid | Smoked polycarbonate lid |
| Color | Light Gray |
| Gasket | One-piece replaceable high-temperature UL listed silicone, supplied loose (not pre-installed) |
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Material | Polycarbonate |
| Box Color | Light gray (RAL 7035) |
| Lid Style | Flat, screw cover |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating |
| PC Card Guides | Vertical, for 1.5 mm thick PC boards |
| Lid Construction | Gasketed, two-piece tongue and groove |
| Internal Mounting | Molded DIN rail mounting tabs; M3 brass inserts; standoffs accept #6 self-tapping screws |
| Lid Screw Inserts | M4 corrosion resistant inserts |
| Wall-Mounting Holes | 4 x Ø4.00 mm [0.16 in], located outside the gasket channel |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | Type 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread lockers, cutting/tapping fluid, strong solvents |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 V-0 (clear/smoked lid) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1554N2GYSL different from the 1554N2GY?▾
Both use a 120 x 120 x 61 mm light gray polycarbonate box; the 1554N2GYSL has a smoked polycarbonate lid (UL94 V-0) instead of the solid gray lid.
Can it be used outdoors?▾
Yes, polycarbonate versions are UV stabilized for outdoor use and tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13.
How do I mount it?▾
Four 4.00 mm wall-mounting holes sit outside the gasket channel; the same holes accept the 1554FT foot kit.
What screws hold the lid?▾
Four M4-0.7 x 20 mm stainless steel cover screws; replacements come as SC576-50 in a package of 50.
How big is the inside?▾
Inside length is 112.91 mm and inside height is 54.50 mm per the drawing.
Related Products

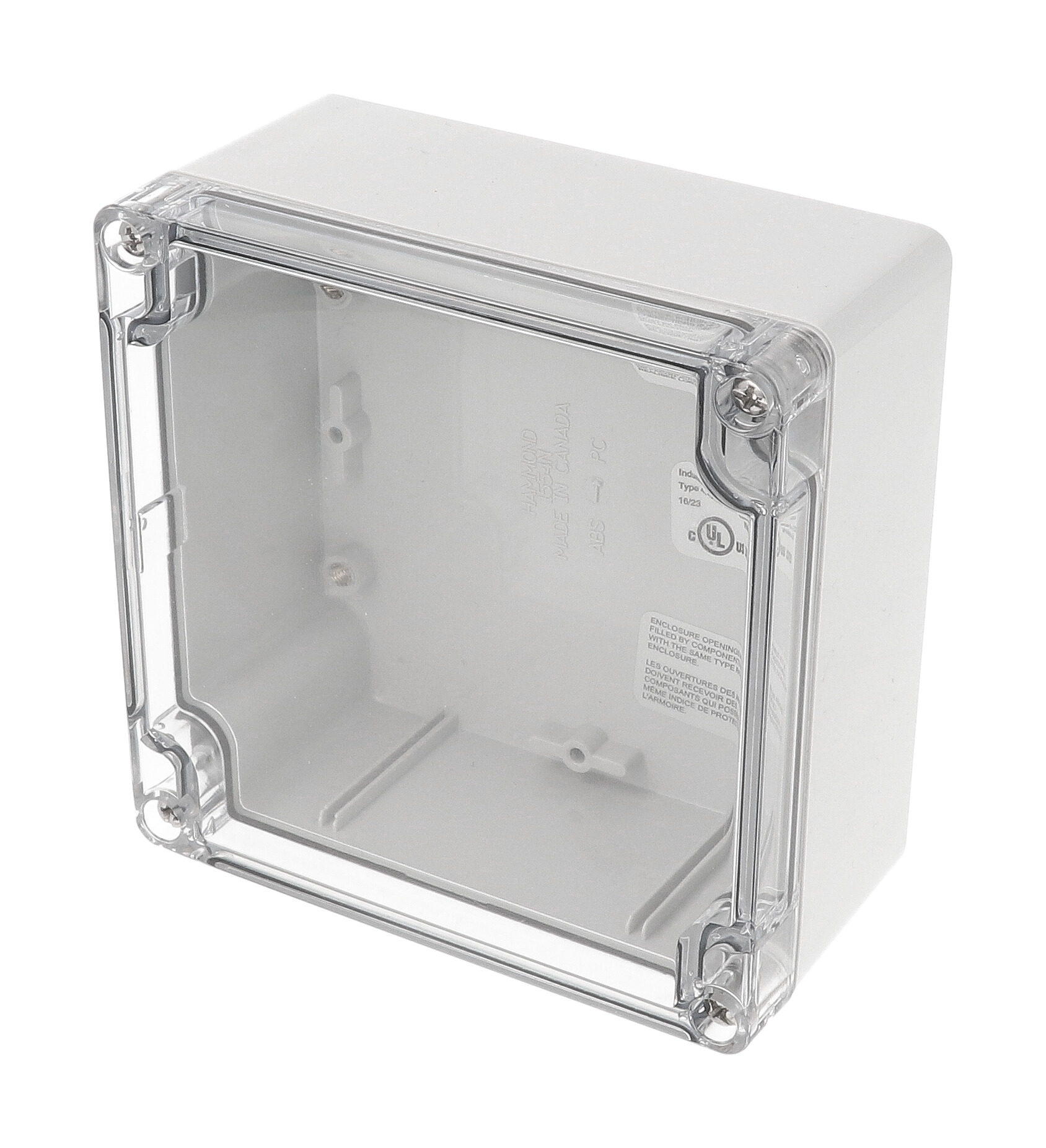

Save 52%1554N2GYCL — RAL7035 grey polycarb plastic watertight enclosure, clear lid
Hammond Manufacturing · 1554N2GYCL
Save 52%1554NCL — CLEAR PC LID ONLY
Hammond Manufacturing · 1554NCL

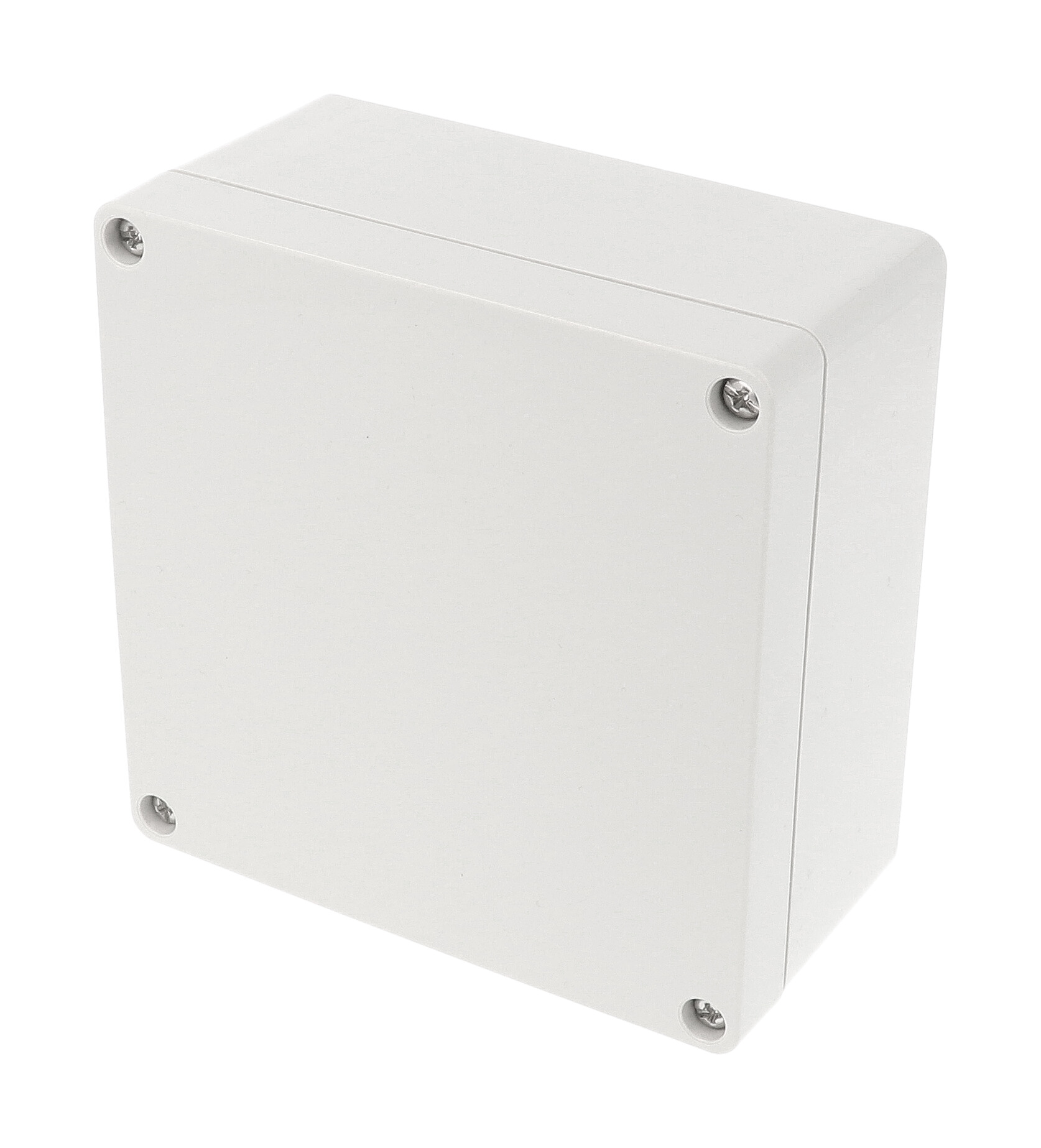

Save 52%1554N2GY — RAL7035 grey polycarb plastic watertight enclosure
