Hammond 1554N2GYCL 120x120x61mm Clear Lid Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid (UL94 V-0) on a light gray RAL 7035 polycarbonate box
- IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13 tested
- cUL and UL 508A listed under file E65324
- 120 x 120 x 61 mm; takes a PC board up to 106.68 x 107.7 mm
- Self-captivating M4 stainless lid screws into corrosion resistant inserts
- UV stabilized for outdoor use, IK08 impact rated
The 1554N2GYCL pairs a light gray RAL 7035 polycarbonate box with a clear polycarbonate lid, so displays, LEDs and indicators stay visible while the electronics remain sealed. At 120 x 120 x 61 mm (4.72 x 4.72 x 2.40 in) it suits OEM builders and integrators who need to see inside a compact, UL listed enclosure without opening it.
The clear lid carries a UL94 V-0 flame rating. It seals against the box through tongue and groove construction and a one-piece high-temperature silicone gasket, which is shipped loose for you to fit. Four M4 stainless steel self-captivating screws thread into corrosion resistant inserts; torque them to 43-57 ozf-in (30-40 cN-m).
- Inside length 112.91 mm, inside height 54.50 mm
- Max. P.C. board 106.68 x 107.7 mm
- Molded DIN rail tabs, M3 brass inserts, #6 self-tapping standoffs and 1.5 mm card guides
- Four 4.00 mm wall-mounting holes outside the gasket channel
The polycarbonate versions are cUL and UL 508A listed under file E65324, UV stabilized for outdoor use, and tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, with an IK08 impact rating and a recommended operating range of -40°C to +110°C. Add the 1554NPL inner panel or 1554FT foot kit as needed for the 1554N2GYCL.
Ideal For
- Enclosures with visible displays or status LEDs
- Outdoor sensor and controller housings
- DIN rail component enclosures
- UL 508A control applications
Overview
| Type | Water-tight |
| Version | Polycarbonate box / clear polycarbonate lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Part Number | 1554N2GYCL |
| Short Description | 120X120X60MM P/S NEMA CLR LID |
| Enclosure Size Code | N |
Dimensions
| Inside Height | 54.50 mm [2.15 in] |
| Inside Length | 112.91 mm [4.45 in] |
| Max. P.C. Board Width | 107.7 mm |
| Max. P.C. Board Length | 106.68 mm |
| Nominal Size (L X W X H) | 4.72 in x 4.72 in x 2.40 in (120 mm x 120 mm x 61 mm) |
| Overall Height (Drawing) | 60.50 mm [2.38 in] |
| Size L X W X H (Part Page) | 4.7 in x 4.7 in x 2.4 in (119 mm x 119 mm x 61 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554NGASKET (silicone, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (M4-0.7 x 20 mm stainless, pkg 50) |
| Inner Panel (Order Separately) | 1554NPL steel inner panel |
| Panel / P.C. Board Self-Tapping Screw | 1598ATS100 (#6 x 1/4 in (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980304243 |
| UNSPSC | 39121301 |
| Drawing Revision | 01.04.2026 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.51 lbs (0.23 kg) |
Construction & Finish
| Lid | Clear polycarbonate lid |
| Color | Clear |
| Gasket | One-piece replaceable high-temperature UL listed silicone, supplied loose (not pre-installed) |

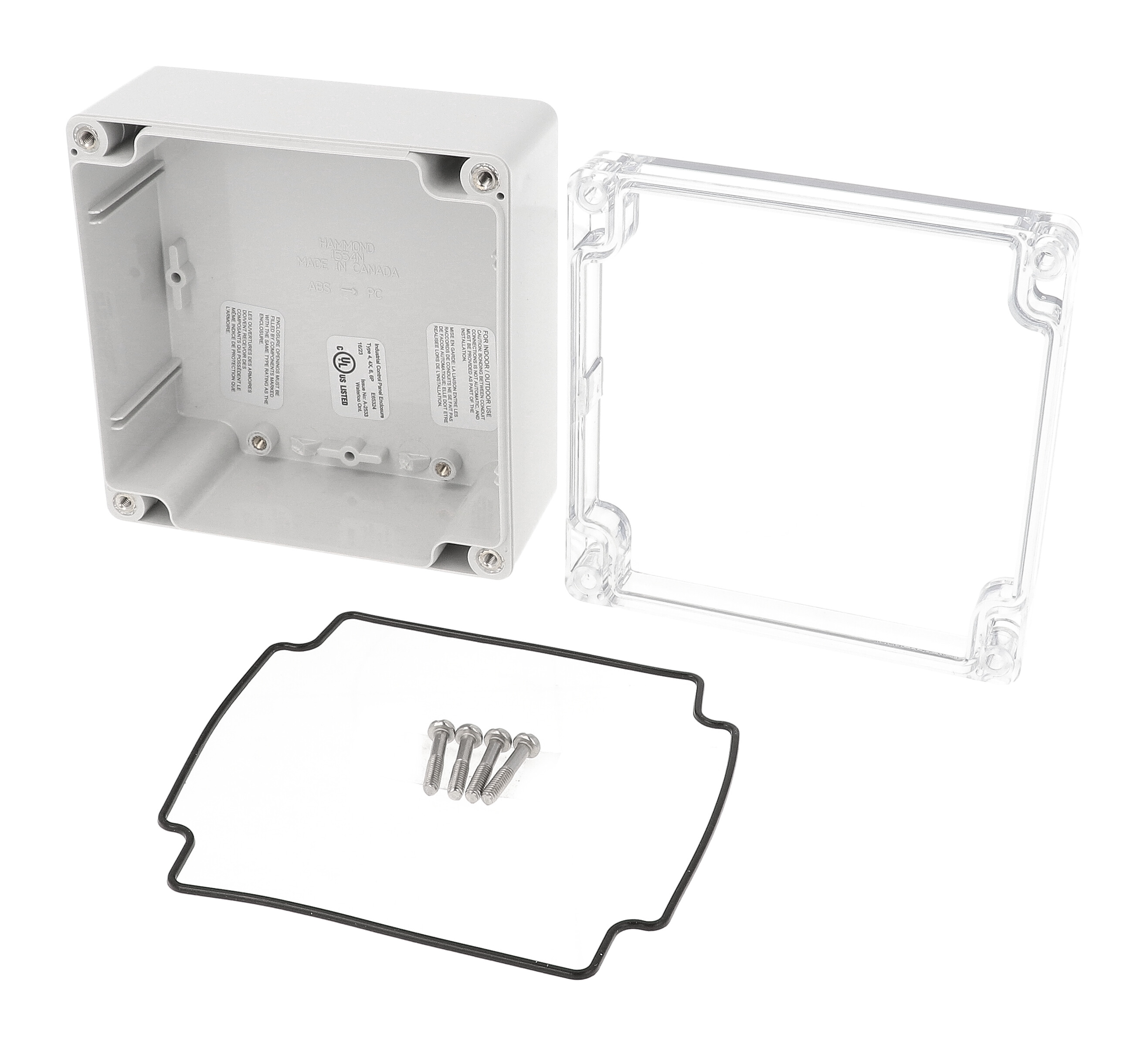

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Material | Polycarbonate |
| Box Color | Light gray (RAL 7035) |
| Lid Style | Flat, screw cover |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating |
| PC Card Guides | Vertical, for 1.5 mm thick PC boards |
| Lid Construction | Gasketed, two-piece tongue and groove |
| Internal Mounting | Molded DIN rail mounting tabs; M3 brass inserts; standoffs accept #6 self-tapping screws |
| Lid Screw Inserts | M4 corrosion resistant inserts |
| Wall-Mounting Holes | 4 x Ø4.00 mm [0.16 in], located outside the gasket channel |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | Type 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread lockers, cutting/tapping fluid, strong solvents |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 V-0 (clear/smoked lid) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the lid on the 1554N2GYCL made of?▾
A clear polycarbonate lid with a UL94 V-0 flame rating, on a light gray RAL 7035 polycarbonate box.
Is the gasket already fitted?▾
No. The one-piece silicone gasket is supplied loose inside the enclosure and is not pre-installed.
What ratings does it carry?▾
Polycarbonate versions are tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, are cUL and UL 508A listed (E65324) and rated IK08.
What operating temperature is recommended?▾
-40°C to +110°C (-40°F to +230°F). Customers should conduct their own testing for their specific application.
Which gasket replaces the original?▾
Replacement gasket 1554NGASKET, a black silicone pre-formed gasket in a package of 2.
