Hammond 1554KGY 160x90x90 mm Gray ABS Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 160 x 89 x 89 mm (6.3 x 3.5 x 3.5 in) ABS enclosure with 3.58 in (91 mm) total height
- Tested to and meets IP66; IK07 impact rating per IEC 62262:2021
- Deep 84.50 mm inside height for taller boards or DIN rail devices
- Molded DIN rail tabs, PC card guides for 1.5 mm boards and M3 brass inserts
- Four included self-captivating M4 stainless steel lid screws
- UL94 HB general purpose ABS in light gray RAL 7035 for indoor use
- Accepts 1554JPL inner panel and 1554FT foot kit
The 1554KGY is the deep general purpose ABS model in the 160 mm long footprint of the 1554 Series. Listed at 6.3 x 3.5 x 3.5 in (160 x 89 x 89 mm) with a 3.58 in (91 mm) total height, it is aimed at integrators and OEM designers housing taller PCB stacks or DIN rail devices indoors.

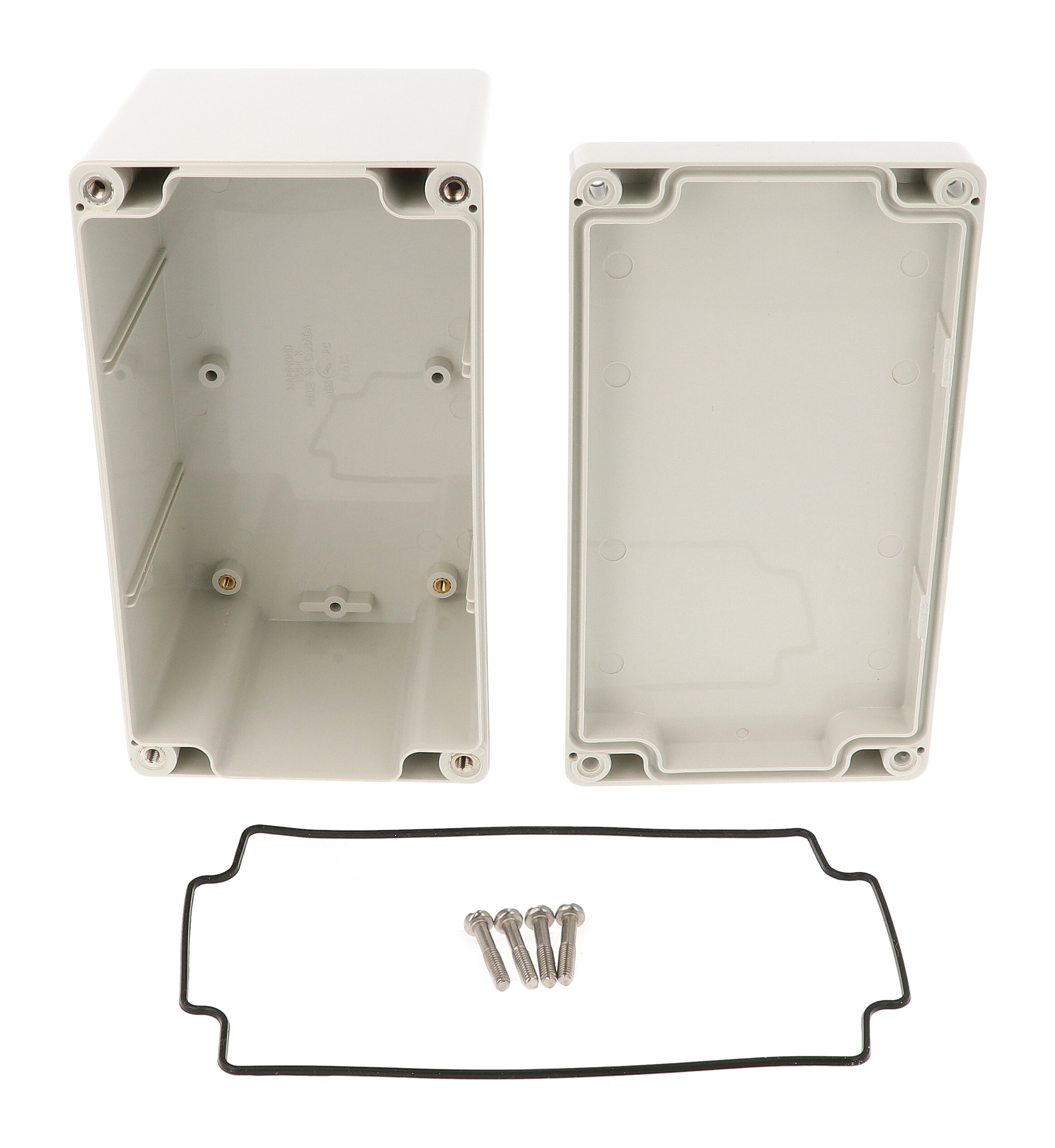

The enclosure is molded from light gray RAL 7035 ABS rated UL94 HB. Its flat lid uses two piece tongue and groove construction with a replaceable one piece silicone gasket (shipped loose) to keep out oil, dust and water, and is fastened with four included self-captivating M4 stainless steel screws running into corrosion resistant bushings.
Inside, the drawing shows 152.13 mm [5.99 in] of length, 78.13 mm [3.08 in] of width and 84.50 mm [3.33 in] of height. Molded DIN rail tabs, vertical card guides for 1.5 mm boards and M3 brass inserts that accept #6 self-tapping screws give several mounting options, and the 1554JPL steel inner panel can be ordered separately.
- Tested to and meets IP66 (ABS version not UL listed)
- IK07 impact rating per IEC 62262:2021
- Recommended operating temperature -20°C to +60°C (-4°F to +140°F), indoor use
- Shipping weight 0.57 lbs (0.26 kg), shrink wrapped
Wall-mounting holes (4X 4.00 mm) sit outside the gasket channel and double as the attachment points for the 1554FT foot kit. The 1554KGY is RoHS and REACH compliant.
Ideal For
- Indoor electronics housings
- DIN rail component enclosures
- Taller PCB assemblies
- Control and sensor interface boxes
Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| Lid Inserts | M4 corrosion resistant inserts inside lid |
| PC Card Guides | Vertical PC card guides for 1.5 mm thick PC boards |
| Wall Mounting Holes | 4X 4.00 mm [.16 in], located outside the gasket channel |
| Internal Box Mounting | M3 brass inserts; accepts #6 self-tapping screws |
Overview
| Lid | Gray ABS lid |
| Type | Water-tight |
| Series | 1554 |
| Lid Style | Screw cover, flat lid |
| Description | RAL7035 grey ABS plastic watertight enclosure |
| Part Number | 1554KGY |
| Recommended Use | Indoor use |
| Short Description | 160X90X90MM ABS NEMA ENCL. |
Dimensions
| Width | 3.54 in (90 mm) |
| Length | 6.30 in (160 mm) |
| Inside Width | 78.13 mm [3.08 in] |
| Inside Height | 84.50 mm [3.33 in] |
| Inside Length | 152.13 mm [5.99 in] |
| Max. P.C. Board Width | 147.32 mm |
| Max. P.C. Board Length | 77.47 mm |
| Nominal Size (L X W X H) | 6.3 in x 3.5 in x 3.5 in (160 mm x 89 mm x 89 mm) |
| Overall Height (Drawing) | 90.50 mm [3.56 in] |
| Total Height (Ordering Table) | 3.58 in (91 mm) |
Accessories
| Foot Kit | 1554FT |
| Steel Inner Panel (Order Separately) | 1554JPL |
| Replacement Gasket (Silicone, Black, Pkg 2) | 1554JGASKET |
| Panel / P.C. Board Screw (M3-0.5 X 8 Mm Plated, Pkg 100) | 1591MM100 |
| Replacement Cover Screws (M4-0.7 X 20 Mm Stainless, Pkg 50) | SC576-50 |
| Panel / P.C. Board Self Tapping Screw (#6 X 1/4" (6.4 Mm) Plated, Pkg 100) | 1598ATS100 |
Identifiers
| UPC | 623980303918 |
| UNSPSC | 39121301 |
| Drawing Revision | 28.02.2020 |
| Enclosure Family | 1554K |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.57 lbs (0.26 kg) |
Construction & Finish
| Color | Light Gray |
| Gasket | One piece, replaceable, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid, two piece tongue and groove construction |
| Material | ABS Plastic |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws (included), self-captivating, threaded into corrosion resistant bushings |
| Enclosure Color | Light gray (RAL 7035) |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| IP Rating (Part Page) | IP66 |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | Not UL listed (general purpose ABS version); tested to and meets IP66 |
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How tall is the 1554KGY?▾
The ordering table lists a total height of 3.58 in (91 mm); the part page lists the size as 6.3 x 3.5 x 3.5 in (160 x 89 x 89 mm), and the drawing shows an inside height of 84.50 mm [3.33 in].
Is the 1554KGY UL listed?▾
No. The general purpose ABS version is not UL approved, but it has been tested to and meets IP66.
What operating temperature is recommended?▾
-20°C to +60°C (-4°F to +140°F) for the ABS version, which is intended for indoor use.
Which inner panel fits?▾
The 1554JPL steel inner panel, ordered separately. Maximum P.C. board dimensions listed are 77.47 mm and 147.32 mm.
Is there a polycarbonate equivalent?▾
Yes. The same size is offered in polycarbonate as 1554K2GY (gray lid), 1554K2GYCL (clear lid) and 1554K2GYSL (smoked lid).
