Hammond 1554JGY 160x90x61mm Gray ABS Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS enclosure, RAL 7035 light gray, indoor use
- 160 x 90 x 61 mm; fits PC boards up to 77.47 x 147.32 mm
- Tested to and meets IP66; IK07 impact rating
- UL94-HB flame rated material
- DIN rail tabs, M3 brass inserts and 1.5 mm card guides molded in
- Replaceable one-piece silicone gasket and captive M4 stainless screws
The 1554JGY is a 160 x 90 x 61 mm general purpose ABS enclosure in RAL 7035 light gray. It gives indoor electronics, control and instrumentation projects a gasketed, watertight housing in the narrow J size.
ABS versions are molded from general purpose material with a UL94-HB flame rating and are meant for indoor use. They are not UL listed but have been tested to and meet IP66, and they carry an IK07 impact rating per IEC 62262:2021. Recommended operating temperature is -20°C to +60°C (-4°F to +140°F).
The drawing shows an interior of about 152.91 x 77.00 x 54.50 mm with space for a PC board up to 77.47 x 147.32 mm. Molded DIN rail mounting tabs, threaded M3 brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards are all provided, and the 1554JPL steel inner panel can be added separately.
Sealing comes from a two-piece tongue and groove lid and a replaceable one-piece silicone gasket supplied loose in the box. Four included M4 stainless steel screws are self-captivating and thread into corrosion resistant bushings for repeated access. The 1554JGY weighs 0.51 lbs (0.23 kg) shipped.
Ideal For
- Indoor electronics and PC board housings
- DIN rail mounted controls in indoor areas
- Instrumentation junction boxes
Overview
| Series | 1554 Series, Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Gray ABS lid (ABS version available only in gray) |
| Description | RAL7035 grey ABS plastic watertight enclosure |
| Enclosure Type | Water-tight |
| Short Description | 160X90X60MM ABS NEMA ENCL. |
Dimensions
| Width | 3.54 in (90 mm) |
| Length | 6.30 in (160 mm) |
| Inside Width | 77.00 mm [3.03 in] |
| Nominal Size | 160 x 90 x 60 mm |
| Total Height | 2.40 in (61 mm) |
| Inside Height | 54.50 mm [2.15 in] |
| Inside Length | 152.91 mm [6.02 in] |
| Size L X W X H | 6.3 in x 3.5 in x 2.4 in (160 mm x 89 mm x 61 mm) |
| Max. P.C. Board Width | 147.32 mm |
| Max. P.C. Board Length | 77.47 mm |
Accessories
| Foot Kit | 1554FT |
| Related Versions | ABS gray lid 1554JGY; polycarbonate gray lid 1554J2GY; clear lid 1554J2GYCL; smoked lid 1554J2GYSL |
| Replacement Gasket | 1554JGASKET (silicone pre-formed gasket, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel, M4-0.7 x 20 mm, pkg 50) |
| Inner Panel (Order Separately) | 1554JPL steel inner panel |
| Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980303901 |
| UNSPSC | 39121301 |
| Part Number | 1554JGY |
| Drawing Revision | 28.02.2020 |
Packaging & Shipping

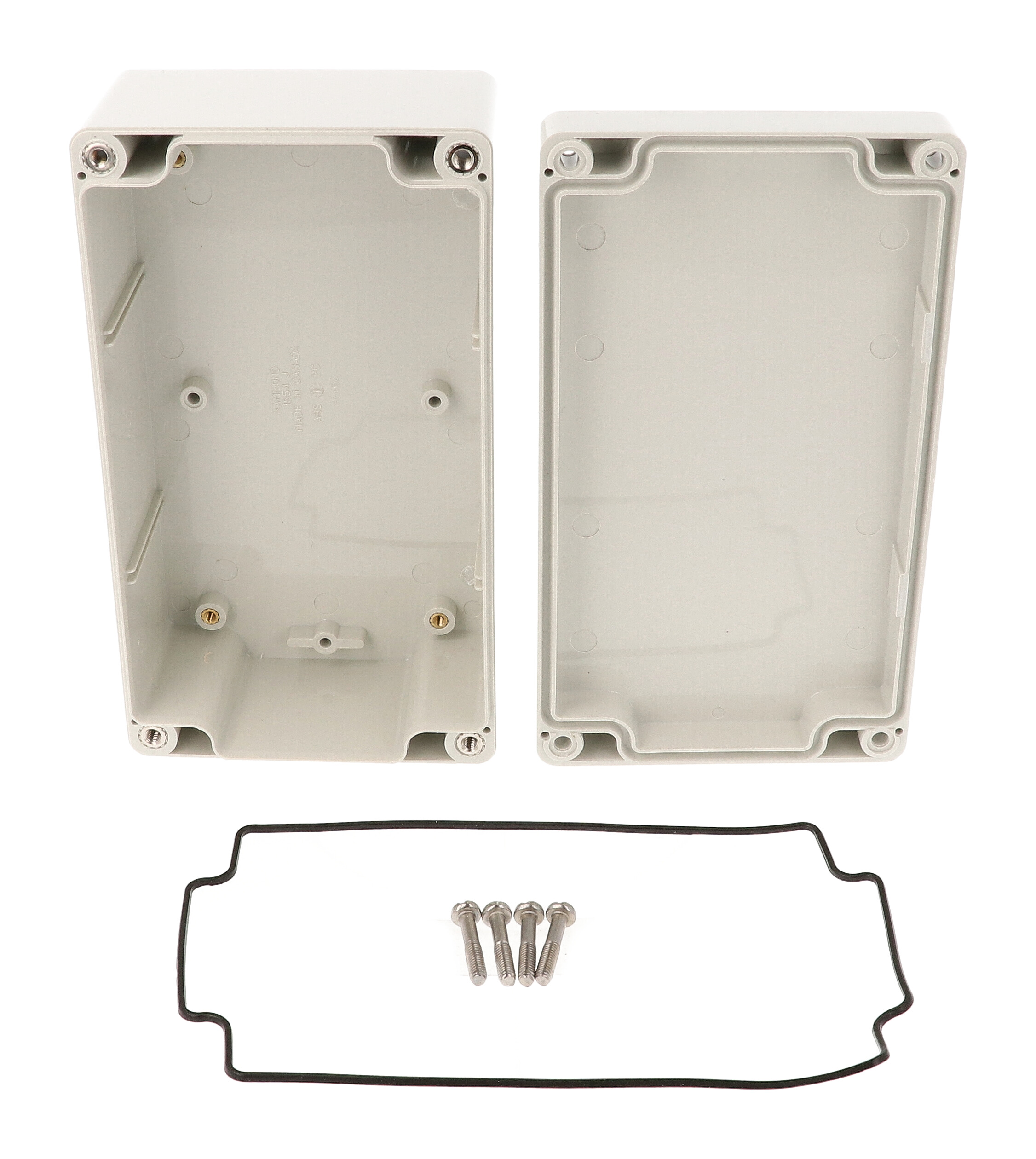

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.51 lbs (0.23 kg) |
Construction & Finish
| Lid | Gray ABS |
| Color | Light Gray |
| Gasket | Replaceable one-piece high temperature UL listed silicone, preformed; supplied loose inside the enclosure (not pre-installed) |
| Material | ABS Plastic |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating, threaded into corrosion resistant bushings |
| Solid Models | Available in .stp or .x_t |
| Wall Mounting | Wall-mounting holes located outside of the gasket channel; 4X 4.00 mm [.16 in] mounting holes |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Holes | Threaded with the first installation of lid screws |
| Internal Inserts | M3 brass inserts; M4 corrosion resistant inserts |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Internal Mounting | Internal DIN rail mounting tabs; threaded (M3) integral brass inserts and/or standoffs (#6 self-tapping screws) for PC board or inner panel mounting; vertical PC card guides for 1.5 mm thick PC boards |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| Flame Rating | UL94 HB (general purpose material) |
| Intended Use | Indoor use |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Status | ABS version is not UL listed / not UL approved |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1554JGY suitable for outdoor use?▾
ABS versions are specified for indoor use. For outdoor use, the polycarbonate versions (such as 1554J2GY) are UV stabilized.
What IP rating does the 1554JGY have?▾
ABS versions have been tested to and meet IP66.
What are the inside dimensions?▾
The drawing shows approximately 152.91 mm long, 77.00 mm wide and 54.50 mm high inside.
Is the 1554JGY UL listed?▾
No. ABS versions are not UL listed.
Which foot kit fits?▾
The ordering table lists the 1554FT foot kit, which installs using the wall-mounting holes.
