Hammond 1554FL2GYCL 120x90x45mm Polycarbonate Enclosure, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid on a light gray base, low 45 mm nominal height
- IP68 rated; cUL and UL 508A listed, file E65324
- Part flame rating UL94 V-0
- Inside 112.99 x 82.99 x 39.35 mm per drawing; PCB up to 108.4 x 77.5 mm
- UV stabilized for outdoor use; IK08; -40°C to +110°C recommended
- M3 brass inserts, card guides and DIN rail tabs molded in
- Four included M4 stainless steel lid screws; loose silicone gasket

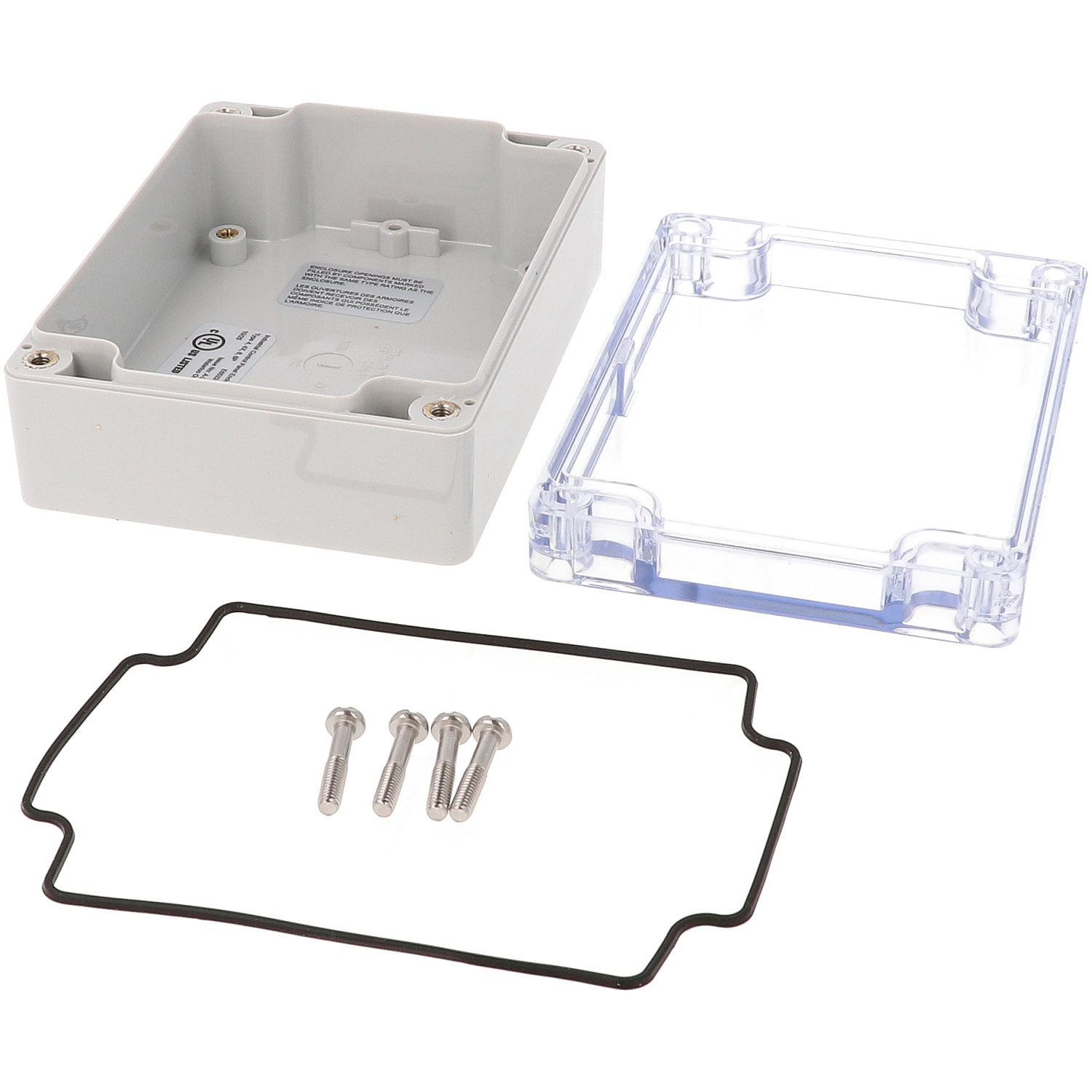

The 1554FL2GYCL is the clear-lid version of the low-profile 1554FL size: a light gray (RAL 7035) polycarbonate base with a transparent polycarbonate flat lid, nominally 120 x 90 x 45 mm. It is a good fit for slim boards whose LEDs, displays or labels need to be read without removing the cover.
The part is listed with a UL94 V-0 flame rating, which the series specifies for clear lids. It is rated IP68 and is cUL and UL 508A listed under file E65324. The series sheet gives NEMA 4, 4X, 6, 6P, 12 and 13 for polycarbonate versions, while the manufacturer part page for this item prints "12 & 40" as its last value. Polycarbonate versions are UV stabilized for outdoor use, have an IK08 impact rating and a recommended -40°C to +110°C operating range.
Per the drawing the enclosure is 120.00 x 90.00 mm with a 45.45 mm overall height, giving 112.99 mm of inside length, 82.99 mm of inside width and 39.35 mm of inside height. Boards up to 108.4 x 77.5 mm are listed as the maximum; they can sit on M3 brass inserts or #6 self-tapping standoffs, or in card guides for 1.5 mm boards. DIN rail tabs are molded in, and the 1554FPL steel inner panel is ordered separately.
The lid is sealed with a two piece tongue and groove joint and a one-piece silicone gasket (supplied loose), then secured with four included M4 stainless steel self-captivating screws. Four Ø4.30 mm wall-mounting holes are located outside the gasket channel and also accept the 1554FT foot kit. The 1554FL2GYCL weighs 0.36 lbs (0.16 kg) shipped and is REACH and RoHS compliant.
Ideal For
- Slim enclosures with visible indicators
- Outdoor display or status-light housings
- Low-profile DIN rail electronics
- UL 508A panel components
Overview
| Type | Water-tight |
| Series | 1554 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Flat lid, screw cover |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Drawing Reference | 1554FL (REV: 16.01.2025) |
| Short Description | 120X90X45MM P/C NEMA CLR LID |
Dimensions
| Inside Width (Drawing) | 82.99 mm [3.27 in] |
| Width (Ordering Table) | 3.54 in (90 mm) |
| Inside Height (Drawing) | 39.35 mm [1.55 in] |
| Inside Length (Drawing) | 112.99 mm [4.45 in] |
| Length (Ordering Table) | 4.72 in (120 mm) |
| Nominal Size (L X W X H) | 4.7 in x 3.5 in x 1.77 in (119 mm x 89 mm x 45 mm) |
| Overall Height (Drawing) | 45.45 mm [1.79 in] |
| Total Height (Ordering Table) | 1.77 in (45 mm) |
| Overall Length X Width (Drawing) | 120.00 x 90.00 mm [4.72 x 3.54 in] |
Accessories
| Inner Panel | 1554FPL (steel, order separately) |
| Replacement Gasket | 1554FGASKET |
| Other Series Accessories | Breather kit, small rainproof ventilator, pressure compensation plug, hole plugs, pole mount kit, liquid-tight cordgrips (nylon or nickel plated brass) |
| Replacement Lid Screws (50-pk) | SC576-50 |
Identifiers
| UPC | 623980425603 |
| UNSPSC | 39121301 |
| Part Number | 1554FL2GYCL |
Wall Mounting
| Foot Kit | 1554FT (installs in the same wall-mounting holes) |
| Mounting Holes | 4X Ø4.30 mm [Ø.17 in], located outside of the gasket channel |
Related Versions
| ABS, Gray Lid | 1554FLGY |
| Polycarbonate, Gray Lid | 1554FL2GY |
| Polycarbonate, Clear Lid | 1554FL2GYCL |
| Polycarbonate, Smoked Lid | 1554FL2GYSL |
Packaging & Shipping
| Shipping Weight | 0.36 lbs (0.16 kg) |
Construction & Finish
| Lid | Clear polycarbonate |
| Color | Light Gray |
| Gasket | One-piece, replaceable, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Two piece tongue and groove construction |
| Material | Polycarbonate Plastic |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws, included; self-captivating |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
PCB & Internal Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| PC Card Guides | Vertical guides molded in, for 1.5 mm thick PC boards |
| Internal Inserts | M3 brass inserts inside box |
| Internal Standoffs | Accept #6 self-tapping screws |
| Max. P.C. Board Width | 77.5 mm |
| Max. P.C. Board Length | 108.4 mm |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| Series IP Testing (Polycarbonate) | Independently tested to meet IP66, IP67 and IP68 |
| NEMA Rating (As Printed On Part Page) | 4, 4X, 6, 6P, 12 & 40 |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed, file #E65324 |
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| Drawing Marking | cULus Listed, Type 4, 4X, 6, 6P (polycarbonate version only) |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Why choose the 1554FL2GYCL over the gray-lid version?▾
The clear lid lets you see inside without opening the enclosure. The body dimensions match the gray-lid 1554FL2GY.
What are its inside dimensions?▾
The drawing gives 112.99 mm inside length, 82.99 mm inside width and 39.35 mm inside height.
Is it rated for outdoor use?▾
Polycarbonate versions are UV stabilized for outdoor use and this part is rated IP68. Hammond advises testing suitability for your application.
What NEMA rating does it have?▾
The series sheet lists NEMA Type 4, 4X, 6, 6P, 12 and 13 for polycarbonate versions; the manufacturer part page for this item prints "4, 4X, 6, 6P, 12 & 40".
Are the lid screws included?▾
Yes, four M4 stainless steel machine screws are included. Replacements come as SC576-50 in a 50-pack.
