Hammond 1554E2GYCL 90x90x61mm Polycarbonate Enclosure, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid (UL94 V-0) for visible LEDs and displays
- NEMA Type 4, 4X, 6, 6P, 12, 13 and IP66/IP67/IP68 tested
- cUL and UL 508A listed, file E65324
- UV stabilized, -40°C to +110°C operating range, IK08 impact
- Square 90 x 90 x 61 mm with molded DIN rail tabs inside
- M3 brass inserts, #6 self-tapping standoffs, 1.5 mm card guides
- Four M4 stainless self-captivating lid screws included

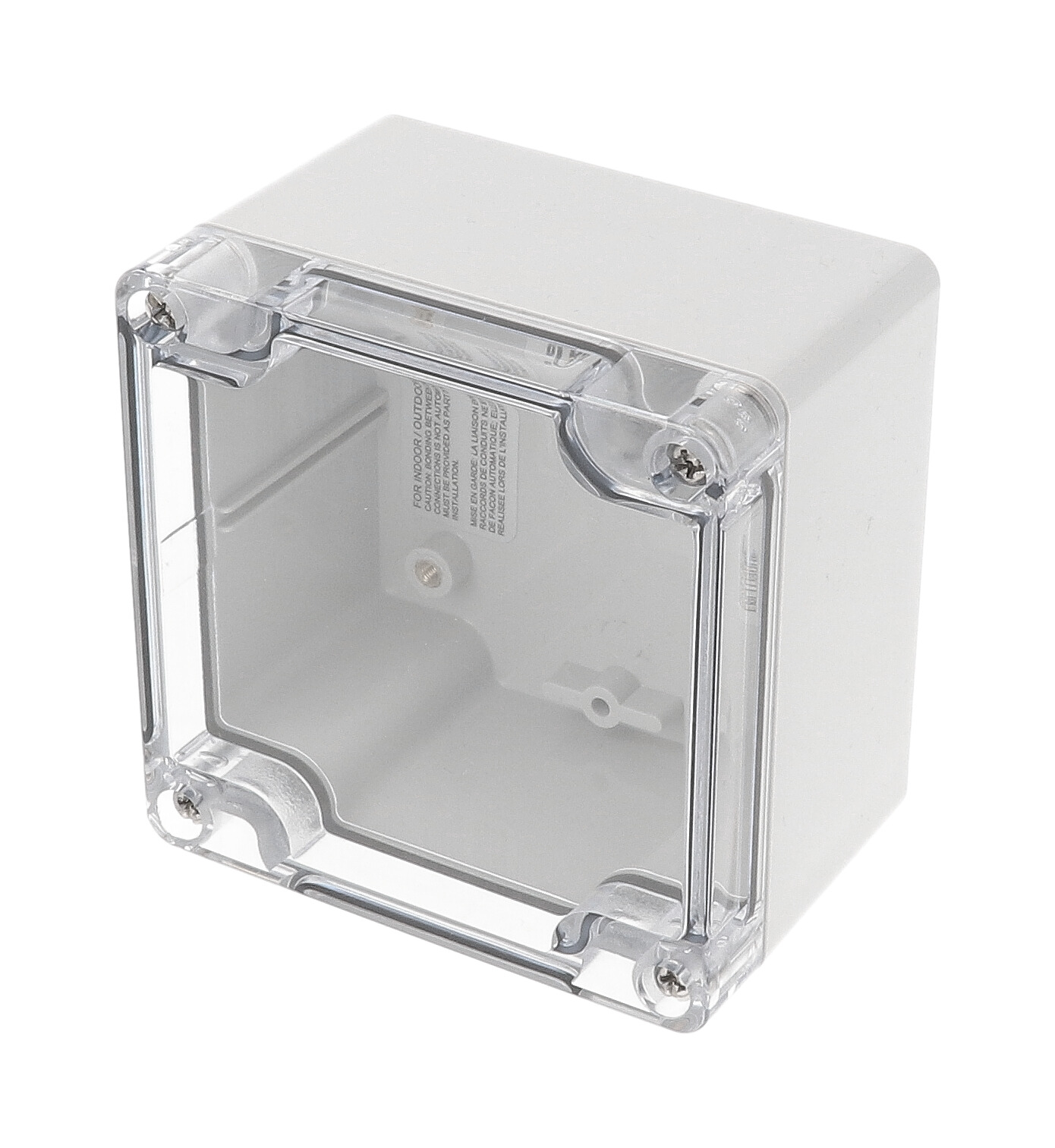

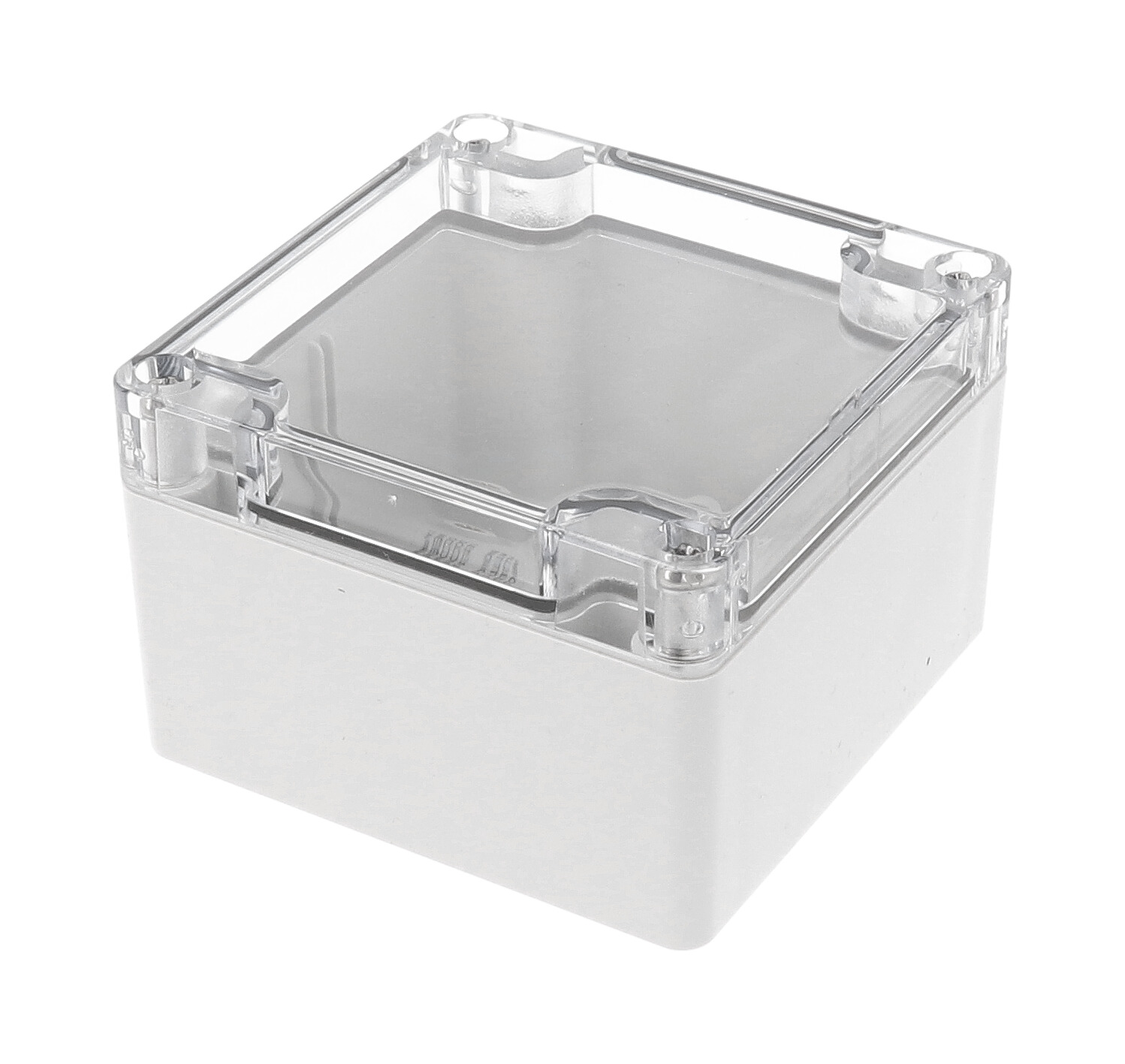

1554E2GYCL combines a square light gray RAL 7035 polycarbonate box with a clear polycarbonate lid, measuring 3.54 x 3.54 x 2.40 in (90 x 90 x 61 mm). The clear cover lets technicians read displays and indicator LEDs without breaking the seal, which suits outdoor monitoring and control electronics.
The enclosure is UV stabilized for outdoor use, cUL and UL 508A listed under file E65324, and independently tested to IP66, IP67 and IP68 as well as NEMA Type 4, 4X, 6, 6P, 12 and 13. The clear lid has a UL94 V-0 flame rating. Impact rating is IK08 per IEC 62262:2021, and the recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
Interior space is 82.91 x 78.91 mm with 54.50 mm of height. Size E includes molded DIN rail tabs, threaded M3 brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards; maximum board size is 77.47 x 78.41 mm. The 1554EPL steel inner panel is available separately.
The lid seals with a tongue and groove joint and a one-piece high temperature silicone gasket, supplied loose, and is fastened by four included self-captivating M4 stainless steel screws in corrosion resistant inserts (43-57 oz f-in, 30-40 cN-m). Four 4 mm mounting holes outside the gasket channel handle wall mounting or the 1554FT foot kit. The 1554E2GYCL weighs 0.35 lbs (0.16 kg) shipped.
Ideal For
- Outdoor display and indicator housings
- Metering and monitoring electronics
- Wet-location DIN rail devices
- UL 508A sub-assemblies needing visual inspection
Overview
| Type | Water-tight |
| Style | Screw cover, flat lid |
| Series | 1554 Series |
| Application | Mounting printed circuit boards or DIN rail mounted components |
| Part Number | 1554E2GYCL |
| Long Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Short Description | 90X90X60MM P/C NEMA CLR LID |
| Enclosure Size Code | E |
Dimensions
| Width | 3.54 in (90 mm) |
| Length | 3.54 in (90 mm) |
| Inside Width | 78.91 mm [3.11 in] |
| Nominal Size | 90 x 90 x 60 mm |
| Total Height | 2.40 in (61 mm) |
| Inside Height | 54.50 mm [2.15 in] |
| Inside Length | 82.91 mm [3.26 in] |
| Size (L X W X H) | 3.5 in x 3.5 in x 2.4 in (89 mm x 89 mm x 61 mm) |
| Box Height (Drawing) | 60.50 mm [2.38 in] |
| Max. P.C. Board Width | 78.41 mm |
| Max. P.C. Board Length | 77.47 mm |
Accessories
| Foot Kit | 1554FT (installs using the wall mounting holes) |
| CAD Models | Solid models available in .stp or .x_t |
| Replacement Gasket | 1554EGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Inner Panel (Steel, Order Separately) | 1554EPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980304199 |
| UNSPSC | 39121301 |
Packaging & Shipping

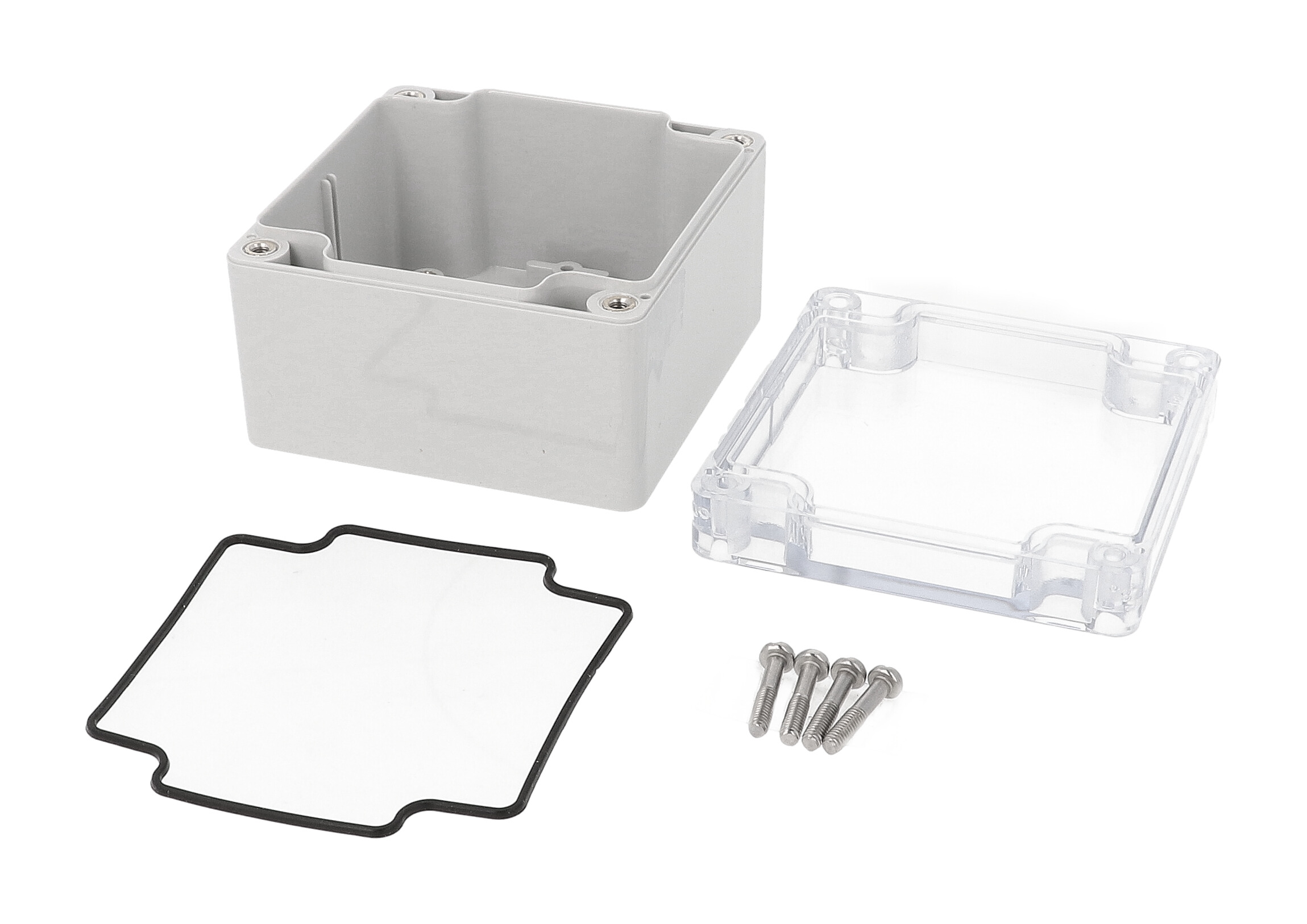

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.35 lbs (0.16 kg) |
Construction & Finish
| Lid | Clear polycarbonate lid |
| Color | Clear |
| Gasket | One-piece replaceable high temperature UL listed silicone, preformed, black; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid, two-piece tongue and groove construction |
| Material | Polycarbonate |
| Lid Screws | 4 included M4 stainless steel machine screws, self-captivating |
| Material Grade | UV stabilized polycarbonate for outdoor use |
| Mounting Holes | 4X 4.00 mm [.16 in] diameter; wall-mounting holes located outside the gasket channel |
| PC Card Guides | Vertical, molded in, for 1.5 mm thick PC boards |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes are threaded with the first installation of lid screws |
| DIN Rail Mounting Tabs | Molded in |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
| Internal PC Board / Panel Mounting | Threaded M3 integral brass inserts inside box; standoffs accept #6 self-tapping screws |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Flame Rating Note | Solid gray polycarbonate is UL94-5VA; clear and smoked lids are UL94 V-0 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed (polycarbonate version) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Why choose the 1554E2GYCL over the 1554E2GY?▾
The 1554E2GYCL has a clear polycarbonate lid so internal components can be seen; the 1554E2GY has a solid gray lid. Dimensions and NEMA/IP ratings are the same in the part data.
What flame rating does the clear lid have?▾
The part data lists UL94 V-0 for the 1554E2GYCL; the series notes clear and smoked lids carry UL94 V-0.
Does it support DIN rail components?▾
Yes, internal DIN rail mounting tabs are molded into size E.
How much does it weigh?▾
Shipping weight is 0.35 lbs (0.16 kg).
Is the gasket pre-installed?▾
No. The one-piece silicone gasket ships loose inside the enclosure. The replacement is 1554EGASKET.
