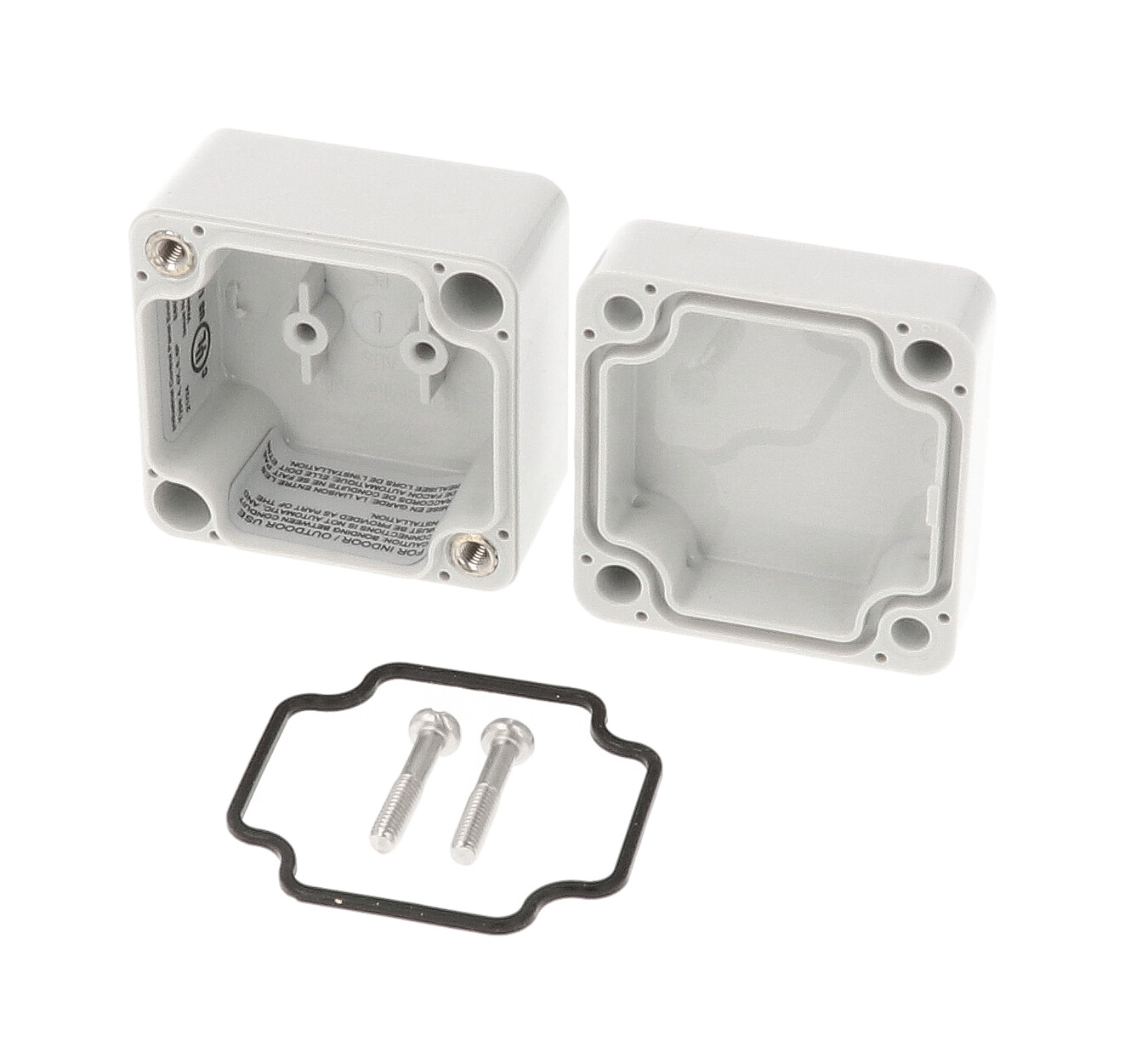

Hammond 1554A2GY 52x50x40 mm Gray Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 rated polycarbonate
- Compact 52 x 50 x 40 mm (2.05 x 1.97 x 1.57 in), light gray RAL 7035
- cUL and UL 508A listed, UL file E65324; UL94 5VA flame rating
- UV stabilized for outdoor use; IK08 impact; -40°C to +110°C
- 2 self-captivating M4 stainless lid screws into corrosion resistant bushings
- Accepts P.C. boards up to 44 x 42 mm or the 1554APL inner panel
- Wall-mounting holes outside the gasket channel
The 1554A2GY is the smallest polycarbonate model in the 1554 screw-cover enclosure series, measuring 2.05 in x 1.97 in x 1.57 in (52 mm x 50 mm x 40 mm) with a solid gray lid. It is built for OEM engineers and electricians housing compact sensors, small PC boards or terminal connections in wet, dusty or outdoor locations.
Box and lid are molded in light gray (RAL 7035) polycarbonate that is UV stabilized for outdoor use and carries a UL94 5VA flame rating. The part is rated IP68 and NEMA 4, 4X, 6, 6P, 12 & 13, carries an IK08 impact rating per IEC 62262:2021, and is cUL and UL 508A listed under file E65324. The recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
The gasketed lid uses two piece tongue and groove construction and a one-piece high temperature UL listed silicone gasket, which is shipped loose inside the box. Size A closes with 2 included M4 stainless steel lid screws that are self-captivating and thread into corrosion resistant bushings; recommended torque is 85 - 92 ozf-in (60-65 cN-m).
Inside, the 1554A2GY takes a P.C. board up to 44 mm x 42 mm, or the 1554APL steel inner panel (ordered separately). Two 4.30 mm wall mounting holes sit outside the gasket channel. No foot kit is listed for size A. Shipping weight is 0.11 lbs (0.05 kg).
Ideal For
- Housing small PC boards outdoors
- Compact sensor and junction enclosures
- Washdown and wet locations needing NEMA 4X
- UL 508A industrial control panels
Mounting
| Wall Mounting Holes | 2X 4.30 mm [.17 in], located outside of the gasket channel |
Overview
| Lid | Gray polycarbonate lid |
| Type | Water-tight |
| Color | Light Gray |
| Series | 1554 Series Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Description | RAL7035 grey PC plastic watertight enclosure |
| Part Number | 1554A2GY |
| Enclosure Size | A |
| Enclosure Color | Light gray (RAL 7035) |
| Related Versions | 1554AGY (ABS gray lid), 1554A2GY (polycarbonate gray lid), 1554A2GYCL (polycarbonate clear lid), 1554A2GYSL (polycarbonate smoked lid) |
| Short Description | 52x50x40MM POLYCARB NEMA |
Dimensions
| Nominal Width | 1.97 in (50 mm) |
| Nominal Length | 2.05 in (52 mm) |
| Size (L X W X H) | 2.05 in x 1.97 in x 1.57 in (52 mm x 50 mm x 40 mm) |
| Nominal Total Height | 1.57 in (40 mm) |
| Max. P.C. Board Width | 42 mm |
| Max. P.C. Board Length | 44 mm |
Accessories
| Foot Kit | None listed for size A |
| Steel Inner Panel (Order Separately) | 1554APL |
| Silicone Pre-formed Gasket Black (Pkg 2) | 1554AGASKET |
| Stainless Steel Cover Screws [M4-0.7 X 20mm] (Pkg 50) | SC576-50 |
| Steel Panel / P.C. Board Self Tapping Screw [#6 X 1/4" (6.4mm) Plated] (Pkg 100) | 1598ATS100 |
Identifiers
| UPC | 623980039831 |
| UNSPSC | 39121301 |
| Drawing Revision | REV: 06.02.2024 |
Packaging & Shipping
| Included | Box, lid, 2 cover screws and preformed silicone gasket |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Gasket | One-piece replaceable gasket of high temperature UL listed silicone, supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate Plastic |
| Lid Screws | 2 x included M4 stainless steel machine screws (M4-0.7 x 20mm) threaded into corrosion resistant bushings; self-captivating, lid holes threaded on first installation |
| Solid Models | Available in .stp or .x_t |
| DIN Rail Tabs | Internal DIN rail mounting tabs molded into most models, except sizes C and D |
| Lid Construction | Gasketed lid with two piece tongue and groove construction; protects against access of oil, dust and water |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
| Brass Inserts / Card Guides | Threaded M3 brass inserts and vertical PC card guides are not molded into the smallest sizes (A and B) |
| Internal Mounting (Drawing) | Posts accept #6 self-tapping screw; M4 corrosion resistant inserts for the lid screws |
| Material Flammability (Series) | Solid gray polycarbonate UL94-5VA (5VA @ 3mm); clear and smoked lids UL94 V-0 |
| Recommended Cover Screw Torque | 85 - 92 ozf-in (60-65 cN-m) |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Outdoor Use | UV stabilized for outdoor use |
| Flame Rating | UL94 5VA |
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents and incompatible greases or oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F); customers should conduct their own testing to determine suitability |
| Series IP Ratings (Polycarbonate) | Independently tested to meet IP66, IP67 and IP68 |
| Series NEMA Ratings (Polycarbonate) | Type 4, 4X, 6, 6P, 12 and 13 |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed (polycarbonate versions) |
| RoHS Compliant | Yes |
| Drawing Marking | C UL US Listed, File #E65324, Type 4, 4X, 6, 6P |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1554A2GY?▾
2.05 in x 1.97 in x 1.57 in (52 mm x 50 mm x 40 mm).
Is the 1554A2GY suitable for outdoor use?▾
Yes. The polycarbonate versions are UV stabilized for outdoor use and this part is rated IP68 and NEMA 4, 4X, 6, 6P, 12 & 13.
Is it UL listed?▾
Yes. Polycarbonate versions are cUL and UL 508A listed under file E65324.
How many lid screws does it use?▾
Size A uses 2 M4 stainless steel lid screws, included. Replacements are SC576-50 (50-pack).
Is the gasket installed?▾
No. The one-piece silicone gasket is supplied loose inside the enclosure. Replacement gaskets are 1554AGASKET (2-pack).
Is there a foot kit for this size?▾
No foot kit is listed for size A.
