Hammond 1553TTGYBAT Light Grey 165 mm Battery Door Handheld Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Runs on (2) AA or (1) 9V batteries
- Light grey ABS with dark grey TPE soft grip
- 165 x 80 x 28 mm (6.50 x 3.15 x 1.10 in)
- Battery door, 4 spring clips and 9V adapter included
- Recessed keypad and display areas for membrane devices
- UL94 V-0 flame retardant ABS
- Removable top end panel

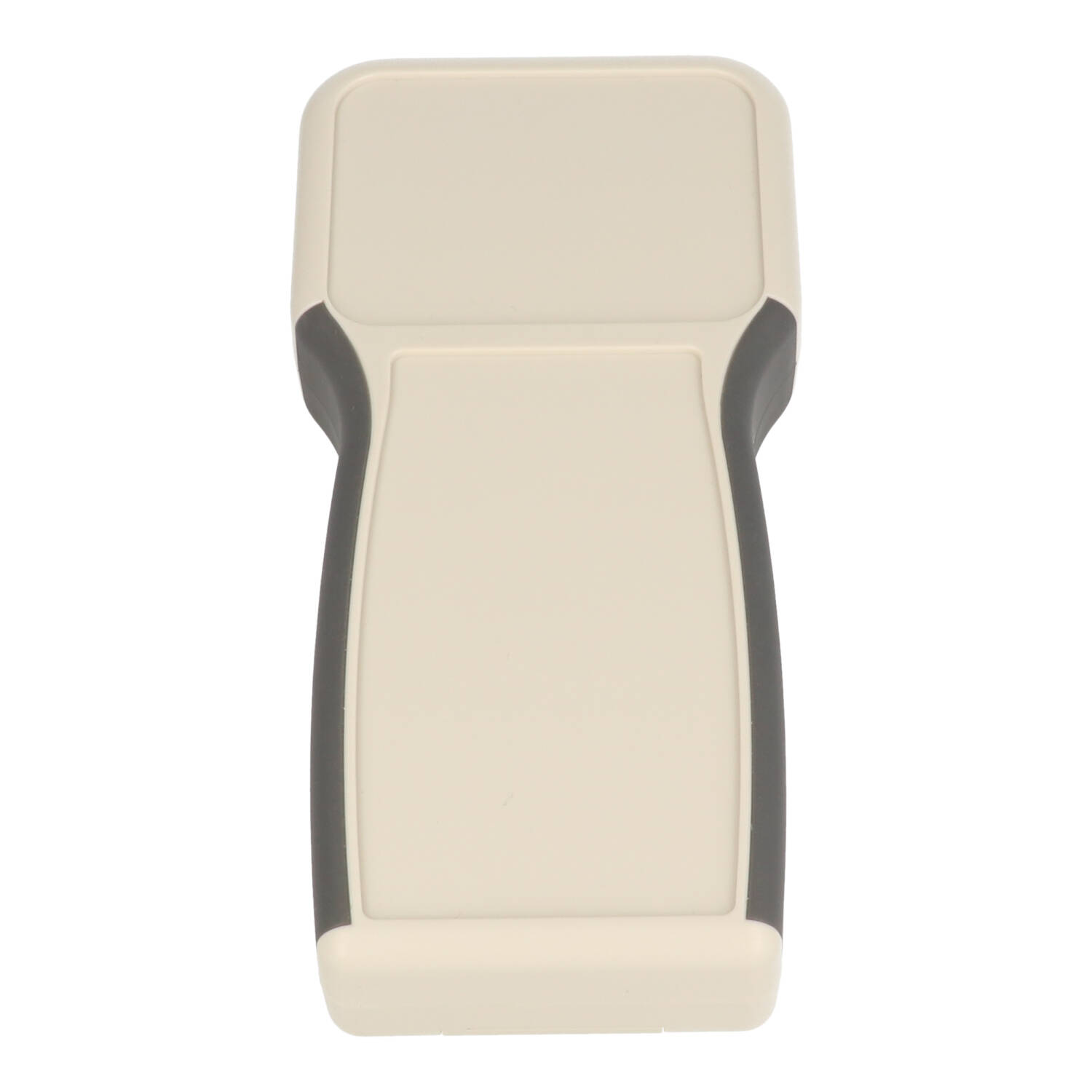

The 1553TTGYBAT is the light grey, battery-door version of the compact 1553TT hand-held "T" soft side enclosure. It is built for self-powered instrument or mobile data devices that combine a keypad and a display, and its dark grey TPE overmold gives a soft grip.
It measures 6.50 x 3.15 x 1.10 in (165 x 80 x 28 mm). The display section is 3.15 in (80 mm) wide and the keyboard section 2.68 in (68 mm) wide, both recessed for membrane devices; the drawing shows a 96.31 x 67.31 mm display-area inlay and an inner box height of 22.00 mm. The part page lists maximum P.C. board figures of 92.22 mm and 134 mm.
Power comes from (2) AA or (1) 9V batteries. The assembly ships with a battery door, battery spring clips (4 pcs), a 9V adapter (1 pc), the top, bottom, front plastic panel and 6 cover screws; M3 brass inserts are pre-installed. The drawing shows 8 PCB posts on top and 10 on the bottom for #4 x 1/4" self tap screws, and a 62.45 mm battery holder.
The enclosure is molded from flame retardant ABS rated UL94 V-0 and closes with M3-0.5 x 18 mm Philips head machine screws into brass bushings, torqued to 2.5 lbf-in (30 cN-m). The top end panel is removable for modification. Gray replacement doors are 53TTBATDOORGY-5. The 1553TTGYBAT is RoHS and REACH compliant and ships shrink wrapped at 0.26 lbs (0.12 kg).
Ideal For
- Battery powered handheld instruments
- Compact mobile data enclosures
- Keypad and display handheld devices
- Portable electronics on AA or 9V power
Overview
| Type | Hand-held, soft sided, battery |
| Series | 1553T Series Hand-Held "T" Soft Side Enclosures |
| Battery Type | (2) AA or (1) 9V |
| Short Description | 1553 SOFT TOUCH CASE BAT |
| Removable Top End Panel | Yes |
| Removable Bottom End Panel | No |
Dimensions
| Length | 6.50 in (165 mm) |
| Wall Thickness | 2.25 mm [.09 in] |
| Enclosure Depth | 1.10 in (28 mm) |
| Top Inlay Depth | 1.50 mm [.06 in] |
| Inner Box Height | 22.00 mm [.87 in] |
| Rear Inlay Depth | .50 mm [.02 in] |
| Size (L X W X H) | 6.5 in x 3.15 in x 1.1 in (165 mm x 80 mm x 28 mm) |
| Battery Holder Length | 62.45 mm [2.46 in] |
| Display Section Width | 3.15 in (80 mm) |
| Keyboard Section Width | 2.68 in (68 mm) |
| Top Inlay (Display Area) | 96.31 mm [3.79 in] x 67.31 mm [2.65 in] |
| Top Inlay (Keyboard Area) | 50.95 mm [2.01 in] x 54.11 mm [2.13 in] |
| Nominal Size (Long Description) | 6.50 x 3.13 x 1.10 |
| Max. P.C. Board Width (Part Page) | 134 mm |
| Max. P.C. Board Length (Part Page) | 92.22 mm |
Accessories
| 9V Battery Kit | BS61 |
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (gray) |
| Replacement End Panels (10-pack) | 1553TTPLBK-10 / 1553TTPLGY-10 |
| Replacement Battery Doors (5-pack) | 53TTBATDOORBK-5 / 53TTBATDOORGY-5 |
| Cover Screw (Pkg 100), M3-0.5 X 18 Mm | 1594MS100 (silver), 1594MS100BK (black) |
| AA Battery Clip Kit (4 Positive And 4 Negative) | 1553HDR-BKIT |
| P.C. Board Self Tapping Screw (#4 X 1/4" (6.4 Mm) Plated) | 1593ATS50 (Pkg 50), 1593ATS100 (Pkg 100) |
Identifiers
| UPC | 623980400778 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.26 lbs (0.12 kg) |
Construction & Finish
| Joint | Lap joint construction |
| Material | ABS Plastic (FR ABS, UL 94-V0) |
| Overmold | Dark grey TPE overmold on handheld section for a soft grip |
| PCB Posts | 8 PCB posts on top, 10 PCB posts on bottom |
| Solid Models | Available in STEP or IGES |
| Brass Inserts | M3 brass inserts factory pre-installed in top half of enclosure |
| Recessed Areas | Display and keyboard areas recessed for membrane devices |
| Assembly Screws | M3-0.5 x 18 mm Philips head machine screws threaded into integral brass bushings |
| Enclosure Color | Grey (part page: Light Gray) |
| Battery Provision | Battery door and compartment; 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip |
| P.C. Board Mounting | PC board standoffs molded into top and bottom halves; PCB posts accept #4 x 1/4" self tap screw |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Top, bottom, front plastic panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 6 cover screws; M3 brass inserts pre-installed |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What power options does the 1553TTGYBAT have?▾
Its compartment takes (2) AA or (1) 9V batteries; 4 battery spring clips and a 9V adapter are included.
What are its dimensions?▾
6.50 x 3.15 x 1.10 in (165 x 80 x 28 mm).
What is in the box?▾
Top, bottom, front plastic panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 6 cover screws, with M3 brass inserts pre-installed.
Which spare battery door fits?▾
53TTBATDOORGY-5, a 5-pack of gray 1553TT battery doors.
What cover screw torque is recommended?▾
2.5 lbf-in (30 cN-m).
Is there a black version?▾
Yes, 1553TTBKBAT.
