Hammond 1553TGYBAT Light Grey 210 mm Battery Handheld Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Holds (4) AA or (2) 9V batteries
- Light grey FR ABS with dark grey TPE soft grip
- 210 x 100 x 32 mm (8.27 x 3.94 x 1.26 in)
- Recessed display and keyboard areas for membrane devices
- UL94 V-0 flame rating
- Brass bushings and M3 screws for repeat opening
- Spare doors: 53TBATDOORGY-5 (5-pack)

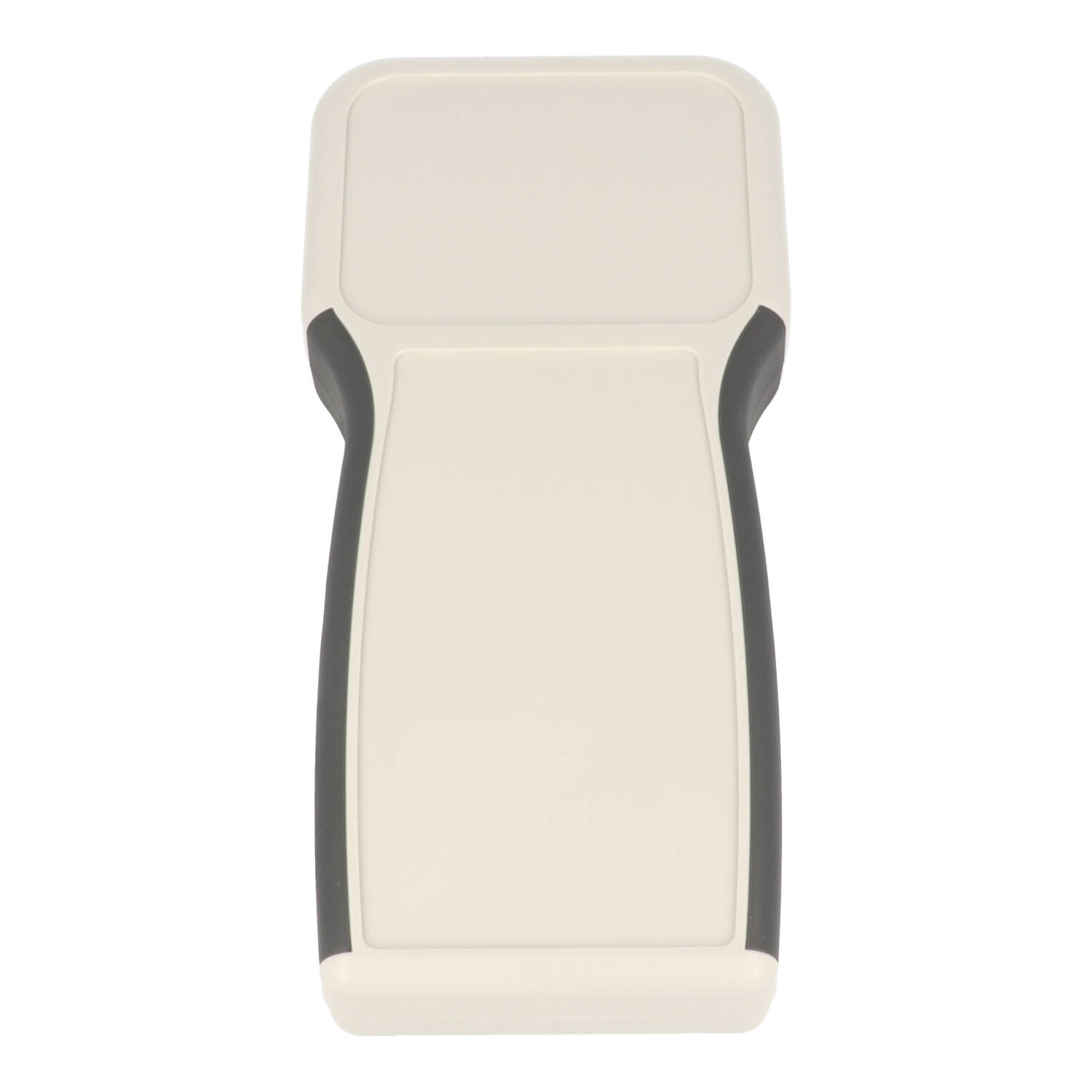

The 1553TGYBAT is the light grey, battery-equipped member of the large 1553T hand-held "T" soft side enclosure line. It is designed for battery powered instrument or mobile data devices that need a keypad and a display, with a dark grey TPE overmold giving a soft grip on the handheld section.
It measures 8.27 x 3.94 x 1.26 in (210 x 100 x 32 mm). The display section is 3.94 in (100 mm) wide and the keyboard section 3.39 in (86 mm) wide, both recessed for membrane devices. The battery compartment accepts (4) AA or (2) 9V batteries; the series specifies 8x battery clips for 4x AA and 2x 9 volt (PP3) clips for 1553T BAT versions, behind a long-life three point battery door.
The part page lists maximum P.C. board figures of 92.22 mm and 134 mm. The drawing shows 8 PCB posts on the top half and 10 on the bottom, each accepting a #4 x 1/4" self tap screw (1593ATS50 or 1593ATS100), a 66.62 mm battery holder and an inner box height of 25.00 mm.
The flame retardant ABS carries a UL94 V-0 rating. The halves close with M3-0.5 x 18 mm Philips head machine screws into brass bushings pre-installed in the top half; 6 cover screws are included and should be torqued to 2.5 lbf-in (30 cN-m). Only the top end panel is removable on this version. The 1553TGYBAT ships shrink wrapped at 0.5 lbs (0.23 kg) and is RoHS and REACH compliant.
Ideal For
- Battery powered handheld instruments
- Mobile data enclosures with keypad
- Portable devices on AA or 9V batteries
- Handheld units with membrane display
Overview
| Type | Hand-held, soft sided, battery |
| Series | 1553T Series Hand-Held "T" Soft Side Enclosures |
| Battery Type | (4) AA or (2) 9V |
| Short Description | 1553 SOFT TOUCH CASE BAT |
| Removable Top End Panel | Yes |
| Removable Bottom End Panel | No |
Dimensions
| Length | 8.27 in (210 mm) |
| Rear Inlay | 42.00 mm [1.65 in] x 56.00 mm [2.20 in] |
| Wall Thickness | 2.75 mm [.11 in] |
| Enclosure Depth | 1.26 in (32 mm) |
| Top Inlay Depth | 1.50 mm [.06 in] |
| Inner Box Height | 25.00 mm [.98 in] |
| Rear Inlay Depth | .50 mm [.02 in] |
| Size (L X W X H) | 8.27 in x 3.94 in x 1.26 in (210 mm x 100 mm x 32 mm) |
| Battery Holder Length | 66.62 mm [2.62 in] |
| Display Section Width | 3.94 in (100 mm) |
| Keyboard Section Width | 3.39 in (86 mm); drawing 85.9 mm [3.38 in] |
| Top Inlay (Display Area) | 124.24 mm [4.89 in] x 83.24 mm [3.28 in] |
| Top Inlay (Keyboard Area) | 63.95 mm [2.52 in] x 69.05 mm [2.72 in] |
| Nominal Size (Long Description) | 8.25 x 4.00 x 1.25 |
| Max. P.C. Board Width (Part Page) | 134 mm |
| Max. P.C. Board Length (Part Page) | 92.22 mm |
Accessories
| 9V Battery Kit | BS61 |
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (gray) |
| Replacement End Panels (10-pack) | 1553TPLBK-10 / 1553TPLGY-10 |
| Replacement Battery Doors (5-pack) | 53TBATDOORBK-5 / 53TBATDOORGY-5 |
| Cover Screw (Pkg 100), M3-0.5 X 18 Mm | 1594MS100 (silver), 1594MS100BK (black) |
| AA Battery Clip Kit (4 Positive And 4 Negative) | 1553HDR-BKIT |
| P.C. Board Self Tapping Screw (#4 X 1/4" (6.4 Mm) Plated) | 1593ATS50 (Pkg 50), 1593ATS100 (Pkg 100) |
Identifiers
| UPC | 623980027814 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.5 lbs (0.23 kg) |
Construction & Finish
| Joint | Lap joint construction |
| Material | ABS Plastic (FR ABS, UL 94-V0) |
| Overmold | Dark grey TPE overmold on handheld section for a soft grip |
| PCB Posts | 8 PCB posts on top, 10 PCB posts on bottom |
| Solid Models | Available in STEP or IGES |
| Brass Inserts | M3 brass inserts factory pre-installed in top half of enclosure |
| Recessed Areas | Display and keyboard areas recessed for membrane devices |
| Assembly Screws | M3-0.5 x 18 mm Philips head machine screws threaded into integral brass bushings |
| Enclosure Color | Grey (part page: Light Gray) |
| Battery Provision | Battery door and compartment; 8x battery clips (for 4x AA batteries) and 2x 9 volt (PP3) battery clips |
| P.C. Board Mounting | PC board standoffs molded into top and bottom halves; PCB posts accept #4 x 1/4" self tap screw |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Top, bottom, front plastic panel, battery door, battery clips and 6 cover screws; M3 brass inserts pre-installed |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What battery configuration does the 1553TGYBAT support?▾
(4) AA or (2) 9V batteries, with 8x AA clips and 2x 9 volt (PP3) clips per the series.
What are the overall dimensions?▾
8.27 x 3.94 x 1.26 in (210 x 100 x 32 mm).
What flame rating does it have?▾
UL94 V-0; the drawing notes the enclosure is made from FR ABS (UL 94-V0).
Does it include PCB screws?▾
No. The PCB posts accept #4 x 1/4" self tap screws sold as 1593ATS50 or 1593ATS100.
Can I replace the battery door?▾
Yes, gray 1553T battery doors are sold as 53TBATDOORGY-5 (5-pack).
Is there a black version?▾
Yes, 1553TBKBAT.
