Hammond 1553TGY Light Grey 210 mm Keypad Handheld Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light grey FR ABS with dark grey TPE soft grip
- 210 x 100 x 32 mm (8.27 x 3.94 x 1.26 in) overall
- Recessed display (100 mm) and keyboard (86 mm) sections
- Takes a P.C. board up to 193 x 92 mm
- Designed to meet IP54; UL94 V-0 flame rating
- Brass bushings with M3 machine screws for repeated assembly
- 10 PCB posts on top and 12 on the bottom

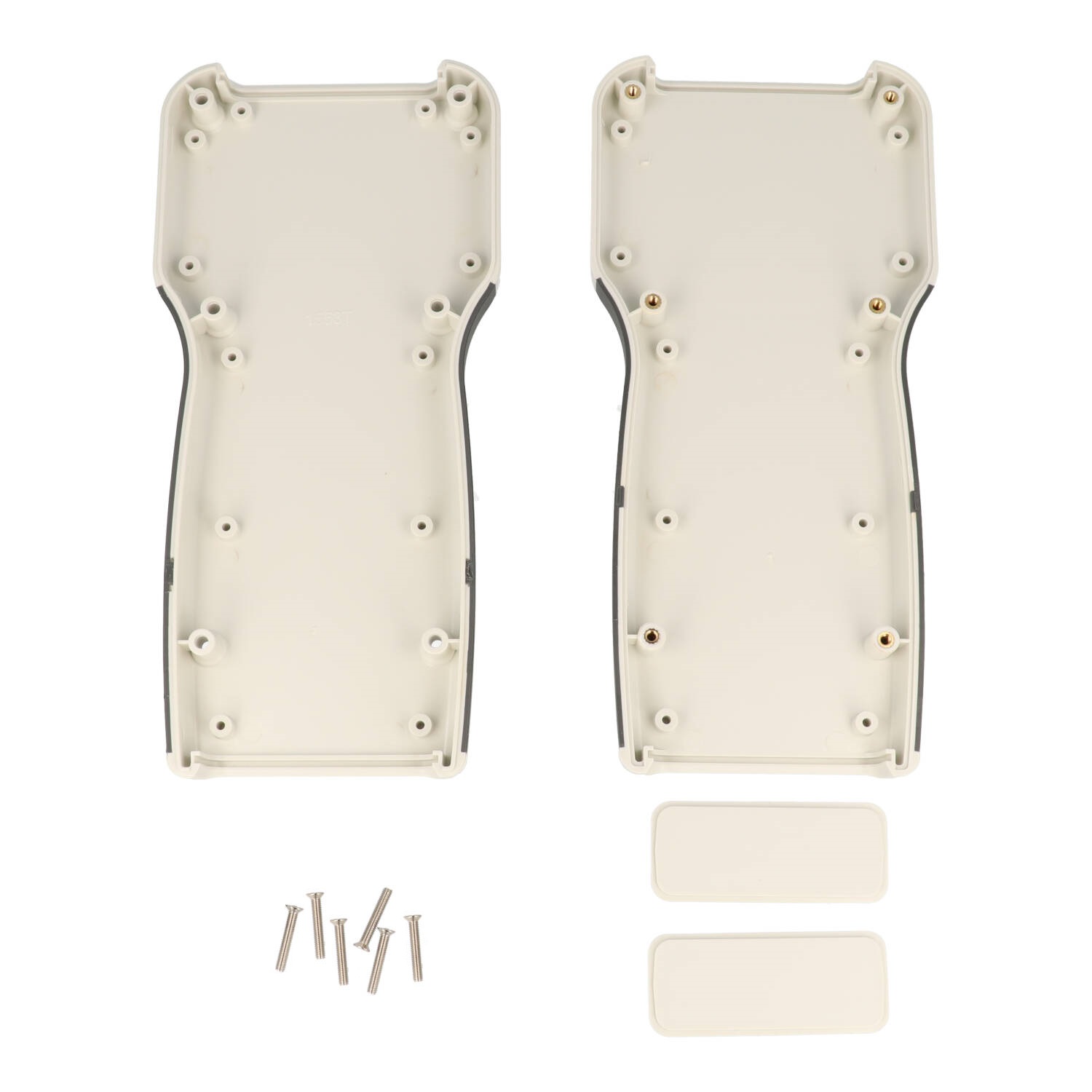

The 1553TGY is the light grey, standard (non-battery) version of the large 1553T hand-held "T" enclosure. The grey ABS body is paired with a dark grey TPE overmold on the handheld section, giving a soft grip for instrument or mobile data enclosures that require a keypad and display.
Measuring 8.27 x 3.94 x 1.26 in (210 x 100 x 32 mm), the 1553TGY has a 3.94 in (100 mm) wide display section and a 3.39 in (86 mm) wide keyboard section, both recessed for membrane devices; the drawing shows a 124.24 x 83.24 mm display-area inlay. Internally it takes a P.C. board up to 193 x 92 mm, with an inner box height of 25.00 mm.
PC board standoffs are molded into both halves (10 PCB posts on top, 12 on the bottom) and accept #4 x 1/4" self tap screws. The halves are joined with M3-0.5 x 18 mm Philips head machine screws that thread into integral brass bushings pre-installed in the top half, a method the series describes as ideal for repetitive assembly and disassembly.
Lap joint construction protects against dust and splashing water, and the enclosure is designed to meet IP54. The flame retardant ABS carries a UL94 V-0 rating. Top and bottom end panels are both removable for easy modification. Each 1553TGY includes the top, bottom, front plastic panel and 6 cover screws; recommended cover screw torque is 2.5 lbf-in (30 cN-m). It is RoHS and REACH compliant and ships shrink wrapped at 0.44 lbs (0.20 kg).
Ideal For
- Instrument enclosures requiring keypad and display
- Mobile data enclosures
- Handheld devices opened for service
- IP54 handheld electronics
Overview
| Type | Hand-held, soft sided |
| Series | 1553T Series Hand-Held "T" Soft Side Enclosures |
| Battery Type | None |
| Short Description | 1553 SOFT TOUCH CASE |
| Removable Top End Panel | Yes |
| Removable Bottom End Panel | Yes |
Dimensions
| Length | 8.27 in (210 mm) |
| Rear Inlay | 42.00 mm [1.65 in] x 56.00 mm [2.20 in] |
| Wall Thickness | 2.75 mm [.11 in] |
| Enclosure Depth | 1.26 in (32 mm) |
| Top Inlay Depth | 1.50 mm [.06 in] |
| Inner Box Height | 25.00 mm [.98 in] |
| Rear Inlay Depth | .50 mm [.02 in] |
| Size (L X W X H) | 8.27 in x 3.94 in x 1.26 in (210 mm x 100 mm x 32 mm) |
| Display Section Width | 3.94 in (100 mm) |
| Max. P.C. Board Width | 92 mm |
| Keyboard Section Width | 3.39 in (86 mm); drawing 85.9 mm [3.38 in] |
| Max. P.C. Board Length | 193 mm |
| Top Inlay (Display Area) | 124.24 mm [4.89 in] x 83.24 mm [3.28 in] |
| Top Inlay (Keyboard Area) | 63.95 mm [2.52 in] x 69.05 mm [2.72 in] |
| Nominal Size (Long Description) | 8.25 x 4.00 x 1.25 |
Accessories
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (gray) |
| Replacement End Panels (10-pack) | 1553TPLBK-10 / 1553TPLGY-10 |
| Cover Screw (Pkg 100), M3-0.5 X 18 Mm | 1594MS100 (silver), 1594MS100BK (black) |
| P.C. Board Self Tapping Screw (#4 X 1/4" (6.4 Mm) Plated) | 1593ATS50 (Pkg 50), 1593ATS100 (Pkg 100) |
Identifiers
| UPC | 623980027029 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.44 lbs (0.20 kg) |
Construction & Finish
| Joint | Lap joint construction |
| Material | ABS Plastic (FR ABS, UL 94-V0) |
| Overmold | Dark grey TPE overmold on handheld section for a soft grip |
| PCB Posts | 10 PCB posts on top, 12 PCB posts on bottom |
| Solid Models | Available in STEP or IGES |
| Brass Inserts | M3 brass inserts factory pre-installed in top half of enclosure |
| Recessed Areas | Display and keyboard areas recessed for membrane devices |
| Assembly Screws | M3-0.5 x 18 mm Philips head machine screws threaded into integral brass bushings |
| Enclosure Color | Grey (part page: Light Gray) |
| P.C. Board Mounting | PC board standoffs molded into top and bottom halves; PCB posts accept #4 x 1/4" self tap screw |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Top, bottom, front plastic panel and 6 cover screws; M3 brass inserts pre-installed |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
