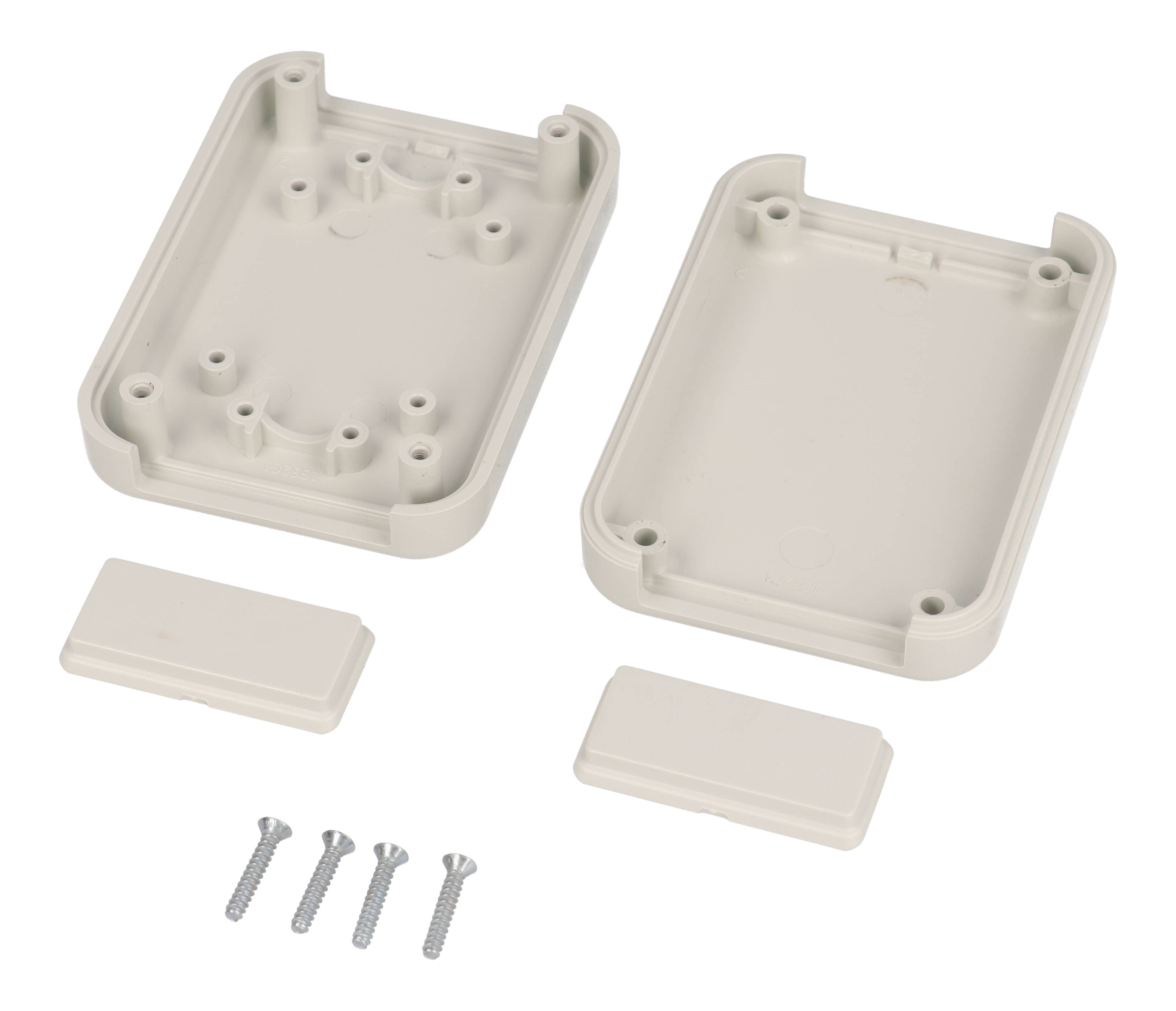

Hammond 1552C1GY 70x50x22mm Hand-Held ABS Enclosure, Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Compact 70 x 50 x 22 mm hand-held enclosure in gray flame retardant ABS (UL94 V-0)
- Designed to meet IP54 with lap joint construction against dust and splashing water
- Accepts a PCB up to 49 x 43.7 mm; recessed top for a membrane display or keypad
- Removable end panels, replaceable with rubberized cord grips (cable gland kit sold separately)
- Secured with four self-tapping screws; nickel plated screws supplied
- Includes box, lid, 2 panels and 4 cover screws; RoHS and REACH compliant
The 1552C1GY is the compact C1 size of the 1552 series hand-held ABS plastic enclosures, in gray. Designed as an electronic instrument enclosure, it is ergonomically shaped for a comfortable fit in the user's hand and is also suitable for desktop use, so it works well for hand-held controllers and compact electronic instruments.
It is molded from flame retardant ABS plastic with a satin texture, rated UL94 V-0. Lap joint construction protects against dust accumulation and splashing water, and the enclosure is designed to meet IP54 requirements.
- Size: 70 mm (2.76 in) long x 50 mm (1.97 in) wide x 22 mm (0.87 in) deep; inside height 16.20 mm [.64 in]
- Maximum PCB: 49 mm x 43.7 mm, mounted with #2 self-tapping screws
- Recessed top for a membrane display or keypad
- Removable end panels that can be swapped for rubberized cord grips
- Closed with four self-tapping screws (nickel plated on gray enclosures); no mid-wall snap closures on the C1 size
Recommended cover screw torque is 21-28 ozf-in (15-20 cN-m). The purchased assembly includes box, lid, 2 panels and 4 cover screws. Optional size C accessories are the 1552CPGKITGY cable gland kit (wire diameters 2 mm to 6 mm), 1552CHGY wall-mount holder and 1552CPLGY-10 end panels. The black version is 1552C1BK. RoHS and REACH compliant, shrink wrapped, 0.08 lbs (0.04 kg).
Ideal For
- Hand-held controllers
- Handheld electronic instrument housings
- Desktop electronic instruments
- Devices with membrane keypads or displays
- Corded sensors with a cable gland end
Overview
| Type | Hand-held |
| Series | 1552 Series Hand-Held ABS Plastic Enclosures |
| Product | Enclosure - plastic |
| Size Code | C1 |
| Part Number | 1552C1GY |
| Short Description | 70x50x22 FRABS ENCL |
Dimensions
| Depth | 0.87 in (22 mm) |
| Width | 1.97 in (50 mm) |
| Length (Series Table) | 2.76 in (70 mm) |
| Inside Height (Drawing) | 16.20 mm [.64 in] |
| Overall Width (Drawing) | 50.00 mm [1.97 in] |
| Overall Height (Drawing) | 22.00 mm [.87 in] |
| Overall Length (Drawing) | 70.00 mm [2.76 in] |
| Nominal Size (L X W X H, As Listed) | 2.76 in x 1.97 in x 0.87 in (70 mm x 50 mm x 22 mm) |
Accessories
| PCB Screw | 1553WTS100 - #2 x 3/16" self-tapping, Pkg 100 |
| Tie Down Screw | SC508-50 - #2 x 1/4" self-tapping, Pkg 50 |
| Cover Screws (C Sizes) | SC550-50 (Natural), SC550BK-50 (Black) - #2 x 1/2" self-tapping, Pkg 50 |
| Wall-Mount Holder (Size C) | 1552CHBK (Black), 1552CHGY (Gray) - mounts with #6 flat head screws (not supplied) |
| Replacement End Panels (10-pack) | 1552CPLBK-10 (Black), 1552CPLGY-10 (Gray) |
| Rubberized Cable Gland Kit (Size C) | 1552CPGKITBK (Black), 1552CPGKITGY (Gray) - 1 cable gland, 1 tie down, 2 tie-down screws; wire diameters 2 mm to 6 mm |
Identifiers
| UPC | 623980987675 |
| UNSPSC | 39121301 |
| Drawing Revision | REV: 15.10.2019 |
PCB Mounting
| PCB Mounting Bosses | Accept #2 self-tapping screw |
| Max. P.C. Board Width | 43.7 mm |
| Max. P.C. Board Length | 49 mm |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.08 lbs (0.04 kg) |
Construction & Finish
| Top | Recessed for membrane display or keypad |
| Color | Gray |
| Finish | Satin texture |
| Closure | Secured with (4) self-tapping screws; no mid-wall snap closures on size C1 |
| Included | Box, lid, 2 panels and 4 cover screws |
| Material | Flame retardant ABS plastic |
| CAD Models | Solid models available in .stp or .x_t |
| End Panels | Removable; can be replaced with rubberized cord grips |
| Screw Finish | Nickel plated screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Recommended Cover Screw Torque | 21-28 ozf-in (15-20 cN-m) |
Environmental & Protection
| Sealing | Lap joint construction protects against dust accumulation and splashing water |
| IP Rating | IP54 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1552C1GY?▾
70 mm (2.76 in) long, 50 mm (1.97 in) wide and 22 mm (0.87 in) deep. The drawing shows an inside height of 16.20 mm [.64 in].
What size PCB fits inside?▾
A board up to 49 mm long by 43.7 mm wide.
What IP rating does it have?▾
IP54. Lap joint construction protects against dust accumulation and splashing water.
Can I add a cord grip or cable gland?▾
Yes. The end panels can be replaced with the rubberized cable gland kit for size C (1552CPGKITGY), compatible with wire diameters from 2 mm to 6 mm; it is sold separately.
Does the C1 have snap closures?▾
No. The unit is secured with four self-tapping screws, and sizes C1 and D1 do not have the mid-wall snap closures used on other sizes.
What is included?▾
Box, lid, 2 panels and 4 cover screws. Gray enclosures come with nickel plated screws.
