Hammond 1550Z102FBK Black 90 x 36 x 30 mm Slim Flanged Diecast Box

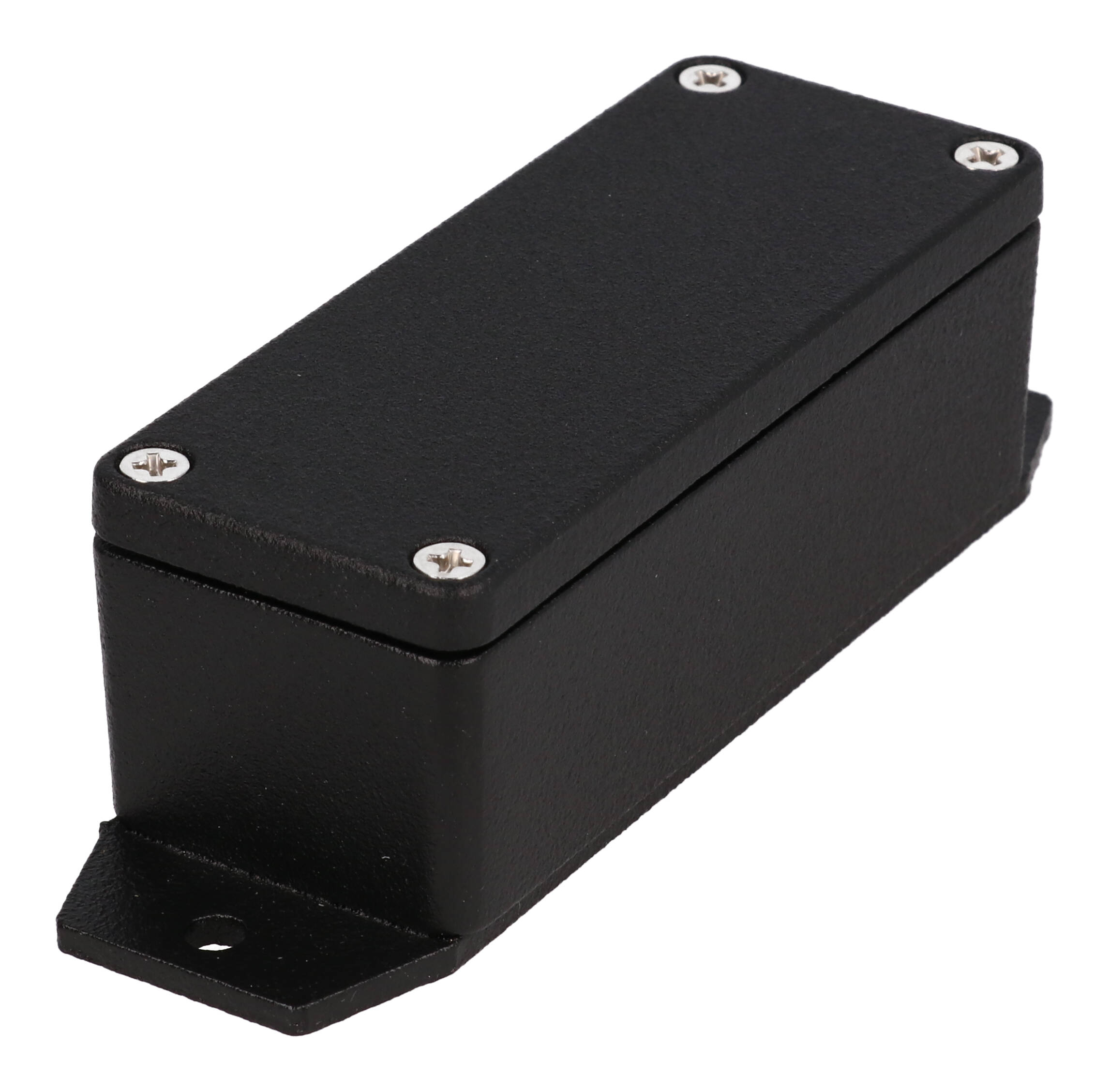

The 1550Z102FBK is the black textured version of the slim 1550Z102F flanged enclosure, a thick-wall watertight diecast aluminum box with a strong spot-welded bottom flange. The ordering table gives a nominal body of 3.54 in (90 mm) x 1.42 in (36 mm) x 1.18 in (30 mm), and the part page lists 4.59 in x 1.43 in x 1.3 in (117 mm x 36 mm x 33 mm) overall with the flange.

The finish is a textured black polyester powder coat applied inside and out, with cleared areas around the internal grounding points. The drawing shows an inside length of 83.22 mm [3.28 in] and inside depth of 25.40 mm [1.00 in], and the part data allows a P.C. board up to 28.02 mm x 82.42 mm. Two piece tongue and groove construction guards against dust and water, and there are no internal ribs.

• Four stainless steel Philips head M3 - 0.5 lid screws, outside the gasket
• Lid height 0.20 in (5 mm)
• Recommended cover screw torque 5-7.5 lbf.in (50-75 cN.m)
• Inside box accepts a #6 self tapping ground screw

The 1550Z102FBK is rated IP68, NEMA 4, 4X, 12 & 13 and IK08 per IEC62262, is cUL and UL listed under file #E71073, and is RoHS and REACH compliant. It weighs 0.27 lbs (0.12 kg) and is supplied with box, lid, silicone gasket and 4 cover screws.
