Hammond 1550WL 165x127x77 mm Natural Watertight Diecast Aluminum Box
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 165 x 127 x 77 mm overall including lid; inside box 157.73 mm x 119.73 mm
- IP66 rated with the supplied EVA foam gasket (lid screws torqued at 55 cN.m)
- Die-cast aluminum alloy: tough yet easy to machine
- Natural vibra finish: smooth surface, no sharp edges
- No internal ribs and low (2° less) wall draft for connectors and PC boards
- M3.5 x 0.6 x 12 mm stainless steel Phillips screws into factory tapped holes
- IP67 silicone upgrade kit 1550LSGASKET; IP66 spare kit 1550LEGASKET
- RoHS and REACH compliant

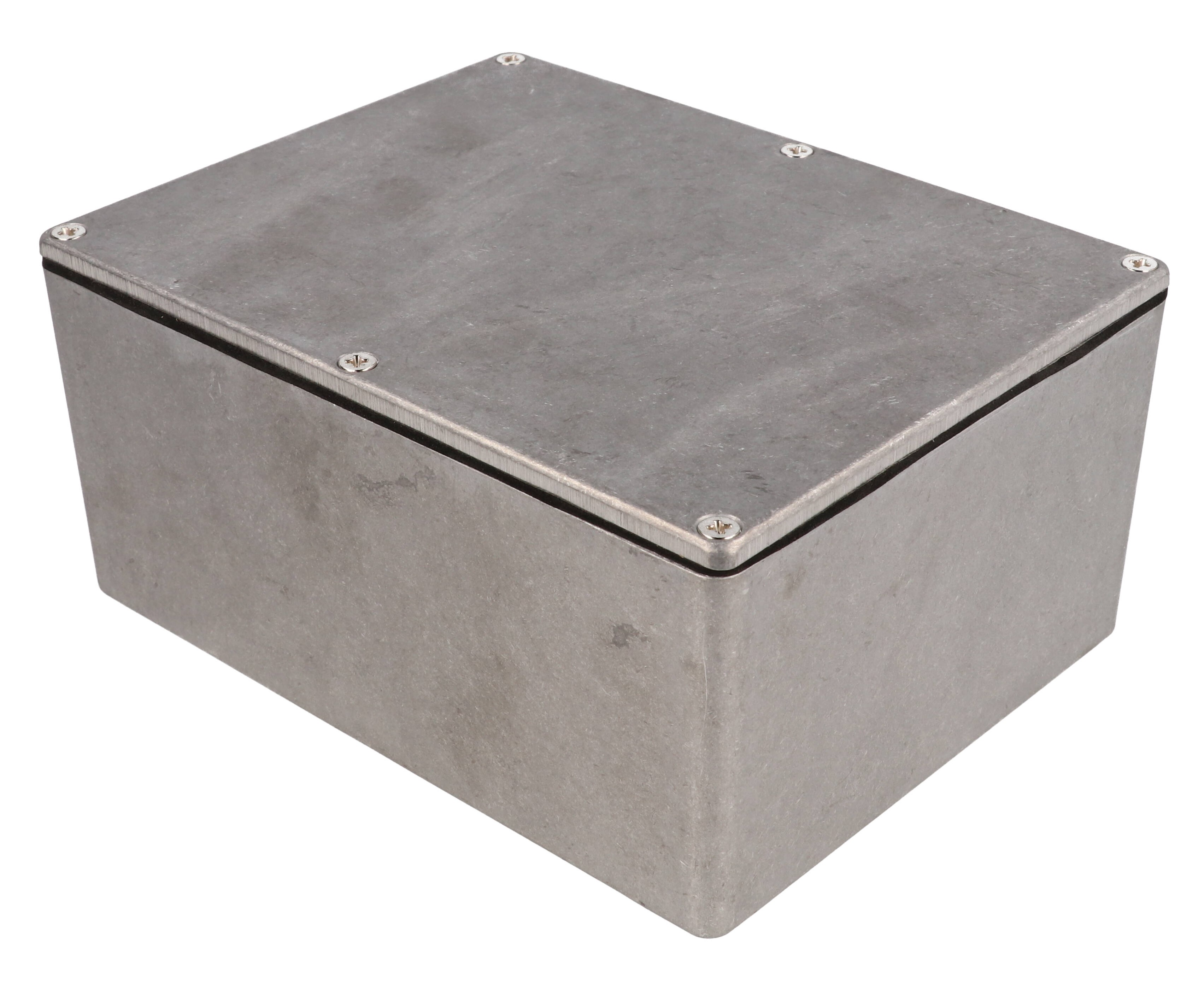

The 1550WL is a natural-finish watertight diecast aluminum enclosure from the 1550 Series, measuring 6.50 in (165 mm) x 5.00 in (127 mm) x 3.03 in (77 mm) including the lid. It is supplied with an IP66 EVA foam gasket and is rated IP66, making it a practical housing for electronics builders, OEM engineers and integrators whose circuits face dust and water.
The 1550L size measures 165 x 127 mm with 77 mm of overall height, one step up in footprint from the 1550K at the same height. Per the drawing, the inside box measures 157.73 mm [6.21 in] long by 119.73 mm [4.71 in] wide with 72.50 mm [2.85 in] of inside height, and the box stands 72.50 mm [2.85 in] tall without the 4 mm lid.
The rugged die-cast alloy is tough yet easy to machine. It has a natural vibra finish, which leaves a smooth plain-aluminum surface with no sharp edges. Walls have no internal ribs, so connectors fit without interference or extra milling, and the low side wall draft angle (2° less) makes PC board mounting easier. The lid is secured by M3.5 x 0.6 x 12 mm stainless steel Phillips head screws into factory tapped holes.

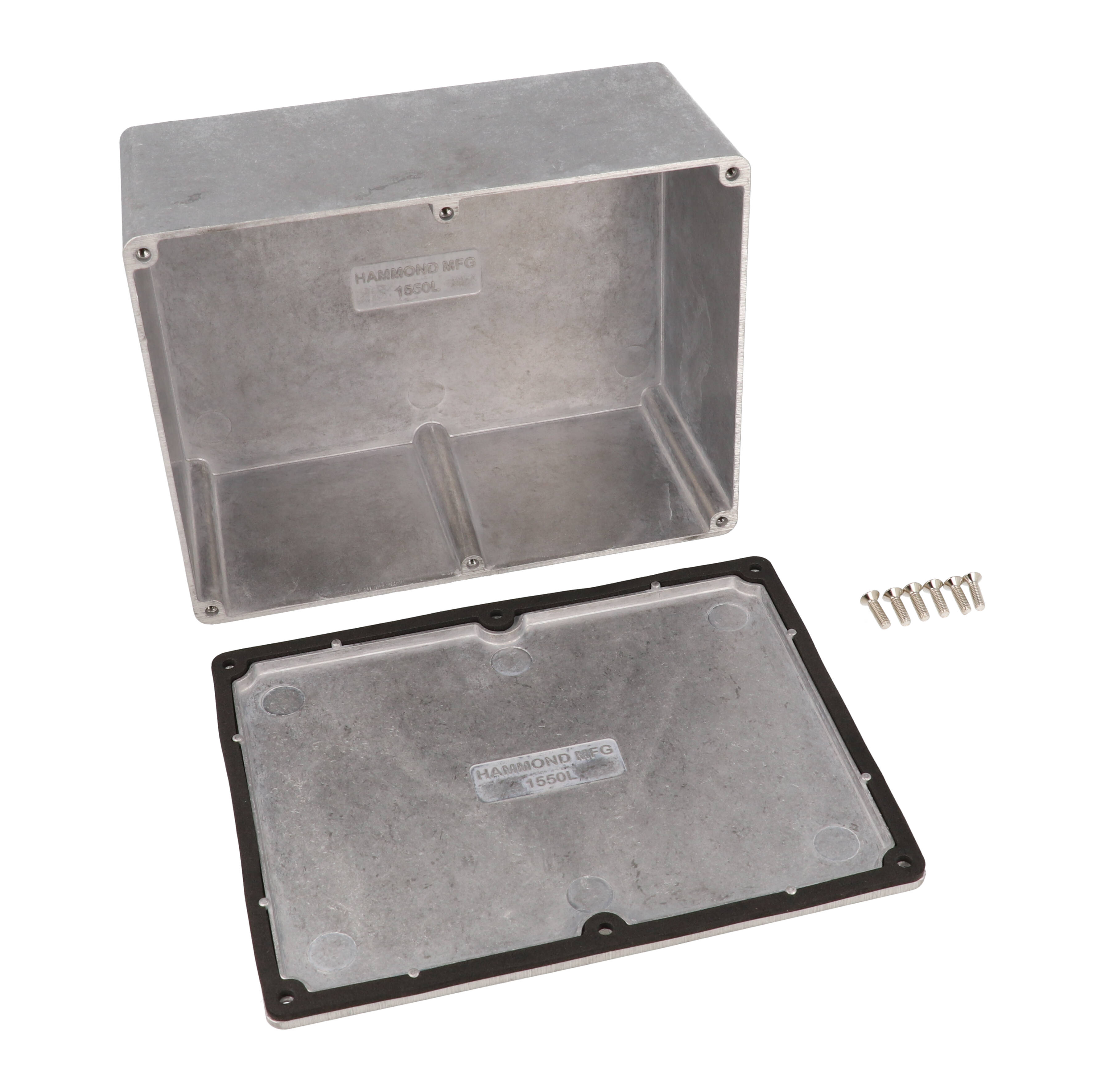

The EVA foam gasket ships loose inside the enclosure and is rated up to 65°C (149°F); installed properly with the lid screws torqued at 55 cN.m the 1550WL is designed to meet IP66. Spares are 1550LEGASKET (IP66) and the silicone IP67 upgrade is 1550LSGASKET. The same size without a gasket is 1550L (natural) or 1550LBK (black).
RoHS and REACH compliant, shipped in shrink wrap at 1.12 lbs (0.51 kg). UPC 623980404004, UNSPSC 39121301. Solid models are available in .stp or .x_t, and the enclosure can be factory modified (milling, drilling, printing).
Ideal For
- Electronic instrument enclosures
- PC board housings with wall-mounted connectors
- Project boxes and stomp box builds
- Water-tight housings for electronics exposed to dust and splashing water
- Tall assemblies or stacked boards
Overview
| Type | Die-cast box, water-tight |
| Color | Natural Aluminum |
| Gasket | Includes IP66 EVA foam gasket (shipped loose inside enclosure) |
| Series | 1550 Series Diecast Aluminum Enclosures |
| Description | diecast aluminum enclosure |
| Part Number | 1550WL |
| Short Description | DIECAST BOX 1550 SERIES |
Services
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
Dimensions
| Width | 5.00 in (127 mm) |
| Lid Height | 4 mm (0.16 in) |
| Inside Height | 72.50 mm [2.85 in] |
| Inside Box Width | 119.73 mm [4.71 in] |
| Size (L X W X H) | 6.51 in x 5.02 in x 2.85 in (165 mm x 128 mm x 72 mm) |
| Inside Box Length | 157.73 mm [6.21 in] |
| Height (Incl. Lid) | 3.03 in (77 mm) |
| Length (Incl. Lid) | 6.50 in (165 mm) |
| Overall Width (Drawing) | 127.40 mm [5.02 in] |
| Overall Length (Drawing) | 165.00 mm [6.50 in] |
| Height With Lid (Drawing) | 76.23 mm [3.00 in] |
| Height Without Lid (Drawing) | 72.50 mm [2.85 in] |
Accessories
| Replacement Screws | 1550MS100 (package of 100) |
| Tamper-Proof Driver Bit | SCDRIVET15-2 |
| IP66 Replacement Gasket Kit (EVA, Pair) | 1550LEGASKET |
| Tamper-Resistant Screws (Torx With Pin) | 1550MS50T (package of 50) |
| IP67 Upgrade Gasket Kit (Silicone, Pair) | 1550LSGASKET |
Identifiers
| UPC | 623980404004 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.12 lbs (0.51 kg) |
Related Part Numbers
| Unpainted / Black Without Gasket | 1550L / 1550LBK |
| Unpainted / Black With IP66 Gasket | 1550WL / 1550WLBK |
Construction & Finish
| Finish | Natural vibra finish (smooth surface, no sharp edges) |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Holes | 4X Ø3.86 mm [.15 in] |
| Lid Screws | M3.5 x 0.6 x 12 mm stainless steel Phillips head machine screws into factory tapped holes |
| Construction | Lap joint lid for protection against access of dust and splashing water |
| Tapped Holes | 4X M3.5-0.6 |
| Internal Walls | No internal ribs; smooth walls for connector installation without additional milling |
| Side Wall Draft | Low draft angle (2° less) for easy PC board mounting |
Environmental & Protection
| IP Rating | IP66 |
| Sealing Design | Designed to meet IP54 without a gasket or IP66 with a gasket; IP67 upgraded gaskets available |
| IP66 Conditions | With properly installed gasket and lid screws torqued at 55 cN.m |
| Supplied Gasket | EVA foam, rated up to 65°C (149°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions?▾
Overall dimensions including the lid are 6.50 in (165 mm) x 5.00 in (127 mm) x 3.03 in (77 mm). The part listing size is 6.51 in x 5.02 in x 2.85 in (165 mm x 128 mm x 72 mm). Inside, the box measures 157.73 mm [6.21 in] long, 119.73 mm [4.71 in] wide and 72.50 mm [2.85 in] high.
Is a gasket included?▾
Yes. The 1550WL includes an IP66 EVA foam gasket, shipped loose inside the enclosure.
What IP rating can it reach?▾
It is rated IP66 with the gasket properly installed and the lid screws torqued at 55 cN.m. The 1550LSGASKET silicone kit is tested to meet IP67.
What finish and colour is it?▾
Natural Aluminum. Natural vibra finish for a smooth surface with no sharp edges.
Can I get replacement or tamper-resistant screws?▾
Yes. Replacement screws are 1550MS100 (package of 100). Tamper-resistant Torx-with-pin screws are 1550MS50T (package of 50), used with driver bit SCDRIVET15-2.
Can the enclosure be machined or modified?▾
Yes. Diecast aluminum is tough yet easy to machine, the walls have no internal ribs, and the factory offers modification such as milling, drilling and printing. Solid models are available in .stp or .x_t.
