Hammond 1550WB 115x64x30 mm Natural Watertight Diecast Aluminum Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 115 x 64 x 30 mm overall including lid; inside box 110.66 mm x 60.16 mm
- IP66 rated with the supplied EVA foam gasket (lid screws torqued at 55 cN.m)
- Die-cast aluminum alloy: tough yet easy to machine
- Natural vibra finish: smooth surface, no sharp edges
- No internal ribs and low (2° less) wall draft for connectors and PC boards
- M3.5 x 0.6 x 12 mm stainless steel Phillips screws into factory tapped holes
- IP67 silicone upgrade kit 1550BSGASKET; IP66 spare kit 1550BEGASKET
- RoHS and REACH compliant

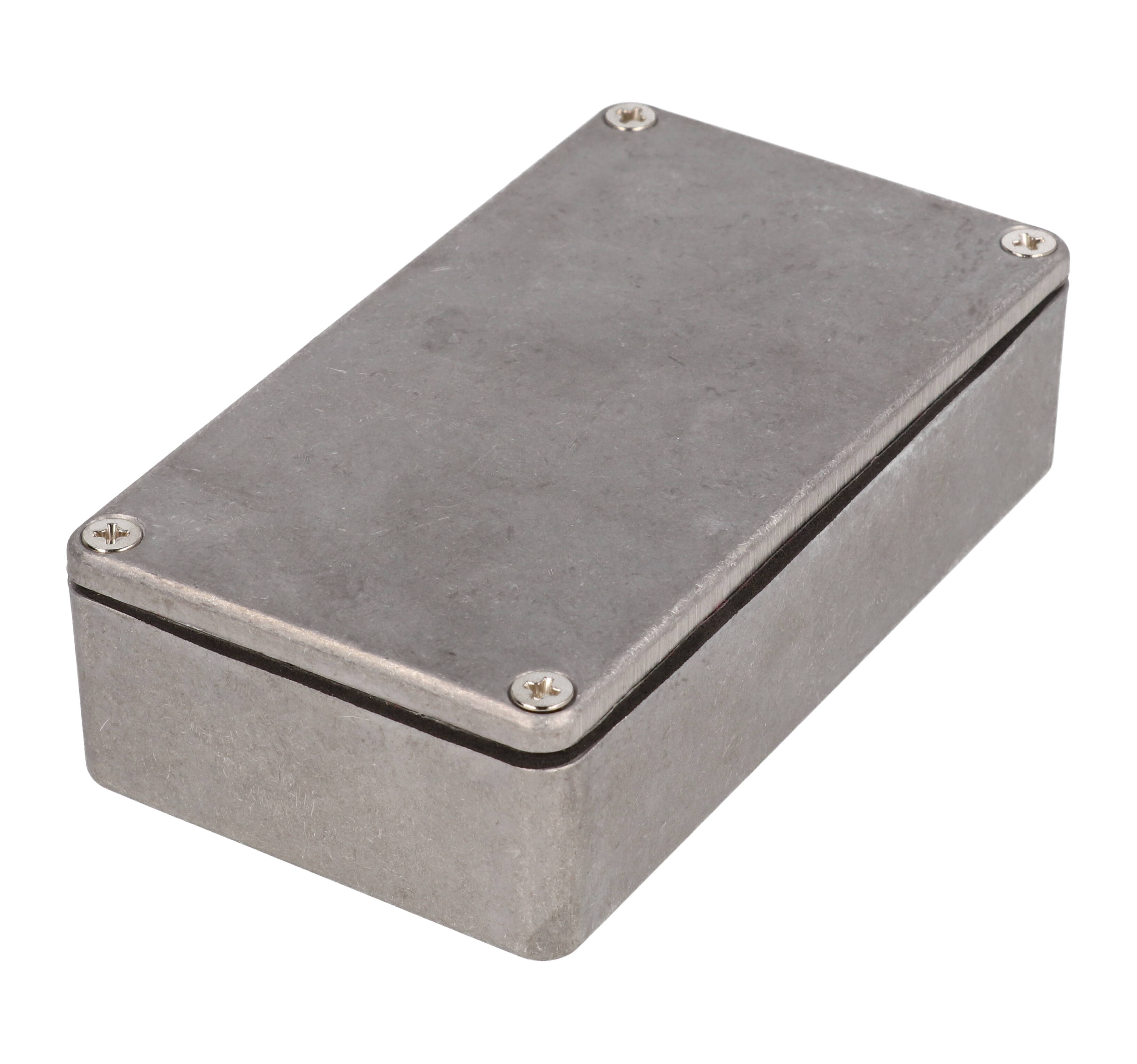

The 1550WB is a natural-finish watertight diecast aluminum enclosure from the 1550 Series, measuring 4.53 in (115 mm) x 2.52 in (64 mm) x 1.18 in (30 mm) including the lid. It is supplied with an IP66 EVA foam gasket and is rated IP66, making it a practical housing for electronics builders, OEM engineers and integrators whose circuits face dust and water.
The 115 x 64 mm, 30 mm tall 1550B size is a low-profile box that shares its footprint and gasket kits with the taller 55 mm 1550D. Per the drawing, the inside box measures 110.66 mm [4.36 in] long by 60.16 mm [2.37 in] wide with 27.10 mm [1.07 in] of inside height, and the box stands 26.00 mm [1.02 in] tall without the 4 mm lid.
The rugged die-cast alloy is tough yet easy to machine. It has a natural vibra finish, which leaves a smooth plain-aluminum surface with no sharp edges. Walls have no internal ribs, so connectors fit without interference or extra milling, and the low side wall draft angle (2° less) makes PC board mounting easier. The lid is secured by M3.5 x 0.6 x 12 mm stainless steel Phillips head screws into factory tapped holes.

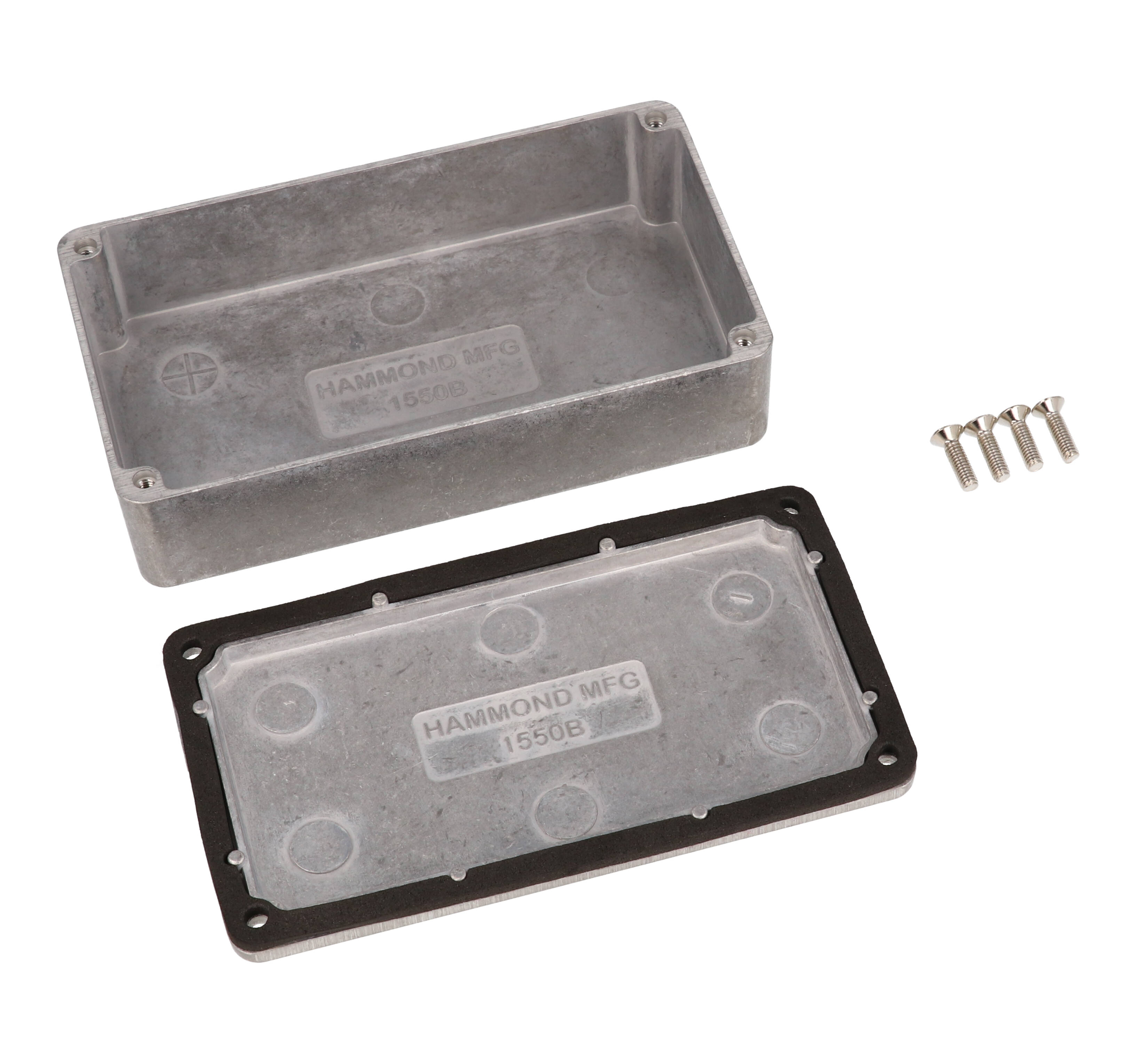

The EVA foam gasket ships loose inside the enclosure and is rated up to 65°C (149°F); installed properly with the lid screws torqued at 55 cN.m the 1550WB is designed to meet IP66. Spares are 1550BEGASKET (IP66) and the silicone IP67 upgrade is 1550BSGASKET. The same size without a gasket is 1550B (natural) or 1550BBK (black).
RoHS and REACH compliant, shipped in shrink wrap at 0.26 lbs (0.12 kg). UPC 623980057347, UNSPSC 39121301. Solid models are available in .stp or .x_t, and the enclosure can be factory modified (milling, drilling, printing).
Ideal For
- Electronic instrument enclosures
- PC board housings with wall-mounted connectors
- Project boxes and stomp box builds
- Water-tight housings for electronics exposed to dust and splashing water
Overview
| Type | Die-cast box, water-tight |
| Color | Natural Aluminum |
| Gasket | Includes IP66 EVA foam gasket (shipped loose inside enclosure) |
| Series | 1550 Series Diecast Aluminum Enclosures |
| Description | watertight diecast aluminum enclosure |
| Part Number | 1550WB |
| Short Description | DIECAST BOX 1550 WATERTIGHT |
Services
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
Dimensions
| Width | 2.52 in (64 mm) |
| Lid Height | 4 mm (0.16 in) |
| Inside Height | 27.10 mm [1.07 in] |
| Inside Box Width | 60.16 mm [2.37 in] |
| Size (L X W X H) | 4.51 in x 2.52 in x 1.02 in (115 mm x 64 mm x 26 mm) |
| Inside Box Length | 110.66 mm [4.36 in] |
| Height (Incl. Lid) | 1.18 in (30 mm) |
| Length (Incl. Lid) | 4.53 in (115 mm) |
| Overall Width (Drawing) | 64.00 mm [2.52 in] |
| Overall Length (Drawing) | 114.50 mm [4.51 in] |
| Height With Lid (Drawing) | 30.10 mm [1.19 in] |
| Height Without Lid (Drawing) | 26.00 mm [1.02 in] |
Accessories
| Replacement Screws | 1550MS100 (package of 100) |
| Tamper-Proof Driver Bit | SCDRIVET15-2 |
| IP66 Replacement Gasket Kit (EVA, Pair) | 1550BEGASKET |
| Tamper-Resistant Screws (Torx With Pin) | 1550MS50T (package of 50) |
| IP67 Upgrade Gasket Kit (Silicone, Pair) | 1550BSGASKET |
Identifiers
| UPC | 623980057347 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.26 lbs (0.12 kg) |
Related Part Numbers
| Unpainted / Black Without Gasket | 1550B / 1550BBK |
| Unpainted / Black With IP66 Gasket | 1550WB / 1550WBBK |
Construction & Finish
| Finish | Natural vibra finish (smooth surface, no sharp edges) |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Holes | 4X Ø4.10 mm [.16 in] |
| Lid Screws | M3.5 x 0.6 x 12 mm stainless steel Phillips head machine screws into factory tapped holes |
| Construction | Lap joint lid for protection against access of dust and splashing water |
| Tapped Holes | 4X M3.5-0.6 |
| Internal Walls | No internal ribs; smooth walls for connector installation without additional milling |
| Side Wall Draft | Low draft angle (2° less) for easy PC board mounting |
Environmental & Protection
| IP Rating | IP66 |
| Sealing Design | Designed to meet IP54 without a gasket or IP66 with a gasket; IP67 upgraded gaskets available |
| IP66 Conditions | With properly installed gasket and lid screws torqued at 55 cN.m |
| Supplied Gasket | EVA foam, rated up to 65°C (149°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions?▾
Overall dimensions including the lid are 4.53 in (115 mm) x 2.52 in (64 mm) x 1.18 in (30 mm). The part listing size is 4.51 in x 2.52 in x 1.02 in (115 mm x 64 mm x 26 mm). Inside, the box measures 110.66 mm [4.36 in] long, 60.16 mm [2.37 in] wide and 27.10 mm [1.07 in] high.
Is a gasket included?▾
Yes. The 1550WB includes an IP66 EVA foam gasket, shipped loose inside the enclosure.
What IP rating can it reach?▾
It is rated IP66 with the gasket properly installed and the lid screws torqued at 55 cN.m. The 1550BSGASKET silicone kit is tested to meet IP67.
What finish and colour is it?▾
Natural Aluminum. Natural vibra finish for a smooth surface with no sharp edges.
Can I get replacement or tamper-resistant screws?▾
Yes. Replacement screws are 1550MS100 (package of 100). Tamper-resistant Torx-with-pin screws are 1550MS50T (package of 50), used with driver bit SCDRIVET15-2.
Can the enclosure be machined or modified?▾
Yes. Diecast aluminum is tough yet easy to machine, the walls have no internal ribs, and the factory offers modification such as milling, drilling and printing. Solid models are available in .stp or .x_t.
