Hammond 1550F 171×121×101 mm Natural Diecast Aluminum Enclosure

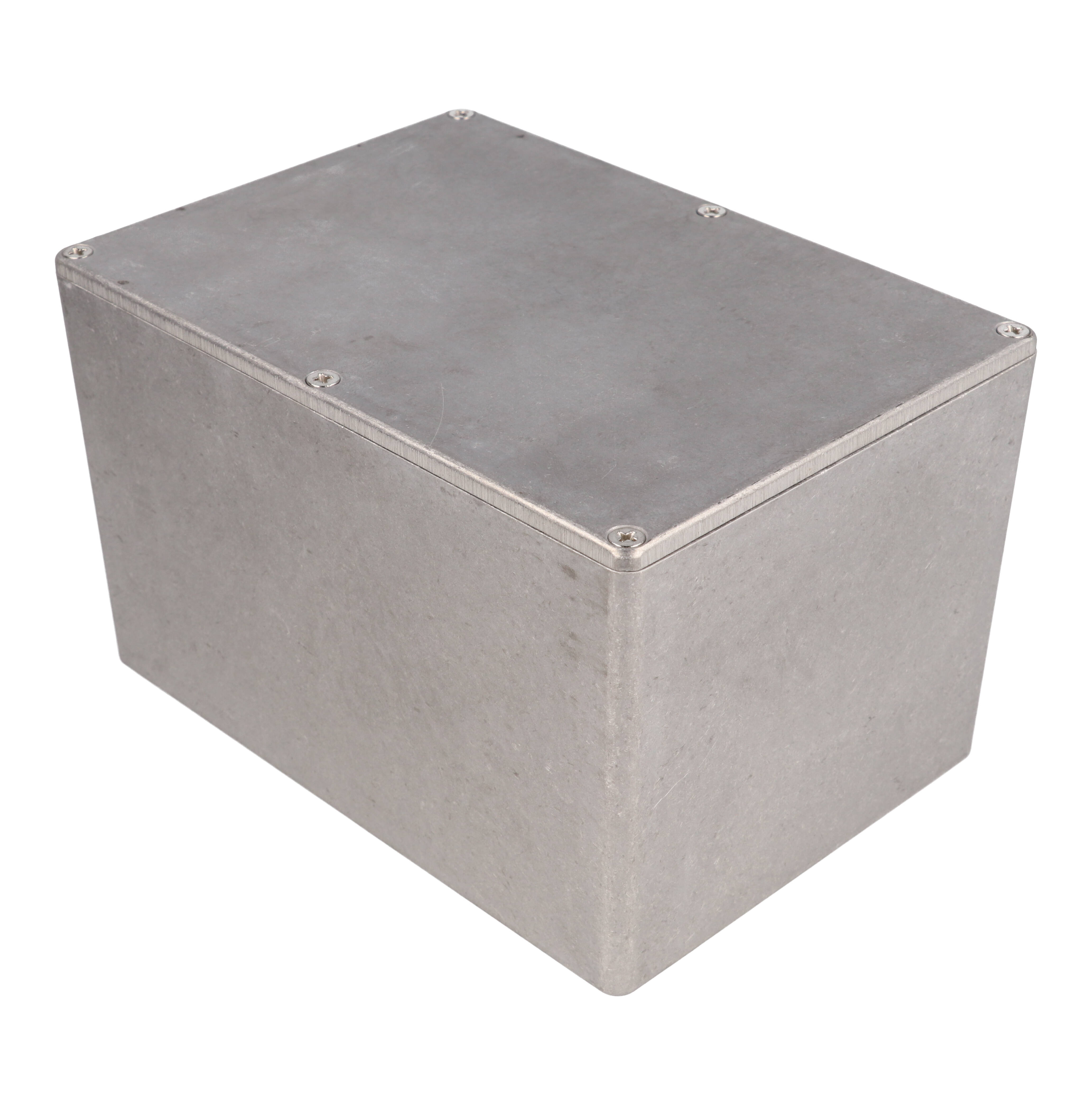

The 1550F is a natural-finish diecast aluminum enclosure from the 1550 Series, with a 171 x 121 mm footprint with a 101 mm body height, the deep member of the 171 x 121 mm pair (the 1550E uses the same footprint at 51 mm). The part page lists its size as 6.73 in x 4.76 in x 3.98 in (171 mm x 121 mm x 101 mm). It suits electronics designers, OEM engineers and hobby builders who need a rugged, easy-to-machine metal box for instruments, control circuits or stomp-box style projects.

The drawing shows 101.10 mm [3.98 in] of inside height over an inside floor of 161.84 x 111.84 mm [6.37 x 4.40 in], giving room for taller components or stacked assemblies within a hand-sized footprint. The series ordering table lists this size as 6.73 in (171 mm) long, 4.76 in (121 mm) wide and 4.13 in (105 mm) high, a figure that includes the 4 mm (0.16 in) lid; the drawing shows 105.10 mm [4.14 in] overall with the lid fitted. Shipping weight is 1.32 lbs (0.60 kg).

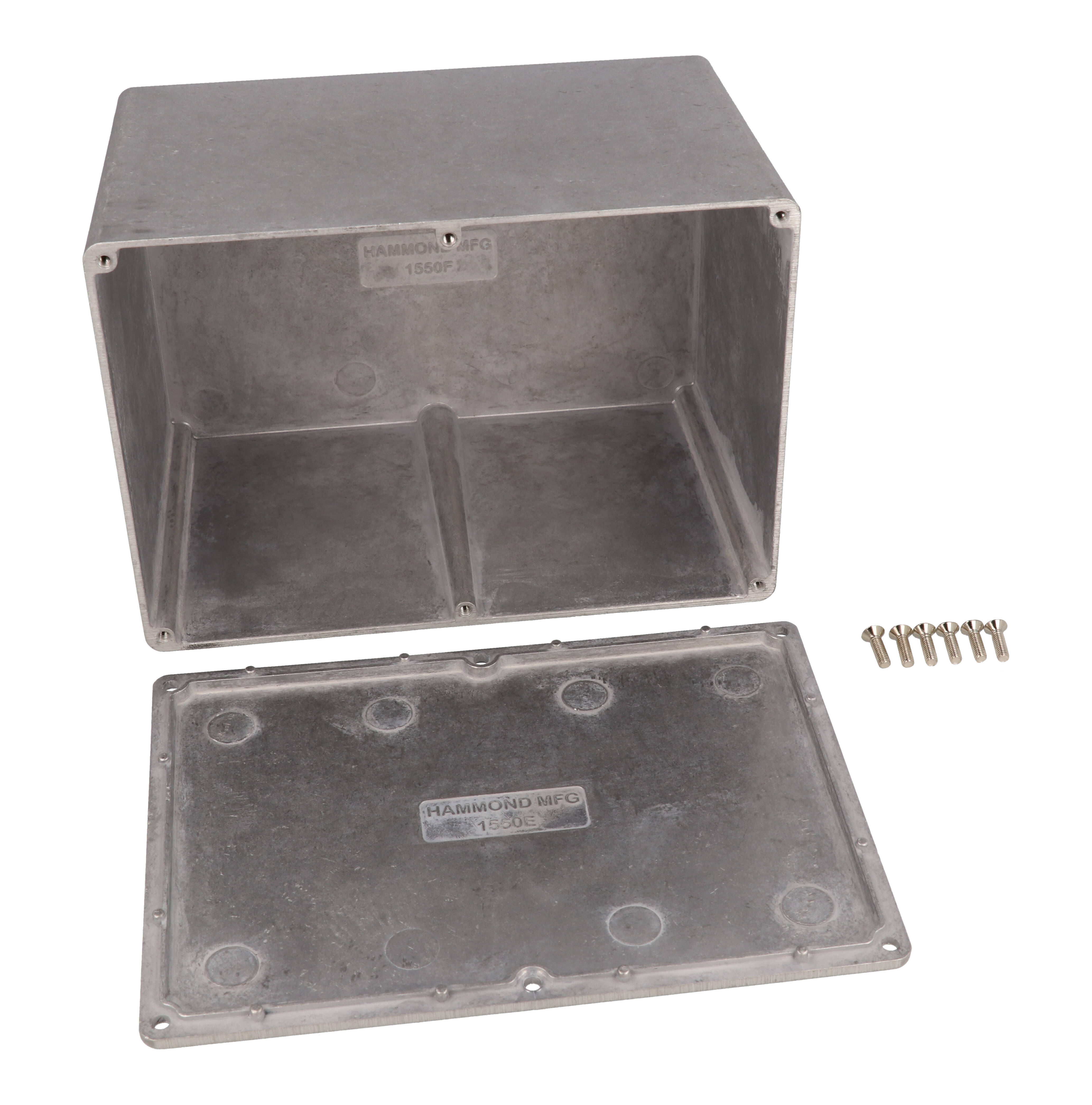

Die-cast aluminum alloy is tough yet easy to machine, and the unpainted body is vibra finished for a smooth surface with no sharp edges. Lap joint construction protects against dust and splashing water. Four M3.5 x 0.6 x 12 mm stainless steel Philips head machine screws hold the lid in factory tapped holes. Smooth, rib-free internal walls make fitting connectors straightforward, and a low side wall draft angle (2° less) helps with PC board mounting.

As supplied, without a gasket, the 1550F is rated IP54. Adding the 1550EEGASKET EVA foam gasket kit brings it to IP66, and the 1550ESGASKET silicone kit is the IP67 upgrade (with properly installed gasket and lid screws torqued at 55 cN.m). The same size in black powder coat is the 1550FBK, and the version shipped with an IP66 gasket is the 1550WF. It is RoHS and REACH compliant and ships in shrink wrap.
