Hammond 1457UEP 2-Pack Flat EMI End Panel Kit, 1457U

The Hammond 1457UEP is a 2-pack replacement end panel kit without mounting flanges for 1457U enclosures in the 1457-EMI Series of EMI/RFI shielded extruded aluminum enclosures. The series ordering table lists it as the End Panel Kit (No Mounting Flanges) in a 2-pack for enclosure part numbers beginning with 1457U. It suits OEM engineers and technicians who need spare or additional end panels for these shielded cases.

The panels are die-cast aluminum alloy in black. Across the 1457-EMI Series, end panels are described as rugged yet easy to machine and are painted in a durable black satin powder paint, making them practical for adding connectors, switches or cable entries. The part data lists an IP54 rating, and the manufacturer description states that hardware is included.

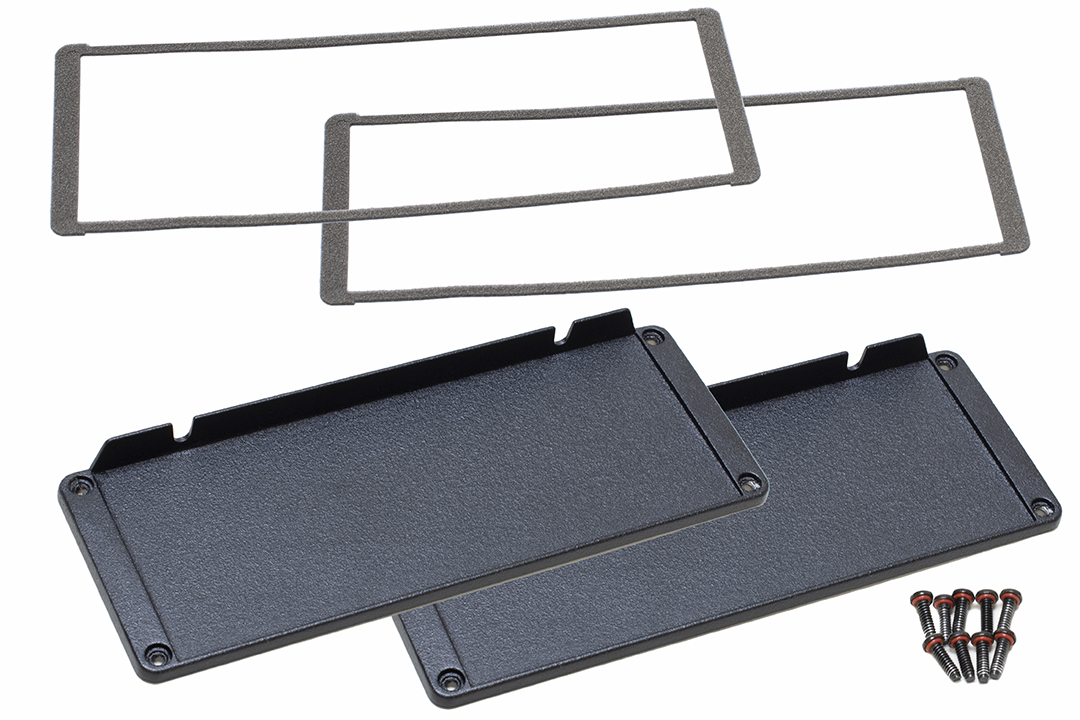

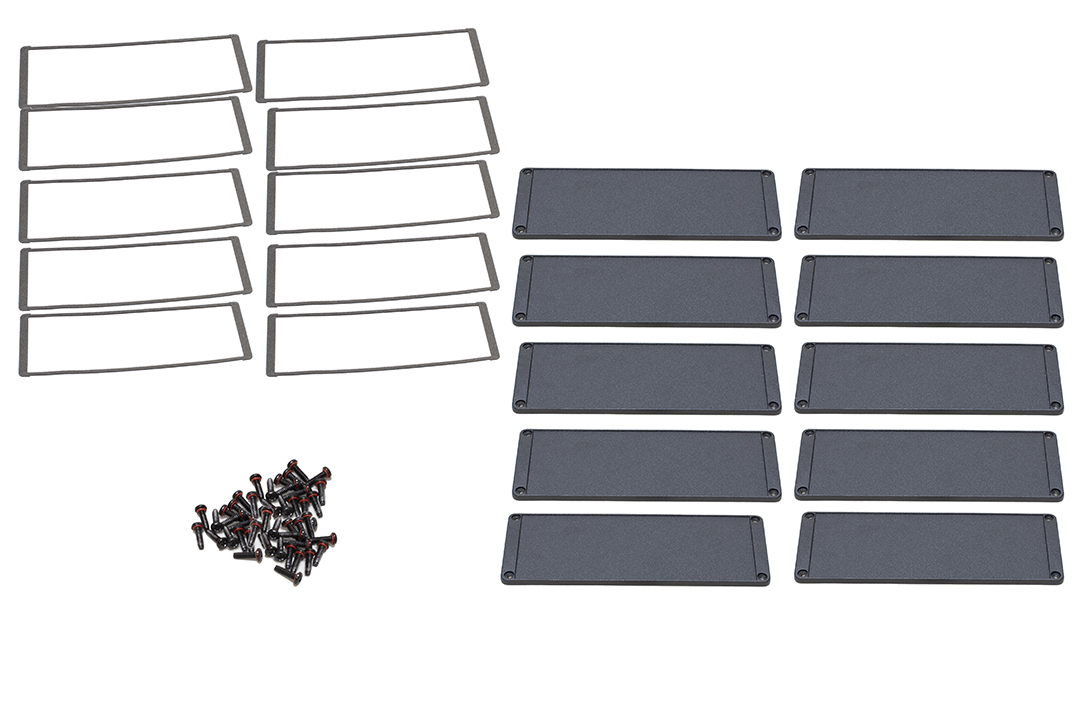

1457U enclosures use a 191.00 mm wide x 67.50 mm high extrusion profile in 160 mm, 220 mm and 280 mm lengths and take PCBs up to 186.00 mm wide. Flat end panels in this kit match the EMI Shielded, No Flanges enclosures in that family, such as 1457U1601E, 1457U1601EBK, 1457U2201E, 1457U2201EBK, 1457U2801E and 1457U2801EBK. For a wall-mountable alternative, the matching kit is 1457UEPF; the 10-pack equivalent of this style is 1457UEP-10.

Conductive EMI gaskets (1457UEG-10) and water-tight gaskets (1457UPG-10) are sold separately in 10-packs, and replacement assembly screws come in packs of 100 as 1457MS100, with a recommended screw torque of 5 lbf/in. The 1457UEP ships in a bag at 0.25 lbs (0.11 kg). It is RoHS and REACH compliant.
