Hammond 1457TWPF 1457T Flanged Watertight End Panel Kit, 2-Pack
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flange panel kit for enclosures beginning with 1457T
- 2-pack
- Integrated mounting flanges for wall mounting
- Fits the 165.50 x 54.00 mm 1457T extrusion
- Black die-cast aluminum, easy to machine
- Water-tight, IP65; RoHS and REACH compliant

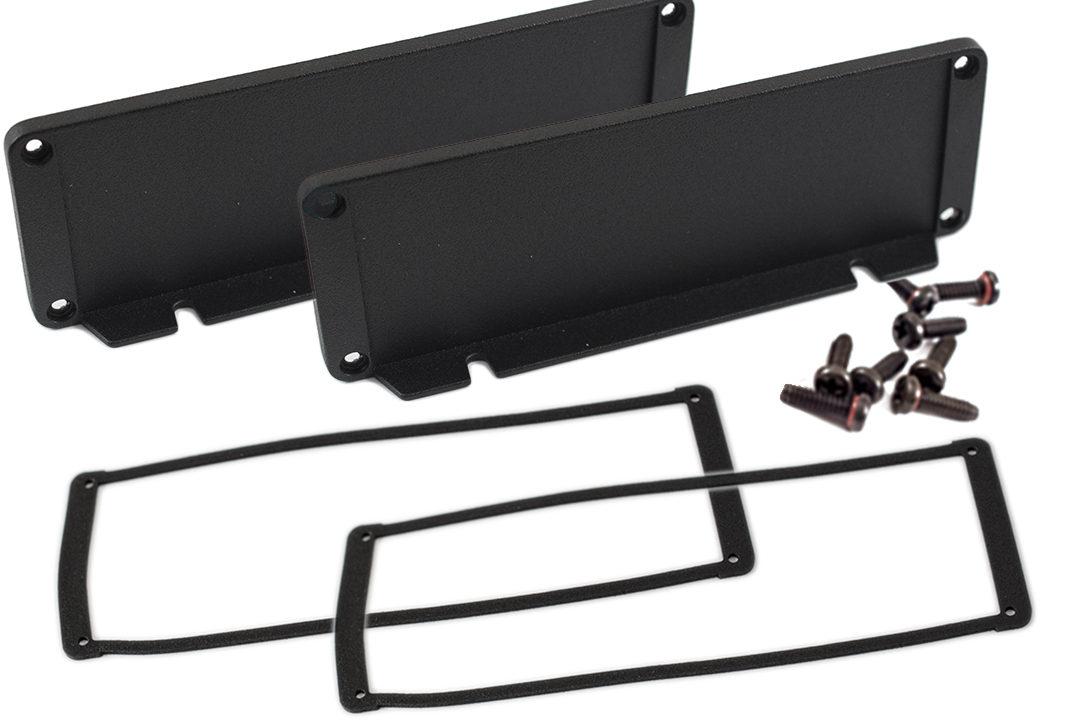

The 1457TWPF is the flanged end panel kit for 1457T enclosures, sold as a 2-pack. With integrated mounting flanges, it replaces the panels on flanged 1457T enclosures or gives a flat-panel 1457T the wall-mounting option.
Panels are die-cast aluminum finished in black. The 1457 series describes these end panels as rugged yet easy to machine diecast aluminum with full perimeter self-adhesive gaskets.
The series ordering table gives the 1457T extrusion as 165.50 mm wide and 54.00 mm high, in 160.00 mm and 220.00 mm lengths (1457T1601, 1457T1602, 1457T2201, 1457T2202 and their BK versions). The kit is type End Panels, Water-Tight, rated IP65.
The 1457 enclosures themselves ship complete with extruded body, diecast end panels, gaskets and hardware; extra end panel kits such as this one are sold separately. When refitting panels, the series specifies thread forming assembly screws black zinc plated to ASTM B633-13 and a recommended torque of 5 lbf/in.
Packed in a bag with a shipping weight of 0.22 lbs (0.10 kg). RoHS and REACH compliant. See 1457TWPF-10 for the 10-pack and 1457TWP for flat panels. Water-tight gaskets (1457TPG-10), EMI gaskets (1457TEG-10) and assembly screws (1457MS100) are also available.
Ideal For
- Wall mounting 1457T enclosures
- Replacement panels for 1457T1602 and 1457T2202
- Spare flanged panels for machining
Overview
| Type | End Panels, Water-Tight |
| Series | 1457 Series |
| Pack Size | 2-pack |
| Product Type | Replacement end panel kit with integrated mounting flanges |
| Short Description | 1457T FLANGE PANEL KIT (2 PK) |
Identifiers
| UPC | 623980505688 |
| UNSPSC | 39121301 |
| Part Number | 1457TWPF |
Compatibility
| For Enclosure Part Numbers Beginning With | 1457T |
| 1457T Enclosure Extrusion Lengths (Series Table) | 160.00 and 220.00 mm |
| 1457T Enclosure Extrusion Width X Height (Series Table) | 165.50 mm x 54.00 mm |
Related Parts
| Same Kit, 10-pack | 1457TWPF-10 |
| Flat-Panel Version | 1457TWP |
| Replacement EMI Gaskets | 1457TEG-10 (10-pack) |
| Replacement Assembly Screws | 1457MS100 (pack of 100) |
| Replacement Water-Tight Gaskets | 1457TPG-10 (10-pack) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.22 lbs (0.10 kg) |
Construction & Finish
| Color | Black |
| Material | Aluminum (Die-Cast Alloy) |
| Mounting Flanges | Integrated mounting flanges |
| End Panel Construction | Rugged yet easy to machine diecast aluminum with full perimeter self-adhesive gaskets |
Environmental & Protection
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1457TWPF?▾
A flange panel kit (2-pack) of die-cast aluminum end panels with integrated mounting flanges for 1457T enclosures.
Which enclosures does it fit?▾
Enclosures with part numbers beginning with 1457T.
Is there a flat version?▾
Yes, 1457TWP has no mounting flanges.
What colour are the panels?▾
Black.
What IP rating applies?▾
IP65.
