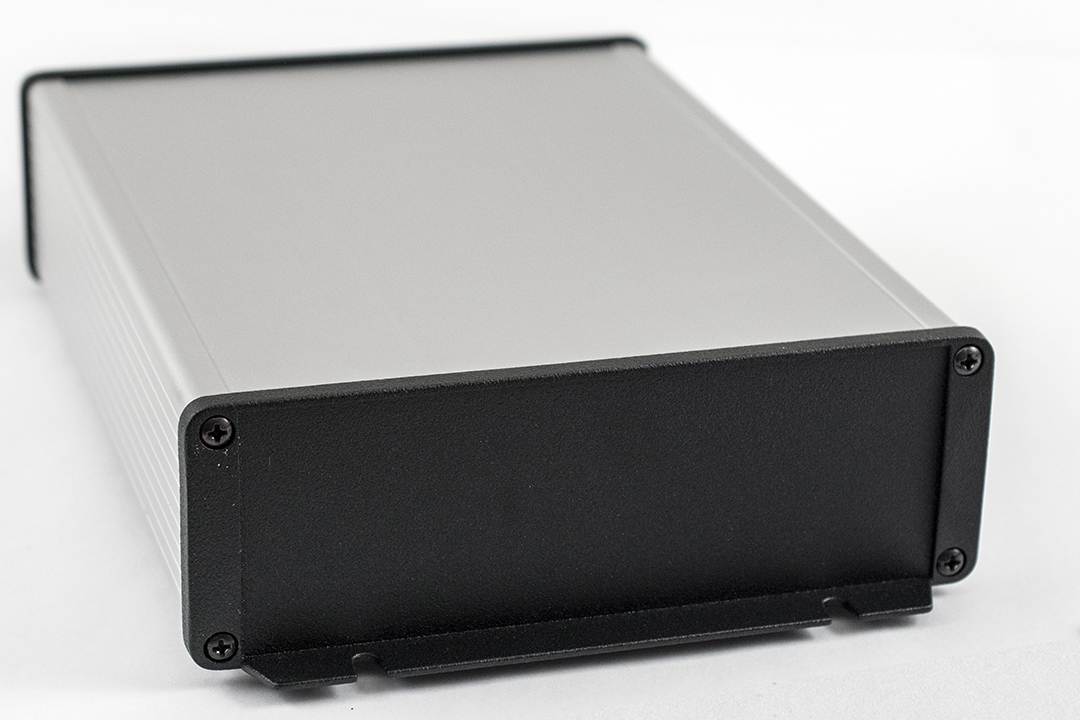

Hammond 1457T2202 220mm Flanged IP65 Aluminum Enclosure, Clear Anodized
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged end panels for wall or equipment mounting
- 220 x 165 x 55 mm body; 251.97 mm long across flanges
- Holds P.C. boards up to 219 x 159 mm
- Designed to meet IP65 with self-adhesive perimeter gaskets
- Clear Anodized one-piece aluminum 6063 extrusion
- 0.75 mm deep label/keypad recess
- Factory milling, drilling and printing on quote
The 1457T2202 is the flanged, wall-mountable version of the 220 mm 1457T watertight enclosure. Designed to meet IP65, it gives integrators an 8.66 in x 6.51 in x 2.15 in (220 mm x 165 mm x 55 mm) extruded aluminum housing that fixes to walls or equipment through its flanged end panels.
The body is extruded in one piece from aluminum 6063 with a 0.06" (1.5 mm) minimum thickness and a clear anodized finish. Its end panels are Type 380 diecast aluminum in black powder paint, sealed with full perimeter self-adhesive gaskets and easy to machine.
The drawing gives 251.97 mm (9.920 in) overall length across the flanges and 231.15 mm across the end panels. Inside space is 220.00 ± 0.50 mm face to face, 161.00 ± 0.75 mm wide and 48.00 ± 0.60 mm high. Boards up to 219 mm x 159 mm (part page) slide horizontally into the extruded slots; the drawing notes it fits a 220 mm x 160 mm PCB.
The assembly ships with the box, flanged end panels, #6 Taptight screws with O-rings, self-adhesive rubber feet and gaskets. Thread forming screws are black zinc plated to ASTM B633-13; tighten to 5 lbf/in. A 0.75 mm recess on the body is provided for labels or a membrane keypad.
RoHS and REACH compliant. Shipping weight 1.46 lbs (0.66 kg). STEP and IGES solid models are available.
Ideal For
- Wall-mounted large-board electronics
- Equipment-mounted watertight control units
- Field interfacing enclosures
- Keypad control panels
PCB Fit
| Drawing Note | Fits 220mm (8.661") X 160mm (6.299") PCB |
| PCB Mounting | Boards mount horizontally by sliding into internal slots extruded into the enclosure body |
| Max PCB Width (Series Table) | 160.00 mm |
| Max PCB Length (Series Table) | 220.00 mm |
| Max. P.C. Board Width (Part Page) | 159 mm |
| Max. P.C. Board Length (Part Page) | 219 mm |
Mounting
| Wall Mounting | Flanged end panels provide the wall-mounting option |
Overview
| Type | Water-tight |
| Series | 1457 Series |
| Product Type | Watertight extruded aluminum enclosure |
| End Panel Style | Flanged (integrated mounting flanges) |
| Short Description | 1457T 220MM ENCL CLEAR ANOD V2 |
| Sibling Part (No Flanges) | 1457T2201 |
| Sibling Part (Black Powder Coat) | 1457T2202BK |
Services
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
Dimensions
| Inside Width | 161.00 ± 0.75 mm [6.339 ± 0.030 in] |
| Inside Height | 48.00 ± 0.60 mm [1.890 ± 0.024 in] |
| Overall Width | 168.46 mm [6.632 in] |
| Size L X W X H | 8.66 in x 6.51 in x 2.15 in (220 mm x 165 mm x 55 mm) |
| Extrusion Width | 165.50 mm |
| Extrusion Height | 54.00 mm |
| Extrusion Length | 220.00 mm |
| Body Wall Thickness | 2.00 ± 0.20 mm [0.079 ± 0.008 in] |
| Label/Keypad Recess Depth | 0.75 mm (0.030") |
| Inside Face-to-Face Length | 220.00 ± 0.50 mm [8.661 ± 0.020 in] |
| Overall Height (Side View) | 54.00 mm [2.126 in] |
| Overall Length (With End Panels) | 231.15 mm [9.100 in] |
| Internal Board-Slot Details (Detail A) | 1.50 mm [0.059 in]; 2.50 mm [0.098 in] |
| Overall Length (Incl. Mounting Flanges) | 251.97 mm [9.920 in] |
| Additional Flanged-Panel Drawing Dimensions | 239.75 mm [9.439 in]; 100.00 mm [3.937 in]; 56.98 mm [2.243 in] |
Identifiers
| UPC | 623980032337 |
| UNSPSC | 39121301 |
| Part Number | 1457T2202 |
Related Parts
| Replacement EMI Gaskets | 1457TEG-10 (10-pack) |
| Replacement Assembly Screws | 1457MS100 (pack of 100) |
| Replacement Water-Tight Gaskets | 1457TPG-10 (10-pack) |
| EMI/RFI Shielded IP 54) Versions | 1457T2202E (clear anodized box, black powder painted end panels); 1457T2202EBK (black powder painted box and end panels) |
| Replacement End Panel Kits (No Flanges) | 1457TWP (2-pack), 1457TWP-10 (10-pack) |
| Replacement End Panel Kits (With Flanges) | 1457TWPF (2-pack), 1457TWPF-10 (10-pack) |
Package Contents
| Includes | Extruded aluminum body, two diecast aluminum end panels, two closed-cell polyethylene foam end plate gaskets, stainless steel assembly hardware with rubber o-ring, adhesive rubber feet |
| Purchased Assembly Includes | Box, end panels, #6 Taptight screws w/ O-Rings, self adhesive rubber feet, and gaskets |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.46 lbs (0.66 kg) |
Construction & Finish
| Color | Clear (Anodize) |
| End Panels | Type 380 diecast aluminum, black powder paint finish |
| Label Area | Recessed area for labels or membrane keypad |
| Body Material | Aluminum (Extruded), Extruded Aluminum 6063 |
| Assembly Screws | Thread forming screws, black zinc plated to ASTM B633-13: Type II rating (96 hour Salt Spray Test), SC3 severe rating (12 micron thickness coating) |
| Extrusion Finish | Clear Anodize |
| Assembly Hardware | Stainless steel assembly hardware with rubber o-ring and adhesive rubber feet |
| Body Construction | One piece of extruded aluminum, minimum thickness 0.06" (1.5 mm) |
| End Panel Gaskets | Full perimeter self-adhesive gaskets; two closed-cell polyethylene foam end plate gaskets included |
| Drawing Finish Note | Clear anodized box with black powder painted end panels |
| Recommended Screw Torque | 5 lbf/in |
Environmental & Protection
| IP Rating | IP65 |
| Protection | Designed to meet IP65 (drawing: Protection to IP 65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the flange-to-flange length of the 1457T2202?▾
251.97 mm (9.920 in) overall on the drawing.
What PCB size does it take?▾
Up to 219 mm x 159 mm per the part page; the drawing notes it fits a 220 mm x 160 mm PCB.
Is it watertight?▾
It is designed to meet IP65; the drawing lists protection to IP 65.
Is there a flat-panel version?▾
Yes, 1457T2201.
Are shielded versions listed?▾
The drawing lists EMI/RFI shielded (IP 54) versions 1457T2202E and 1457T2202EBK.
