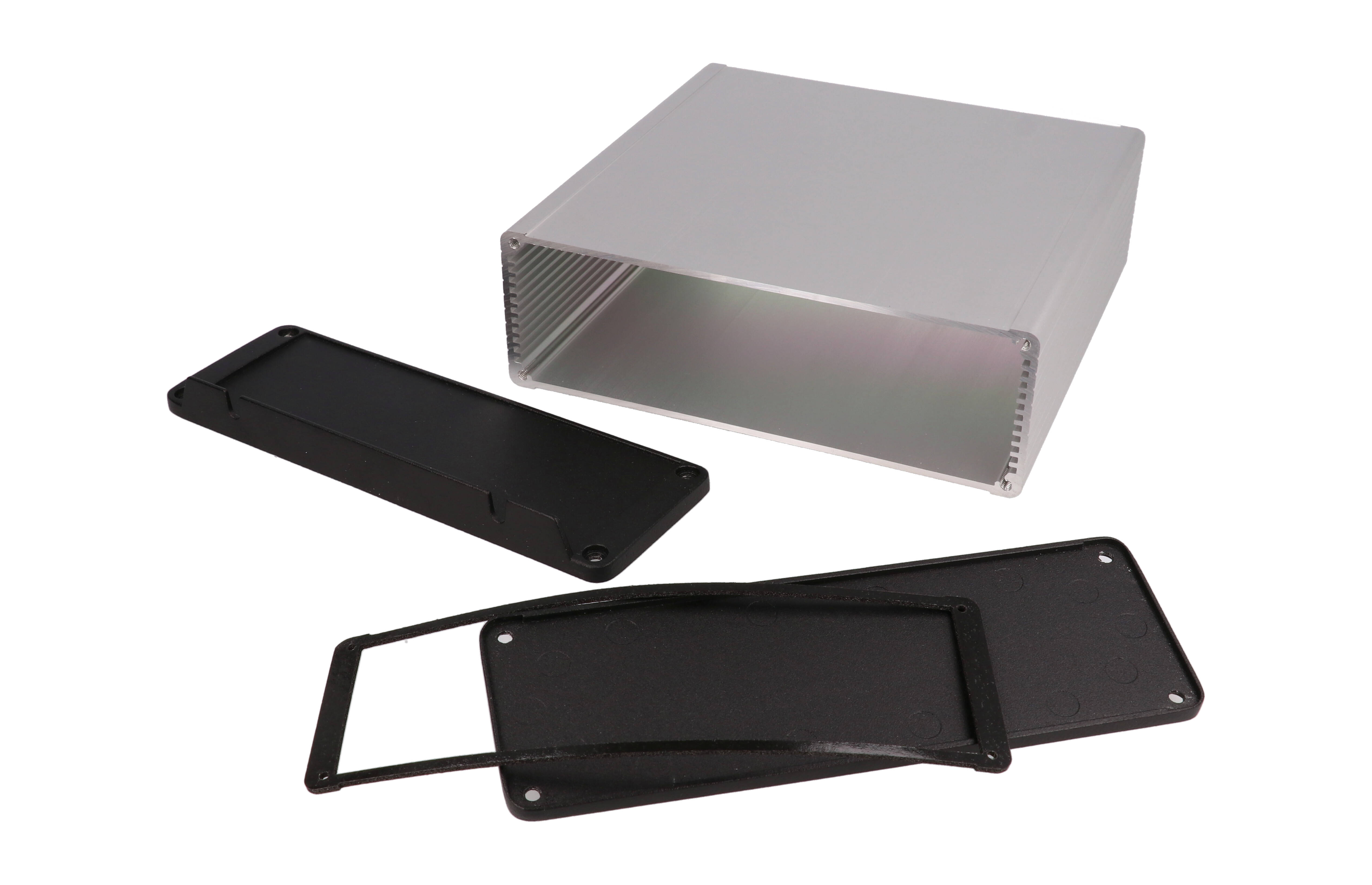

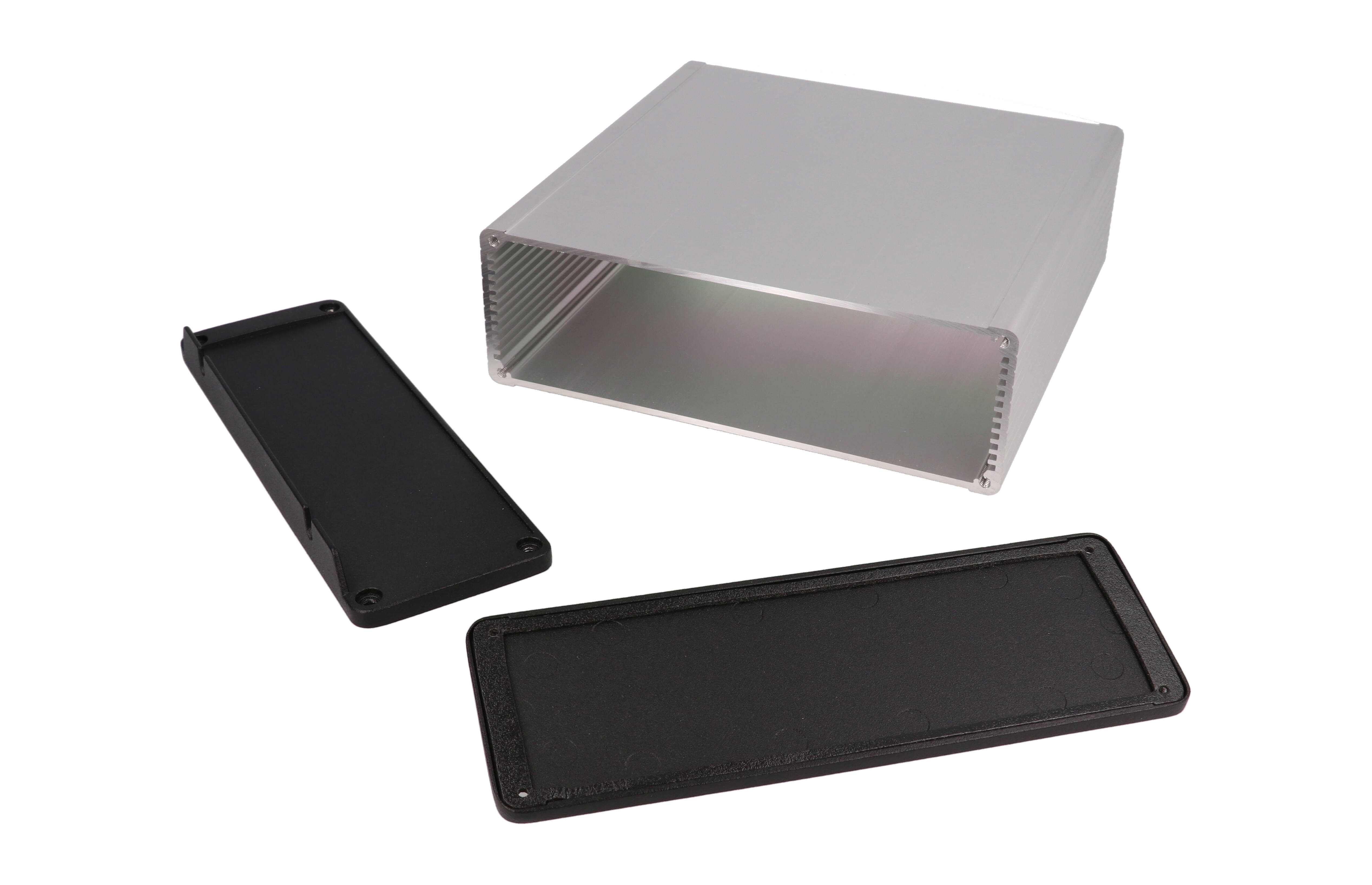

Hammond 1457T1602 160 x 165mm Flanged IP65 Enclosure, Clear Anodized
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged end panels provide wall mounting
- 160 x 165 x 55 mm body, 191.97 mm long across flanges
- Holds P.C. boards up to 159 x 159 mm
- Designed to meet IP65; full perimeter self-adhesive gaskets
- Clear Anodized aluminum 6063 extrusion, black diecast end panels
- Label/keypad recess 0.75 mm deep
- Hardware: #6 Taptight screws with O-rings, rubber feet
The 1457T1602 is a wide, wall-mountable watertight enclosure from the 1457 Series. Flanged diecast end panels let installers fix it to walls or equipment, while the 6.3 in x 6.51 in x 2.15 in (160 mm x 165 mm x 55 mm) extruded aluminum body houses square PC boards. It is designed to meet IP65.

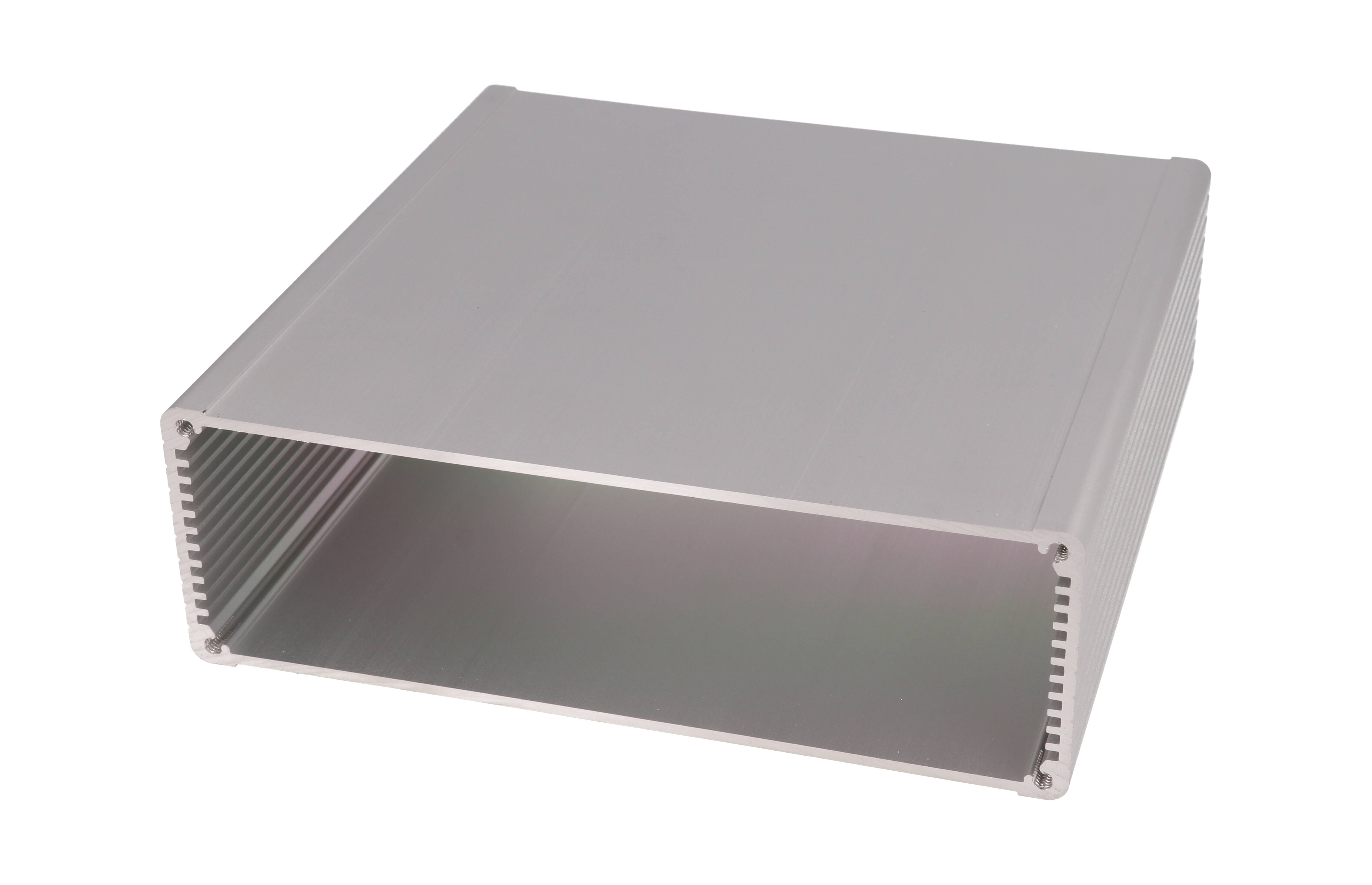

The body is one piece of extruded aluminum 6063 in clear anodized, with a 0.06" (1.5 mm) minimum thickness. End panels are Type 380 diecast aluminum with black powder paint, sealed by full perimeter self-adhesive gaskets.
According to the drawing, the enclosure is 191.97 mm (7.558 in) long across the mounting flanges and 171.15 mm across the end panels. Inside it offers 160.00 mm face to face, 161.00 mm width and 48.00 mm height. Boards slide horizontally into extruded slots, up to 159 mm x 159 mm per the part page; the drawing notes it fits a 160 mm x 160 mm PCB.

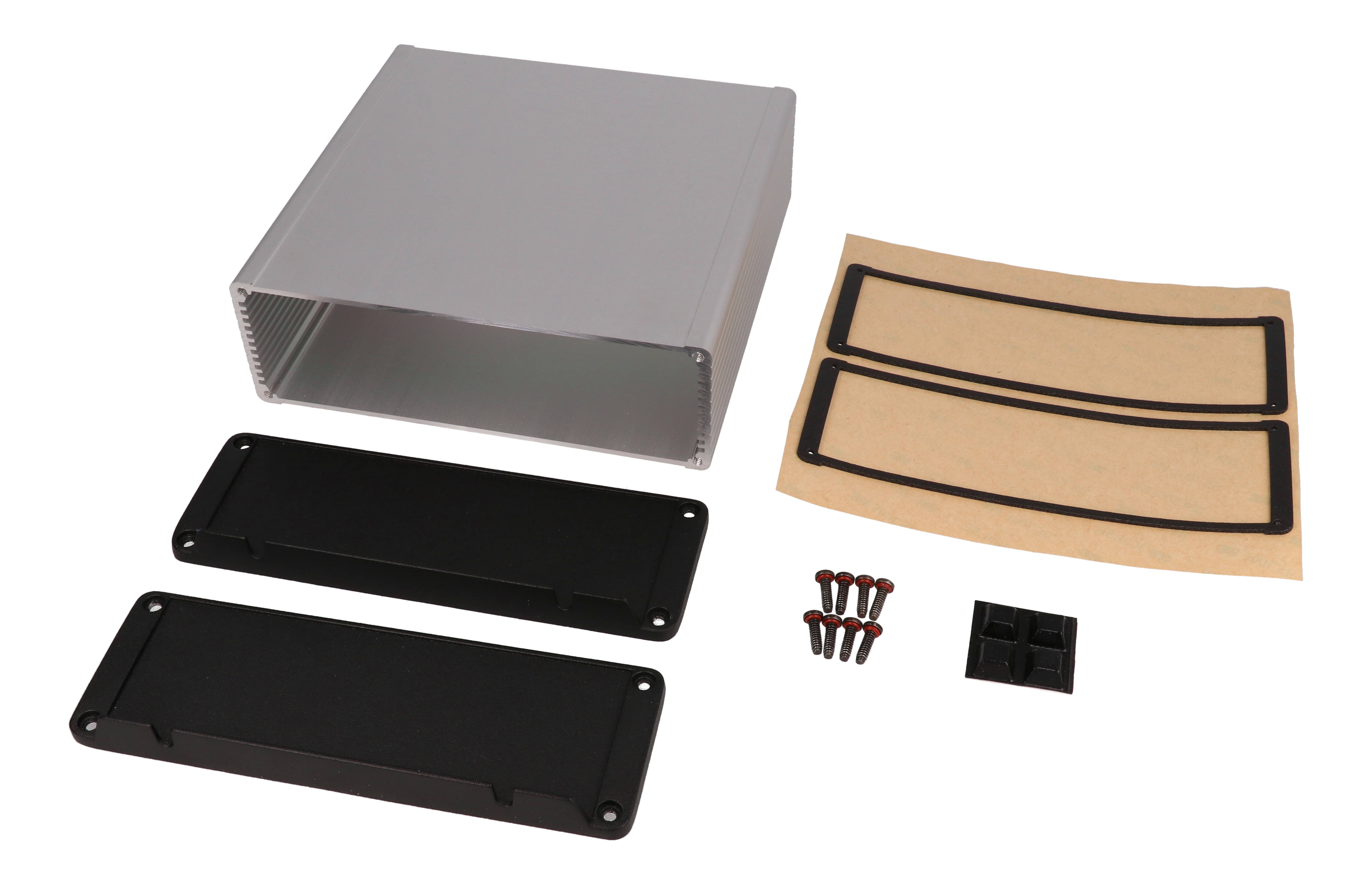

Supplied with the box, flanged end panels, #6 Taptight screws with O-rings, self-adhesive rubber feet and gaskets. The screws are black zinc plated to ASTM B633-13 (96 hour salt spray Type II, SC3), with a recommended torque of 5 lbf/in. A 0.75 mm recess on the body takes labels or a membrane keypad.
RoHS and REACH compliant, shipping weight 1.36 lbs (0.62 kg). Factory milling, drilling and printing are available on quote.
Ideal For
- Wall-mounted control boards
- Machine-mounted watertight electronics
- Square PC board housings
- Field equipment interfacing
PCB Fit
| Drawing Note | Fits 160mm (6.299") X 160mm (6.299") PCB |
| PCB Mounting | Boards mount horizontally by sliding into internal slots extruded into the enclosure body |
| Max PCB Width (Series Table) | 160.00 mm |
| Max PCB Length (Series Table) | 160.00 mm |
| Max. P.C. Board Width (Part Page) | 159 mm |
| Max. P.C. Board Length (Part Page) | 159 mm |
Mounting
| Wall Mounting | Flanged end panels provide the wall-mounting option |
Overview
| Type | Water-tight |
| Series | 1457 Series |
| Product Type | Watertight extruded aluminum enclosure |
| End Panel Style | Flanged (integrated mounting flanges) |
| Short Description | 1457T 160MM ENCL CLEAR ANOD V2 |
| Sibling Part (No Flanges) | 1457T1601 |
| Sibling Part (Black Powder Coat) | 1457T1602BK |
Services
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
Dimensions
| Inside Width | 161.00 ± 0.75 mm [6.339 ± 0.030 in] |
| Inside Height | 48.00 ± 0.60 mm [1.890 ± 0.024 in] |
| Overall Width | 168.46 mm [6.632 in] |
| Size L X W X H | 6.3 in x 6.51 in x 2.15 in (160 mm x 165 mm x 55 mm) |
| Extrusion Width | 165.50 mm |
| Extrusion Height | 54.00 mm |
| Extrusion Length | 160.00 mm |
| Body Wall Thickness | 2.00 ± 0.20 mm [0.079 ± 0.008 in] |
| Label/Keypad Recess Depth | 0.75 mm (0.030") |
| Inside Face-to-Face Length | 160.00 ± 0.50 mm [6.299 ± 0.020 in] |
| Overall Height (Side View) | 54.00 mm [2.126 in] |
| Overall Length (With End Panels) | 171.15 mm [6.738 in] |
| Internal Board-Slot Details (Detail A) | 1.50 mm [0.059 in]; 2.50 mm [0.098 in] |
| Overall Length (Incl. Mounting Flanges) | 191.97 mm [7.558 in] |
Identifiers
| UPC | 623980032252 |
| UNSPSC | 39121301 |
| Part Number | 1457T1602 |
Related Parts
| Replacement EMI Gaskets | 1457TEG-10 (10-pack) |
| Replacement Assembly Screws | 1457MS100 (pack of 100) |
| Replacement Water-Tight Gaskets | 1457TPG-10 (10-pack) |
| EMI/RFI Shielded IP 54) Versions | 1457T1602E (clear anodized box, black powder painted end panels); 1457T1602EBK (black powder painted box and end panels) |
| Replacement End Panel Kits (No Flanges) | 1457TWP (2-pack), 1457TWP-10 (10-pack) |
| Replacement End Panel Kits (With Flanges) | 1457TWPF (2-pack), 1457TWPF-10 (10-pack) |
Package Contents
| Includes | Extruded aluminum body, two diecast aluminum end panels, two closed-cell polyethylene foam end plate gaskets, stainless steel assembly hardware with rubber o-ring, adhesive rubber feet |
| Purchased Assembly Includes | Box, end panels, #6 Taptight screws w/ O-Rings, self adhesive rubber feet, and gaskets |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.36 lbs (0.62 kg) |
Construction & Finish
| Color | Clear (Anodize) |
| End Panels | Type 380 diecast aluminum, black powder paint finish |
| Label Area | Recessed area for labels or membrane keypad |
| Body Material | Aluminum (Extruded), Extruded Aluminum 6063 |
| Assembly Screws | Thread forming screws, black zinc plated to ASTM B633-13: Type II rating (96 hour Salt Spray Test), SC3 severe rating (12 micron thickness coating) |
| Extrusion Finish | Clear Anodize |
| Assembly Hardware | Stainless steel assembly hardware with rubber o-ring and adhesive rubber feet |
| Body Construction | One piece of extruded aluminum, minimum thickness 0.06" (1.5 mm) |
| End Panel Gaskets | Full perimeter self-adhesive gaskets; two closed-cell polyethylene foam end plate gaskets included |
| Drawing Finish Note | Clear anodized box with black powder painted end panels |
| Recommended Screw Torque | 5 lbf/in |
Environmental & Protection
| IP Rating | IP65 |
| Protection | Designed to meet IP65 (drawing: Protection to IP 65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the overall length of the 1457T1602 with flanges?▾
191.97 mm (7.558 in) per the drawing, versus 171.15 mm across the end panels.
What size circuit board fits?▾
Up to 159 mm x 159 mm per the part page; the drawing notes it fits a 160 mm x 160 mm PCB.
Is it waterproof?▾
It is designed to meet IP65, and the drawing lists protection to IP 65.
Is there a version without flanges?▾
Yes, 1457T1601.
Are EMI/RFI shielded versions offered?▾
The drawing lists EMI/RFI shielded (IP 54) versions 1457T1602E and 1457T1602EBK.
Related Products
Save 52%1457T1601BK — 1457T 160MM Enclosure BK3 Paint V1
Hammond Manufacturing · 1457T1601BK
Save 52%1457T1602BK — 1457T 160MM Enclosure BK3 Paint V2
Hammond Manufacturing · 1457T1602BK

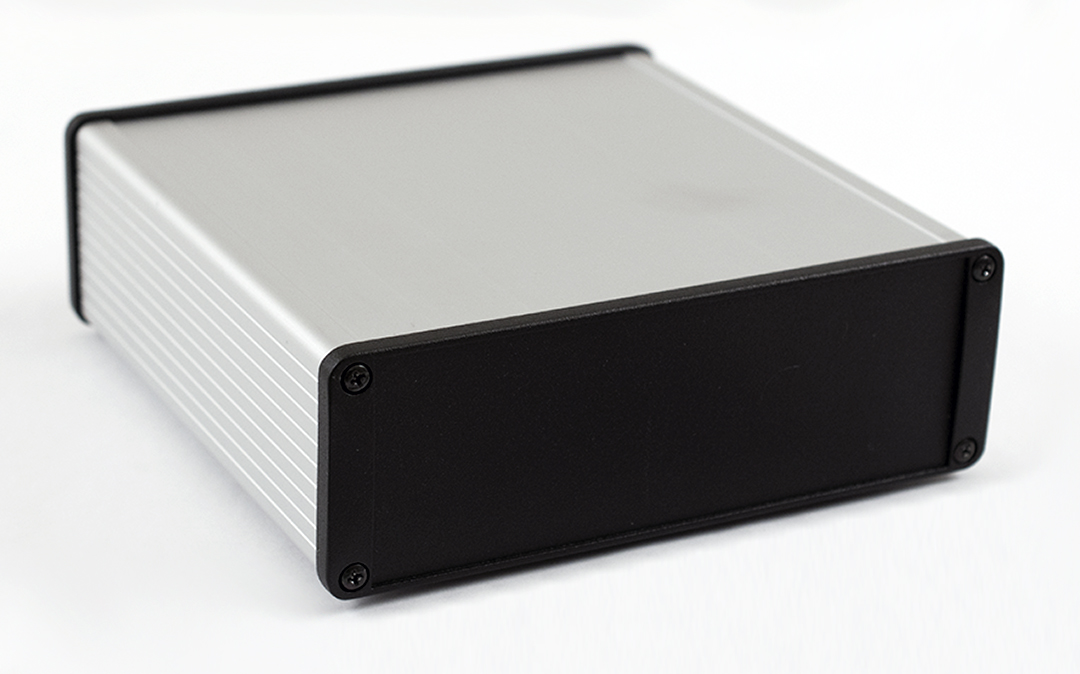

Save 52%1457T1601 — 1457T 160MM Enclosure Clear ANOD V1
Hammond Manufacturing · 1457T1601
Save 52%1457T2201 — 1457T 220MM Enclosure Clear ANOD V1
Hammond Manufacturing · 1457T2201

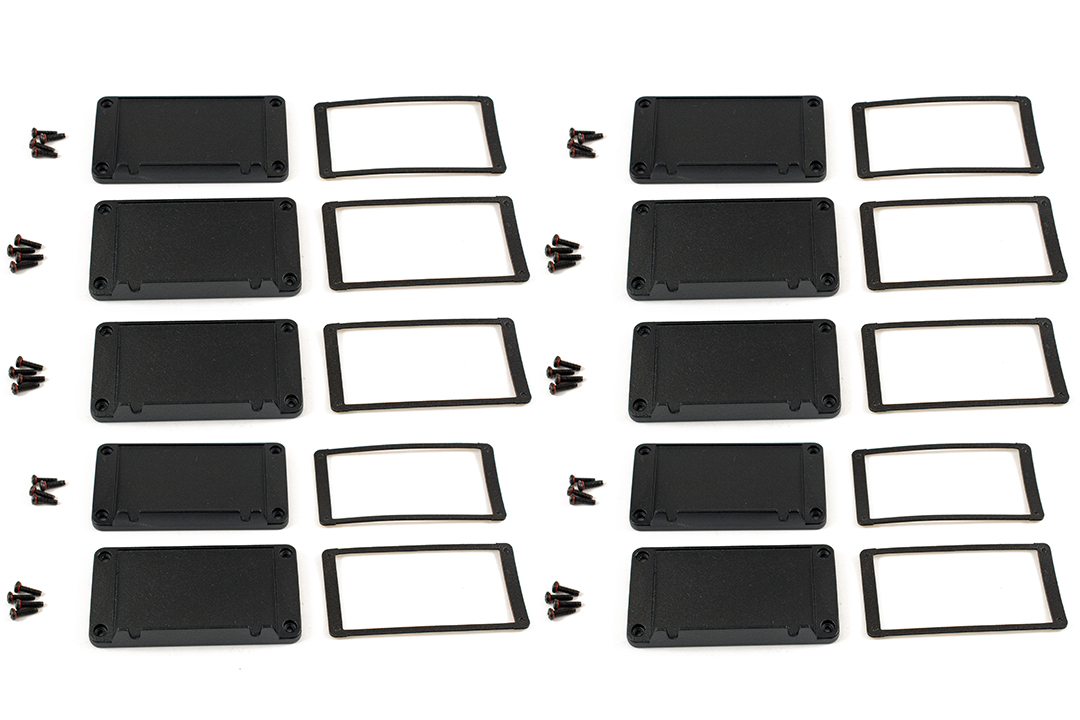

Save 52%1457NWPF-10 — 1457N flanged watertight end panels and gasket kit - 10/pack
