Hammond 1457NPG-10 Watertight Replacement Gaskets for 1457N, 10-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 10-pack of watertight gaskets for 1457-EMI enclosures beginning 1457N
- Water-tight alternative to the 1457NEG-10 EMI gasket
- 104.00 mm [4.094 in] x 54.60 mm [2.150 in], 1.57 mm [0.062 in] thick (drawing)
- Four Ø2.50 mm holes and R4.00 mm corners
- RoHS and REACH compliant
The 1457NPG-10 is a 10-pack of watertight replacement gaskets listed for 1457-EMI Series enclosures whose part number begins with 1457N. It is the water-tight alternative to the EMI gasket 1457NEG-10 in the series replacement gasket table, for users who need to replace worn gaskets or swap the conductive seal for a water-tight one.
Per the drawing, each gasket is 104.00 mm [4.094 in] wide by 54.60 mm [2.150 in] high and 1.57 mm [0.062 in] thick, with four Ø2.50 mm [Ø0.098 in] holes and R4.00 mm [R0.157 in] corners, matching the 1457N end panel profile.
Keep in mind the difference between the two gasket types in this series: the EMI gaskets supplied with shielded enclosures are conductive Ni/Cu foam/fabric and are noted as not water-tight, while this part is the water-tight option. Choose based on whether shielding or sealing matters more for the application, and order the matching 1457N part.
The 1457NPG-10 ships at 0.01 lbs (0.00 kg) and is RoHS and REACH compliant. Complete end panel and gasket kits for 1457N enclosures are also listed as 1457NEP and 1457NEPF.
Ideal For
- Replacing worn gaskets on 1457N enclosures
- Swapping to a water-tight end seal
- Maintenance spares for enclosure fleets
Overview
| Series | 1457-EMI Series (EMI/RFI Shielded Extruded Aluminum Enclosures) |
| Product Type | Watertight replacement gasket |
| Pack Quantity | 10-pack |
| Alternative Gasket | 1457NEG-10 (EMI gaskets, 10-pack) |
| Fits Enclosures Beginning With | 1457N |
Dimensions
| Thickness (Drawing) | 1.57 mm [0.062 in] |
| Outer Width (Drawing) | 104.00 mm [4.094 in] |
| Outer Height (Drawing) | 54.60 mm [2.150 in] |
| Corner Radius (Drawing) | 4 x R4.00 mm [R0.157 in] |
| Mounting Holes (Drawing) | 4 x Ø2.50 mm [Ø0.098 in] |
Identifiers
| UPC | 623980018850 |
| UNSPSC | 39121301 |
| Part Number | 1457NPG-10 |
| Long Description | 1457N watertight gaskets - 10/pack |
| Short Description | 1457N WATERTIGHT GASKET, 10 PK |
Packaging & Shipping
| Shipping Weight | 0.01 lbs (0.00 kg) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1457NPG-10 fit?▾
It is listed in the 1457-EMI replacement gasket table for enclosures whose part number begins with 1457N.
How many gaskets are in a pack?▾
Ten (1457N WATERTIGHT GASKET, 10 PK).
What is the difference between 1457NPG-10 and 1457NEG-10?▾
1457NPG-10 is the water-tight gasket; 1457NEG-10 is the EMI gasket, which the spec sheet notes is not water-tight.
What are the gasket dimensions?▾
The drawing shows 104.00 mm [4.094 in] wide by 54.60 mm [2.150 in] high, 1.57 mm [0.062 in] thick, with four Ø2.50 mm holes.
Related Products
Save 52%1457NEG-10 — 1457N emi/rfi gaskets - 10/pack
Hammond Manufacturing · 1457NEG-10
Save 52%1457NWP — 1457N watertight end panels and gasket kit - 2/pack
Hammond Manufacturing · 1457NWP
Save 52%1457N1602BK — black watertight extruded aluminum enclosure 2.15x4.09x6.30
Hammond Manufacturing · 1457N1602BK

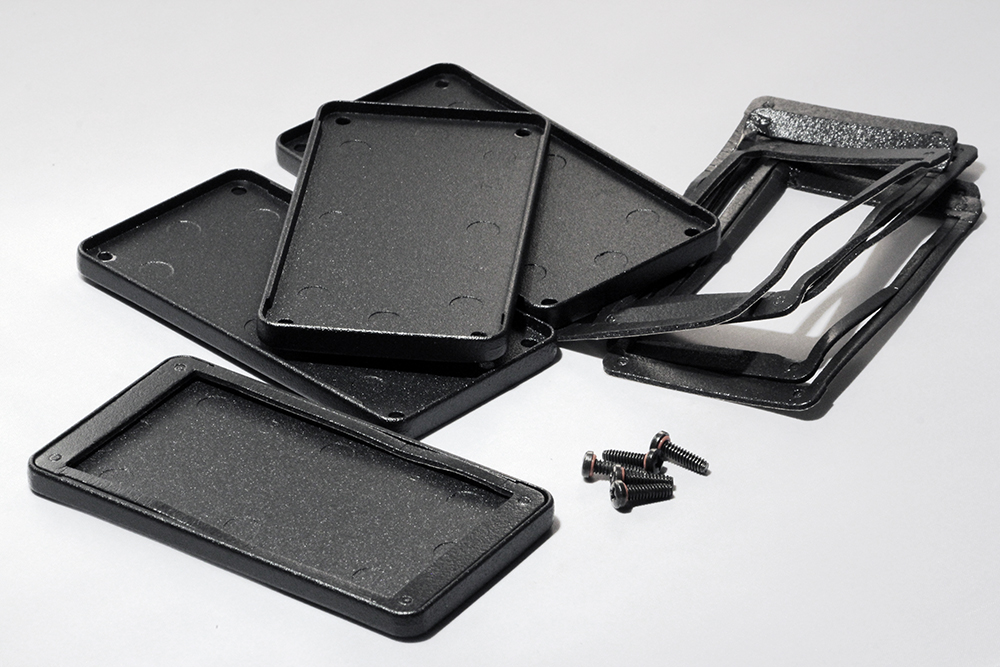

Save 52%1457NWP-10 — 1457N watertight end panels and gasket kit - 10/pack
