Hammond 1455T2201 165 x 220 mm Clear Aluminum Enclosure, Metal Ends

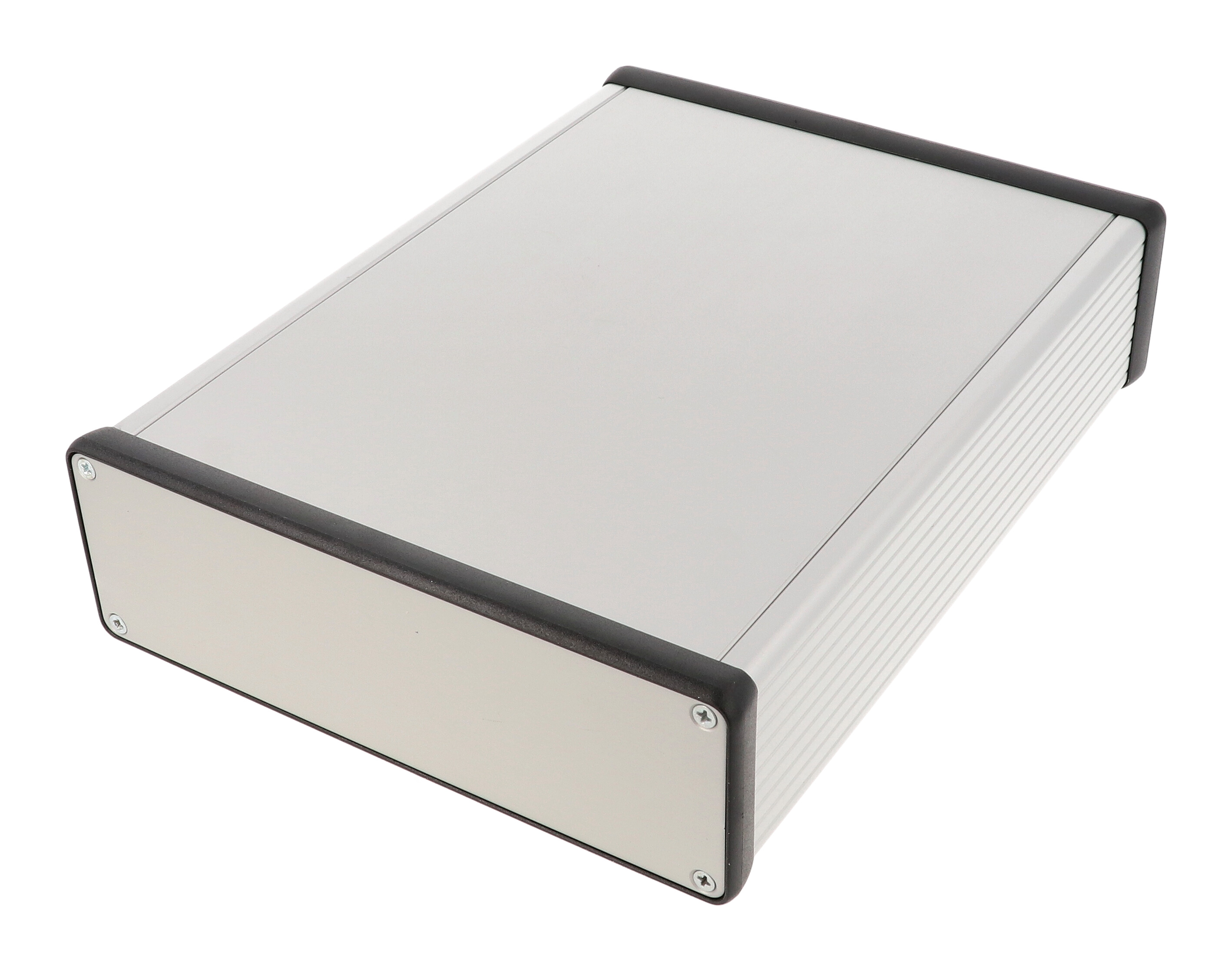

The 1455T2201 is a clear anodized extruded aluminum enclosure from the 1455 Series with metal end panels, measuring 220 mm long by 165 mm wide. Designed to house PC boards or equipment interfacing electronics, it accepts a board up to 219 mm long and 159.5 mm wide, and suits OEM engineers who need front and rear panels that can be machined for connectors, displays or controls.

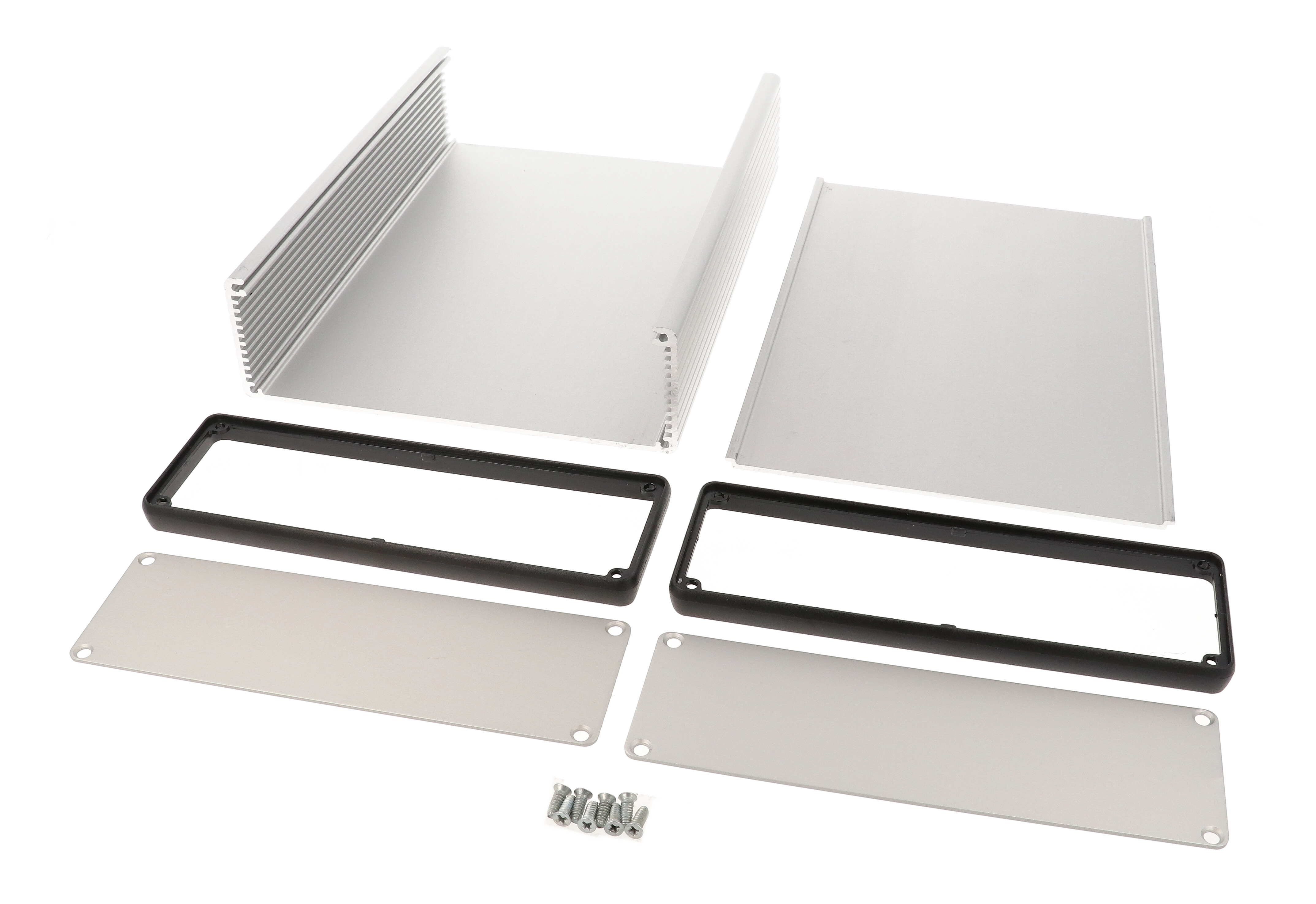

The body is extruded 6063 aluminum with a minimum wall thickness of 0.06 in (1.5 mm), finished in clear anodize. Boards slide horizontally into internal slots extruded into the body, and the extrusion is designed for a 160 mm wide board. This size includes a removable sliding plate. Each end takes a flat aluminum end panel color matched to the housing, framed by a black open plastic bezel. The part data lists an IP54 rating.

Nominal size is 8.66 in x 6.5 in x 2.05 in (220 mm x 165 mm x 52 mm); the drawing gives an extrusion length of 220.00 ±0.50 mm, width of 165.00 mm and height of 51.50 mm. Shipping weight is 1.61 lbs (0.73 kg), shrink wrapped. The drawing calls out optional flange end panels, part 1455TF, for this enclosure.

The 1455T2201 includes four adhesive rubber feet and natural #6 x 3/8 in thread rolling steel end panel screws with a #4 flat head phillips drive, with a recommended torque of 5 lbf-in; replacement screws are 1455MS100 (100). Factory modification (milling, drilling, printing) and STEP or IGES solid models are available. RoHS and REACH compliant.
