Hammond 1455T1201 120 x 165 mm Clear Anodized Aluminum Enclosure, IP54

The 1455T1201 is a clear anodized extruded aluminum enclosure from the Hammond 1455 series, sized 120.00 mm long by 165.00 mm wide by 51.50 mm deep in the series table (short description: 165 X 50.5 X 120MM). It is built to house PC boards or for equipment interfacing, and suits electronics designers, OEM engineers and test-equipment builders who want a compact metal case with a clean anodized finish.

The body is extruded aluminum with a minimum thickness of 0.06" (1.5 mm), and the part page lists an IP54 rating. The drawing notes the extrusion is designed for a 160 mm wide PC board; boards mount horizontally by sliding into internal slots extruded into the body, with a 160.48 ± 1.20 mm internal width and 46.98 ± 0.61 mm internal height shown. This model is listed among the enclosures with a sliding plate.

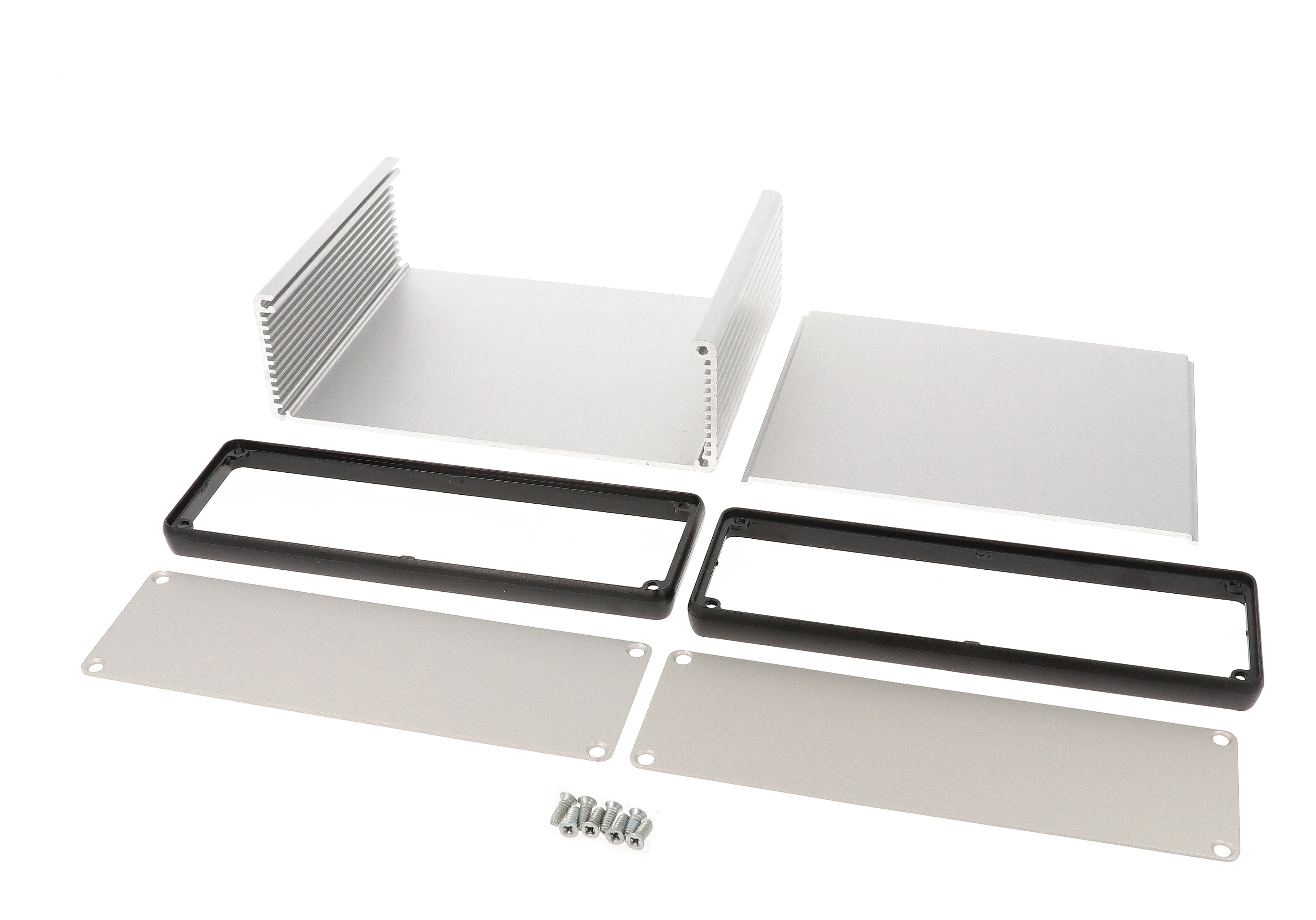

This is the metal end plate version. It includes two flat aluminum end panels colour matched to the housing, two open plastic bezels in black, four adhesive rubber feet and #6 x 3/8" thread rolling steel end panel screws with a #4 flat head phillips drive; clear anodized versions come with natural screws. Recommended screw torque is 5 lbf-in. Overall dimensions on the drawing reach 169.50 mm [6.673 in] wide and 55.63 mm [2.190 in] high at the end plates.

Options: optional flange end panels 1455TF, factory modification (milling, drilling, printing), and solid models in STEP or IGES. The plastic end panel equivalent is 1455T1202. Shipping weight is listed as 0.35 lbs (0.16 kg); the part is REACH and RoHS compliant.
