Hammond 1455PAL-10 Clear Anodized Aluminum End Panels, 10-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pack of 10 clear anodized aluminum end panels
- Fits 1455P extruded aluminum enclosures (1455 Series)
- Allows colour mixing and matching between body and ends
- Also offered in black (1455PALBK-10), blue (1455PALBU-10), red (1455PALRD-10)
- Shipping weight 0.33 lbs (0.15 kg), bagged
- RoHS and REACH compliant
The 1455PAL-10 is a 10-pack of clear anodized aluminum end panels for 1455P enclosures in the 1455 Series of extruded aluminum enclosures. It is intended for builders who stock spare panels for production runs, need to replace damaged or already-machined panels, or want to re-finish the ends of an existing 1455P housing.
The panels are aluminum in a clear (anodize) finish. The series offers extra end panels in 10-packs in clear, black, red or blue anodized finishes, and accessory panels and bezels allow for mixing and matching of colours, so a clear end can be combined with a different body colour when that helps identify a unit. The other finishes for the 1455P size are black (1455PALBK-10), blue (1455PALBU-10), red (1455PALRD-10).
On the 1455 Series metal-end-panel enclosures, the flat aluminum end panels are fitted together with open black plastic bezels and secured with #6 x 3/8" thread rolling steel screws with a #4 flat head Phillips drive; the recommended screw torque is 5 lbf-in. Replacement screws are sold separately in quantities of 100 (1455MS100 natural, 1455MS100BK black).
The pack ships in a bag with a shipping weight of 0.33 lbs (0.15 kg). The 1455PAL-10 is RoHS compliant and REACH compliant, and is classified under UNSPSC 39121301.
Ideal For
- Spare end panels for 1455P enclosures
- Mixing and matching end colours on 1455P housings
- Replacing panels that were machined for a previous design
Overview
| Type | End Panels |
| Description | aluminum end panels for 1455P enclosures- 10/pack |
| Compatibility | Enclosures with part number starting 1455P |
| Pack Quantity | 10 |
| Short Description | 1455P ALUM END PLATE, PK OF 10 |
Identifiers
| UPC | 623980582771 |
| Series | 1455 Series |
| UNSPSC | 39121301 |
| Part Number | 1455PAL-10 |
| Red Anodize 10-pack | 1455PALRD-10 |
| Blue Anodize 10-pack | 1455PALBU-10 |
| Black Anodize 10-pack | 1455PALBK-10 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.33 lbs (0.15 kg) |
Construction & Finish
| Color | Clear (Anodize) |
| Finish | Clear anodize |
| Material | Aluminum |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1455PAL-10 fit?▾
These end panels are for 1455P enclosures (part numbers starting with 1455P) in the 1455 Series.
How many panels are in the pack?▾
The pack contains 10 aluminum end panels.
What finishes are available?▾
This part is clear anodized. The same panels come in black (1455PALBK-10), blue (1455PALBU-10), red (1455PALRD-10).
Are screws included?▾
The data lists this part as a 10-pack of end panels only. Replacement screws are sold separately in quantities of 100: 1455MS100 (natural) or 1455MS100BK (black).
Is it RoHS compliant?▾
Yes, it is RoHS compliant and REACH compliant.
Related Products

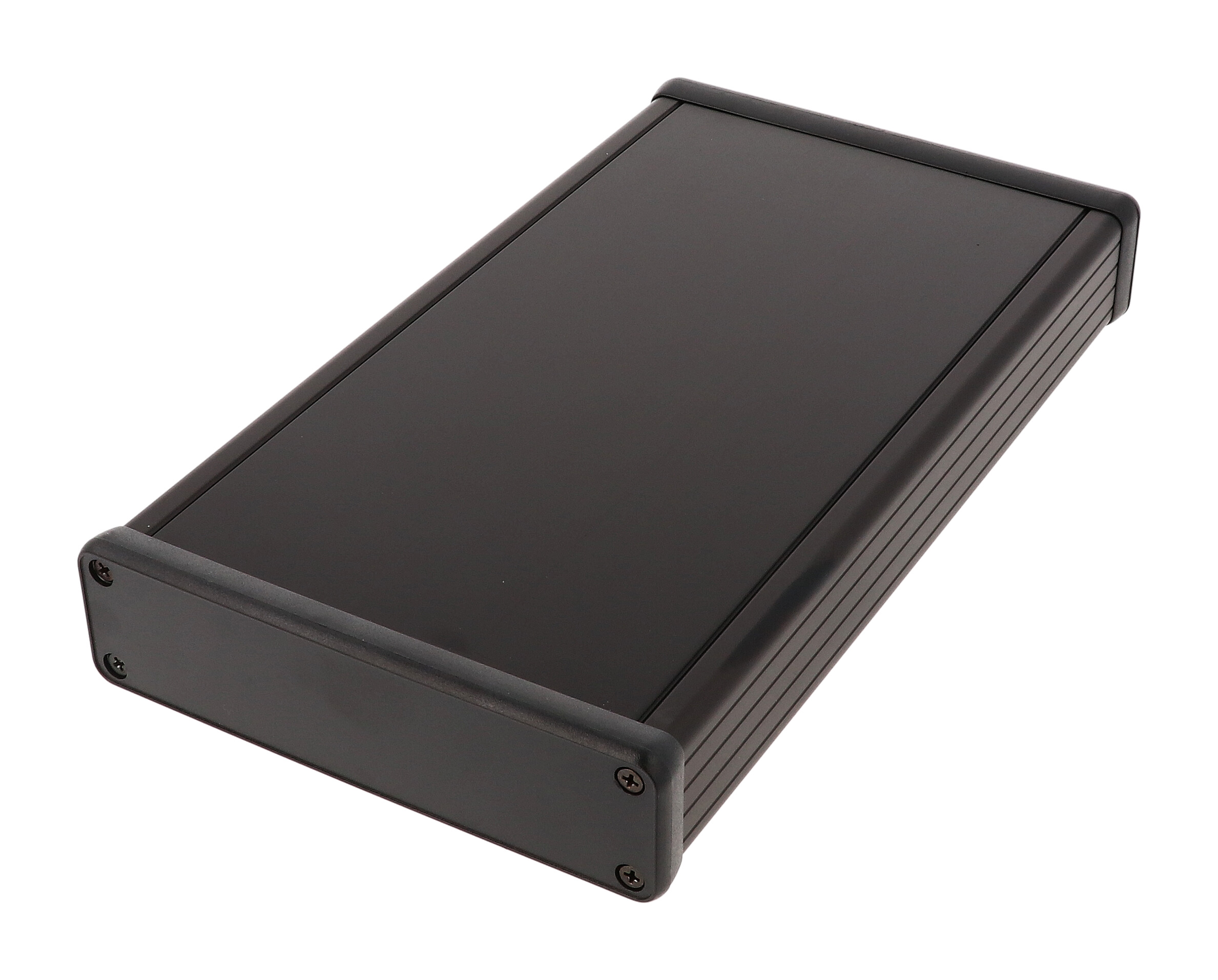

Save 52%1455P2202BK — black extruded aluminum enclosure w/ plastic end panels
Hammond Manufacturing · 1455P2202BK
Save 52%1455PALBK-10 — black aluminum end panels for 1455P enclosures- 10/pack
Hammond Manufacturing · 1455PALBK-10

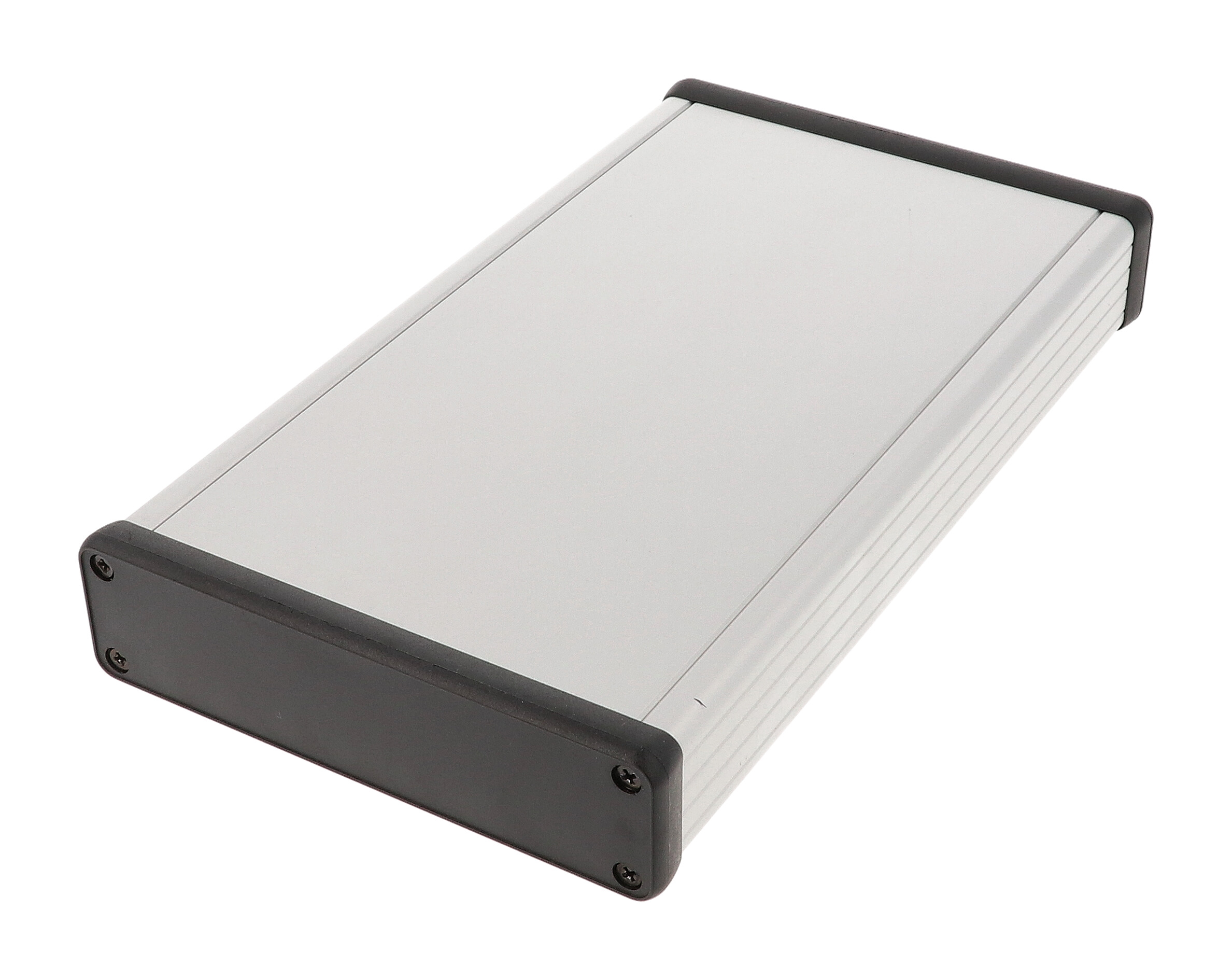

Save 52%1455P2202 — extruded aluminum enclosure w/ plastic end panels
Hammond Manufacturing · 1455P2202
Save 52%1455PALBU-10 — blue aluminum end panels for 1455P enclosures- 10/pack
Hammond Manufacturing · 1455PALBU-10

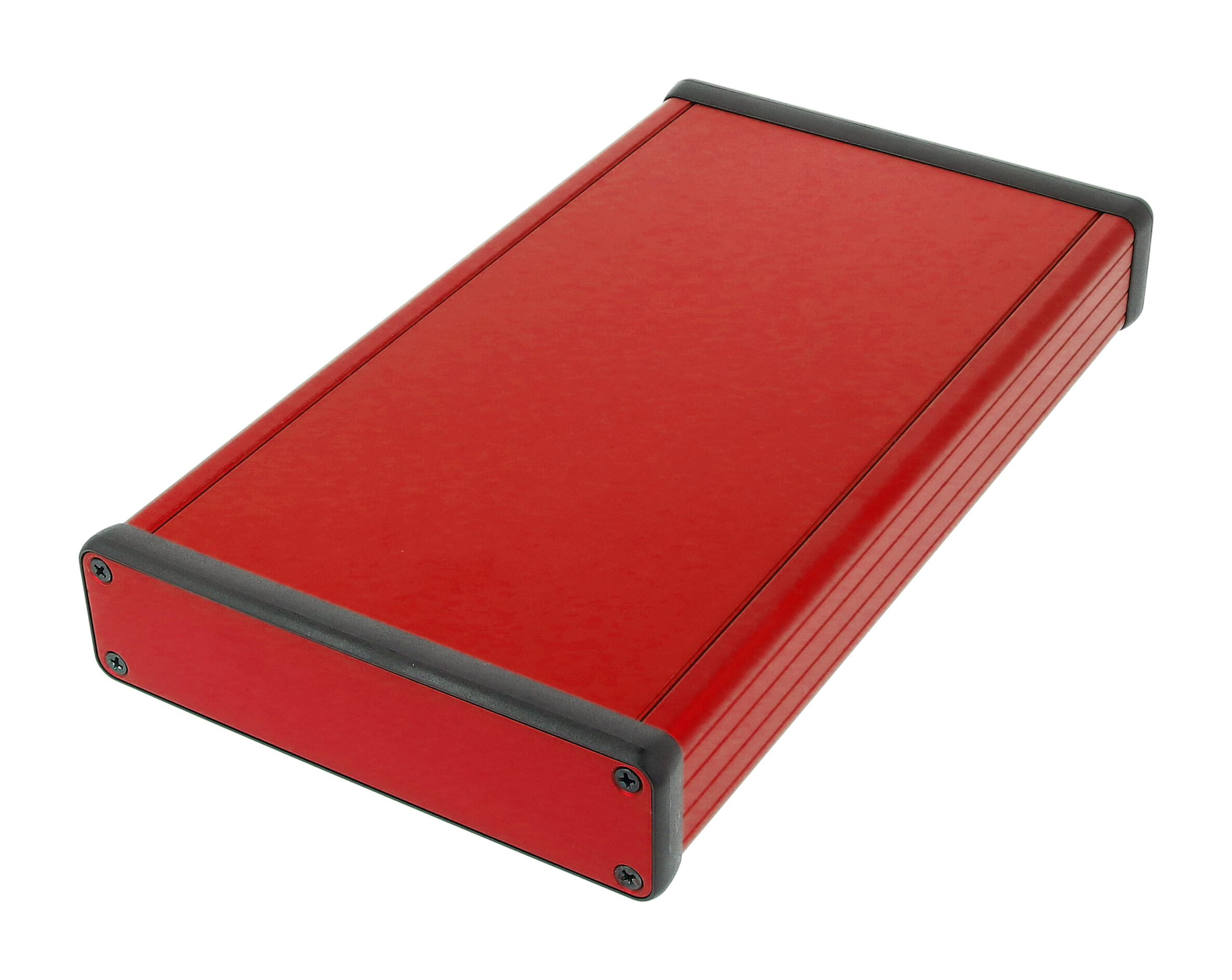

Save 52%1455P2201RD — red extruded aluminum enclosure w/ metal end panels
