Hammond 1455P2202BK 220x125x30.5mm Black Aluminum Enclosure, Plastic Ends

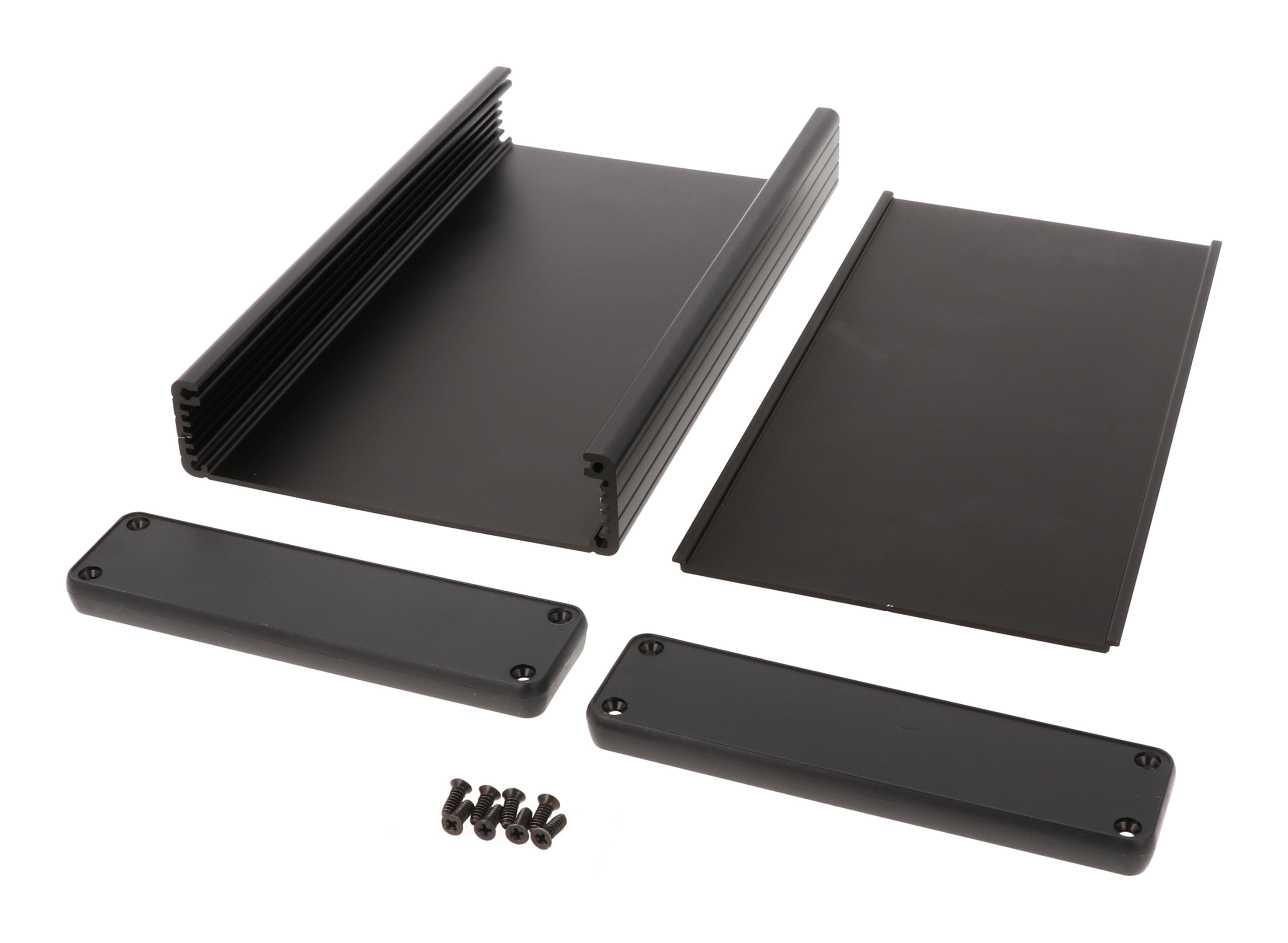

The 1455P2202BK pairs a 220 mm black anodized extruded aluminum body with two closed black plastic end panels. Measuring 8.66 in x 4.92 in x 1.22 in (220 mm x 125 mm x 31 mm), it is a 1455 Series PC board enclosure for designers housing longer boards, up to 219 mm, in a slim 30.5 mm profile.

The body is extruded from 6063 aluminum with a minimum wall thickness of 0.06" (1.5 mm). PC boards mount horizontally by sliding into slots extruded into the enclosure body; the extrusion is designed for a 120 mm wide PC board, and this size accepts a board up to 219 mm long and 119.5 mm wide. A removable sliding plate is included, and the enclosure carries an IP54 rating.

The purchased assembly includes the box, two closed black plastic end panels made from ABS, #6 Taptight screws and self-adhesive rubber feet. The series specifies #6 x 3/8" thread rolling steel screws with a #4 flat head Phillips drive at a recommended torque of 5 lbf-in; black anodized versions use black screws.

• Drawing length: 220.00 ±0.50 mm [8.661 ±0.020 in]; outer width 125.00 mm [4.921 in]; height 30.50 mm [1.201 in]
• Inside width 120.50 ±0.89 mm [4.744 ±0.035 in], inside height 26.45 ±0.38 mm [1.041 ±0.015 in]
• Shipping weight 1 lbs (0.45 kg), packed in shrink wrap
• RoHS and REACH compliant

Enclosures can be factory modified (milling, drilling, printing and similar), and solid models of this enclosure are available in STEP or IGES for fitting boards and panels in CAD before ordering. The matching aluminum-end version in the same finish is 1455P2201BK.
