Hammond 1455K801 80x78x43mm Clear Aluminum Enclosure, Metal Ends

1455K801 is a clear anodized extruded aluminum enclosure with metal end panels from the Hammond 1455 series, measuring 80 x 78 x 43 mm (3.15 x 3.07 x 1.69 in). It is designed to house PC boards or for equipment interfacing, making it a fit for electronics designers, OEM engineers and integrators building compact instruments, interface modules and controllers.

The rugged body is extruded aluminum with a minimum wall thickness of 0.06" (1.5 mm) and an anodized finish. PC boards mount horizontally by sliding into internal slots extruded into the body; the drawing notes the extrusion is designed for a 75 mm wide PC board. This size is listed in the Enclosures With Sliding Plate table, so it includes a removable sliding plate.

Per the drawing, the extrusion is 78.00 mm [3.071 in] wide and 43.02 mm [1.694 in] high, with a length of 80.00 ± 0.51 mm [3.150 ± 0.020 in]. Each aluminum end plate measures 77.98 mm x 42.93 mm and 1.50 mm thick with four 0.165 in thru holes countersunk 0.230 in x 82°, and the open bezel measures 81.13 x 46.13 mm with a 9.00 mm depth. The drawing also shows optional flanged end panels, part 1455KF.

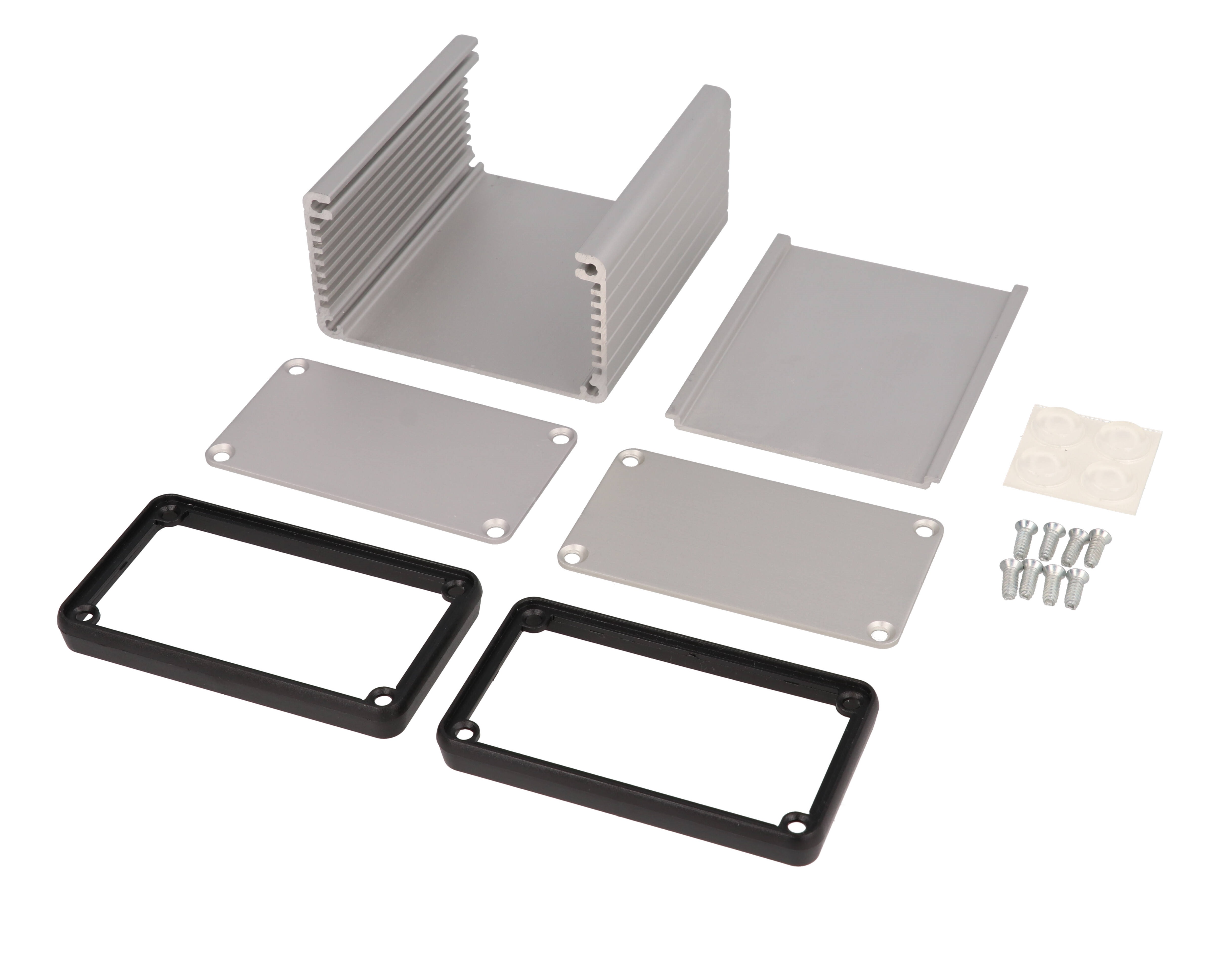

It includes two flat aluminum end panels colour-matched to the clear housing, two open plastic bezels in black, four adhesive rubber feet, and #6 x 3/8" thread rolling steel end panel screws with a #4 flat head Phillips drive in a natural finish. Recommended screw torque is 5 lbf-in. Replacement rubber feet are 1421T2CL (pack of 24); replacement screws are 1455MS100 (natural) and 1455MS100BK (black), 100 per pack.

1455K801 has a shipping weight of 0.35 lbs (0.16 kg), is listed as RoHS and REACH compliant, and carries UPC 623980455532. Enclosures can be factory modified (milling, drilling, printing) and solid models are available in STEP or IGES.
