Hammond 1455J802 80x78x27mm Clear Aluminum Enclosure, Plastic Ends
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Extruded aluminum enclosure, 3.15 in x 3.07 in x 1.06 in (80 mm x 78 mm x 27 mm), clear anodized finish
- Extrusion designed for 75 mm wide PC boards in internal horizontal slots
- Two black closed plastic end panels included
- Removable sliding plate; minimum 0.06" (1.5 mm) wall
- Four adhesive rubber feet and natural #6 x 3/8" thread rolling end panel screws included
- Factory modification available; STEP or IGES solid models
- RoHS and REACH compliant
The 1455J802 is a clear anodized extruded aluminum enclosure measuring 3.15 in x 3.07 in x 1.06 in (80 mm x 78 mm x 27 mm), supplied with plastic end panels. It is designed to house PC boards or for equipment interfacing, making it a fit for electronics designers, OEM engineers and technicians packaging a small circuit board, sensor interface or control module.
The body is extruded aluminum with a minimum wall thickness of 0.06" (1.5 mm). PC boards mount horizontally by sliding into internal slots extruded into the enclosure body; the drawing notes that the extrusion is designed for a 75 mm wide PC board. This size is listed in the 1455 series table of enclosures with a removable sliding plate.
As a plastic end plate version, the 1455J802 includes two closed end panels in black, plus four adhesive rubber feet and #6 x 3/8" thread rolling steel end panel screws with a #4 flat head Phillips drive in natural finish. Recommended screw torque is 5 lbf-in; replacement screws are 1455MS100 (quantity 100) and replacement feet are 1421T2CL (pack of 24).
Listed shipping weight is 0.3 lbs (0.14 kg). It is RoHS and REACH compliant. Hammond notes that these enclosures can be factory modified (milling, drilling, printing) and that solid models are available in STEP or IGES. The matching metal end panel version is 1455J801.
Ideal For
- Housing PC boards in a compact aluminum case
- Equipment interfacing enclosures
- Prototype and small-run electronics packaging
- Closed-end PC board housings with plastic end caps
Overview
| Series | 1455 Series Extruded Aluminum Enclosures |
| Description | extruded aluminum enclosure w/ plastic end panels |
| Sliding Plate | Yes (listed under Enclosures With Sliding Plate) |
| End Panel Type | Plastic end panels |
| Short Description | 78 X 27 X 80MM EXTRUDED ENCL |
| Matching Metal End Panel Version | 1455J801 |
Dimensions
| Size L X W X H | 3.15 in x 3.07 in x 1.06 in (80 mm x 78 mm x 27 mm) |
| Internal Width (Drawing) | 75.00 ± 0.51 mm [2.953 ± 0.020 in] |
| Extrusion Width (Drawing) | 78.00 mm [3.071 in] |
| Internal Height (Drawing) | 24.01 ± 0.38 mm [0.945 ± 0.015 in] |
| Extrusion Height (Drawing) | 27.01 mm [1.063 in] |
| Extrusion Length (Drawing) | 80.00 ± 0.50 mm [3.150 ± 0.020 in] |
| Nominal Size (Ordering Table) | Length 80.00 mm, Width 78.00 mm, Depth 27.00 mm |
| Closed Bezel Outline (Drawing) | 81.13 mm x 30.13 mm [3.194 in x 1.186 in] |
| PC Board Width (Extrusion Designed For) | 75 mm |
Identifiers
| UPC | 623980615011 |
| UNSPSC | 39121301 |
| Part Number | 1455J802 |
Packaging & Shipping
| Shipping Weight | 0.3 lbs (0.14 kg) |
Construction & Finish
| Material | Aluminum (Extruded) |
| CAD Models | Solid models available in STEP or IGES |
| End Panels | Two closed end panels, black |
| Rubber Feet | Four adhesive rubber feet included |
| Color / Anodize | Clear (Anodize) |
| End Panel Screws | #6 x 3/8" thread rolling steel, #4 flat head Phillips drive, natural |
| PC Board Mounting | Horizontal, sliding into internal slots extruded into the body |
| Factory Modification | Milling, drilling, printing etc. |
| Minimum Wall Thickness | 0.06" (1.5 mm) |
| Recommended Screw Torque | 5 lbf-in |
| Wall Thickness (Drawing) | 1.50 mm [0.059 in] |
| Replacement Screws (Qty 100) | 1455MS100 |
| Replacement Rubber Feet (Pack Of 24) | 1421T2CL |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1455J802?▾
It measures 3.15 in x 3.07 in x 1.06 in (80 mm x 78 mm x 27 mm) (L x W x H).
What size PC board fits?▾
The drawing states the extrusion is designed for a 75 mm wide PC board, which slides horizontally into internal slots.
What comes in the box?▾

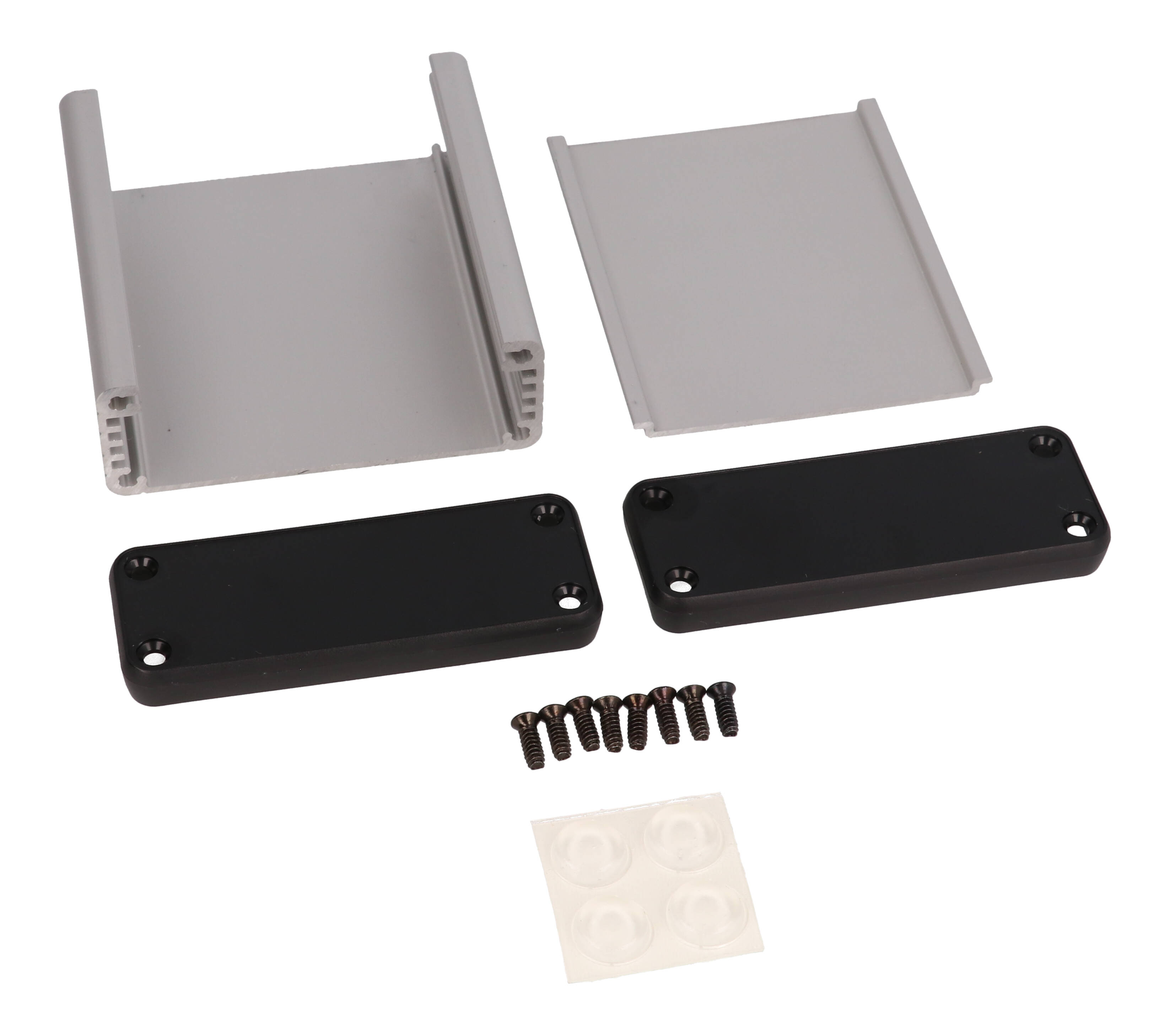

The extruded aluminum body with sliding plate, two black closed end panels, four adhesive rubber feet and #6 x 3/8" thread rolling end panel screws.
What colour are the screws?▾
Clear anodized versions include natural screws; replacements are 1455MS100 in quantities of 100.
Can the enclosure be customized?▾
The drawing states enclosures can be factory modified (milling, drilling, printing etc.) and that solid models are available in STEP or IGES.
