Hammond 1455J801RD 80x78x27mm Red Aluminum Enclosure, Metal Ends
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Extruded aluminum enclosure, 3.15 in x 3.07 in x 1.06 in (80 mm x 78 mm x 27 mm), red anodized finish
- Extrusion designed for 75 mm wide PC boards in internal horizontal slots
- Two flat aluminum end panels colour matched to housing plus two black open bezels
- Removable sliding plate; minimum 0.06" (1.5 mm) wall
- Four adhesive rubber feet and black #6 x 3/8" thread rolling end panel screws included
- Factory modification available; STEP or IGES solid models
- RoHS and REACH compliant

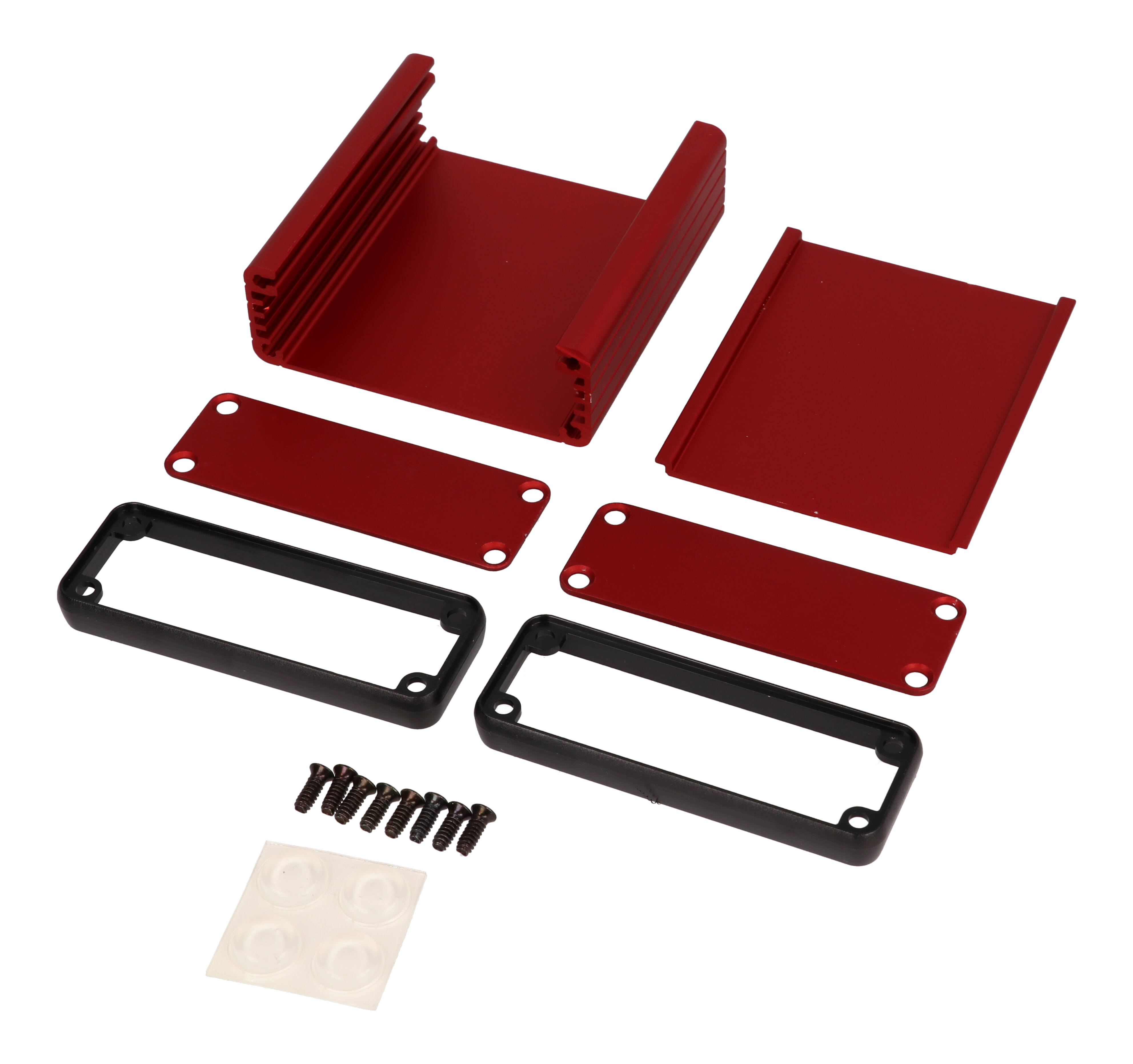

The 1455J801RD is a red anodized extruded aluminum enclosure measuring 3.15 in x 3.07 in x 1.06 in (80 mm x 78 mm x 27 mm), supplied with metal (aluminum) end panels. It is designed to house PC boards or for equipment interfacing, making it a fit for electronics designers, OEM engineers and technicians packaging a small circuit board, sensor interface or control module.
The body is extruded aluminum with a minimum wall thickness of 0.06" (1.5 mm). PC boards mount horizontally by sliding into internal slots extruded into the enclosure body; the drawing notes that the extrusion is designed for a 75 mm wide PC board. This size is listed in the 1455 series table of enclosures with a removable sliding plate.
As a metal end plate version, the 1455J801RD includes two flat aluminum end panels colour matched to the red housing and two open plastic bezels in black. Also included are four adhesive rubber feet and #6 x 3/8" thread rolling steel end panel screws with a #4 flat head Phillips drive, in black finish for this red version. Hammond recommends 5 lbf-in of screw torque; replacement screws are 1455MS100BK (quantity 100) and replacement feet are 1421T2CL (pack of 24). Optional flange end panels are shown on the drawing as 1455JF.
Listed shipping weight is 0.3 lbs (0.14 kg). It is RoHS and REACH compliant. Hammond notes that these enclosures can be factory modified (milling, drilling, printing) and that solid models are available in STEP or IGES.
Ideal For
- Housing PC boards in a compact aluminum case
- Equipment interfacing enclosures
- Prototype and small-run electronics packaging
- Front and rear panels machined for connectors in aluminum end plates
Overview
| Series | 1455 Series Extruded Aluminum Enclosures |
| Description | extruded red aluminum enclosure w/ metal end panels |
| Sliding Plate | Yes (listed under Enclosures With Sliding Plate) |
| End Panel Type | Aluminum (metal) end panels |
| Short Description | 78 X 27 X 80MM EXTRUDED ENCL |
Dimensions
| Size L X W X H | 3.15 in x 3.07 in x 1.06 in (80 mm x 78 mm x 27 mm) |
| Internal Width (Drawing) | 75.00 ± 0.51 mm [2.953 ± 0.020 in] |
| Extrusion Width (Drawing) | 78.00 mm [3.071 in] |
| Internal Height (Drawing) | 24.01 ± 0.38 mm [0.945 ± 0.015 in] |
| Extrusion Height (Drawing) | 27.01 mm [1.063 in] |
| Extrusion Length (Drawing) | 80.00 ± 0.50 mm [3.150 ± 0.020 in] |
| Open Bezel Outline (Drawing) | 78.13 mm x 30.13 mm [3.076 in x 1.186 in] |
| Nominal Size (Ordering Table) | Length 80.00 mm, Width 78.00 mm, Depth 27.00 mm |
| Aluminum End Plate Size (Drawing) | 69.98 mm x 26.92 mm [2.755 in x 1.060 in] |
| PC Board Width (Extrusion Designed For) | 75 mm |
Identifiers
| UPC | 623980605036 |
| UNSPSC | 39121301 |
| Part Number | 1455J801RD |
Packaging & Shipping
| Shipping Weight | 0.3 lbs (0.14 kg) |
Construction & Finish
| Bezels | Two open plastic bezels, black |
| Material | Aluminum (Extruded) |
| CAD Models | Solid models available in STEP or IGES |
| End Panels | Two flat aluminum end panels, colour matched to housing |
| Rubber Feet | Four adhesive rubber feet included |
| Color / Anodize | Red |
| End Panel Screws | #6 x 3/8" thread rolling steel, #4 flat head Phillips drive, black |
| PC Board Mounting | Horizontal, sliding into internal slots extruded into the body |
| Factory Modification | Milling, drilling, printing etc. |
| Minimum Wall Thickness | 0.06" (1.5 mm) |
| Recommended Screw Torque | 5 lbf-in |
| Wall Thickness (Drawing) | 1.50 mm [0.059 in] |
| Optional Flange End Panels | 1455JF (per drawing) |
| Replacement Screws (Qty 100) | 1455MS100BK |
| Replacement Rubber Feet (Pack Of 24) | 1421T2CL |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1455J801RD?▾
It measures 3.15 in x 3.07 in x 1.06 in (80 mm x 78 mm x 27 mm) (L x W x H).
What size PC board fits?▾
The drawing states the extrusion is designed for a 75 mm wide PC board, which slides horizontally into internal slots.
What comes in the box?▾
The extruded aluminum body with sliding plate, two flat aluminum end panels colour matched to the housing, two black open plastic bezels, four adhesive rubber feet and #6 x 3/8" thread rolling end panel screws.
What colour are the screws?▾
Black, red and blue anodized versions include black screws; replacements are 1455MS100BK in quantities of 100.
Can the enclosure be customized?▾
The drawing states enclosures can be factory modified (milling, drilling, printing etc.) and that solid models are available in STEP or IGES.
